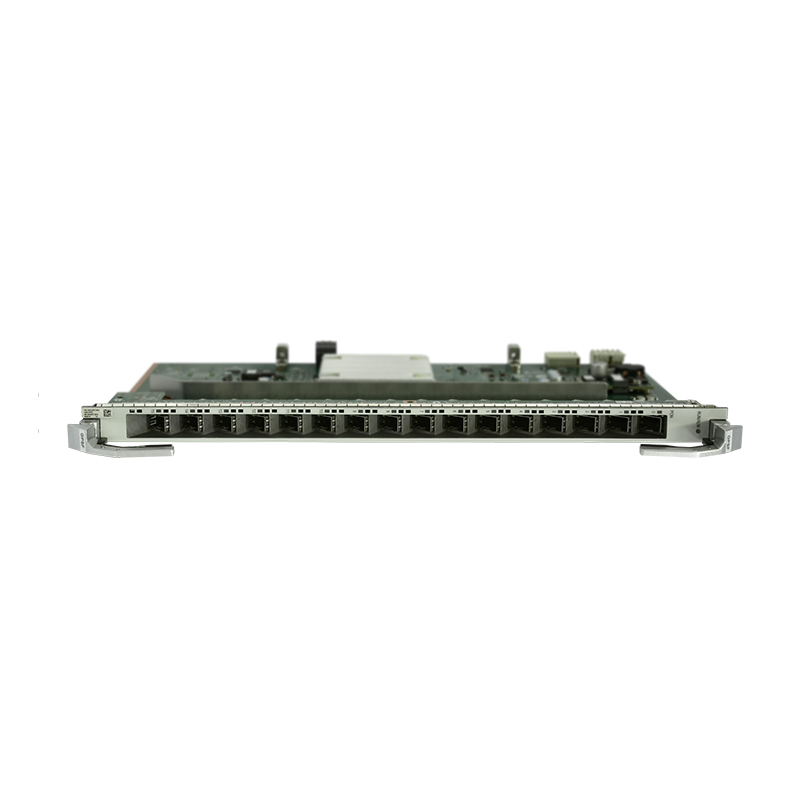

H901GPSF, Huawei SmartAX MA5800 OLT Board, 16xGPON ports

100% Genuine Ready to Ship

Overview

Huawei H901GPSF Overview

The Huawei H901GPSF is a carrier-grade GPON OLT interface module for SmartAX MA5800 platforms, ideal for high-density fiber access in FTTx deployments. It delivers 16 GPON ports with up to 2.488Gbps downstream and 1.244Gbps upstream per port, supporting data, voice, video, and mobile backhaul over a single optical infrastructure. With a 1:128 split ratio, up to 20km reach on single-mode fiber, and Class B+/C+ SFP optics, this OLT board helps operators and ISPs build scalable, cost-efficient access networks.

Product Highlights

16 ports

GPON Ports

1:128

Split Ratio

20km

Reach Fiber

Product Applications Scenarios

Service Providers

Enables high-density GPON aggregation with 1:128 split ratio, reducing per-subscriber fiber costs by up to 40% for regional ISPs and telcos.

Enterprise Network

Delivers converged data, voice, and video over GPON, simplifying enterprise campus last-mile wiring and cutting O&M overhead significantly.

Public Infrastructure

Provides secure, long-reach fiber access up to 20km, ideal for municipal FTTx, CCTV, and public Wi-Fi backhaul with centralized management.

Product Features Comparison


Model	H901GPSF, Huawei SmartAX MA5800 OLT Board, 16×GPON ports	H901GPSF02, Huawei H901 Series OLT Interface Board, 16-port GPON, Class C+ SFP, Optical Module Included	LPU4I1, Huawei OceanStor Module, 4×1Gbps Ethernet/4 Ports/I-O Module	TNDD00EM8F03, Huawei TNDD00EM8F Series Interface Board, 8×GE/FE SFP, Optical
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	16-port GPON OLT interface board	16-port GPON OLT Interface Board(including Class C+ SFP Optical Module)	Ethernet I/O Module	n/a
Port Configuration	16 GPON ports	Maximum Number of Ports in a Subrack: 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	4 × 1Gbps	n/a
Supported Speed	Up to 2.488Gbps downstream, Up to 1.244Gbps upstream	Switching Capacity of the System: 7 Tbit/s	1Gbps per port	Transmit Speed: 1Gbps / 100Mbps
Compatible Platform	SmartAX MA5800 Series	Product Series: MA5800-X7	Huawei OceanStor	Huawei OLT Systems
Installation Type	Rack-mountable in MA5800 series chassis; Plug-in module	n/a	Form Factor: Plug-in module	Form Factor: Plug-in module

Optional Add-ons

Model Number	Description
H901GPSF02	Huawei 16-port GPON OLT interface board with Class C+ SFP optical modules for MA5800 series expansion
TNDD00EM8F03	Huawei 8×GE/FE SFP optical interface board to aggregate uplinks from MA5800 GPON OLT deployments
PDC-650WA-FE	Huawei 650W AC PoE power module providing reliable DC output for access and OLT chassis power redundancy

Quality Certifications

Specification

Huawei H901GPSF Specification

Model

H901GPSF

Brand

Huawei

H901GPSF Specifications Brand

Huawei

Model Name

H901GPSF

Type

16-port GPON OLT interface board

Compatibility

SmartAX MA5800 Series

Ports

16 GPON ports

GPON Port Speed

Up to 2.488Gbps downstream, Up to 1.244Gbps upstream

Optical Module Type

Class B+/C+ SFP Module

Maximum Split Ratio

1:128

Transmission Distance

Up to 20km on single-mode fiber

OLT Management

SNMP, Telnet, OMCI, TR-069

Service Types

Data, Voice, Video, and Mobile Backhaul

Encryption

128-bit AES

Network Protocols Supported

GPON: ITU-T G.984.x

Quality of Service (QoS)

Priority queue, traffic shaping, and DBA

Redundancy Features

Power supply and main control board redundancy

Power Consumption

Max 73W

Operating Temperature

10掳C to +55掳C

Dimensions (H x W x D)

Specify as per actual measurement

Interface Board Type

Plug-in module

Addressing

MAC address learning and aging

Installation

Rack-mountable in MA5800 series chassis

Get more information

Discover unbeatable prices and fast shipping for the H901GPSF, Huawei SmartAX MA5800 OLT Board, 16×GPON ports . Access the detailed H901GPSF, Huawei SmartAX MA5800 OLT Board, 16×GPON ports datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H901GPSF?

Accessories for the H901GPSF include compatible GPON SFP modules, fiber optic cables, and patch panels for fiber management.

How does the H901GPSF compare to other similar products?

The H901GPSF offers high port density and scalability, making it competitive with similar products like the ZTE GTGH and the Alcatel-Lucent ISAM 7302, providing a balance of performance and cost.

What is the warranty period for the H901GPSF 16-port GPON OLT interface board?

The H901GPSF typically comes with a 1-year warranty, but this may vary depending on the reseller's policy and additional warranty services purchased.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H901GPSF 16-port GPON OLT interface board?

The H901GPSF 16-port GPON OLT interface board is highly cost-effective, offering 16 GPON ports which support a large number of connections, making it ideal for large-scale deployments and reducing total cost of ownership.

What are the main features of the H901GPSF interface board?

The H901GPSF features 16 GPON ports, high reliability, flexible service access, and supports both GPON and XG-PON, providing scalability for future network upgrades.

What are the typical application scenarios for the H901GPSF?

The H901GPSF is commonly used in large-scale FTTH deployments, enterprise networking, and ISPs requiring scalable and reliable GPON fiber solutions.

How do I install the H901GPSF 16-port GPON OLT interface board?

Installation involves inserting the H901GPSF into the appropriate slot on the MA5800 chassis, securing it with screws, and connecting the fiber cables to the GPON ports. Ensure the chassis is powered off during installation.

Does the H901GPSF require a software upgrade?

The H901GPSF may require periodic software upgrades to ensure compatibility with new features and security enhancements. Check Huawei's support portal for the latest firmware updates.

Are there alternative products to the H901GPSF?

Alternatives include other GPON OLT interface boards from different manufacturers like the ZTE GTGO or the Nokia 7360 FX, though feature sets and compatibility may vary.

What are common troubleshooting steps for the H901GPSF?

Common troubleshooting includes verifying fiber connections, checking port status LEDs, ensuring correct firmware version, and using Huawei's network management software for diagnostics.
