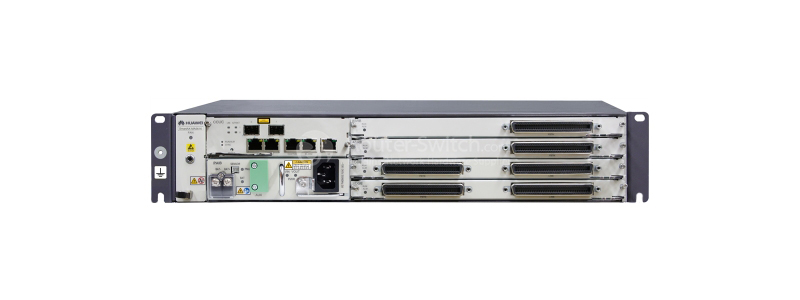

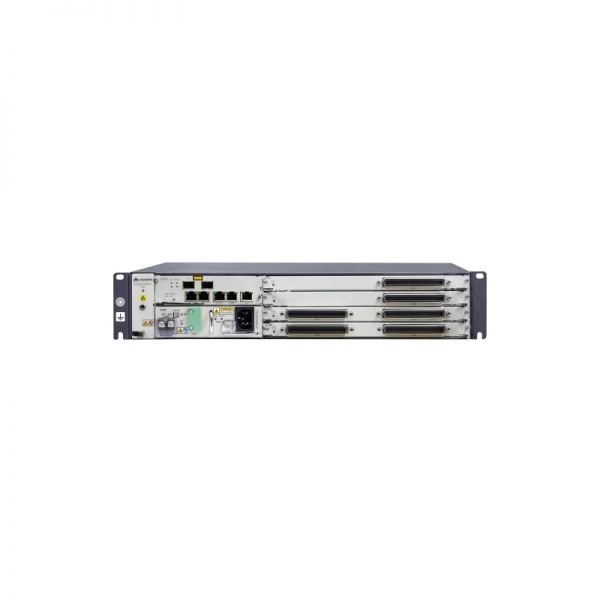

H83D05VDGE01, Huawei MA5800 Board, 16xVDSL/POTS/600Ω Splitter

100% Genuine Ready to Ship

Overview

Huawei H83D05VDGE01 Overview

The Huawei H83D05VDGE01 is a carrier-grade VDSL over POTS service board for MA5616 multi-service access platforms, ideal for FTTx and cable deployments in Asia, Europe, Africa, and North America. It integrates 16 VDSL2 and POTS ports with a built-in 600Ω splitter, simplifying copper access for SMEs and residential users. Supporting ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE interfaces, this module helps distributors, integrators, and operators modernize legacy copper networks with reliable broadband and voice services.

Product Highlights

16 ports

VDSL2 Line

600Ω

Built Split

6 kV

Surge Guard

Product Applications Scenarios

Service Providers

Enables carriers to deliver bundled VDSL2 broadband and POTS voice over existing copper, cutting last-mile upgrade costs by up to 40% versus full fiber rebuilds.

Enterprise Network

Supports branch offices needing data, voice, and legacy E1 or ISDN on one access shelf, simplifying wiring and reducing rack space requirements significantly.

Public Infrastructure

Ideal for campuses, utilities, and municipalities modernizing copper plants, improving service density while maintaining wide temperature and humidity tolerance.

Product Features Comparison


Model	H83D05VDGE01, Huawei MA5800 Board, 16×VDSL/POTS/600Ω Splitter	ES5D000X2S00, Huawei S5700 Switch Module, 2×10GE SFP+, For S5700SI/EI Series	AIM-VPN/SSL-3, Cisco AIM Series Network Module, DES/3DES/AES, SSL VPN, Compression	SL91ISM6, Huawei SL91ISM6 Board, Dual Interface/High Integration/Versatile Application
Brand	Huawei	Huawei	Cisco	Huawei
Module Type	16-port VDSL over POTS Service Board(with 600 ohm Impedance Splitter)	Plug-in Module	Network Module	Radio / Interface Board
Port Configuration	16-port VDSL over POTS	2 x 10 Gigabit Ethernet	n/a	E1, STM-1(e/o), FE(e/o), GE(e/o), 10GE(o)
Supported Speed	ADSL2+, VDSL2, FE, GE	10Gbps	Approximately 100 Mbps	835-1058 Mbit/s per carrier
Compatible Platform	MA5616	S5700SI, S5700EI	Cisco Integrated Services Routers	Huawei microwave / carrier platforms
Installation Type	PCS	Hot-swappable	Internal	Rack IDU/ODU solution

Optional Add-ons

Model Number	Description
H801XGBD02	Huawei MA5800 8×10G GPON uplink board to aggregate VDSL subscribers from H83D05VDGE01.
TN12D4001	Huawei 40-channel 100GHz demux board for WDM backhaul of MA5616 VDSL access traffic.
ME0M00EBGF20	Huawei 12×100/1000Base-SFP flexible line card for routing MA5616 aggregation in core networks.

Quality Certifications

Specification

Huawei H83D05VDGE01 Specification

Model

H83D05VDGE01

Brand

Huawei

Part Number

03020MCT

Product Description

16-port VDSL over POTS Service Board(with 600 ohm Impedance Splitter)

Product Series

MA5616

Dimensions (H x W x D)

88.1mm x 442mm x 245mm

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power

AC: 110V/220V DC: –48V

Network-side Ports

Available configuration modes: CCUE: GPON/GE, 1 x GE (electrical or optical) CCUD: 1 x GPON, 1 x GE (electrical)

User-side Ports

ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE

Surge Protection

Power: 6 kV GE/FE: 4 kV POTS: 4 kV

Sub Product Family

FTTx and Cable

UOM

PCS

Get more information

Discover unbeatable prices and fast shipping for the H83D05VDGE01, Huawei MA5800 Board, 16×VDSL/POTS/600Ω Splitter . Access the detailed H83D05VDGE01, Huawei MA5800 Board, 16×VDSL/POTS/600Ω Splitter datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H83D05VDGE01?

Accessories for the H83D05VDGE01 include VDSL cables, power adapters, and mounting brackets.

How does the H83D05VDGE01 compare to similar products?

The H83D05VDGE01 stands out with its 16 VDSL ports and integrated 600 ohm impedance splitter, offering superior performance and reliability.

Can the H83D05VDGE01 be used in a mixed network environment?

Yes, the H83D05VDGE01 can be integrated into mixed network environments, providing seamless connectivity with existing infrastructures.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H83D05VDGE01?

The H83D05VDGE01 offers a high-performance 16-port VDSL over POTS solution with an integrated 600 ohm impedance splitter, making it a cost-effective choice for system integrators and distributors.

What are the key features of the H83D05VDGE01?

The H83D05VDGE01 features 16 VDSL ports, integrated 600 ohm impedance splitter, and supports high-speed broadband services, ensuring reliable connectivity.

What are the application scenarios for the H83D05VDGE01?

The H83D05VDGE01 is ideal for residential and small business environments requiring stable high-speed internet via existing phone lines.

How do I install the H83D05VDGE01?

The H83D05VDGE01 can be installed in a standard rack with proper alignment, ensuring connections to VDSL ports and power. Follow the manual for detailed steps.

Does the H83D05VDGE01 require upgrades?

The H83D05VDGE01 may require firmware upgrades to ensure optimal performance and security. Always check for the latest updates from Huawei.

Are there alternative products to the H83D05VDGE01?

Yes, Huawei offers other VDSL service boards, but the H83D05VDGE01 is distinguished by its 16 ports and integrated splitter.

What common troubleshooting steps are available for the H83D05VDGE01?

Check connections, verify power supply, restart the device, and update firmware as common troubleshooting steps for the H83D05VDGE01.
