H838D0ASPB01, Huawei MA5800 Series POTS Subscriber Board, 64 POTS ports/Hot-swappable/High reliability

100% Genuine Ready to Ship

Overview

Huawei H838D0ASPB01 Overview

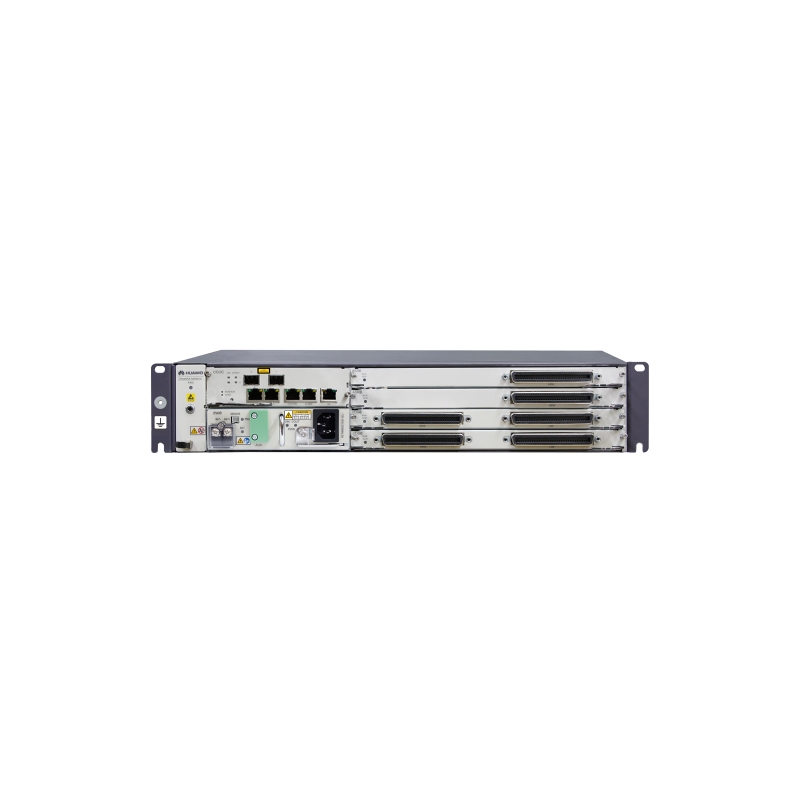

The Huawei H838D0ASPB01 is a carrier-grade POTS subscriber board for MA5616 multiservice access platforms, delivering 64 POTS ports with high reliability for FTTx and cable deployments. Designed for harsh environments from –40°C to 65°C and 5% to 95% humidity, it suits access networks across Asia, Europe, Africa, and North America. Supporting ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE user-side services with flexible GPON/GE uplinks, this hot-swappable board helps distributors, integrators, and operators build scalable voice access networks.

Product Highlights

64 POTS

Voice Ports

-40–65°C

Wide Temp

6kV/4kV

Surge Prot

Product Applications Scenarios

Service Providers

Delivers high-density 64-line POTS access with GPON/GE uplinks, reducing central office space and lowering voice service delivery costs by up to 30%.

Enterprise Network

Provides reliable legacy voice and xDSL access for campus PBXs, simplifying migration to IP while protecting existing wiring investments.

Public Infrastructure

Ensures robust telephony and low-speed data for transport, utilities, and municipal sites with strong surge protection and wide temperature range.

Product Features Comparison


Model	H838D0ASPB01, Huawei MA5800 Series POTS Subscriber Board, 64 POTS ports/Hot-swappable/High reliability	AR0MSLS1XA00, Huawei AR Router Module, 1-Port 4 Pair G.SHDSL/WAN Interface/Module	LE0MG48TD, Huawei CloudEngine, 48×100/1000BASE-T, RJ45, Interface Card	CR5D00E5MF61, Huawei CR5D00E5 Series Switch Card, 5×40G QSFP+/Flexible Card/1 sub-slot
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	64port POTS Subscriber Board	WAN Interface Module	Module	Module
Port Configuration	ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE	1-Port 4 Pair	48	5-Port 40GBase-QSFP+
Supported Speed	ADSL2+, VDSL2, FE, and GE	22.8Mbps (4 pairs)	100Mbps / 1Gbps	40Gbps
Compatible Platform	MA5616	Huawei Routers	Switches, Routers	Huawei Network Switches
Installation Type	PCS	Plug-in Module	Plug-in Card	Module

Optional Add-ons

Model Number	Description
H801CCUC	Huawei MA5616 control board for managing H838D0ASPB01 subscriber cards in multiservice access deployments
H801MPR	Huawei MA5616 power and control module providing reliable power distribution to POTS and xDSL boards
Huawei-SPLITTER-16P	Huawei 16-line POTS/xDSL splitter module for CO deployment with MA5616 voice and ADSL2+ services

Quality Certifications

Specification

Huawei H838D0ASPB01 Specification

Model

H838D0ASPB01

Brand

Huawei

Part Number

03020MWT

Product Description

64port POTS Subscriber Board

Product Series

MA5616

Dimensions (H x W x D)

88.1mm x 442mm x 245mm

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power

AC: 110V/220V DC: –48V

Network-side Ports

Available configuration modes: CCUE: GPON/GE, 1 x GE (electrical or optical) CCUD: 1 x GPON, 1 x GE (electrical)

User-side Ports

ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE

Surge Protection

Power: 6 kV GE/FE: 4 kV POTS: 4 kV

Sub Product Family

FTTx and Cable

UOM

PCS

Get more information

Discover unbeatable prices and fast shipping for the H838D0ASPB01, Huawei MA5800 Series POTS Subscriber Board, 64 POTS ports/Hot-swappable/High reliability . Access the detailed H838D0ASPB01, Huawei MA5800 Series POTS Subscriber Board, 64 POTS ports/Hot-swappable/High reliability datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H838D0ASPB01 64port POTS Subscriber Board?

Accessories include compatible Huawei OLT chassis and necessary cables and connectors.

How does the H838D0ASPB01 compare with similar products?

The H838D0ASPB01 offers more ports and reliability compared to many other POTS subscriber boards.

What are the unique characteristics of the H838D0ASPB01 64port POTS Subscriber Board?

It combines high port density with robust performance for demanding telecom environments.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H838D0ASPB01 64port POTS Subscriber Board for system integrators?

The H838D0ASPB01 offers excellent cost-effectiveness with 64 ports, suitable for large networks.

What are the main features of the H838D0ASPB01 64port POTS Subscriber Board?

It features 64 POTS ports, high reliability, and easy integration into existing Huawei systems.

What are the common application scenarios for the H838D0ASPB01 64port POTS Subscriber Board?

Ideal for large enterprises, office buildings, and hotels requiring multiple POTS lines.

How do I install the H838D0ASPB01 64port POTS Subscriber Board?

The board fits into Huawei OLT devices; follow the installation guidelines in the user manual.

Does the H838D0ASPB01 64port POTS Subscriber Board need regular upgrades?

Periodic firmware updates may be needed to ensure optimal performance and security.

Are there alternative products to the H838D0ASPB01 64port POTS Subscriber Board?

Alternatives include other Huawei POTS boards like the H803BPUB, depending on your requirements.

What are common troubleshooting steps for the H838D0ASPB01 64port POTS Subscriber Board?

Check connections, firmware version, and consult the Huawei support documentation for help.
