H83D00UP2AA2, Huawei H83D00UP2AA2 xPON Interface Card, 1xPON port/Upstream 2.5Gbps/Downstream 1.25Gbps

100% Genuine Ready to Ship

Overview

Huawei H83D00UP2AA2 Overview

The Huawei H83D00UP2AA2 is a carrier-grade xPON interface card designed for MA5616(F01H100) access platforms in FTTx and Cable deployments. Offering a single PON uplink with upstream 2.5Gbps and downstream 1.25Gbps, it aggregates diverse user-side services including ADSL2+, VDSL2, SHDSL, POTS, E1, ISDN, FE, and GE. With –40°C to 65°C operating temperature, robust 6kV power surge protection, and flexible AC 110/220V or –48V DC power, this module suits Asia, Europe, Africa, and North America service providers, SMB integrators, and demanding enterprise networks.

Product Highlights

2.5Gbps

PON Uplink

–40~65°C

Wide Temp

6kV

Power Surge

Product Applications Scenarios

Service Providers

The xPON interface card enables high-density broadband and voice aggregation, cutting central office space and simplifying last-mile upgrades for regional and national carriers.

Enterprise Network

Deployed in campus access nodes, it consolidates DSL, Ethernet, and voice, reducing cabling complexity and lowering operational costs for multi-site enterprises by up to 30%.

Public Infrastructure

In municipal or utility networks, the card delivers resilient PON backhaul and diverse legacy interfaces, extending service life of existing copper while enabling fiber expansion.

Product Features Comparison


Model	H83D00UP2AA2, Huawei H83D00UP2AA2 xPON Interface Card, 1xPON port/Upstream 2.5Gbps/Downstream 1.25Gbps	H83D00SHLH01, Huawei H83D00 Series SHDSL Service Board, 16-port SHDSL, High-Speed Data, Compact Design	H83MMA562023, Huawei xPON Remote Optical Access Equipment, 24FE+24POTS/AC Power/xPON uplink module	H807GPBH, Huawei SmartAX MA5600T OLT Interface Board, 8-port GPON, Advanced, For MA5600T
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	Single xPON Interface Card	16-port SHDSL Service Board	xPON Remote Optical Access Equipment	8-port GPON OLT Interface Board(including Class B+ SFP Optical Module)
Port Configuration	Available configuration modes: CCUE: GPON/GE, 1 x GE (electrical or optical) CCUD: 1 x GPON, 1 x GE (electrical)	Available configuration modes: CCUE: GPON/GE, 1 x GE (electrical or optical) CCUD: 1 x GPON, 1 x GE (electrical)	Network-side Port: 1 x GPON User-side Ports: 24 x FE + 24 x POTS	n/a
Supported Speed	Upstream 2.5Gbps/Downstream 1.25Gbps	n/a	n/a	n/a
Compatible Platform	MA5616(F01H100)	MA5616	n/a	MA5600T
Installation Type	PCS	PCS	n/a	n/a

Optional Add-ons

Model Number	Description

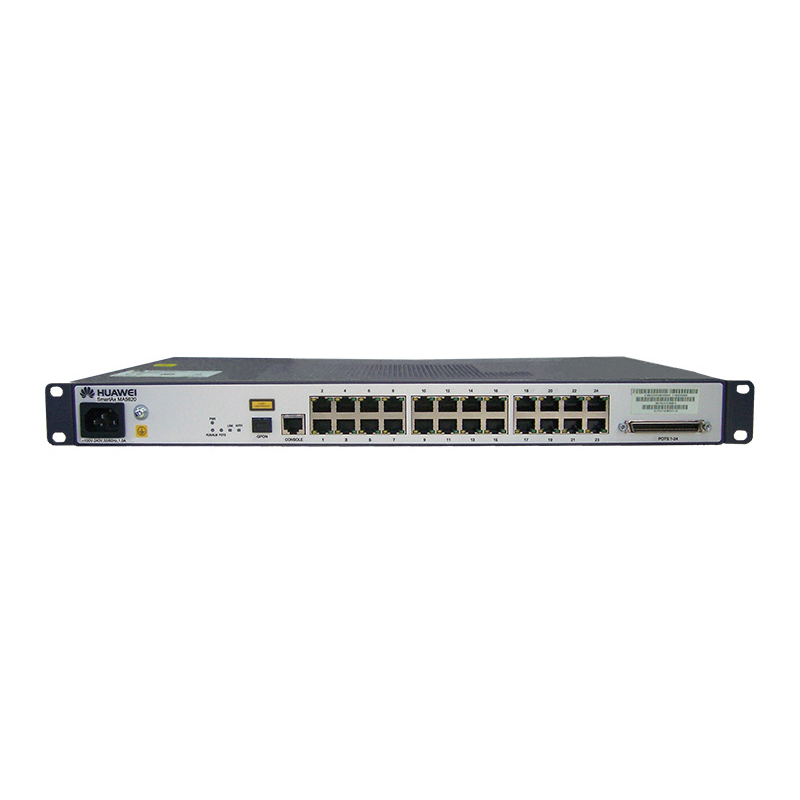

H83MMA562023	Huawei xPON remote optical access unit with 24FE+24POTS, ideal for pairing with H83D00UP2AA2 uplink.
H807GPBH	Huawei 8-port GPON OLT interface board for MA5600T, providing central office aggregation for xPON cards.
H901GPSF03	Huawei 16-port GPON OLT board with Class B+ SFP optics, scalable upstream platform for xPON access.

Quality Certifications

Specification

Huawei H83D00UP2AA2 Specification

Model

H83D00UP2AA2

Brand

Huawei

Part Number

02230NYQ

Product Description

Single xPON Interface Card

Product Series

MA5616(F01H100)

Dimensions (H x W x D)

88.1mm x 442mm x 245mm

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power

AC: 110V/220V DC: –48V

Network-side Ports

Available configuration modes: CCUE: GPON/GE, 1 x GE (electrical or optical) CCUD: 1 x GPON, 1 x GE (electrical)

User-side Ports

ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE

Surge Protection

Power: 6 kV GE/FE: 4 kV POTS: 4 kV

Sub Product Family

FTTx and Cable

UOM

PCS

Get more information

Discover unbeatable prices and fast shipping for the H83D00UP2AA2, Huawei H83D00UP2AA2 xPON Interface Card, 1xPON port/Upstream 2.5Gbps/Downstream 1.25Gbps . Access the detailed H83D00UP2AA2, Huawei H83D00UP2AA2 xPON Interface Card, 1xPON port/Upstream 2.5Gbps/Downstream 1.25Gbps datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H83D00UP2AA2?

Accessories include compatible SFP modules, patch cords, and expansion slots available through Huawei accessory providers.

How does the H83D00UP2AA2 compare with similar products?

The H83D00UP2AA2 stands out with its cost efficiency, reliable xPON performance, and versatile application in various network environments.

Can the H83D00UP2AA2 be used with non-Huawei devices?

The H83D00UP2AA2 is optimized for Huawei OLTs, but it may be compatible with other devices that support standard xPON interfaces.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H83D00UP2AA2?

The H83D00UP2AA2 xPON interface card offers excellent value with high performance at a competitive price, making it ideal for budget-conscious projects.

What are the key features of the H83D00UP2AA2?

The H83D00UP2AA2 provides unified xPON interface support, high data throughput, and robust performance, ideal for various network scenarios.

What is the application scenario of the H83D00UP2AA2?

The H83D00UP2AA2 is best suited for integrating optical network units (ONUs) in fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments.

How do I install the H83D00UP2AA2?

Install the H83D00UP2AA2 into the corresponding slot on your Huawei OLT chassis, ensuring it is securely connected to the backplane.

Does the H83D00UP2AA2 require upgrades?

Regular firmware updates for the H83D00UP2AA2 can enhance performance and security. Check Huawei's official site for the latest software releases.

Are there alternative products to the H83D00UP2AA2?

Alternatives include other models in the Huawei xPON series, but the H83D00UP2AA2 is unique in its integration capabilities.

What are the common troubleshooting steps for the H83D00UP2AA2?

Verify physical connections, ensure the card is properly seated, check for firmware updates, and consult Huawei's diagnostic tools for specific error codes.
