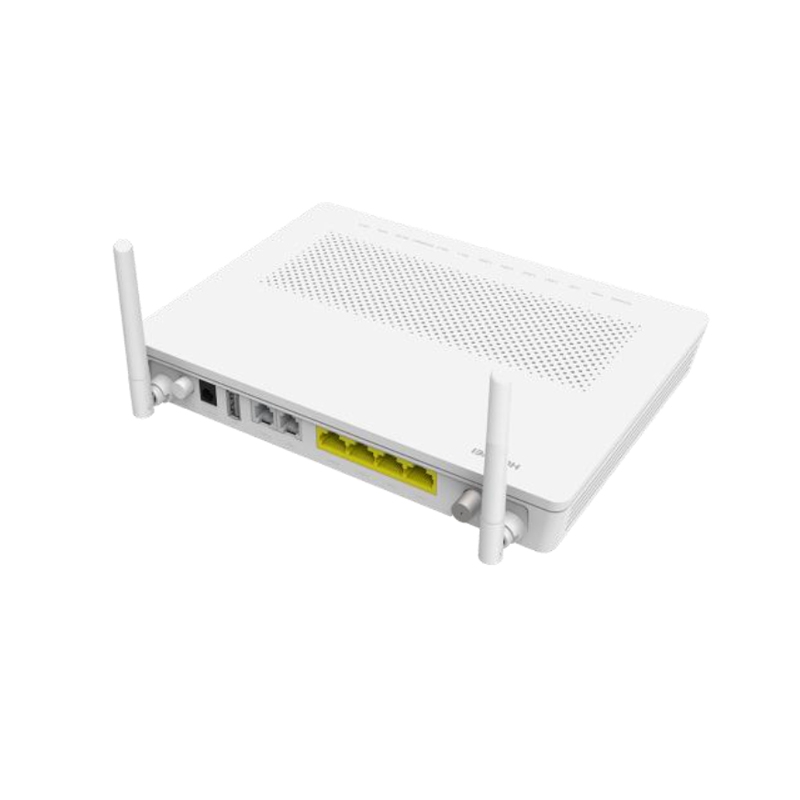

H35M8247HRO1, Huawei EchoLife HG8247H GPON Terminal, SC/APC CATV Euro Plug

The Huawei EchoLife HG8247H GPON Terminal is a residential/SME fiber access gateway designed for high-speed triple-play services. Integrating a GPON uplink with 4 GE LAN ports, 2 POTS ports, 2.4 GHz Wi-Fi, USB, and an RF CATV interface, it simplifies last-mile deployment for service providers across Asia and Europe. Advanced GPON features such as Class B+ optics, bi-directional FEC, and SR-DBA ensure stable bandwidth, while Layer 3 routing, QoS, multicast, and SPI firewall capabilities deliver reliable voice, data, and IPTV over a single platform.

Product Features Comparison

Model	H35M8247HRO1, Huawei EchoLife HG8247H GPON Terminal, SC/APC CATV Euro Plug	H35M8247HPN1, Huawei EchoLife HG8247H Broadband Network Terminal, GPON, SC/APC, CATV, European Power Adapter	H35M8247HTW1, Huawei EchoLife HG8247H Broadband Network Terminal, GPON Terminal/SC APC/CATV	H35M8247HVT1, Huawei EchoLife HG8247H Broadband Network Terminal, GPON/SC-APC/5dBi antenna
Brand	Huawei	Huawei	Huawei	Huawei
Dimensions (H x W x D)	220mm x 160mm x 32mm (without an external antenna)	220mm x 160mm x 32mm (without an external antenna)	220mm x 160mm x 32mm (without an external antenna)	220mm x 160mm x 32mm (without an external antenna)
Operating temperature	0°C to 40°C	0°C to 40°C	0°C to 40°C	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz
System power supply	11–13 V DC, 2 A	11–13 V DC, 2 A	11–13 V DC, 2 A	11–13 V DC, 2 A
Static power consumption	7.5W	7.5W	7.5W	7.5W
Maximum power consumption	18W	18W	18W	18W
Ports	2POTS+4GE+CATV+Wi-Fi+USB	2POTS+4GE+CATV+Wi-Fi+USB	2POTS+4GE+CATV+Wi-Fi+USB	2POTS+4GE+CATV+Wi-Fi+USB
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV
GPON Port	• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA	• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA	• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA	• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA
Ethernet Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning
CATV Port	• Bandwidth 54-870MHz • Output resistance 75 ohms	• Bandwidth 54-870MHz • Output resistance 75 ohms	• Bandwidth 54-870MHz • Output resistance 75 ohms	• Bandwidth 54-870MHz • Output resistance 75 ohms
POTS Port	• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)	• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)	• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)	• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
USB Port	• USB2.0 • FTP-based network storage	• USB2.0 • FTP-based network storage	• USB2.0 • FTP-based network storage	• USB2.0 • FTP-based network storage
WLAN	• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS	• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS	• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS	• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS
Smart interconnection	• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C10) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink	• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C10) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink	• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C10) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink	• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C10) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Smart service	• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports	• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports	• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports	• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports
Smart O&M	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation
Layer 3 Features	• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack • Static/Default routes • Multiple services on one WAN port	• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack • Static/Default routes • Multiple services on one WAN port	• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack • Static/Default routes • Multiple services on one WAN port	• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack • Static/Default routes • Multiple services on one WAN port
Multicast	• IGMP v2/v3 proxy(V300R015C00) /snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi	• IGMP v2/v3 proxy(V300R015C00) /snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi	• IGMP v2/v3 proxy(V300R015C00) /snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi	• IGMP v2/v3 proxy(V300R015C00) /snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi
QoS	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation
Security	• SPI firewall • Filtering based on MAC/IP/URL addresses	• SPI firewall • Filtering based on MAC/IP/URL addresses	• SPI firewall • Filtering based on MAC/IP/URL addresses	• SPI firewall • Filtering based on MAC/IP/URL addresses
Common O&M	• OMCI/Web UI/TR069 • Dual-system software backup and rollback	• OMCI/Web UI/TR069 • Dual-system software backup and rollback	• OMCI/Web UI/TR069 • Dual-system software backup and rollback	• OMCI/Web UI/TR069 • Dual-system software backup and rollback
Power Saving	• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)	• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)	• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)	• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)
Weight	1000 kg	1000 kg	1000 kg	1000 kg
