Name: H35M8247HOR1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, Euro Adapter
SKU: H35M8247HOR1
Rating: 5 (1 reviews)

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

H35M8247HOR1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, Euro Adapter

Brand: Huawei
Model: H35M8247HOR1

Rating:

100%

5/5.0

1 Review

1 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H35M8247HOR1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, Euro Adapter

100% Genuine Ready to Ship

Overview

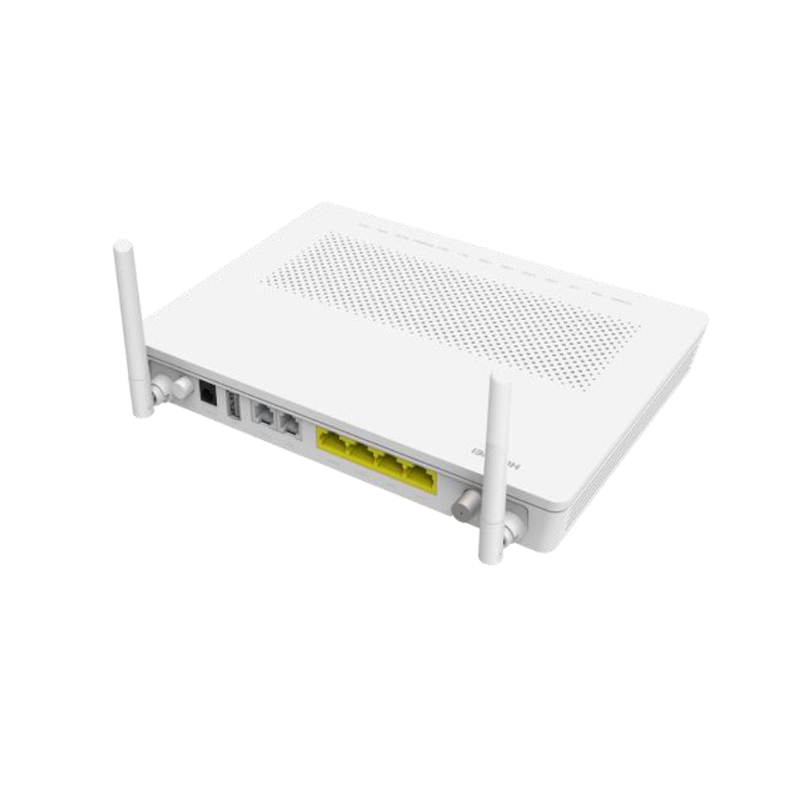

Huawei H35M8247HOR1 Overview

The Huawei H35M8247HOR1 EchoLife HG8247H is a GPON home gateway designed for triple-play and full-service fiber access. Integrating a Class B+ GPON uplink with 2POTS+4GE+CATV+Wi‑Fi+USB, it enables operators and ISPs to deliver high-speed internet, VoIP, and IPTV over a single optical line. With IEEE 802.11 b/g/n 2x2 MIMO Wi-Fi, advanced QoS, multicast, and comprehensive security, this GPON terminal is ideal for FTTx deployments in residential and SOHO environments across Asia, Europe, Africa, and North America.

Product Highlights

4GE

Ge Ports

2POTS

Voice Fxs

18W

Max Power

Product Applications Scenarios

Service Providers

Enables ISPs to deliver converged GPON broadband, voice, and CATV on one CPE, cutting truck rolls and reducing last-mile deployment cost by up to 30%.

Enterprise Network

Provides small offices with 4 GE ports, robust Wi-Fi, and VoIP, simplifying branch connectivity while lowering CAPEX for SMB and campus edge rollouts.

Public Infrastructure

Ideal for schools or municipal sites needing secure GPON access, IPTV, and voice, improving manageability and reducing on-site maintenance by about 25%.

Product Features Comparison

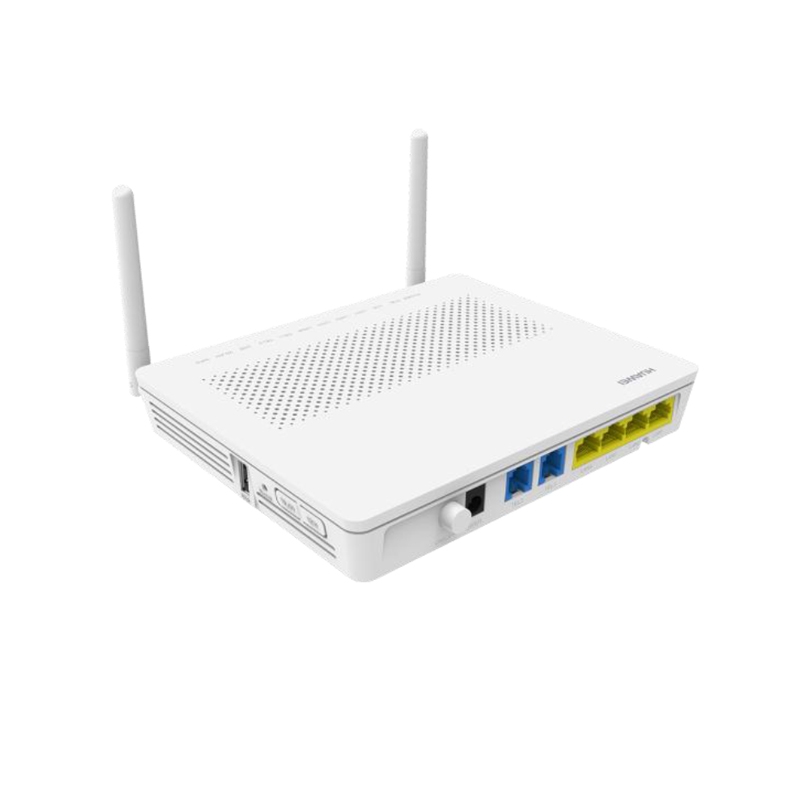

Model	H35M8247HOR1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, Euro Adapter	H35M8245HAR2, Huawei HG8245H GPON Terminal, SC/APC, Argentina Adapter, English	AP6310SN-GN, Huawei AP6310SN, Distributed AP/11n/Single Frequency	AP5030DN-S-DC, Huawei AP5030DN Series Access Point, 3x3 dual-band, built-in antenna, AC/DC adapter
Brand	Huawei	Huawei	Huawei	Huawei
Wi-Fi Standard	• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS	•IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS	n/a	802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n data rate (2.4GHz and 5GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5GHz): 6.5 Mbit/s to 1,300 Mbit/s
Maximum Data Rate	n/a	n/a	20 MHz (Mbit/s) 40MHz (Mbit/s) ... 72.2 @ MCS7 150 @ MCS7	Maximum Speed 1.75 Gbit/s
Supported Frequency Band	n/a	n/a	802.11b/g ·20MHz: 3 802.11n ·20MHz: 3 ·40MHz: 1	2.4G: 4 dBi 5G: 5 dBi
Client Capacity	n/a	Maximum REN: 4	Maximum Number of Concurrent Users 128	Maximum Number of Concurrent Users ≤ 256
Network Interface	2POTS+4GE+CATV+Wi-Fi+USB	2POTS+4GE+Wi-Fi+USB	Power input DC 12V ±10% POE power: -48V DC PoE function complies with IEEE 802.3af and 802.3at	Power input DC 12V ± 10% PoE Power: -48V DC PoE function in compliance with IEEE 802.3af and 802.3at

Optional Add-ons

Model Number	Description
HG8247H-SC-ONT-STAND	Huawei desktop stand kit for HG8247H GPON ONT, improves placement and cooling in home and SOHO environments
HW-12V2A-ADAPTER	Huawei 12V 2A AC power adapter, compatible spare PSU for HG8247H series GPON terminals
HW-SC-APC-PATCH-3M	Huawei SC/APC single-mode fiber patch cord 3m, for connecting HG8247H ONT to GPON wall outlet

Quality Certifications

Specification

Huawei H35M8247HOR1 Specification

Model

H35M8247HOR1

Brand

Huawei

Dimensions (H x W x D)

220mm x 160mm x 32mm (without an external antenna)

Operating temperature

0°C to 40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–13 V DC, 2 A

Static power consumption

7.5W

Maximum power consumption

18W

Ports

2POTS+4GE+CATV+Wi-Fi+USB

Indicators

POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

GPON Port

• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning

CATV Port

• Bandwidth 54-870MHz • Output resistance 75 ohms

POTS Port

• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)

USB Port

• USB2.0 • FTP-based network storage

WLAN

• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS

Smart interconnection

• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C10) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports

Smart O&M

• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation

Layer 3 Features

• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack • Static/Default routes • Multiple services on one WAN port

Multicast

• IGMP v2/v3 proxy(V300R015C00) /snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation

Security

• SPI firewall • Filtering based on MAC/IP/URL addresses

Common O&M

• OMCI/Web UI/TR069 • Dual-system software backup and rollback

Power Saving

• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)

Weight

1000 kg
