H35M8245DEU1, Huawei HG8245D GPON Terminal, SC/APC, European Adapter, English Docs

100% Genuine Ready to Ship

Overview

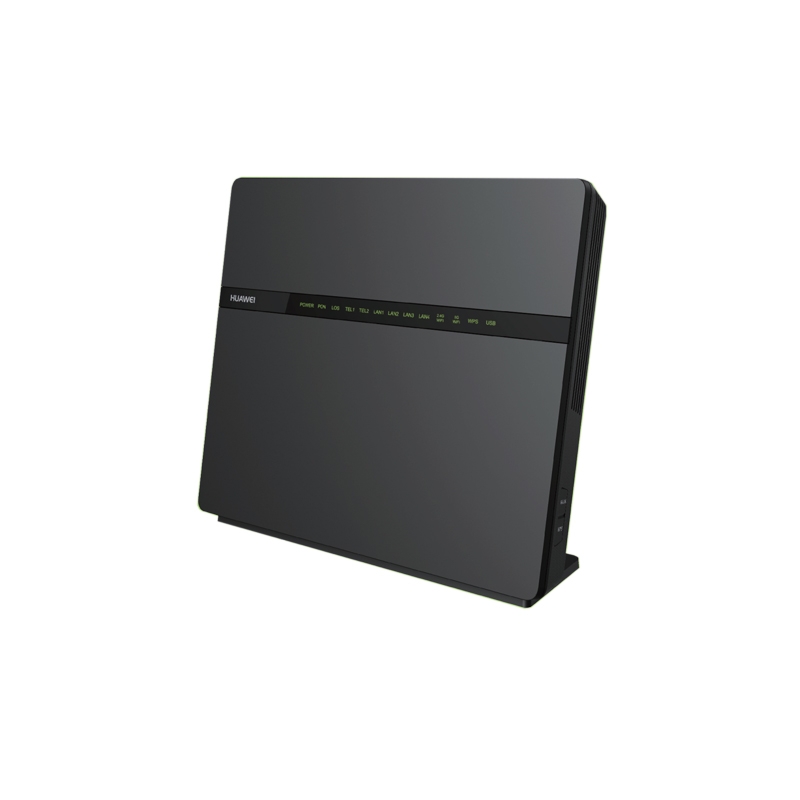

Huawei H35M8245DEU1 Overview

The Huawei H35M8245DEU1 is a residential and SOHO GPON terminal designed for high-speed fiber access in European deployments. Featuring a GPON uplink with Class B+ optics, it integrates 2POTS+4GE+dual-band 2.4G/5G Wi-Fi and USB to deliver voice, data, and IPTV over a single optical line. Advanced Layer 3 features, multicast, QoS, and security functions support triple-play and HD video services, while smart O&M, Wi-Fi coverage, and power-saving capabilities simplify operations for ISPs and improve user experience.

Product Highlights

4GE+2WiFi

Triple Play

21W Max

Low Power

-27dBm

GPON Optics

Product Applications Scenarios

Enterprise Network

Integrated GPON, 4GE and dual-band Wi-Fi simplify small office networks, cutting cabling effort and reducing deployment costs by up to 30% for branch connectivity.

Service Providers

Class B+ GPON, multicast and QoS let ISPs deliver stable voice, data and IPTV, reducing truck rolls via OMCI, TR069 and smart O&M diagnostics.

Edge & IoT

4GE ports and concurrent 2.4G/5G Wi-Fi provide last-mile connectivity for edge terminals and sensors, improving link reliability and lowering latency for IoT traffic.

Product Features Comparison


Model	H35M8245DEU1, Huawei HG8245D GPON Terminal, SC/APC, European Adapter, English Docs	SL91EG402, Huawei SL91 Series Gigabit Ethernet Board, 2×GE(SFP/RJ45)/2×GE(RJ45)/1000BaseLX	CAB-SS-SURGE, Cisco Surge Protection Adapter, For Smart Serial Cables/Protects Equipment/Plug-and-Play	AIR-PWR-B, Cisco AP Power Supply, 100-240VAC/48VDC/For AP1130-3500
Brand	Huawei	Huawei	Cisco	Cisco
Compatible Models	n/a	n/a	Smart Serial Cables	AP1130-3500
Accessory Type	GPON Terminal	Gigabit Ethernet Board	Surge protection cable adapter	AP Power Supply
Connector Type	SC/APC, 2POTS+4GE+USB	LC	n/a	n/a
Mounting Method	n/a	n/a	Inline Cable	n/a
Certification	n/a	FCC Class A, UL	n/a	n/a

Optional Add-ons

Model Number	Description
FO-13G	Huawei FO-13G RTN 310 Microwave Link, 13GHz outdoor backhaul unit for GPON aggregation.
SL91EG402	Huawei SL91EG402 Gigabit Ethernet board providing 2xGE(SFP/RJ45)+2xGE(RJ45) uplink ports.
H56B9F02F	Huawei H56B9F02F 2.2m front-access cabinet for housing GPON terminals and access gear.

Quality Certifications

Specification

Huawei H35M8245DEU1 Specification

Model

H35M8245DEU1

Brand

Huawei

Dimensions (H x W x D)

235 x 195 x 30mm

Operating temperature

0°C to 40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 2 A

Static power consumption

12W

Maximum power consumption

21W

Ports

2POTS+4GE+2.4G/5G Wi-Fi +USB

GPON Port

• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310nm, DS 1490nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning

POTS Port

• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)

USB Port

• USB2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA DMS/UPnP AV (media server)

WLAN

• IEEE 802.11 b/g/n(2.4G) • IEEE 802.11 a/n(5G) • 3 × 3 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS • 2.4G/5G concurrent

Smart interconnection

• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C00) • L2/L3 forwarding: 1G uplink, 2G downlink

Smart service

• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports

Smart O&M

• IPTV video quality diagnosis (V300R015C10) • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation

Layer 3 Features

• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port

Multicast

• IGMP v2/v3 proxy(V300R015C00)/snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation

Security

• SPI firewall • Filtering based on MAC/IP/URL addresses

Common O&M

• OMCI/Web UI/TR069 • Dual-system software backup and rollback

Power Saving

• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)

Weight

500 kg

Get more information

Discover unbeatable prices and fast shipping for the H35M8245DEU1, Huawei HG8245D GPON Terminal, SC/APC, European Adapter, English Docs . Access the detailed H35M8245DEU1, Huawei HG8245D GPON Terminal, SC/APC, European Adapter, English Docs datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the HG8245D GPON Terminal?

The HG8245D comes with a European standard adapter, SC/APC cables, and a user manual in English, ensuring all necessary installation tools are provided.

How does the HG8245D compare to other Huawei GPON Terminals?

The HG8245D GPON Terminal offers specific benefits like the European standard adapter and English documentation, distinguishing it from other models in terms of regional suitability.

Is the HG8245D GPON Terminal compatible with other GPON products?

The HG8245D GPON Terminal is compatible with most GPON networks and devices, ensuring flexible integration into existing setups.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the HG8245D GPON Terminal?

The HG8245D GPON Terminal offers high performance at a competitive price, making it a cost-effective solution for European standard fiber networks.

What are the main features of the HG8245D GPON Terminal?

The HG8245D GPON Terminal features an SC/APC interface, European standard adapter, and English documentation, providing seamless connectivity and ease of use.

In what scenarios can the HG8245D GPON Terminal be used?

The HG8245D GPON Terminal is ideal for home and small office environments requiring reliable fiber-optic internet connections.

How do I install the HG8245D GPON Terminal?

The HG8245D GPON Terminal installation is straightforward, involving connection through SC/APC ports and power via a European standard adapter with step-by-step guidance in English documents.

Does the HG8245D GPON Terminal require regular upgrades?

Firmware upgrades for the HG8245D GPON Terminal can enhance performance and security, and it's advisable to check for updates periodically.

Are there any alternative products to the HG8245D GPON Terminal?

Alternatives to the HG8245D include other Huawei GPON Terminals like the HG8240, which offer varying features and port configurations.

What common troubleshooting steps can be followed for the HG8245D?

If the HG8245D GPON Terminal encounters issues, check connections, ensure power supply, and verify configurations through the user guide provided in English documents.
