H35M8045QSN1, Huawei HG8045Q GPON Terminal, Japan Standard Adapter/SC UPC Connector/Japanese Docs

100% Genuine Ready to Ship

Overview

Huawei H35M8045QSN1 Overview

The Huawei H35M8045QSN1 HG8045Q is a carrier-grade GPON terminal designed for high-speed residential and small business fiber access. Featuring 4GE LAN interfaces, concurrent 2.4G/5G Wi-Fi, and a GPON Class B+ optical port, it delivers reliable triple-play and broadband services over FTTH networks. Advanced Layer 3 functions, QoS, and multicast support make this GPON terminal ideal for ISPs and integrators deploying scalable fiber access in Asia, Europe, Africa, and North America.

Product Highlights

4GE+WiFi

Gig Ports

1,750Mb/s

Wi-Fi Rate

21W

Max Power

Product Applications Scenarios

Service Providers

GPON access with 4GE and dual-band Wi-Fi lets ISPs deliver triple-play over FTTH, cutting CPE truck rolls and lowering per-subscriber support costs.

Enterprise Network

Used as an ONT at branch sites, it provides secure Layer 3 routing, QoS and multicast, simplifying converged voice, data and video access.

Edge & IoT

Four GE ports and reliable Wi-Fi backhaul IP cameras, sensors and controllers at the fiber edge, reducing latency for smart building services.

Product Features Comparison

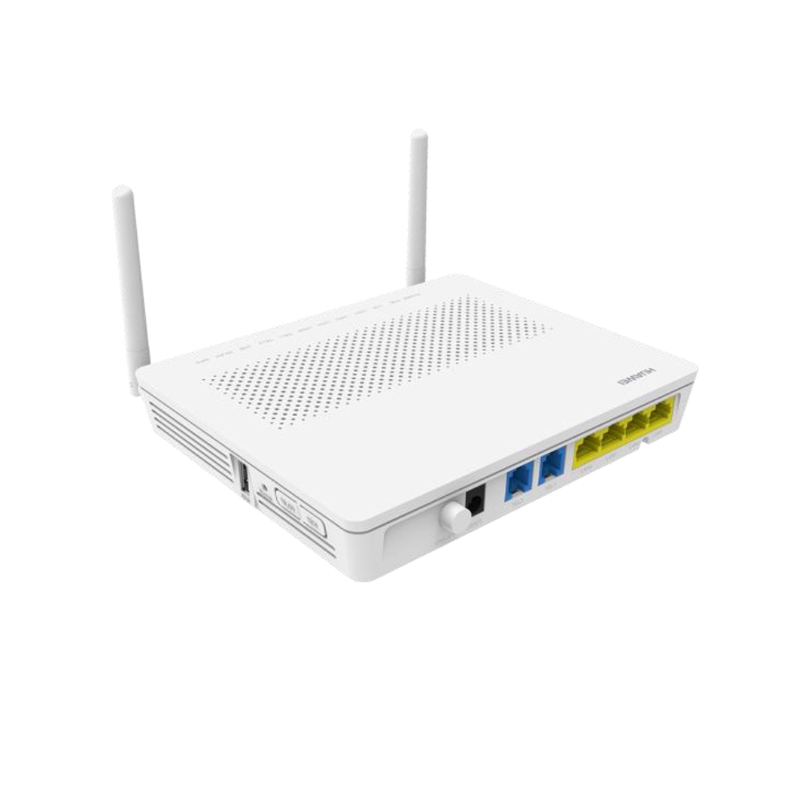

Model	H35M8045QSN1, Huawei HG8045Q GPON Terminal, Japan Standard Adapter/SC UPC Connector/Japanese Docs	H35M8245HUK2, Huawei HG8245H GPON Terminal, UK Standard Adapter/English/SC APC	HG8M8010uDT1, Huawei HG8010u GPON Terminal, LC/APC, EU Standard Adapter, Germany Doc	H35M8240HEU1, Huawei HG8240H GPON Terminal, SC/APC, European Adapter, English
Brand	Huawei	Huawei	Huawei	Huawei
Dimensions (H x W x D)	230 x 190 x 30mm (excluding the support)	176mm x 138.5mm x 28mm (without an external antenna)	115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)	176mm x 138.5mm x 28mm
Operating temperature	0°C to 40°C	0°C to +40°C	0°C to +40°C	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz
System power supply	11-14 V DC, 2 A	11–14 V DC, 2 A	11–14 V DC, 0.5 A	11–14 V DC, 0.5 A
Static power consumption	5W	5W	3W	4W
Maximum power consumption	21W	15.5W	3.5W	10W
Ports	4GE+2.4G/5G Wi-Fi+USB	2POTS+4GE+Wi-Fi+USB	1GE	4GE + 2POTS
Indicators	POWER/PON/LOS/USB/PORT /2.4GWi-Fi/5G Wi-Fi/WPS	POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS	POWER/PON/LOS/LAN	POWER/PON/LOS/LAN/TEL
GPON Port	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310nm, DS 1490nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA	· Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transp arent transmission • QinQ VLAN • Limit on the number of learned MAC addresses	· Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2
WLAN	• 802.11 b/g/n (2.4G) • 802.11 a/n/ac (5G) • 3 x 3 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS • 2.4G/5G concurrent • Air interface rate: 450 Mbit/s (2.4G) 1300 Mbit/s (5G)	•IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS	n/a	n/a
Smart interconnection	• Any port any service • L2/L3 forwarding: 1G uplink, 2G downlink	· Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink	n/a	• SIP/H.248 auto-negotiation
Smart service / Smart Services	• Smart Wi-Fi sharing	· Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports	n/a	• Association of one account with two POTS ports • L2 forwarding: 1G uplink, 2G downlink
Smart O&M	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • WLAN emulation	· IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test
Layer 3 Features	• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port	· PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port	n/a	n/a
Multicast	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi	· IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation
QoS	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR	· Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	• Anti-DoS attack • Filtering based on MAC/IP/URL addresses	· SPI firewall · Filtering based on MAC/IP/URL addresses	• MAC address filtering	• MAC address filtering
Common O&M	• OMCI/Web UI/TR069 • Dual-system software backup and rollback	· OMCI/Web UI/TR069 · Dual-system software backup and rollback	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check
Power Saving	• Dynamic power saving • Indicator power saving • COCv4	· Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00)	• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4	• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4
Weight	500 kg	500 kg	n/a	n/a

Optional Add-ons

Model Number	Description
HW-ADAPTER-12V2A-JP	Huawei 12V 2A Japan-standard AC power adapter for HG8045Q and compatible GPON ONTs
HW-SFP-GPON-C+	Huawei GPON C+ SFP OLT transceiver for connecting HG8045Q ONTs in FTTH deployments
HW-WALL-MOUNT-ONT	Huawei wall-mount installation kit for HG8045Q series GPON terminals

Quality Certifications

Specification

Huawei H35M8045QSN1 Specification

Model

H35M8045QSN1

Brand

Huawei

Dimensions (H x W x D)

230 x 190 x 30mm (excluding the support)

Operating temperature

0°C to 40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11-14 V DC, 2 A

Static power consumption

Maximum power consumption

21W

Ports

4GE+2.4G/5G Wi-Fi+USB

Indicators

POWER/PON/LOS/USB/PORT /2.4GWi-Fi/5G Wi-Fi/WPS

GPON Port

• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310nm, DS 1490nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transp arent transmission • QinQ VLAN • Limit on the number of learned MAC addresses

WLAN

• 802.11 b/g/n (2.4G) • 802.11 a/n/ac (5G) • 3 x 3 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS • 2.4G/5G concurrent • Air interface rate: 450 Mbit/s (2.4G) 1300 Mbit/s (5G)

Ethernet Port

• USB2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA DMS/UPnP AV (media server)

Smart interconnection

• Any port any service • L2/L3 forwarding: 1G uplink, 2G downlink

Smart service

• Smart Wi-Fi sharing

Smart O&M

• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • WLAN emulation

Layer 3 Features

• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port

Multicast

• IGMP v2/v3 snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR

Security

• Anti-DoS attack • Filtering based on MAC/IP/URL addresses

Common O&M

• OMCI/Web UI/TR069 • Dual-system software backup and rollback

Power Saving

• Dynamic power saving • Indicator power saving • COCv4

Weight

500 kg

Get more information

Discover unbeatable prices and fast shipping for the H35M8045QSN1, Huawei HG8045Q GPON Terminal, Japan Standard Adapter/SC UPC Connector/Japanese Docs . Access the detailed H35M8045QSN1, Huawei HG8045Q GPON Terminal, Japan Standard Adapter/SC UPC Connector/Japanese Docs datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

How does the HG8045Q GPON Terminal compare with other GPON Terminals?

The HG8045Q GPON Terminal is tailored for the Japanese market, offering specific features like the Japan standard adapter and Japanese documentation, setting it apart from general GPON terminals.

What common troubleshooting steps can I follow for the HG8045Q GPON Terminal?

Ensure all connections are secure, restart the device, and consult the Japanese documents for specific troubleshooting steps. Contact Huawei support if needed.

What are the documentation and language support options for the HG8045Q GPON Terminal?

The HG8045Q GPON Terminal comes with Japanese documentation tailored for ease of use by Japanese customers.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What is the main application scenario for the HG8045Q GPON Terminal?

The HG8045Q GPON Terminal is primarily used for high-speed internet access in residential and small business environments in Japan.

How cost-effective is the HG8045Q GPON Terminal?

The HG8045Q GPON Terminal offers a balance of high performance and affordability, making it a cost-effective solution for fiber-to-the-home (FTTH) deployments in Japan.

What are the key features of the HG8045Q GPON Terminal?

The key features of the HG8045Q GPON Terminal include high-speed data transmission, reliable connectivity, and compatibility with the Japan So-net ISP network, SC/UPC interface, and Japan standard adapter.

How do I install the HG8045Q GPON Terminal?

Installation is simple: connect the SC/UPC fiber cable, power up the device with the Japanese standard adapter, and follow the instructions in the Japanese documents provided.

Does the HG8045Q GPON Terminal require regular upgrades?

The HG8045Q GPON Terminal may require occasional firmware upgrades to ensure optimal performance and security. Check with Huawei support for the latest updates.

Are there alternative products to the HG8045Q GPON Terminal?

Alternatives may include other Huawei GPON Terminals, but compatibility with Japan So-net and SC/UPC interfaces should be verified.

What accessories are available for the HG8045Q GPON Terminal?

The HG8045Q GPON Terminal comes with a Japan standard adapter and SC/UPC connectors; additional accessories like fiber cables can be purchased separately.
