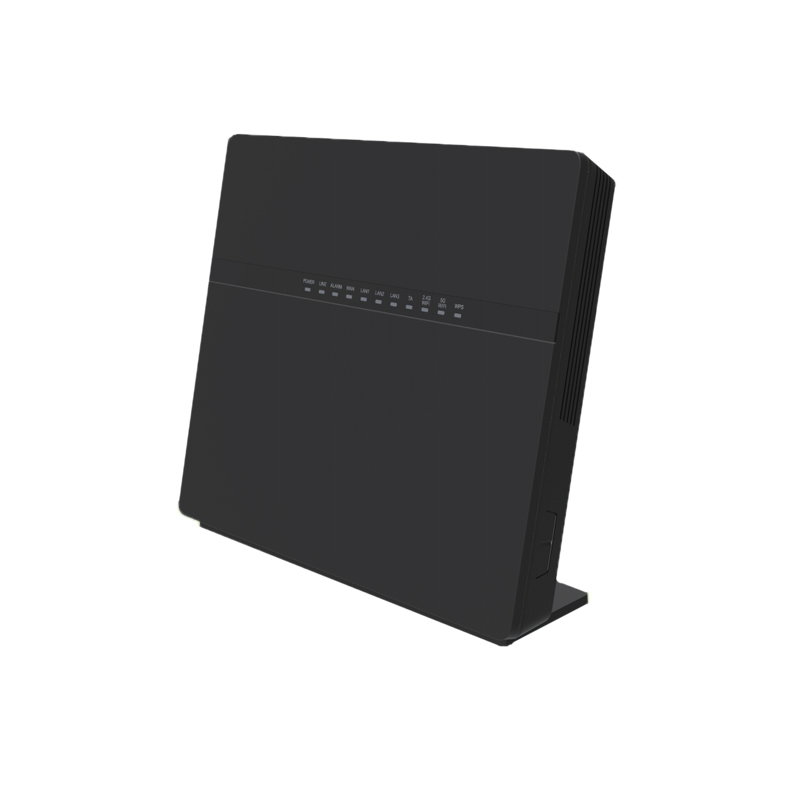

H35M8045DJP1, Huawei HG8045D GPON Terminal, Japan standard adapter/SC UPC/For Japan So-net

Brand: Huawei
Model: H35M8045DJP1

$617.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H35M8045DJP1, Huawei HG8045D GPON Terminal, Japan standard adapter/SC UPC/For Japan So-net

100% Genuine Ready to Ship

$617.00

Overview

Huawei H35M8045DJP1 Overview

The Huawei H35M8045DJP1 GPON terminal is a carrier-grade home/SMB CPE designed for high-speed fiber access in Japan. It integrates a Class B+ GPON uplink with 4GE LAN ports, dual-band 2.4G/5G Wi‑Fi, and USB to simplify FTTH deployments. With compact 235 x 195 x 30mm dimensions, low 5W static consumption and up to 18.5W maximum power, it is optimized for dense urban apartments. Advanced features such as SR‑DBA, NSR‑DBA, bi‑directional FEC, VLAN flexibility, QoS and dual‑stack IPv4/IPv6 make it suitable for So‑net and other Japanese ISPs.

Product Highlights

4GE

Gig Ports

2 Band

Dual WiFi

18.5W

Low Power

Product Applications Scenarios

Service Providers

Integrated GPON, 4GE and dual-band Wi-Fi simplify FTTH CPE for ISPs, reducing truck rolls and cutting provisioning and support costs by up to 25% in dense access networks.

Enterprise Network

Advanced VLAN, QoS and dual-stack routing enable small offices to segment services, prioritize voice and video, and lower WAN operating costs versus legacy copper.

Edge & IoT

4GE ports plus Wi-Fi provide reliable last-meter access for cameras and sensors, while low power draw helps cut energy usage by around 15% at edge locations.

Product Features Comparison


Model	H35M8045DJP1, Huawei HG8045D GPON Terminal, Japan standard adapter/SC UPC/For Japan So-net	VC8M4VPEN, Huawei VP9050 Videoconferencing Terminal, 720P/touch screen/cables-South Africa	TE40-1080P60-W-P-02, Huawei TE40 HD Codec, 1080P60/12x HD camera/Wireless mic array	IP1T8801EU01, Huawei eSpace 8801D DECT Handset Charging Cradle, 1.8G, 100-240V, Europe Mode Power
Brand	Huawei	Huawei	Huawei	Huawei
Compatible Models	n/a	n/a	n/a	eSpace 8801D
Accessory Type	GPON terminal	Video terminal	Video codec	Charging cradle
Connector Type	SC UPC	n/a	n/a	n/a
Mounting Method	Desktop	Desktop	Rack/desk	Desktop
Certification	n/a	n/a	n/a	3C, RoHS, CE

Optional Add-ons

Model Number	Description
O0SPL2600	Huawei bare PLC optical splitter, 2:8 ratio, G.657A fiber, ideal for GPON distribution
ANT5G05A1NR	Huawei 5 GHz 5 dBi N-J antenna for extending dual-band Wi-Fi coverage
SS-OP-D-LC-M-3	Huawei LC/PC-LC/PC multimode 3m patch cord for ONT uplink and testing

Quality Certifications

Specification

Huawei H35M8045DJP1 Specification

Model

H35M8045DJP1

Brand

Huawei

Dimensions (H x W x D)

235 x 195 x 30mm

Operating temperature

0°C to 40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

12 V DC, 2 A

Static power consumption

Maximum power consumption

18.5W

Ports

4GE+2.4G/5G Wi-Fi+USB

Indicators

POWER/LINE/ALARM/WAN/ LAN/TA/2.4G WiFi/5G WiFi/WPS

GPON Port

·Class B+ ·Receiver sensitivity: -27dBm ·Wavelengths: US 1310nm, DS 1490nm ·WBF ·Flexible mapping between GEM Port and TCONT ·GPON: consistent with the SN or password authentication defined in G.984.3 ·Bi-directional FEC ·SR-DBA and NSR-DBA

Ethernet Port

·Ethernet port-based VLAN tags and tag emoval ·1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ·QinQ VLAN ·Limit on the number of learned MAC addresses ·MAC address learning

WLAN

·802.11 b/g/n(2.4G) ·802.11 a/n(5G) ·3 × 3 MIMO · Antenna gain: 2 dBi ·WMM ·Multiple SSIDs ·WPS ·2.4G/5G concurrent

Smart interconnection

·Any port any service ·L2/L3 forwarding: 1G uplink, 2G downlink

Smart service

·Smart Wi-Fi sharing: Portal

Smart O&M

·Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation ·PPPoE/DHCP simulation testing ·WLAN emulation

Layer 3 Features

·PPPoE/Static IP/DHCP ·NAT/NAPT ·Port forwarding ·ALG, UPnP ·DDNS/DNS server/DNS client ·IPv6/IPv4 dual stack, and DS-Lite ·Static/Default routes ·Multiple services on one WAN port

Multicast

·IGMP v2/v3 snooping ·MLD v1/v2 snooping ·Multicast services through Wi-Fi

QoS

·Ethernet port rate limitation ·802.1p priority ·SP/WRR/SP+WRR ·Broadcast packet rate limitation

Security

·SPI firewall ·Anti-DoS attack ·Filtering based on MAC/IP/URL addresses

Common O&M

·OMCI/Web UI/TR069 ·Dual-system software backup and rollback

Power Saving

·Dynamic power saving ·Indicator power saving ·COCV4

Weight

595 kg

Get more information

Discover unbeatable prices and fast shipping for the H35M8045DJP1, Huawei HG8045D GPON Terminal, Japan standard adapter/SC UPC/For Japan So-net . Access the detailed H35M8045DJP1, Huawei HG8045D GPON Terminal, Japan standard adapter/SC UPC/For Japan So-net datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories come with the H35M8045DJP1 HG8045D GPON Terminal?

The H35M8045DJP1 HG8045D GPON Terminal package includes the main unit, Japan Standard Adapter, and a set of Japanese documents for installation and troubleshooting.

How does the H35M8045DJP1 HG8045D GPON Terminal compare to other similar products?

Compared to other similar products, the H35M8045DJP1 offers tailored compatibility with Japan So-net, Japanese documentation, and a Japan Standard Adapter, making it more suitable for that specific market.

What are the benefits of using the H35M8045DJP1 HG8045D GPON Terminal for Japan So-net?

The main benefits include optimized performance for the Japan So-net network, easy installation with specific Japanese instructions, and a secure connection via the SC/UPC interface.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

Is the H35M8045DJP1 HG8045D GPON Terminal cost-effective for system integrators?

Yes, the H35M8045DJP1 HG8045D GPON Terminal offers excellent performance and reliability, making it a cost-effective choice for system integrators.

What are the key features of the H35M8045DJP1 HG8045D GPON Terminal?

The H35M8045DJP1 HG8045D GPON Terminal features a Japan Standard Adapter, SC/UPC interface, and comes with Japanese documents, specifically designed for the Japan So-net network.

What application scenarios is the H35M8045DJP1 HG8045D GPON Terminal suitable for?

The H35M8045DJP1 HG8045D GPON Terminal is ideal for FTTH (Fiber to the Home) applications, particularly for users under the Japan So-net network.

How do you install the H35M8045DJP1 HG8045D GPON Terminal?

Installation involves connecting the power adapter, fiber optic cable to the SC/UPC interface, and following the instructions provided in the Japanese documents.

Does the H35M8045DJP1 HG8045D GPON Terminal require regular upgrades?

It is recommended to check periodically for firmware updates provided by Huawei to ensure optimal performance and security.

Are there alternative products to the H35M8045DJP1 HG8045D GPON Terminal?

Yes, other Huawei GPON terminals might offer similar functions, but the H35M8045DJP1 is specifically tailored for the Japan So-net network, which may not be matched by alternatives.

What common troubleshooting steps are there for the H35M8045DJP1 HG8045D GPON Terminal?

Common troubleshooting steps include verifying power connections, checking fiber optic cable connections, and consulting the provided Japanese documents for specific error codes.
