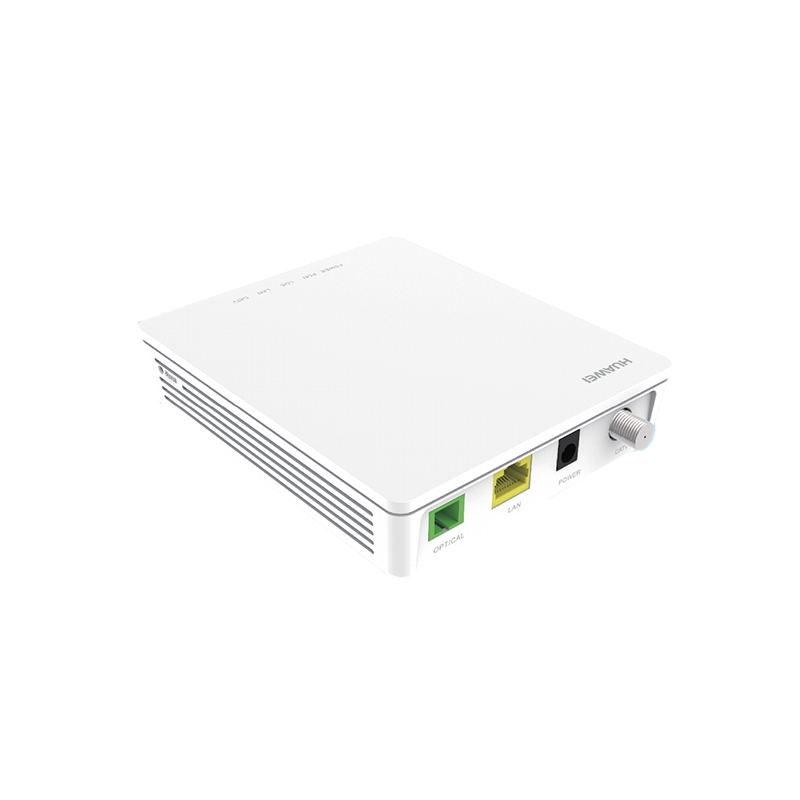

H35M8012HEU1, Huawei EchoLife HG8012H GPON Terminal, SC/APC, European plug, optic module

HG8012H Specification

Dimensions (H x W x D)

134 mm x 115 mm x 30 mm

Weight

< 500 g

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 1 A

Static power consumption

3 W

Maximum power consumption

6 W

Ports

1GE + 1CATV

Indicators

POWER/PON/LOS/LAN/CATV

Interface Parameters

GPON Port

• Class B+

• Receiver sensitivity: -27 dBm

• Wavelengths: US 1310 nm, DS 1490 nm

• Wavelength blocking filter (WBF)

• Flexible mapping between GEM Port and TCONT

• GPON: consistent with the SN or password

authentication defined in G.984.3

• Bi-directional FEC

• SR-DBA and NSR-DBA

Ethernet Port

·Ethernet port-based VLAN tags and tag

removal

·1:1 VLAN, N:1 VLAN, or VLAN

transparent transmission

·QinQ VLAN

·Limit on the number of learned MAC

addresses

·MAC address learning

·Local switching/isolation based on

Ethernet ports

·Transparent transmission of IPv6

packets at Layer 2

CATV Port

• Bandwidth 54-870 MHz

• Output resistance 75 ohms

USB Port

· USB2.0 · FTP-based network storage

Product Function

Smart interconnection

· Smart Wi-Fi coverage (V300R015C10)

· SIP/H.248 auto-negotiation

· Any port any service

· Parental control (V300R015C00)

· L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart O&M

·Variable-length OMCI messages

·Active/Passive rogue ONT detection and

isolation

·PPPoE/DHCP simulation testing

Multicast

·IGMP v2/v3 snooping

·MLD v1/v2 snooping

·Fast leave

·VLAN tag translation, transparent

transmission, and removal for downstream

multicast packets

·IGMP/MLD protocol packet rate limitation

QoS

·Ethernet port rate limitation

·802.1p priority

·SP/WRR/SP+WRR

·Broadcast packet rate limitation

·Flow mapping based on the VLAN ID,

port ID, or/and 802.1p

Security

·MAC address filtering

Common O&M

·OMCI/Web UI

·Dual-system software backup and rollback

·802.1ag Ethernet OAM

·Optical link measurement and diagnosis

·Loopback check

Power Saving

·Indicator power saving

·Power consumption reduction of

idle components in power-saving

state

·COCV4
