main product photo
Name:

Huawei NE40E-X16 with 2*MPUs, 4*SFUs(200G), 8*DC Power (CR5P16BASD71)

Model:Huawei NetEngine NE40E-X16 Series Router CR5P16BASD71
Brand: Huawei
Detail:
NE40E-X16 Basic Configuration (Including NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 DC Power, without Software Charge and Document)
Rating:
100%
5/5.0
3 Reviews
Price:US$42,492.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

CR52-NE40E-X3-BASE-AC

CR52-NE40E-X3-BASE-AC

Rating:
100%
5/5.0
3 Reviews
US$9,217.00
CR52-BKPE-5U-AC

CR52-BKPE-5U-AC

Rating:
100%
5/5.0
5 Reviews
US$6,177.00
CR52-NE40E-X3-BASE-DC

CR52-NE40E-X3-BASE-DC

Rating:
87%
4.4/5.0
3 Reviews
US$9,239.00
Huawei NE40E-X16 with 2*MPUs, 4*SFUs, 8*AC Power (CR5P16BASA70)

Huawei NE40E-X16 with 2*MPUs, 4*SFUs, 8*AC Power (CR5P16BASA70)

Rating:
80%
4/5.0
2 Reviews
US$26,159.00
Huawei NE40E-X16 with 2*MPUs, 4*SFUs(200G), 8*AC Power (CR5P16BASA71)

Huawei NE40E-X16 with 2*MPUs, 4*SFUs(200G), 8*AC Power (CR5P16BASA71)

Rating:
100%
5/5.0
2 Reviews
US$40,922.00
Huawei NE40E-X16 with 2*MPUs, 8*DC Power (CR5P16BASD70)

Huawei NE40E-X16 with 2*MPUs, 8*DC Power (CR5P16BASD70)

Rating:
93%
4.7/5.0
3 Reviews
US$29,228.00
CR5B0BKP1670

CR5B0BKP1670

Rating:
100%
5/5.0
2 Reviews
CR5P16SFUE70

CR5P16SFUE70

Rating:
100%
5/5.0
2 Reviews
US$27,924.00
CR5P08BASA76

CR5P08BASA76

Rating:
100%
5/5.0
3 Reviews
US$15,567.00
CR5P08BASD76

CR5P08BASD76

Rating:
80%
4/5.0
2 Reviews
US$46,744.00
CR5B0BKP1674

CR5B0BKP1674

Rating:
100%
5/5.0
3 Reviews
US$20,233.00
CR5P16BASD76

CR5P16BASD76

Rating:
100%
5/5.0
2 Reviews
US$80,702.00

Huawei NE40E-X16 with 2*MPUs, 4*SFUs(200G), 8*DC Power (CR5P16BASD71)

NE40E-X16 Basic Configuration (Including NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 DC Power, without Software Charge and Document)

Price: US$42,492.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

Huawei NE40E-X16 with 2*MPUs, 4*SFUs(200G), 8*DC Power (CR5P16BASD71) Overview

The NE40E series universal service router CR5P16BASD71, a high-end network product, features line-rate forwarding capability, a well designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility and are usually deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Centers (IDCs) networks and other large-scale IP networks. It can provide comprehensive services for enterprises, residential as universal edge device. Huawei CR5P16BASD71?NE40E-X16 basic configuration includes the features:

1) NE40E-X16 Chassis, 2 MPUs, 4 SFUs, 8 AC Power supplies

2) Up to 12.58Tbit/s switching capacity, 5760Mpps forwarding performance

3) 1+1 backup for SRUs, 2+1 backup for SFUs

4) Extremely Large Capacity Line Card, Energy Saving Design, IPv6-Compatible Solutions, Enhanced Metro Ethernet Features, Enhanced User Management Functions

5) Interface type: 100GE/40GE, 10G-LAN/WAN, GE/FE OC-192c/STM-64c POS, OC-48c/STM-16c POS, OC-12c/STM-4c POS, OC-3c/STM-1c POS, Channelized STM-4, Channelized OC-3/STM-1, OC-3c/STM-1c ATM, OC-12c/STM-4c ATM, E3/CT3 CE1/CT1 E1/T1

6) IPv4/IPv6, MPLS, QoS, Multicast, Security, VPNs, Value-added services

Quick Specs

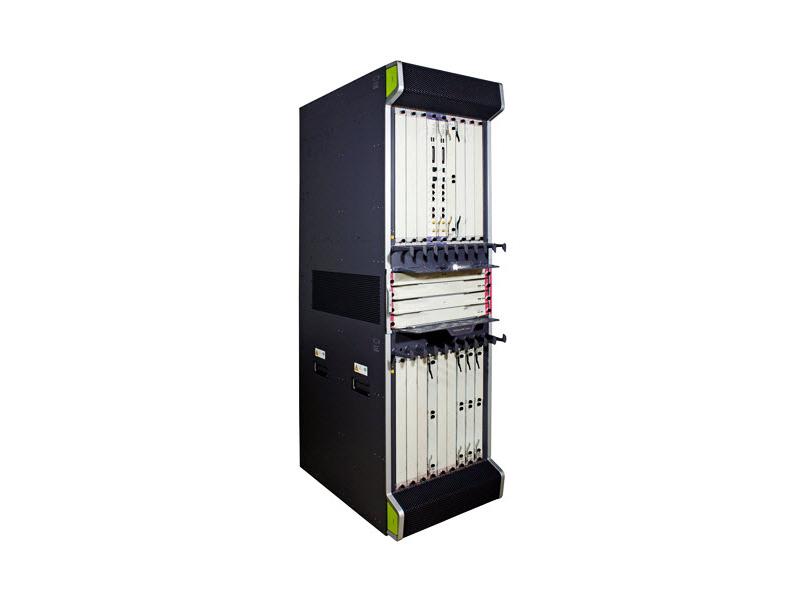

Figure 1 shows the appearance of Huawei Router - CR5P16BASD71.

? CR5P16BASD71

Table 1 shows the Quick Specs.

Product Code

Huawei Router - CR5P16BASD71

Switching Capacity

12.58 Tbit/s

Forwarding Performance

5,760 Mpps

MPU Slots

2

SFU Slots

4

LPU Slots

16

Service Card Slots

Maximum 48

Dimensions (W x D x H)

1,420 mm x 442 mm x 650 mm (32U)

Product Details

Figure 2 shows the?front?panel of Huawei Router - CR5P16BASD71.

? CR5P16BASD71-front

Figure 3 shows the?back?panel of Huawei Router - CR5P16BASD71.

CR5P16BASD71-back

The Optical transceiver

Table 2 shows the recommended elements for the Huawei Router - CR5P16BASD71.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)

eSFP-FE-LX-SM1310

eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

eSFP,FE,Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

SFP-1000BaseT

SFP,GE,Electrical Interface Module(100m,RJ45)

eSFP-GE-SX-MM850

eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

eSFP,GE,Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

eSFP,GE,Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

eSFP,GE,Single-mode Module(1550nm,40km,LC)

Compare to Similar Items

Table 3?shows the comparison between CR5P16BASD71 and CR5P08BASA71.?

Model

CR5P16BASD71

CR5P08BASA71

Switching Capacity

12.58 Tbit/s

7.08 Tbit/s

Forwarding Performance

5,760 Mpps

2,880 Mpps

MPU Slots

2

2

SFU Slots

4

1

LPU Slots

16

8

Service Card Slots

Maximum 48

Maximum 32

Dimensions (W x D x H)

1,420 mm x 442 mm x 650 mm (32U)

620 mm x 442 mm x 650 mm (14U)

Get more information

Do you have any?question?about?the?CR5P16BASD71

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

Huawei NE40E-X16 with 2*MPUs, 4*SFUs(200G), 8*DC Power (CR5P16BASD71) Specification

NE40E-X16 Basic Configuration (Including NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 DC Power, without Software Charge and Document)

Quality Certifications

Q&A

Questions & Answers

What are common troubleshooting steps for the Huawei NE40E-X16?

Check connectivity, power supply, and firmware status; consult the user manual for specific error codes.

What accessories are available for the Huawei NE40E-X16?

Accessories include additional power units, interface cards, and cable management kits.

How does the Huawei NE40E-X16 compare to similar products?

The NE40E-X16 offers superior performance and scalability compared to other routers in its class.

Is the software included with the Huawei NE40E-X16?

No, the NE40E-X16 does not include software; it must be purchased separately.
