Name:	CR5P03BASA73
Model:	Huawei NetEngine NE40E-X3 Series Router CR5P03BASA73
Brand:	Huawei
Detail:	NE40E-X3 Basic Configuration (Include NE40E-X3 Chassis,2 MPUs, 2 AC Power(2200W),without Software Charge and Document)
	Rating: 100% 5/5.0 1 Review 10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$9,046.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

CR5P03BASA73

NE40E-X3 Basic Configuration (Include NE40E-X3 Chassis,2 MPUs, 2 AC Power(2200W),without Software Charge and Document)

Price: US$9,046.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

CR5P03BASA73 Overview

Huawei NetEngine40E NE40E-X3 Series Universal Service Router CR5P03BASA73 Basic Configuration includes NE40E-X3 Chassis, 2 MPUs, 2 * 2200W AC Power supplies, without software charge and document. Huawei NE40E-X3 CR5P03BASA73 router can be applied to the large-capacity core and edge network for data centers or large enterprises to meet the very - high level of bandwidth requirement, such as video conferencing, desktop cloud, and video surveillance applications or server virtualization, cloud computing and fabric consolidation in data center environments.

The Huawei CR5P03BASA73 can be deployed as an end to end 40G solution. 40G Ethernet is becoming an irreversible trend in the enterprise market. 10G still uses in campus and data centers, but to be preparing for the future, the enterprise need to have the plan to have the 40G deployment to grow to improve the efficiency. According to the reliability, NE40E provides a multi-level reliability solution that completely meets the reliability requirements of different services. It lays the foundation for enterprise services with a system availability of 99.999%.

Quick Specs

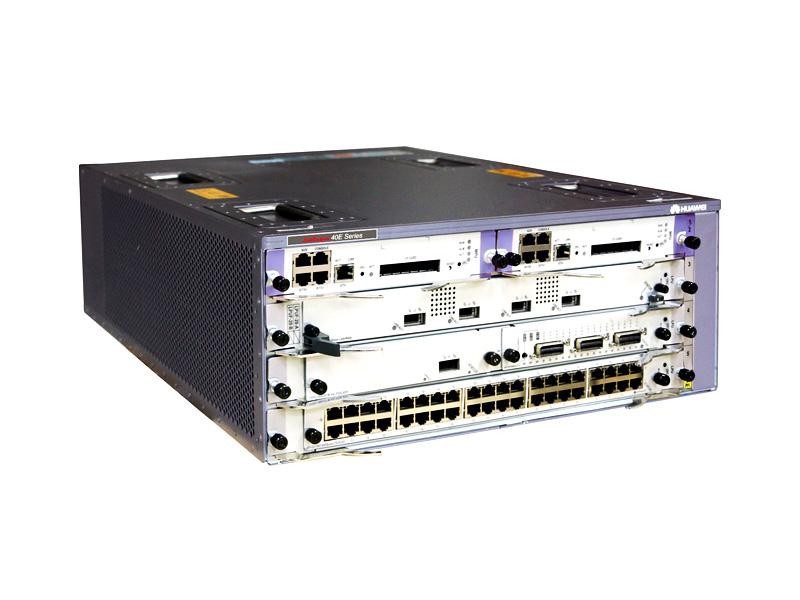

Figure 1 shows the appearance of Huawei Router - CR5P03BASA73.

Table 1 shows the Quick Specs.

Product Code	Huawei Router - CR5P03BASA73
Switching Capacity	1.08 Tbit/s
Forwarding Performance	540 Mpps
MPU Slots	2
SFU Slots	none
LPU Slots	3
Service Card Slots	Maximum 12
Weight	52 kg (AC)
Dimensions (W x D x H)	220 mm x 442 mm x 650 mm (AC 5U)

The Optical transceiver

Table 2 shows the recommended elements for the Huawei Router - CR5P03BASA73.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	eSFP,FE,Single-mode Module(1310nm,40km,LC)
GE-SFP Optical Transceiver
SFP-1000BaseT	SFP,GE,Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	eSFP,GE,Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	eSFP,GE,Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	eSFP,GE,Single-mode Module(1550nm,40km,LC)

Compare to Similar Items

Table 3 shows the comparison between CR5P03BASA73 and CR5P08BASA71.

Model	CR5P03BASA73	CR5P08BASA71
Switching Capacity	1.08 Tbit/s	7.08 Tbit/s
Forwarding Performance	540 Mpps	2,880 Mpps
MPU Slots	2	2
SFU Slots	none	1
LPU Slots	3	8
Service Card Slots	Maximum 12	Maximum 32
Dimensions (W x D x H)	220 mm x 442 mm x 650 mm (AC 5U)	620 mm x 442 mm x 650 mm (14U)

Ordering Information

Table 4 shows the ordering information. A router and one software need to be ordered together.

No	SKU	Description	Price	Weight
1	CR5P03BASA73	NE40E-X3 Basic Configuration (Include NE40E-X3 Chassis,2 MPUs, 2 AC Power(2200W), without Software Charge and Document)	$9,555	20KG
1	CR5P00SWF069	NetEngine40E&80E VRP5 V600R009 Software Bundle	$9,555	20KG

Get more information

Do you have any question about the CR5P03BASA73?

Quality Certifications

Specification

CR5P03BASA73 Specification

CR5P03BASA73 Specifications
Switching Capacity	1.08 Tbit/s
Forwarding Performance	360 Mpps
Number of Slots	5 slots (for 3 LPUs and 2 MPUs)
Dimensions (W x D x H)	442 mm x 650 mm x 175 mm (DC, 4U); 442 mm x 650 mm x 220 mm (AC, 5U)
Power Consumption (in full configuration)	-1,070W (AC) -920W (DC)
Weight (in full configuration)	-42 kg (DC) -52 kg (AC)
Interface Types	100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1
IPv4	Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4 Line rate forwarding on all interfaces in complex routing environments, for example, when route flapping occurs
IPv6	Various IPv4-to-IPv6 transition technologies: manual tunnel, automatic tunnel, 6to4 tunnel, GRE tunnel, and ISATAP tunnel IPv4 over IPv6 tunnel and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Internet Control Message Protocol Version 6 (ICMPv6), Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB L2NAT, NAT444, DS-Lite, and NAT64
MPLS	MPLS TE and MPLS/BGP VPN, in compliance with RFC 2547 Inter-AS VPN Option A/B/C Integration with Internet services Martini and Kompella MPLS L2VPN L2VPN techniques, such as VPLS and VLL IP interworking over heterogeneous media Multicast VPN MPLS-TP, EVPN, Remote LFA
Layer 2 Features	IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) Filtering list based on MAC addresses and ports 1483B
Reliability	IP/LDP/VPN/TE/VLL FRR Protection mechanisms such as IP/TE auto rerouting, IGP/BGP/multicast route convergence, VRRP, RRPP, IP-Trunk load balancing and backup, BFD, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane design Redundancy backup for key components, such as route processing modules, SFUs, and power modules to guard against single points of failure Switching between components that hot-back up each other GR, NSF, NSR, and ISSU Hot swap of all components
QoS	Well-designed HQoS and advanced scheduling and congestion avoidance technologies on each LPU Accurate traffic policing and traffic shaping Complex rule definition and fine-grained flow identification MPLS H-QoS, ensuring QoS for MPLS VPN, VLL, and PWE3 services 8CT that combines MPLS TE and the DiffServ model TE-tunnel-oriented QoS
OAM	Y.1731, IP FPM, RFC 2544, MPLS OAM, 802.1ag, and 802.3ah, OPS
Multicast	IGMPv1, IGMPv2, and IGMPv3 Multicast routing protocols, including PIM-DM, PIM-SM, PIM-SSM, Multicast Source Discovery Protocol (MSDP), and Multiprotocol BGP (MBGP) Static multicast Multicast CAC Interoperability between multicast protocols Processing of multicast policies based on multicast routing protocols and multicast forwarding Multicast QoS and multicast replication for IPoE access users Two-level multicast replication on the SFUs and LPUs to optimize the multicast effect
Security	ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense and DoS attack defense MAC address limit and MAC-IP binding Secure Shell (SSH) and SSH version 2 (SSH v2) BGP-Flowspec RIPv2, OSPF, IS-IS, and BGP MD5, SHA256, Keychain
Value-added Services	IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN
Environment Requirements	Long-term operating temperature: 0°C to 45°C Short-term operating temperature: -5°C to 55°C Long-term operating humidity: 5% RH to 85% RH Short-term operating humidity: 0% RH to 100% RH Operating altitude: ≤ 3,000 meters

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are the upgrade options available for the NE40E-X3?

Upgrades for the NE40E-X3 can include additional interface cards, enhanced power modules, and software licenses to extend its capabilities.

How does the NE40E-X3 compare to other Huawei routers?

The NE40E-X3 provides a balance of performance and cost, fitting between entry-level and high-end models like the NE40E-X2 and NE40E-X8 in terms of scalability and capacity.

What accessories are necessary for the NE40E-X3?

Essential accessories may include transceiver modules, additional interface cards, and cabling to connect with network equipment and extend functionality.

How can common issues with the NE40E-X3 be troubleshooted?

Common issues can be troubleshooted by checking power supply connections, updating firmware, verifying network configurations, and consulting Huawei's online resources for specific error codes.

Learn More

What are the main features of the NE40E-X3 Basic Configuration?

The NE40E-X3 Basic Configuration offers robust performance with the inclusion of NE40E-X3 Chassis, 2 MPUs, and dual 2200W AC power supplies, providing high reliability for enterprise networks.

Is the NE40E-X3 suitable for large-scale networks?

Yes, the NE40E-X3 Basic Configuration is ideal for large-scale network environments due to its high-performance capabilities and redundant power supplies.

How cost-effective is the NE40E-X3 Basic Configuration?

The NE40E-X3 Basic Configuration offers a cost-effective solution through its robust hardware and high reliability, ensuring long-term investment value without software charges.

What is included in the NE40E-X3 Basic Configuration package?

The package includes the NE40E-X3 chassis, 2 main processing units (MPUs), and 2 AC power supplies (2200W) but does not include software charges or documentation.

Are there any specific installation requirements for the NE40E-X3?

Proper installation of the NE40E-X3 requires adequate ventilation, correct power connections, and following the hardware installation guides typically available online.

Do I need to buy additional software for the NE40E-X3?

Software is not included in the NE40E-X3 Basic Configuration and needs to be purchased separately based on your requirements.

What are the upgrade options available for the NE40E-X3?

Upgrades for the NE40E-X3 can include additional interface cards, enhanced power modules, and software licenses to extend its capabilities.

How does the NE40E-X3 compare to other Huawei routers?

The NE40E-X3 provides a balance of performance and cost, fitting between entry-level and high-end models like the NE40E-X2 and NE40E-X8 in terms of scalability and capacity.

What accessories are necessary for the NE40E-X3?

Essential accessories may include transceiver modules, additional interface cards, and cabling to connect with network equipment and extend functionality.

How can common issues with the NE40E-X3 be troubleshooted?

Common issues can be troubleshooted by checking power supply connections, updating firmware, verifying network configurations, and consulting Huawei's online resources for specific error codes.
