How cost-effective is the AR151 for small businesses?

The AR151 offers a reliable and budget-friendly solution for small businesses with its Fast Ethernet WAN and four Fast Ethernet LAN ports.

What are the key features of the Huawei AR151 router?

The AR151 features 1 Fast Ethernet WAN, 4 Fast Ethernet LAN ports, and 1 USB port, making it ideal for small office networking needs.

What are the common application scenarios for the AR151 router?

The Huawei AR151 is commonly used in small offices, retail stores, and branch offices requiring basic networking and internet connectivity.

How do I install the Huawei AR151 router?

To install the Huawei AR151, connect the WAN port to your internet source and the LAN ports to your devices. Power it on and configure settings via the web interface.

Does the AR151 router require regular upgrades?

Yes, it is recommended to regularly upgrade the AR151 firmware to ensure optimal performance and security.

Are there any alternative products to the Huawei AR151?

Alternatives to the AR151 include other Huawei small office routers like the AR129 series, which also provide robust networking capabilities.

AR151

Name: AR151
SKU: AR151
Price: 526 USD
Availability: OutOfStock
Rating: 5 (2 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	AR151
Model:	Huawei AR150 Series Router AR151
Brand:	Huawei
Detail:	AR151,1FastEthernet WAN,4FastEthernet LAN,1USB, AR0M1510BA00
	Rating: 100% 5/5.0 2 Reviews 10 Questions 31/mo Sold
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$526.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

AR151

AR151,1FastEthernet WAN,4FastEthernet LAN,1USB, AR0M1510BA00

Price: US$526.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

AR151 Overview

Huawei AR G3 AR150 Series - AR151 fixed interface access enterprise router AR0M1510BA00 provides routing and switching functionality for small business or branch offices. Huawei AR G3 AR151 equips 1 Fast Ethernet 10/100 WAN port, 4 Fast Ethernet 10/100 LAN ports, 1USB and provides total 100Mbps system capacity. Dual-core processor separate data and control planes to ensure the high performance. Robust security feature include build-in, comprehensive authentication, defense mechanisms and a broad range of VPN options.

Quick Specs

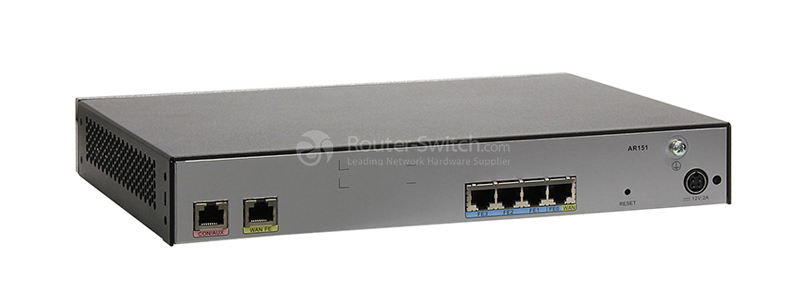

Figure 1 shows the appearance of Huawei Router - AR151.

Table 1 shows the Quick Specs.

Product Code	Huawei Router - AR151
Memory	512 MB
Flash	512 MB
Service interfaces (standard configuration)	WAN interfaces: 1 10/100M auto-sensing Ethernet electrical interface LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces
Extended slots	Not supported
Interface number	LAN interfaces: FE0-FE3
Power module type	External power adapter
Weight	2.8 kg
Dimensions (W x D x H)	300.0 mm x 216.4 mm x 44.0 mm

Product Details

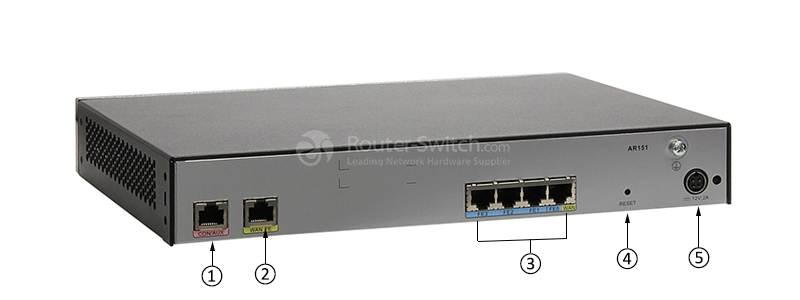

Figure 2 shows the back panel of Huawei Router - AR151.

Note:

①	CON/AUX interface
②	WAN FE electrical interfaces
③	4 FE electrical interfaces
④	RST button
⑤	Power interface

Compare to Similar Items

Table 2 shows the comparison between AR151 and AR2220E.

Model	AR151	AR2220E
SIC Slots	0	4
Memory	512 MB	1 GB
Flash	512 MB	512 MB
Weight	2.8 kg	6 kg (13.2 lb)
Dimensions (W x D x H)	300.0 mm x 216.4 mm x 44.0 mm	442.0 mm x 420.0 mm x 44.5 mm

Get more information

Do you have any question about the AR151?

Quality Certifications

Specification

AR151 Specification

AR151 Specification
WAN speed with services (IMIX)	150 Mbit/s or 100 Mbit/s
Number of recommended users	50
Fixed WAN Ports	1 x FE
Fixed Ethernet Switching Ports	8 x FE/4 x FE (can be configured as WAN interfaces)
Fixed Voice Ports	-
Integrated 3G	-
USB 2.0 Ports	1
Console Ports	1
Memory Size	512 MB
Flash Memory	512 MB
PoE Power	-
Maximum Power	36W/24W
Power Supply (AC)	100V to 240V
Frequency	50 Hz/60 Hz
Dimensions (H x W x D)	44.5 mm x 300 mm x 220 mm (1.7 in. x 11.8 in. x 8.66 in.)
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non- condensing)
Basic Features	DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
Voice	RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP)	AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC)	AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing	Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	IGMP v1/v2/v3, PIM SM, PIM DM, and MSDP
VPN	IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN
QoS	DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)
Security	ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance	Upgrade management, device management, web-based GUI, GTL, SNMP v1/v2c/v3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common troubleshooting steps can be taken for the AR151?

For common issues, ensure all connections are secure, reboot the router, and check if firmware updates are needed via the web interface.

What accessories are available for the Huawei AR151?

Accessories for the AR151 include additional Ethernet cables, power adapters, and wall-mount kits.

How does the AR151 compare to other similar routers?

The Huawei AR151 stands out with its combination of cost-effectiveness, reliability, and sufficient LAN/WAN ports catering to small business needs.

Can the AR151 router integrate with other Huawei networking products?

Yes, the AR151 can seamlessly integrate with other Huawei networking products, providing a scalable solution for growing business networks.
