main product photo

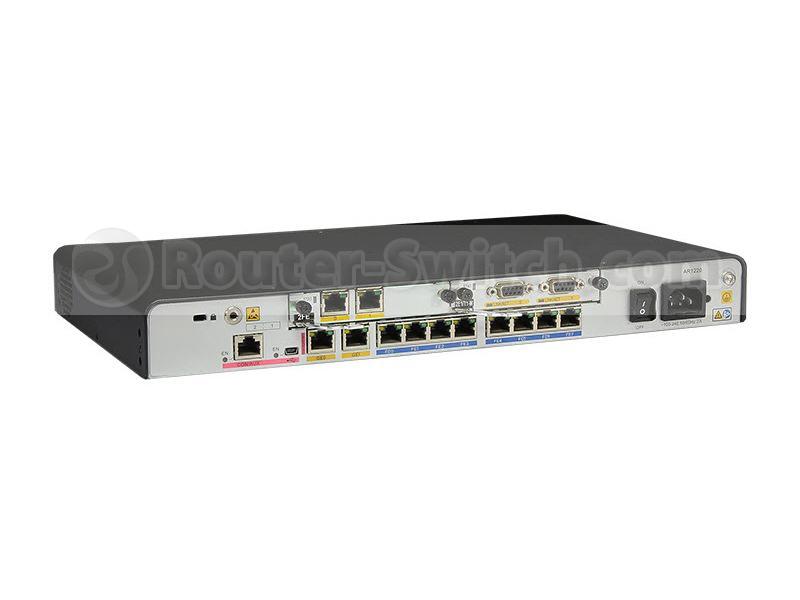

AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power

  • Brand: Huawei
  • Model: AR0MNTEH10301
Rating:
100%
5/5.0
1 Review
$2,584.00
Price Alert ×
AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power
AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power US$2,584.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power

    AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power

    100% Genuine Ready to Ship
    $2,584.00
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei AR0MNTEH10301 Overview

    The Huawei AR0MNTEH10301 is an enterprise-class branch router designed for secure, multi-service connectivity in converged networks. With 200 Mbit/s WAN speed with services and 900 Mbit/s firewall performance, it supports up to 100 users with advanced IPv4/IPv6 routing, MPLS, and rich VPN capability. Dual GE WAN, 8 configurable FE LAN/WAN ports, and SIC/WSIC expansion make it ideal for SMEs, distributed offices, and managed service deployments across Asia, Europe, Africa, and North America.

    Product Highlights

    200 Mbit/s
    Wan Speed
    900 Mbit/s
    Firewall
    100
    Users

    Product Components Breakdown

    Front Panel of the Product:

    AR0MNTEH10301 front Panel
    ①
    Two USB interfaces (host)
    ②
    RST button

    Rear Panel of the Product:

    AR0MNTEH10301 Back Panel
    ①
    Two GE combo interfaces
    ②
    Console interface
    ③
    Mini USB interface
    ④
    One GE electrical interface
    ⑤
    Eight FE electrical interfaces
    ⑥
    Power switch
    ⑦
    AC power jack
    ⑧
    Two SIC slots
    ⑨
    ESD Jack
    ⑩
    Security lock

    Product Applications Scenarios

    Enterprise Network
    AR0MNTEH10301 consolidates WAN, voice, and VPN, helping enterprises cut branch networking costs by up to 30% while keeping traffic secure and manageable.
    Service Providers
    For carriers and ISPs, its MPLS and BRAS-ready features streamline managed CPE offerings and can reduce on-site support visits by nearly 25%.
    Edge & IoT
    Flexible GE/FE interfaces and 3G/LTE options make it ideal at the edge, securely aggregating remote IoT sites and improving uptime for field operations.

    Product Features Comparison

      Huawei AR0MNTEH10301 Cisco1921-T1SEC/K9 C2951-VSEC-SRE/K9 ME0P03BASA71
    Model AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power CISCO1921-T1SEC/K9, Cisco 1921 Router, HWIC-1DSU-T1/256MB Flash/SEC License C2951-VSEC-SRE/K9, Cisco 2951 Router, SRE 700/PVDM3-32/UC, SEC License ME0P03BASA71, Huawei ME60 Router, 2 MPUs/2×AC Power/No Software
    Brand Huawei Cisco Cisco Huawei
    Routing Throughput WAN speed with services: 200 Mbit/s Max Transfer Rate: 1.544 Mbps n/a Switching Capacity: 1.08 Tbit/s
    Interface Configuration 2 x GE WAN; 8 x FE LAN (configurable as WAN); 2 x USB 2.0; 1 x Mini-USB; 1 x Serial Auxiliary/Console; 2 x SIC; 0/1 WSIC Interfaces: 2 x Ethernet 10/100/1000 (RJ-45); 1 x serial console; 1 x mini-USB console; 1 x serial auxiliary; 1 x USB; 1 x m; Expansion Slots: 2 (1) x EHWIC Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet; n/a Slots: 5 slots, including 2 MPUs and 3 LPUs; Interface Types: multiple POS, ATM, 100GE, 10GE, GE/FE, E3/CT3, CE1/CT1
    Supported Protocol IPv4: RIP, OSPF, IS-IS, BGP; IPv6: RIPng, OSPFv3, IS-ISv6, BGP4+; Multicast: IGMPv1/v2/v3, PIM SM/DM, MSDP; MPLS: LDP, MPLS L3 VPN, VLL, PWE3, TE; LAN: IEEE 802.1P/Q/3, MSTP Routing Protocol: OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing Routing Protocols: OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing IPv4 Features: static routing, RIP, OSPF, IS-IS, BGP-4; IPv6 Features: multiple tunneling, RIPng, OSPFv3, IS-ISv6, BGP4+
    VPN Capability IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN Network / Transport Protocol: L2TP, IPSec Network / Transport Protocols: L2TP, IPsec, PPPoE, PPPoA L2TP: up to 64K sessions per slot, 128K per chassis; supports extensive BRAS and MPLS VPN features
    Integrated Features Firewall, ACL, 802.1x, AAA/RADIUS/HWTACACS, NAT, QoS (DiffServ, MQC, Hierarchical QoS), WLAN AP/AC management (model-dependent), 3G/LTE cards, voice, management via web GUI, SNMP, NTP, CWMP, USB deploy Features: Firewall protection, VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, QoS Key Features: Firewall protection, Layer 2/3 switching, VPN support, MPLS support, Syslog, content filtering, IPv6, CBWFQ, WRED, ACL, QoS, DMVPN BRAS Features, MPLS L2/L3 VPN, QoS, CGN, DAA, extensive Layer 2/3, IPv4/IPv6, and multicast capabilities

    Optional Add-ons

    Model Number Description
    AR-SIC-3G-WCDMA Huawei 3G WCDMA SIC interface card for AR series routers, adds mobile WAN backup.
    AR-SIC-LTE-FDD Huawei FDD LTE SIC interface card for AR routers, enabling high-speed 4G uplink.
    AC-POWER-CORD-UK Huawei certified UK AC power cord for enterprise routers and access devices.

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei AR0MNTEH10301 Specification

    Model
    AR0MNTEH10301
    Brand
    Huawei
    WAN speed with services***
    200 Mbit/s
    Firewall Performance (large packet)
    900 Mbit/s
    Device Switching Capacity
    8 Gbit/s
    Slot Switching Bandwidth
    SIC & WSIC slots: 2 Gbit/s
    Number of Recommended Users
    100
    Fixed WAN Ports
    2 x GE
    Fixed LAN Ports
    8 x FE (can be configured as WAN interfaces)
    SIC Slots
    2
    WSIC Slots (default/max)
    0/1
    DSP Slots
    -
    Wi-Fi
    -
    USB 2.0 Ports
    2
    Mini-USB Ports
    1
    Serial Auxiliary/Console Port
    1
    Memory
    512MB
    Flash
    256MB
    Max. Power
    60W
    PoE Power
    -
    AC Power
    100V to 240V
    Frequency
    50 Hz/60 Hz
    DC power
    -
    Dimensions (H x W x D)
    44.5mm x 390mm x 220mm
    Ambient Temperature
    0°C to 45°C
    Relative Humidity
    5% to 95% (non-condensing)
    Basic Features
    DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management
    Voice
    RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)
    WLAN (AP)
    AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)
    WLAN (AC)
    AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
    3G
    3G Interface card (WCDMA)
    LTE
    LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
    LAN
    IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
    IPv4 Unicast Routing
    Routing policy, static route, RIP, OSPF, IS-IS, and BGP
    IPv6 Unicast Routing
    Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
    Multicast
    IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP
    MPLS
    LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
    VPN
    IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
    QoS
    DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)
    Security
    ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing
    Management and maintenance
    Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI
    Weight
    8.33 kg

    Get more information

    Discover unbeatable prices and fast shipping for the AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power . Access the detailed AR0MNTEH10301, Huawei AR0MNTEH Series Router, Base Config/1-Port E1/T1/1-Port ADSL2+/UK Power datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are included with the AR0MNTEH10301?

    It includes a 3m E1 Cable and Connector, a 2.125m Telephone Cable, a Splitter, and a Britain type Power Cable.

    How does the AR0MNTEH10301 compare with similar products?

    The AR0MNTEH10301 combines multiple connectivity options and essential accessories, offering better value compared to buying each component separately.

    Is technical support available for the AR0MNTEH10301?

    Yes, Huawei provides comprehensive technical support and resources for troubleshooting and maintaining your AR0MNTEH10301 bundle.
