Overview

AR151W-P Overview

Huawei AR G3 AR150 Series AR151W-P fixed interface access wireless router?AR0M1515BA00?provides routing and switching functionality for small business or branch offices.

Quick Specs

Figure 1 shows the appearance of Huawei Router - AR151W-P.

? AR151W-P-appearance

Table 1 shows the Quick Specs.

Product Code

Huawei Router - AR151W-P

Memory

512 MB

Flash

512 MB

Service?interfaces (standard configuration)

WAN interfaces: 1 10/100M auto-sensing Ethernet electrical interface

LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces

Extended slots

Not supported

Interface number

LAN interfaces: FE0-FE3

Power module type

External power adapter

Weight

2.8?kg

Dimensions (W x D x H)

300.0 mm x 216.4 mm x 44.0 mm

Product Details

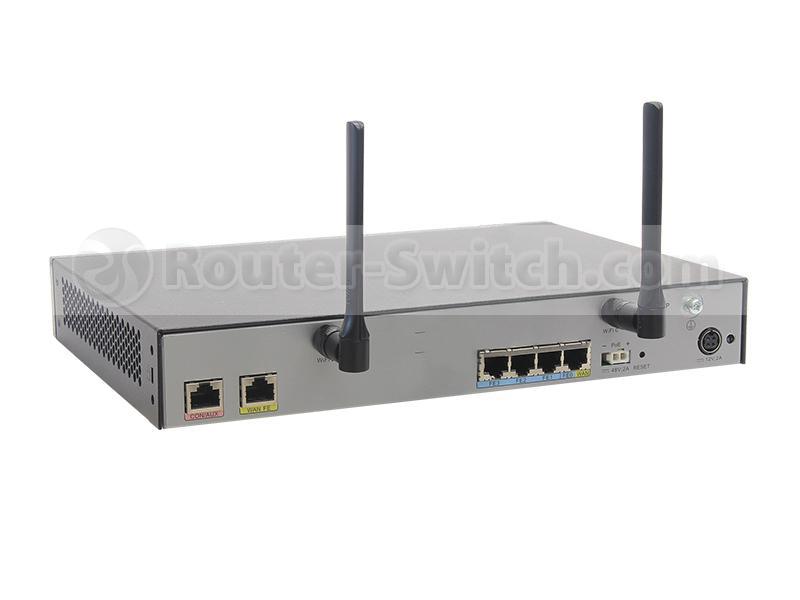

Figure 2 shows the?back?panel of Huawei Router - AR151W-P.

? AR151W-P-back

Note:

CON/AUX?interface

WAN FE electrical interfaces

4 FE electrical interfaces

PoE electrical interface

RST button

Power interface

Compare to Similar Items

Table 2?shows the comparison between AR151W-P and AR2220E.?

Model

AR151W-P

AR2220E

SIC Slots

0

4

Memory

512 MB

1 GB

Flash

512 MB

512 MB

Weight

2.8?kg

6 kg (13.2 lb)

Dimensions (W x D x H)

300.0 mm x 216.4 mm x 44.0 mm

442.0 mm x 420.0 mm x 44.5 mm

Get more information

Do you have any?question?about?the?AR151W-P

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

AR151W-P Specification

AR151W-P Specification

WAN speed with services*
(IMIX)

150 Mbit/s or 100 Mbit/s

Number of recommended users

50

Fixed WAN Ports

1 x FE

Fixed Ethernet Switching Ports

8 x FE/4 x FE (can be configured as WAN interfaces)

Fixed Voice Ports

-

Integrated 3G

-

USB 2.0 Ports

1

Console Ports

1

Memory Size

512 MB

Flash Memory

512 MB

PoE Power

-

Maximum Power

36W/24W

Power Supply (AC)

100V to 240V

Frequency

50 Hz/60 Hz

Dimensions (H x W x D)

44.5 mm x 300 mm x 220 mm
(1.7 in. x 11.8 in. x 8.66 in.)

Operating Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non- condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP v1/v2/v3, PIM SM, PIM DM, and MSDP

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN

QoS

DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP v1/v2c/v3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI

Quality Certifications

Q&A

Questions & Answers

What troubleshooting steps can I take if the AR151W-P Wi-Fi isn't working?

Ensure the wireless AP is enabled, check the SSID and password settings, and reboot the AR151W-P. If issues persist, consult the user manual or seek technical support.

What accessories are available for the AR151W-P?

Accessories include additional PoE injectors, mounting kits, and compatible USB storage or modem devices to enhance the functionalities of the AR151W-P.

How does the AR151W-P compare to similar products in its category?

The AR151W-P stands out with its integrated PoE support, built-in WLAN AP, and comprehensive connectivity features, offering a competitive edge over other routers in its category.

Can the AR151W-P be integrated with existing network management systems?

Yes, the AR151W-P supports SNMP and other standard protocols, enabling seamless integration with various network management systems for centralized control and monitoring.
