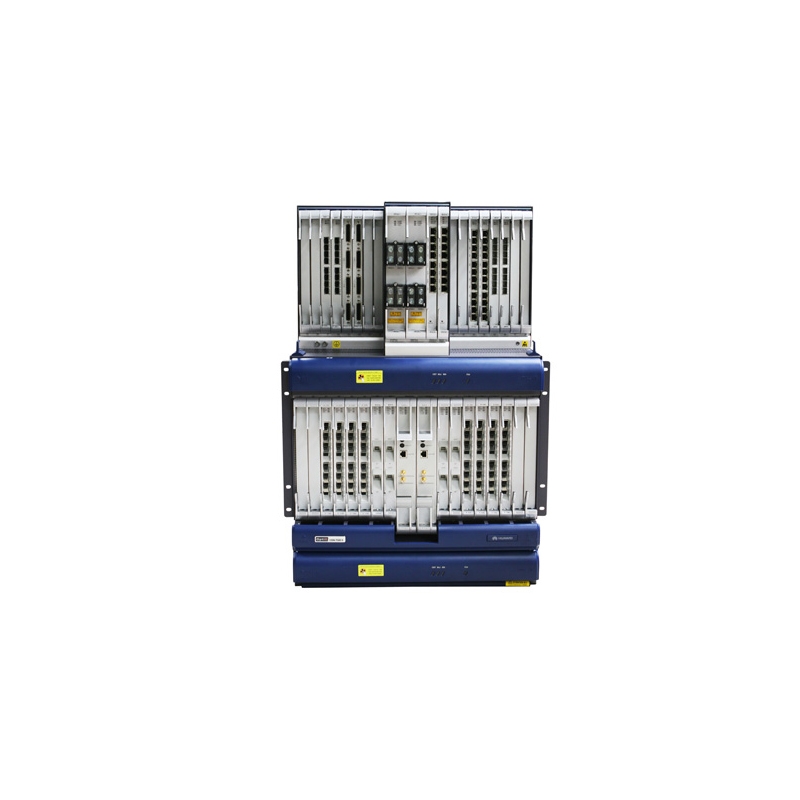

main product photo

TNN1CO1(S-1.1,LC), Huawei OptiX OSN Series CES Board, 8xSTM-1 optical/LC connector/Channelized

  • Brand: Huawei
  • Model: TNN1CO1(S-1.1,LC)
Rating:
100%
5/5.0
2 Reviews
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    TNN1CO1(S-1.1,LC), Huawei OptiX OSN Series CES Board, 8xSTM-1 optical/LC connector/Channelized

    TNN1CO1(S-1.1,LC), Huawei OptiX OSN Series CES Board, 8xSTM-1 optical/LC connector/Channelized

    100% Genuine Ready to Ship
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Overview

    Huawei TNN1CO1(S-1.1,LC) Overview

    The Huawei TNN1CO1(S-1.1,LC) is a carrier-grade CES module for OptiX OSN 7500 II, providing 8 ports Channelized STM-1 optical interfaces with LC connectors. Designed for multiservice transport (MSTP), it supports packet, hybrid, and SDH networking, enabling seamless convergence of Ethernet, PDH, ATM, WDM, and PCM services. With rich QoS, MPLS-TP, and SDH protection mechanisms, this module helps operators and integrators deliver resilient, low-latency TDM and packet services across metro and backbone networks.

    Product Highlights

    8×STM-1
    Optical CES
    560Gbit/s
    OTN Core
    17W
    Low Power

    Product Applications Scenarios

    Service Providers
    Ideal for carriers consolidating legacy TDM and Ethernet, the module enables CES over SDH with robust protection, reducing backbone upgrades by up to 30%.
    Enterprise Network
    Supports mixed Ethernet, PDH, and ATM services, helping enterprises migrate leased-line networks to packet transport while preserving SLAs.
    Public Infrastructure
    Enables highly reliable transport for utilities, rail, and government, using SDH and MPLS-TP protection to cut downtime and maintenance costs.

    Product Features Comparison

    Huawei Huawei Huawei Cisco
    Model TNN1CO1(S-1.1,LC), Huawei OptiX OSN Series CES Board, 8×STM-1 optical/LC connector/Channelized TNF1EMR416, Huawei Enhanced 4-ch Add/Drop Multiplexer, 4-channel, 100GHz, 194.5-194.8THz TN16UXCM, Huawei TN16UXCM Board, 1.6T Cross Connect/System Control/ODUk Processing CWDM-MUX-4-SF1, Cisco CWDM-MUX-4 Series, 4-Channel Mux/Demux/Single Fiber/Passive
    Brand Huawei Huawei Huawei Cisco
    Module Type n/a Enhanced Add/Drop Multiplexer 1.6T Universal Cross Connect Single Fiber 4-Channel Mux/Demux
    Port Configuration 8 ports Channelized STM-1 CES Optical Interface board(S-1.1,LC) 4 Channels n/a Single Fiber 4-Channel Mux/Demux
    Supported Speed STM-1/4/16/64; FE/GE/10GE/40GE; E1/T1, E3/T3, E4 100GHz 1.6 Terabits per second n/a
    Compatible Platform OSN 7500 II n/a n/a n/a
    Installation Type n/a Rack-mounted Rack Mounted n/a

    Optional Add-ons

    Model Number Description
    TN11WMU01 Huawei TN11WMU01 Wavelength Monitored Unit for real-time DWDM channel monitoring in OptiX OSN systems
    TN11DCU13 Huawei TN11DCU13 Dispersion Compensation Unit for C-band G.655 fiber links up to 60km
    TNF1EMR416 Huawei TNF1EMR416 4-channel 100GHz DWDM add/drop multiplexer for OSN optical transport networks

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei TNN1CO1(S-1.1,LC) Specification

    Model
    TNN1CO1(S-1.1,LC)
    Brand
    Huawei
    Part Number
    03053477
    Description
    8 ports Channelized STM-1 CES Optical Interface board(S-1.1,LC)
    Discount Category
    PTN Hardware
    Product Line
    Networking
    Sub Product Family
    MSTP
    Product Series
    OSN 7500 II
    UOM
    PCS
    Net Dimension(D*W*H mm)
    157*22*261
    Typic Power(W)
    17
    Dimensions
    800mm (H) x 496mm (W) x 295mm (D)
    Switch Capacity
    Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s
    Service Slots
    32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot
    Ethernet interface
    FE/GE/10GE/40GE
    SDH interface
    STM-1/4/16/64
    PDH interface
    E1/T1, E3/T3, E4
    ATM interface
    E1, STM-1
    WDM interface
    40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
    SAN interface
    FDDI, ESCON, FICON/FICON Express, FC100/200/400/800/1200
    PCM interface
    FXS/FXO, 2/4W VF & E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A,RS485, G.703 64 kbit/s codirectional
    Other interface
    DDN, Video
    Networking Mode
    Supports packet, hybrid (packet + SDH or OTN + SDH) or SDH networking Supporting WDM networking Supporting single-fiber bidirectional transmission
    Power Supply
    48V DC/-60V DC
    Ethernet Feature
    E-Line and E-LAN, QinQ MPLS-TP based VPWS and VPLS Multi-section pseudo-wire (MS-PW) ETH PWE3, TDM PWE3, A TM/IMA PWE3 IGMP Snooping V2 Blacklist, Broadcast packet suppression, ACL VLAN SWAP
    PCM Feature
    Voice or data Conference/Meeting,P2MP,MP2MP FXO/FXS mode can be set by software E&M Interface voltage can be set by software (-48V/-12V) E&M signaling can be set by software (Bell types I, II, III, IV, V and British Telecom SSDC5)
    QoS
    Hierarchical QoS scheduling and traffic shaping DiffServ mode based on traffic classification, eight priority queues Simple traffic classification, complex traffic classification, per hop behavior (PHB),and A CL Committed access rate (CAR), shaping based on port scheduling priority PQ scheduling priority, weighted fair queuing (WFQ) and PQ+WFQ queuing Tail drop and weighted random early detection (WRED)
    MPLS OAM
    LSP/PW OAM: FDI, BDI,CV, FFD, TraceRoute, Ping, LM, DM PW OAM: CES PW VCCV
    Ethernet OAM
    ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819)
    MPLS-TP based Service Protection
    LSP/PW Linear protection, Ring protection Anti multifailure protection based on MS-PW LAG, MC-LAG, Dual-homing protection, LPT
    SDH based Service Protection
    2/4 fiber MS-SP Ring; 1+1/1:n (n SNCP/SNCTP Tributary protection for E1/T1, E3/T3, E4, STM-1(e) and FE
    ASON
    Distributed restorable rerouting protection 5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services Based on VC-4 and VC-12 granularity
    Synchronization
    Both Ethernet and SDH networks supporting clock synchronization Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization Adaptive clock recovery (ACR) Two external clock inputs/outputs (2MHz or 2 Mbit/s) Two external time signals (1pps+TOD)

    Get more information

    Discover unbeatable prices and fast shipping for the TNN1CO1(S-1.1,LC), Huawei OptiX OSN Series CES Board, 8×STM-1 optical/LC connector/Channelized . Access the detailed TNN1CO1(S-1.1,LC), Huawei OptiX OSN Series CES Board, 8×STM-1 optical/LC connector/Channelized datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    How does the TNN1CO1(S-1.1,LC) compare to similar products?

    The TNN1CO1(S-1.1,LC) excels in high-speed data transport efficiency and ease of integration into existing networks.

    What are common troubleshooting steps for TNN1CO1(S-1.1,LC)?

    Common troubleshooting includes checking connections, verifying interface configurations, and ensuring firmware is up to date.

    What is the warranty period for TNN1CO1(S-1.1,LC)?

    The TNN1CO1(S-1.1,LC) typically comes with a 1-year warranty from Huawei, subject to terms and conditions.
