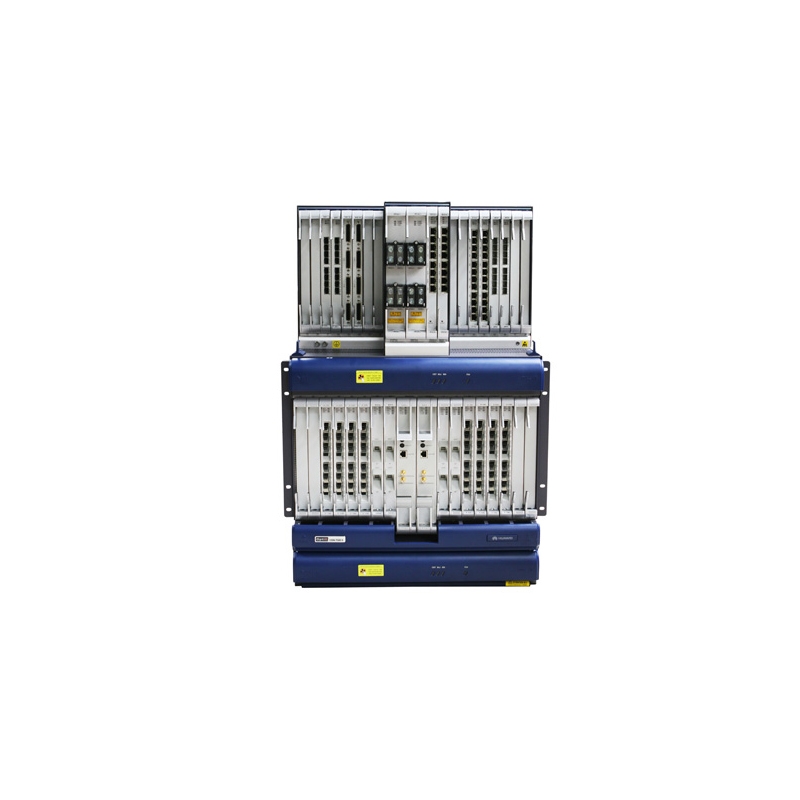

main product photo

TNN1IXCS, Huawei CloudEngine Series, Cross-connect & Timing Board, Infinite cross-connect, Synchronous timing, Board type

  • Brand: Huawei
  • Model: TNN1IXCS
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    TNN1IXCS, Huawei CloudEngine Series, Cross-connect & Timing Board, Infinite cross-connect, Synchronous timing, Board type

    TNN1IXCS, Huawei CloudEngine Series, Cross-connect & Timing Board, Infinite cross-connect, Synchronous timing, Board type

    100% Genuine Ready to Ship
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei TNN1IXCS Overview

    The Huawei TNN1IXCS is a carrier-grade cross-connect and synchronous timing board for OSN 7500 II MSTP transmission platforms. Designed for high-capacity multiservice transport, it delivers packet, SDH, and OTN switching with advanced QoS and MPLS-TP protection to support converged services across metro and backbone networks in Asia, Europe, Africa, and North America. With comprehensive Ethernet, SDH, PDH, WDM, and SAN interfaces, this module simplifies deployment for distributors, integrators, and end users seeking scalable, resilient networking.

    Product Highlights

    560Gbit/s
    OTN Switch
    320Gbit/s
    Packet Core
    32 slots
    Service Slots

    Product Applications Scenarios

    Service Providers
    High-capacity packet, SDH, and OTN cross-connect with MPLS-TP and ASON enables resilient backbone rings, reducing downtime and simplifying multi-service provisioning.
    Enterprise Network
    Rich Ethernet, SDH, PDH, and SAN interfaces aggregate legacy and IP services into one platform, cutting migration and operation costs for large enterprises.
    Public Infrastructure
    Carrier-grade QoS, synchronization per G.813, SyncE, and IEEE 1588v2 assure stable transport for utilities, rail, and government networks with strict SLA needs.

    Product Features Comparison

    Huawei TNN1IXCS Huawei VC6SEXCC6M03 Huawei LE0MG48TA Huawei ES5D00X2SA00
    Model TNN1IXCS, Huawei CloudEngine Series, Cross-connect & Timing Board, Infinite cross-connect, Synchronous timing, Board typ VC6SEXCC6M03, Huawei CloudEngine Series Switch Module, 6M Switching Capacity/High Reliability/Module LE0MG48TA, Huawei CloudEngine Series Switch Interface Card, 48×10/100/1000BASE-T, RJ45, EA ES5D00X2SA00, Huawei S5700HI Switch, 2×10GE SFP+, Interface Card
    Brand Huawei Huawei Huawei Huawei
    Module Type Infinite Cross-connect and Synchronous Timing Board Switch Module Switch Interface Card Interface Card
    Port Configuration n/a 24 × 10GE SFP+, 2 × 40GE QSFP+ 48 2
    Supported Speed Packet: 320 Gbit/s; TDM: 360 Gbit/s; OTN: 560 Gbit/s n/a 10Mb/s, 100Mb/s, 1Gb/s 10Gbps
    Compatible Platform OSN 7500 II n/a n/a S5700HI Series
    Installation Type Board in OSN 7500 II n/a n/a Hot swappable

    Optional Add-ons

    Model Number Description
    TN52ND2T04 Huawei line service processing board for OSN WDM systems, double 10G Super WDM with LC optical interface.
    TN12OPM801 Huawei OSN 1800 optical power monitor board, 8-channel OSNR monitoring for 10G/40G/100G links.
    SSN2BPA(14/-38,LC) Huawei OptiXtrans optical booster and pre-amplifier board with LC connectors for DWDM spans.

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei TNN1IXCS Specification

    Model
    TNN1IXCS
    Brand
    Huawei
    Part Number
    03022LJU
    Description
    Infinite Cross-connect and Synchronous Timing Board
    Discount Category
    Main Equipment
    Product Line
    Networking
    Sub Product Family
    MSTP
    Product Series
    OSN 7500 II
    UOM
    PCS
    Net Dimension(D*W*H mm)
    271*40*294
    Typic Power(W)
    0
    Dimensions
    800mm (H) x 496mm (W) x 295mm (D)
    Switch Capacity
    Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s
    Service Slots
    32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot
    Ethernet interface
    FE/GE/10GE/40GE
    SDH interface
    STM-1/4/16/64
    PDH interface
    E1/T1, E3/T3, E4
    ATM interface
    E1, STM-1
    WDM interface
    40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
    SAN interface
    FDDI, ESCON, FICON/FICON Express, FC100/200/400/800/1200
    PCM interface
    FXS/FXO, 2/4W VF & E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A,RS485, G.703 64 kbit/s codirectional
    Other interface
    DDN, Video
    Networking Mode
    Supports packet, hybrid (packet + SDH or OTN + SDH) or SDH networking Supporting WDM networking Supporting single-fiber bidirectional transmission
    Power Supply
    48V DC/-60V DC
    Ethernet Feature
    E-Line and E-LAN, QinQ MPLS-TP based VPWS and VPLS Multi-section pseudo-wire (MS-PW) ETH PWE3, TDM PWE3, A TM/IMA PWE3 IGMP Snooping V2 Blacklist, Broadcast packet suppression, ACL VLAN SWAP
    PCM Feature
    Voice or data Conference/Meeting,P2MP,MP2MP FXO/FXS mode can be set by software E&M Interface voltage can be set by software (-48V/-12V) E&M signaling can be set by software (Bell types I, II, III, IV, V and British Telecom SSDC5)
    QoS
    Hierarchical QoS scheduling and traffic shaping DiffServ mode based on traffic classification, eight priority queues Simple traffic classification, complex traffic classification, per hop behavior (PHB),and A CL Committed access rate (CAR), shaping based on port scheduling priority PQ scheduling priority, weighted fair queuing (WFQ) and PQ+WFQ queuing Tail drop and weighted random early detection (WRED)
    MPLS OAM
    LSP/PW OAM: FDI, BDI,CV, FFD, TraceRoute, Ping, LM, DM PW OAM: CES PW VCCV
    Ethernet OAM
    ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819)
    MPLS-TP based Service Protection
    LSP/PW Linear protection, Ring protection Anti multifailure protection based on MS-PW LAG, MC-LAG, Dual-homing protection, LPT
    SDH based Service Protection
    2/4 fiber MS-SP Ring; 1+1/1:n (n SNCP/SNCTP Tributary protection for E1/T1, E3/T3, E4, STM-1(e) and FE
    ASON
    Distributed restorable rerouting protection 5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services Based on VC-4 and VC-12 granularity
    Synchronization
    Both Ethernet and SDH networks supporting clock synchronization Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization Adaptive clock recovery (ACR) Two external clock inputs/outputs (2MHz or 2 Mbit/s) Two external time signals (1pps+TOD)

    Get more information

    Discover unbeatable prices and fast shipping for the TNN1IXCS, Huawei CloudEngine Series, Cross-connect & Timing Board, Infinite cross-connect, Synchronous timing, Board type . Access the detailed TNN1IXCS, Huawei CloudEngine Series, Cross-connect & Timing Board, Infinite cross-connect, Synchronous timing, Board type datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What common troubleshooting steps should I take for the TNN1IXCS?

    If the TNN1IXCS is not functioning properly, check the power supply, verify all connections, and update the firmware to the latest version.

    What accessories are available for the TNN1IXCS?

    Accessories for the TNN1IXCS include cables, mounting brackets, and power supplies, available from Huawei's official store.

    How does the TNN1IXCS compare with similar products?

    Compared to similar products, the TNN1IXCS provides superior cross-connect and synchronous timing capabilities at a lower cost, making it an excellent choice for network optimization.
