main product photo
Name:

S5720-36C-EI-28S-DC

Brand: Huawei
Detail:

S5720-36C-EI-28S-DC (28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 1 interface slot,with 150W DC power supply)

Rating:
100%
5/5.0
2 Reviews
Availability: Item Backordered
Condition:New Factory Sealed
Replacement: S5736-S24S4XC
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

S5720-36C-EI-28S-DC

S5720-36C-EI-28S-DC (28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 1 interface slot,with 150W DC power supply)

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

S5720-36C-EI-28S-DC Overview

Huawei S5720-36C-EI-28S-DC is one of the S5720-EI switches. Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.

Quick Specs

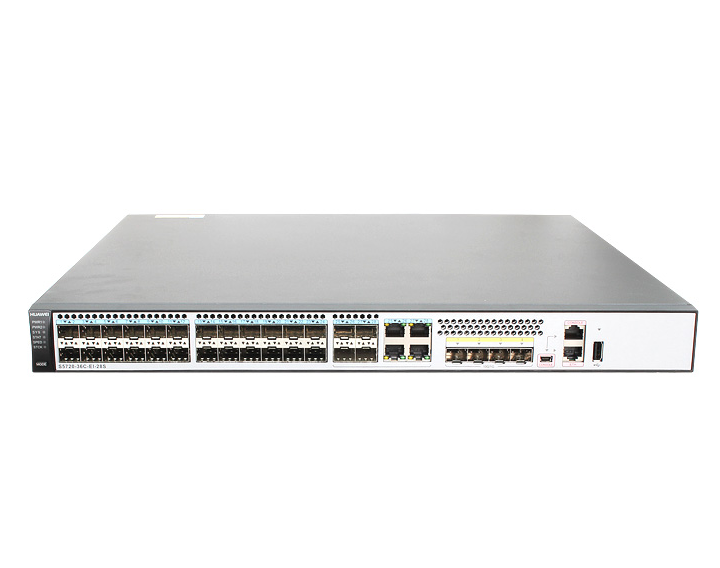

Figure 1 shows the appearance of S5720-36C-EI-28S-DC.

S5720-36C-EI-28S-DC Appearance

Table 1 shows the Quick Specs.

Product Code

S5720-36C-EI-28S-DC

Extended Slot

One extended slot supporting a service subcard or stack card

Switching Capacity

598 Gbit/s

Forwarding Performance

132 Mpps

Fixed Interfaces

28 x 100/1,000 Base-X SFP ports, 4 x combo 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports

Power Supply

Double hot-swappable DC power supplies, one DC power module is configured by default

Memory (RAM)

2 GB

Flash

340 MB

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)

Weight

Empty: ≤ 8 kg (17.64 lb)

Fully loaded: ≤ 12 kg (26.46 lb)

Product Details

Figure 2 shows the front panel of S5720-36C-EI-28S-DC.

S5720-36C-EI-28S-DC Front Panel

Note:

①

Twenty-four 100/1000BASE-X ports

②

Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)

③

Four 10GE SFP+ ports

④

One mini USB port

⑤

One console port

⑥

ETH management port

⑦

One USB port
  • ● ·One console port is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.

Figure 3 shows the back panel of S5720-36C-EI-28S-DC.

S5720-36C-EI-28S-DC Back Panel

Note:

①

Ground screw
②

ESN label
③

Rear card slot
④

Fan slot
⑤

Power module slot 2

⑥

Power module slot 1
  • ● ·You can draw ESN label out to view the ESN and MAC address of the switch.

The Modules, Cards

Table 2 shows the recommended elements for the S5720-36C-EI-28S-DC.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

10GE Interface Card

ES5D21X02T01

2 10 Gig RJ45 Interface Card(used in S5720EI series)

ES5D21X02S01

2 10 Gig SFP+ Interface Card(used in S5720EI series)

Stack Card

ES5D21VST000



Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series)

Compare to Similar Items

Table 3 shows the comparison of S5720-36C-EI-28S-DC , S5720-32P-EI-AC and S5720-32X-EI-24S DC.

Product Code

S5720-36C-EI-28S-DC

S5720-32P-EI-AC

S5720-32X-EI-24S-DC

Switching Capacity

598 Gbit/s

598 Gbit/s

598 Gbit/s

Forwarding Performance

132 Mpps

48 Mpps

102 Mpps

Fixed Interfaces

28 x 100/1,000 Base-X SFP ports, 4 x combo 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports

24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 Gig SFP

24 x 100/1,000 Base-X SFP ports, 4 x 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports

Extended Slot

One extended slot supporting a service subcard or stack card

No

No

Dimensions (W x D x H)

442 mm x 420 mm x 44.4 mm

442 mm x 220 mm x 43.6 mm

442.0 mm x 220.0 mm x 43.6 mm

Front Power Input

Yes

Yes

No

Get more information

Do you have any question about the S5720-36C-EI-28S-DC

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

S5720-36C-EI-28S-DC Specification



S5720-36C-EI-28S-DC  Specification

Switching Capacity

598 Gbit/s

Forwarding Performance

132 Mpps

Fixed Ports

28 x 100/1,000 Base-X SFP (4 GE Combo), 4 x 10 Gig SFP+

Extended Slot

One extended slot supporting a service subcard or stack card

DRAM and Flash Memory

SDRAM: 2 GB

Flash: 340 MB

MAC Address Table

64k

Jumbo Frame

12K

VLAN

4k

IP Routing

Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy

Security

Hierarchical user management and password protection

AAA authentication

DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI

Port isolation, port security, and sticky MAC

NAC and user management based on user groups

Limit on the number of learned MAC addresses

CPU defense

Blacklist and whitelist

MACSec ready

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration

Automatically loading the system software and patching on the client

One-click and automatic delivery of service configurations

Independent running clients

Interoperability

VBST (Compatible with PVST/PVST+/RPVST)

LNP (Similar to DTP)

VCMP (Similar to VTP)

Front Power Input

NA

Energy saving

802.3az Energy Efficient Ethernet (EEE) supported

Typical Power Consumption

47.9W

Input Voltage

Rated voltage range: –48V to –60V
Maximum voltage range: –36V to –72V

Management and Maintenance

iStack
Virtual cable test
SNMPv1/v2c/v3
RMON/RMON2
Web-based network management system
System logs and multi-level alarms
sFlow
LLDP/LLDP-MED
Secure Copy Protocol (SCP), TFTP, FTP
Store dual software images and configuration files
802.3az Energy Efficient Ethernet (EEE)

Surge Protection

Surge protection capability of service ports: 6 kV

Interoperability

VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)

Operating Environment

Operating temperature:
Zero to 1,800m altitude: 0°C to 45°C
1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m.
Relative humidity: 5% to 95% (non-condensing)

Dimensions (W x D x H)

 442 mm x 420 mm x 44.4 mm

Quality Certifications

Q&A

Questions & Answers

Are there alternative products to the S5720-36C-EI-28S-DC?

Alternative products in Huawei's portfolio include the S6720-EI series, which offer higher performance for demanding environments.

What accessories are available for the S5720-36C-EI-28S-DC?

Accessories include additional power supply units, SFP transceivers, and rack-mounting kits.

How does the S5720-36C-EI-28S-DC compare to similar products?

The S5720-36C-EI-28S-DC stands out for its high port density and DC power supply option, making it versatile for various network environments.

What type of power supply does the S5720-36C-EI-28S-DC use?

The S5720-36C-EI-28S-DC uses a 150W DC power supply, ideal for energy-conscious enterprises.
