Huawei S5710-28C-PWR-EI-AC S5700 PoE Campus Switch

Name: S5710-28C-PWR-EI-AC
SKU: S5710-28C-PWR-EI-AC
Rating: 4.9 (10 reviews)

End of Life

Skip to the beginning of the images gallery

Name:	S5710-28C-PWR-EI-AC
Model:	S5710-28C-PWR-EI-AC Huawei S5700 Series Switch
Brand:	Huawei
Detail:	S5710-28C-PWR-EI-AC(24 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 580W AC power)
	Rating: 98% 4.9/5.0 10 Reviews 11 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

S5710-28C-PWR-EI-AC

S5710-28C-PWR-EI-AC(24 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 580W AC power)

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

S5710-28C-PWR-EI-AC Overview

Huawei S5710-28C-PWR-EI-AC is one of the S5700 Series Switches.S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers.

Quick Specs

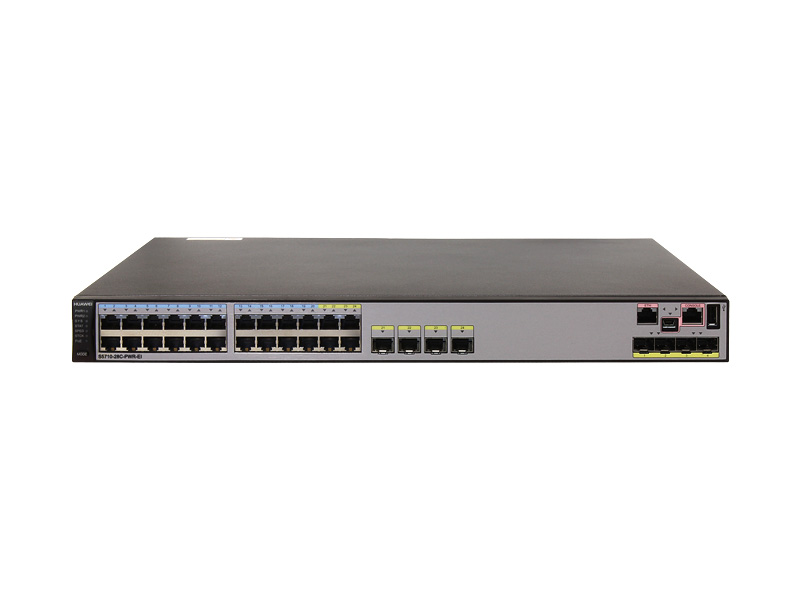

Figure 1 shows the appearance of S5710-28C-PWR-EI-AC.

Table 1 shows the Quick Specs.

Product Code	S5710-28C-PWR-EI-AC
Extended Slots	?two extended slots that support uplink sub-cards
Subcards supported	?2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard
Switching Capacity	416 Gbit/s
Forwarding Performance	156 Mpps
Fixed Interfaces	24 x 10/100/1,000 Base-T, two GE SFP combo ports, 4 x 10 GE SFP+ ports
PoE Available	PoE+
Power Supply	Double hot-swappable AC power supplies, including one 580W AC power unit
Memory (RAM)	512 MB
Flash	200 MB
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.75 in.)
Weight	Empty: ≤ 6 kg (13.23 lb) Fully loaded: ≤ 10 kg (22.05 lb)

Product Details

Figure 2 shows the front panel of S5710-28C-PWR-EI-AC.

Note:

①	Twenty PoE+ 10/100/1000BASE-T ports
②	Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X)
③	Four 10GE SFP+ ports
④	ETH management port
⑤	One mini USB port
⑥	One console port
⑦	One USB port

Figure 3 shows the back panel of S5710-28C-PWR-EI-AC.

Note:

①	Ground screw
②	Rear card slot 1
③	Rear card slot 2
④	ESN label
⑤	Power module slot 2
⑥	Power module slot 1

● ·You can draw ESN label out to view the ESN and MAC address of the switch.

The Modules, Cards

Table 2 shows the recommended elements for the S5710-28C-PWR-EI-AC.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
GE Copper Transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
10GE Interface Card
ES5D21X02S00	2 10 Gig SFP+ interface card (used in S5710EI series)
GE Interface Card
ES5D21G08T00 ?	8 Ethernet 10/100/1000 ports interface card(used in S5710EI series)
ES5D21G08S00	8 Gig SFP interface card(used in S5710EI series)

Compare to Similar Items

Table 3 shows the comparison of S5710-28C-PWR-EI-AC, S5700-28C-EI, S5700-52C-EI and S5710-52C-PWR-EI.

Product Code	S5710-28C-PWR-EI-AC	S5700-28C-EI	S5700-52C-EI	S5710-52C-PWR-EI
Switching Capacity	416 Gbit/s	256 Gbit/s	256 Gbit/s	416 Gbit/s
Forwarding Performance	156 Mpps	96 Mpps	132 Mpps	192 Mpps
Fixed Ports	24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+	24 x 10/100/1,000 Base-T	48 x 10/100/1,000 Base-T	48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+
Extended Slots	?two extended slots for uplink subcards.	two extended slots, one for an uplink subcard and the other for a stack card.	two extended slots, one for an uplink subcard and the other for a stack card.	?two extended slots for uplink subcards.
PoE Available	PoE+	No	No	PoE+
Subcards supported	2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard	4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard	4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard	2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard

Get more information

Do you have any?question about?the?S5710-28C-PWR-EI-AC

Quality Certifications

Specification

S5710-28C-PWR-EI-AC Specification

S5710-28C-PWR-EI-AC Specification
Fixed port	20 x 10/100/1000Base-T, 4 × GE Combo, 4 × 10GE SFP+
MAC address table	IEEE 802.1d compliance
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
	BPDU Tunnel
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag)
	ITU-Y.1731
	DLDP
	LACP
MPLS features	MPLS L3VPN
	MPLS L2VPN(VPWS/VPLS)
	MPLS-TE
	MPLS QoS
IP routing	Static routing
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	MFF
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance	Virtual cable test
	Port mirroring and RSPAN (remote port mirroring)
	Remote configuration and maintenance using Telnet
	SNMP v1/v2c/v3
	RMON
	Web NMS
	HGMP
	System logs and alarms of different levels
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0℃–50℃
Operating environment	Relative humidity: 10%–90% (non-condensing)
Input voltage	AC:
	Rated voltage range: 100 V to 240 V AC, 50/60 Hz
	Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
Dimensions (W x D x H)	442 x 420 x 43.6 mm
Powerconsumption	<942W

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What should I do if the S5710-28C-PWR-EI-AC isn't powering PoE devices?

Verify that PoE settings are enabled in the switch's configuration and ensure that connected devices are PoE-compatible. Check the power supply.

What accessories are available for the S5710-28C-PWR-EI-AC?

Accessories include additional SFP modules, racks, and power cables compatible with the S5710-28C-PWR-EI-AC.

How does the S5710-28C-PWR-EI-AC compare to other Huawei switches?

The S5710-28C-PWR-EI-AC stands out for its PoE+ capability, 10 Gig SFP+ ports, and competitive price, offering versatility and efficiency.

How can I use the SFP+ ports on the S5710-28C-PWR-EI-AC?

The SFP+ ports can be used for high-speed uplinks or stacking, ensuring redundant and scalable network setups.

Learn More

What is the difference between Huawei switches and Juniper switches?

These two brands of switches focus on different areas.Please learn more details here .

How cost-effective is the S5710-28C-PWR-EI-AC?

The S5710-28C-PWR-EI-AC offers a high port density and PoE+ support for efficient network performance at a competitive price, making it cost-effective for businesses.

What are the key features of S5710-28C-PWR-EI-AC?

Key features include 24 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose, and 4 10 Gig SFP+ uplinks. It also has a 580W AC power supply.

What are the application scenarios for S5710-28C-PWR-EI-AC?

The S5710-28C-PWR-EI-AC is ideal for enterprise networks, providing robust support for IP telephony, video surveillance, and wireless access points.

How do I install the S5710-28C-PWR-EI-AC?

Installation involves mounting the device in a standard 19-inch rack and connecting the network and power cables as per the manual instructions.

Does the S5710-28C-PWR-EI-AC require upgrades?

The S5710-28C-PWR-EI-AC may require firmware updates to maintain security and performance. Check Huawei's website for the latest updates.

Are there alternative products to the S5710-28C-PWR-EI-AC?

Yes, alternative switches include models from Cisco and Juniper, but the S5710-28C-PWR-EI-AC offers a balanced mix of ports and power efficiency.

What should I do if the S5710-28C-PWR-EI-AC isn't powering PoE devices?

Verify that PoE settings are enabled in the switch's configuration and ensure that connected devices are PoE-compatible. Check the power supply.

What accessories are available for the S5710-28C-PWR-EI-AC?

Accessories include additional SFP modules, racks, and power cables compatible with the S5710-28C-PWR-EI-AC.

How does the S5710-28C-PWR-EI-AC compare to other Huawei switches?

The S5710-28C-PWR-EI-AC stands out for its PoE+ capability, 10 Gig SFP+ ports, and competitive price, offering versatility and efficiency.

How can I use the SFP+ ports on the S5710-28C-PWR-EI-AC?

The SFP+ ports can be used for high-speed uplinks or stacking, ensuring redundant and scalable network setups.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only:

Item conditions are all "New Sealed".
All items are fully tested with working conditions by Huawei certified engineer under customers' permission.

100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support:

Router-switch.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years

Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Resources Downloads

Support and Resources

Model Datasheet

S5710-28C-PWR-EI-AC Datasheet

S5710-28C-PWR-EI-AC

You may also be interested in the following product(s)

S5710-28C-PWR-EI-AC

S5710-28C-PWR-EI-AC Overview

Quick Specs

Product Details

The Modules, Cards

Compare to Similar Items

Get more information

Quality Certifications

S5710-28C-PWR-EI-AC Specification

S5710-28C-PWR-EI-AC Specification

Quality Certifications

Questions & Answers

What should I do if the S5710-28C-PWR-EI-AC isn't powering PoE devices?

What accessories are available for the S5710-28C-PWR-EI-AC?

How does the S5710-28C-PWR-EI-AC compare to other Huawei switches?

How can I use the SFP+ ports on the S5710-28C-PWR-EI-AC?

What is the difference between Huawei switches and Juniper switches?

How cost-effective is the S5710-28C-PWR-EI-AC?

What are the key features of S5710-28C-PWR-EI-AC?

What are the application scenarios for S5710-28C-PWR-EI-AC?

How do I install the S5710-28C-PWR-EI-AC?

Does the S5710-28C-PWR-EI-AC require upgrades?

Are there alternative products to the S5710-28C-PWR-EI-AC?

What should I do if the S5710-28C-PWR-EI-AC isn't powering PoE devices?

What accessories are available for the S5710-28C-PWR-EI-AC?

How does the S5710-28C-PWR-EI-AC compare to other Huawei switches?

How can I use the SFP+ ports on the S5710-28C-PWR-EI-AC?

Standard Services

Warranty

Resources Downloads

Product Tags
