Name:

S5701-28X-LI-24S-AC

Model:S5701-28X-LI-24S-AC Huawei S5700 Series Switch
Brand: Huawei
Detail:

S5701-28X-LI-24S-AC(20 Gig SFP,4 dual-purpose 10/100/1000 and SFP,4 10 Gig SFP+,AC 110/220V)

Rating:
100%
5/5.0
Availability: Item Backordered
Condition:New Factory Sealed
Replacement: S5720-28X-LI-24S-AC
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.

You may also be interested in the following product(s)

S5701-28X-LI-24S-AC

S5701-28X-LI-24S-AC(20 Gig SFP,4 dual-purpose 10/100/1000 and SFP,4 10 Gig SFP+,AC 110/220V)

Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

S5701-28X-LI-24S-AC Overview

The S5701-28X-LI-24S-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei. With front power sockets, it can be installed in the 300 mm deep cabinet and be maintained through the front panel, saving space in small equipment rooms, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. Using advanced energy conservation technology plus twenty-four GE SFP ports, four Combo 10/100/1,000 Base-T Ethernet ports and four 10 GE SFP+ ports, the S5701-28X-LI-24S-AC is dedicated to helping enterprise customers build a reliable and secure next-generation IT network.

Quick Specs

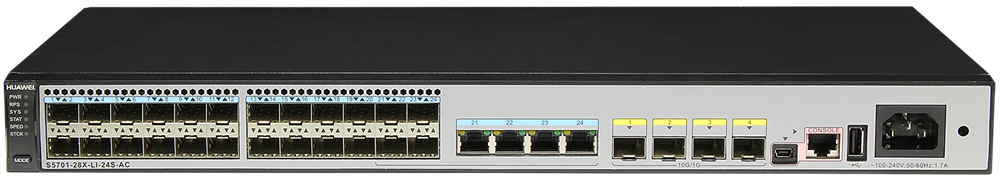

Figure 1 shows the appearance of Huawei S5701-28X-LI-24S-AC. S5701-28X-LI-24S-AC  appearance

Table 1 shows the Quick Specs.

Product Code???????????????????????????????????????????

S5701-28X-LI-24S-AC

Fixed Ports

24 x GE SFP ports

4 x Combo 10/100/1,000 Base-T Ethernet ports

4 x 10 GE SFP+ ports

MAC Address Table Size

16 MAC

Voltage Required

AC

Rated voltage range: 100V to 240V AC, 50/60 Hz

Maximum voltage range: 90V to 264V AC, 47/63 Hz

Power Device

AC power supply,?supporting RPS

Power Consumption Operational

?

Forwarding Performance

96 Mpps

Switching Capacity

256 Gbit/s?

Dimensions (W x D x H)

442 mm x 220 mm x 43.6 mm

Weight

4.5 kg

Product Details?????

Figure 2 shows the front panel of Huawei S5701-28X-LI-24S-AC. S5701-28X-LI-24S-AC  front panel

Note:

Twenty 100/1000BASE-X ports

Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)

Four 10GE SFP+ ports

One mini USB port

One console port

One USB port

AC socket

Jack for AC terminal locking latch

* The AC socket is used with an?AC power cable.

* The AC terminal locking latch is not delivered with the switch.

Figure 3 shows the back panel of Huawei S5701-28X-LI-24S-AC. S5701-28X-LI-24S-AC  back panel

Note:

Ground screw

RPS socket

*The ground screw is used with a?ground cable.

*RPS socket is used with an?RPS cable, which is not hot swappable.

Recommended Modules

Table 2 shows the recommended modules.

?

Model

Description

10GE SFP+ Optical Transceiver

?

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC)

SFP-10G-USR

10G Base-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC)

FE Optical Transceiver

?

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm,2km,LC)

SFP-10G-USR

Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

GE copper transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)

Compare with Similar Item???????

Table 3 shows the comparison of Huawei S5701-28X-LI-AC?and S5701-28X-LI-24S-AC.

Models

S5701-28X-LI-AC

S5701-28X-LI-24S-AC

Fixed Ports

24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports

24 x GE SFP ports,

4 x Combo 10/100/1,000 Base-T Ethernet ports,

4 x 10 GE SFP+ ports

Forwarding Performance

96 Mpps

96 Mpps

Switching Capacity

256 Gbit/s

256 Gbit/s

Power Supply

AC power supply, front power sockets, front access

AC power supply, front power sockets, front access

Power Consumption

Get more information

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

S5701-28X-LI-24S-AC Specification

S5701-28X-LI-24S-AC  Specification

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:
S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0℃–50℃

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

DC:

Rated voltage range: –48 V to –60 V, DC

Maximum voltage range: –36 V to –72 V DC

Note: PoE-support switches do not use DC power supplies.

Quality Certifications

Q&A

Questions & Answers

What common troubleshooting steps are available?

Common troubleshooting includes verifying cable connections, power cycles, and checking the switch configuration via the web interface.

What accessories are available for the S5701-28X-LI-24S-AC?

Accessories include SFP modules, power cables, and mounting brackets.

How does the S5701-28X-LI-24S-AC compare to similar products?

It offers a balanced mix of high-speed ports and flexibility, often outperforming similar-priced switches in port density and features.

How to configure VLANs on the S5701-28X-LI-24S-AC?

VLANs can be configured via the switch's web interface, navigating to the VLAN Management section and adding the required VLANs.
