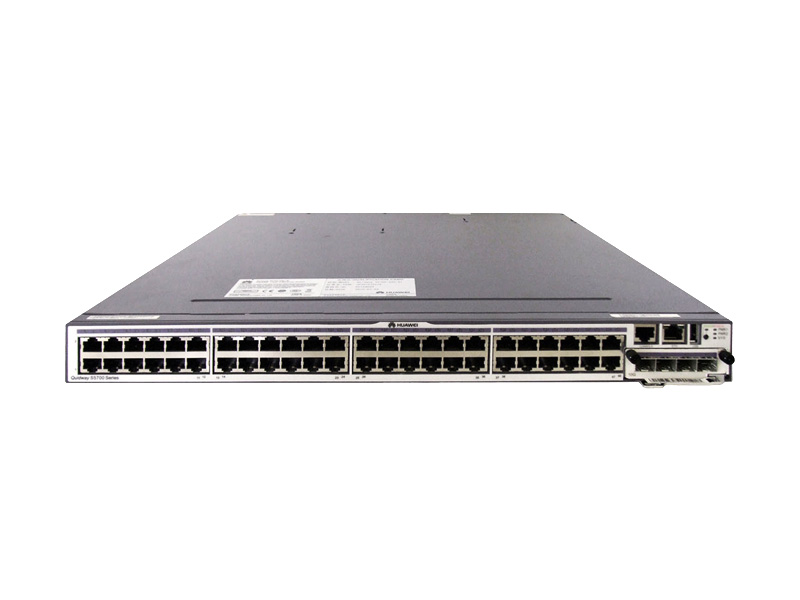

S5700-52C-SI-AC

S5700-52C-SI-AC Specification

MAC address table

-IEEE 802.1d compliance

-MAC address learning and aging

-Static, dynamic, and blackhole MAC address entries

-Packet filtering based on source MAC addresses

MAC address entries:
-S5700S-LI series: 8K,
-S5700-LI/S5700-SI series: 16K,
-S5700-EI series: 32K,
-S5720-EI series: 64K,
-S5700-HI series: 32K,
-S5710-HI: 456K,
-S5720-HI: 128K

VLAN

-4K VLANs

-Guest VLAN and voice VLAN

-GVRP

-MUX VLAN

-VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

-1:1 and N:1 VLAN Mapping

-Super VLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

-RRPP ring topology and RRPP multi-instance

-Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

-SEP

-ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

-STP, RSTP, and MSTP

-BPDU protection, root protection, and loop protection

-BPDU Tunnel

Reliability

-Ethernet OAM (IEEE 802.3ah and 802.1ag)

-ITU-Y.1731

-DLDP

-LACP

-E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)

-BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

-MPLS L3VPN

-MPLS L2VPN(VPWS/VPLS)

-MPLS-TE

-MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

-Static routing

-RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)

-OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

-Neighbor Discovery (ND)

-Path MTU (PMTU)

-IPv6 ping, IPv6 tracert, and IPv6 Telnet

-ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

-MLD v1/v2 snooping

-6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

-IGMP v1/v2/v3 snooping and IGMP fast leave

-Multicast forwarding in a VLAN and multicast replication between VLANs

-Multicast load balancing among member ports of a trunk

-Controllable multicast

-Port-based multicast traffic statistics

-IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

-Rate limiting on packets sent and received by an interface

-Packet redirection

-Port-based traffic policing and two-rate three-color CAR

-Eight queues on each port

-WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

-WRED (supported by the S5710-EI and S5700-HI)

-Re-marking of the 802.1p priority and DSCP priority

-Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

-Rate limiting in each queue and traffic shaping on ports

Security

-User privilege management and password protection

-DoS attack defense, ARP attack defense, and ICMP attack defense

-Binding of the IP address, MAC address, interface, and VLAN

-Port isolation, port security, and sticky MAC

-MFF

-Blackhole MAC address entries

-Limit on the number of learned MAC addresses

-802.1x authentication and limit on the number of users on an interface

-AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

-SSH v2.0

-Hypertext Transfer Protocol Secure (HTTPS)

-CPU defense

-Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

-Virtual cable test

-Port mirroring and RSPAN (remote port mirroring)

-Remote configuration and maintenance using Telnet

-SNMP v1/v2c/v3

-RMON

-Web NMS

-HGMP

-System logs and alarms of different levels

-802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

-Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)

-NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

-sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

-Supports VBST (Compatible with PVST/PVST+/RPVST)

-Supports LNP (Similar to DTP)

-Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0℃–50℃

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

-Rated voltage range: 100 V to 240 V AC, 50/60 Hz

-Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

DC:

-Rated voltage range: –48 V to –60 V, DC

-Maximum voltage range: –36 V to –72 V DC

Note: PoE-support switches do not use DC power supplies.
