S5700-28C-HI-AC, Huawei S5700 Switch, 24xGE/1xSlot/170W AC

  • Brand: Huawei
  • Model: S5700-28C-HI-AC
Rating:
97%
4.9/5.0
7 Reviews
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Replacement
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    S5700-28C-HI-AC, Huawei S5700 Switch, 24xGE/1xSlot/170W AC

    S5700-28C-HI-AC, Huawei S5700 Switch, 24xGE/1xSlot/170W AC

    100% Genuine Ready to Ship
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei S5700-28C-HI-AC Overview

    The Huawei S5700-28C-HI-AC is an enterprise-class Layer 3 switch designed for high-performance campus and aggregation networks. It supports a flexible MAC address table across the S5700-HI family, advanced VLAN features, and robust ring protection mechanisms such as RRPP and ERPS for millisecond failover. With comprehensive IPv4 and IPv6 routing, MPLS L3VPN and L2VPN, and rich multicast capabilities, this switch fits Asian, European, African, and North American deployments for distributors, SMB integrators, and demanding end users.

    Product Highlights

    32,000
    MAC Scale
    4,000
    VLANs
    0–50°C
    Op Temp

    Product Components Breakdown

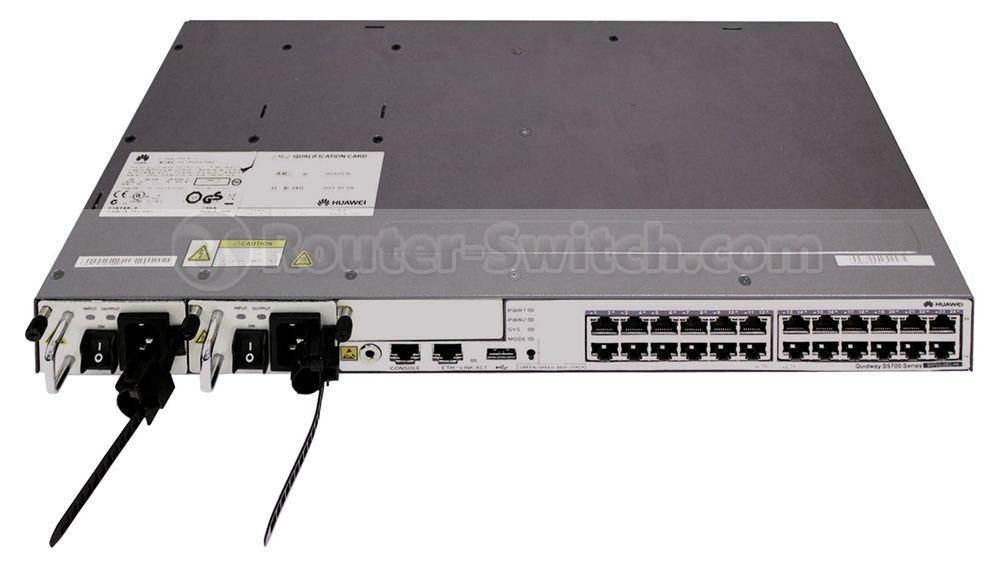

    Front Panel of the Product:

    S5700-28C-HI-AC front Panel
    ①
    Power module slot 1
    ②
    Power module slot 2
    ③
    ESD jack
    ④
    One console port
    ⑤
    ETH management port
    ⑥
    USB port
    ⑦
    Twenty-four 10/100/1000BASE-T ports
    ⑧
    Front card slot

    Rear Panel of the Product:

    S5700-28C-HI-AC Back Panel
    ①
    Ground screw
    ③
    Monitoring port

    Product Applications Scenarios

    Enterprise Network
    Advanced VLAN, QoS, and security features streamline enterprise access and aggregation, reducing downtime and improving user experience across offices and campuses by up to 30%.
    Data Center
    MPLS, rich L3 routing, and fast ring protection help consolidate data center switching, cutting failover times and simplifying multi-tenant segmentation for modern server farms.
    Service Providers
    MPLS L2VPN and L3VPN with robust OAM and BFD enable carriers to deliver SLA-backed VPN and multicast services while lowering operational complexity for metro networks.

    Product Features Comparison

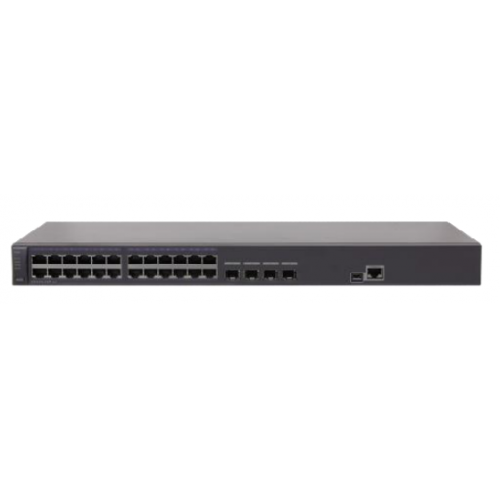

      Huawei S5700-28C-HI-AC Huawei S5300-28P-LI-AC Huawei S5720-52X-EI-AC Huawei S5700-28C-HI-24S
    Model S5700-28C-HI-AC S5300-28P-LI-AC S5720-52X-EI-AC S5700-28C-HI-24S
    Brand Huawei Huawei Huawei Huawei
    Port Configuration n/a 24*10/100/1000Base-T + 4*100/1000Base-X SFP 48×10/100/1000Base-T, 4×10GE SFP+ 24×Gig SFP/1×interface slot
    Switching Capacity n/a n/a n/a n/a
    Forwarding Rate n/a n/a n/a n/a
    PoE Budget n/a n/a n/a
    Stacking Capability n/a n/a n/a n/a

    Optional Add-ons

    Model Number Description
    CE7850-EI-B00 Huawei CE7850-EI-B00 data center switch for high-capacity aggregation with 32×40GE QSFP+ ports.
    ET1D2G48SEA0 Huawei ET1D2G48SEA0 48×100/1000BASE-X SFP interface card to expand fiber access density.
    WS-C2960CX-8PC-L Cisco WS-C2960CX-8PC-L compact Gigabit PoE+ access switch for edge device connectivity.

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei S5700-28C-HI-AC Specification

    Model
    S5700-28C-HI-AC
    Brand
    Huawei
    MAC address table
    IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address entries: S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K
    VLAN
    4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
    Ring protection
    RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) STP, RSTP, and MSTP BPDU protection, root protection, and loop protection BPDU Tunnel
    Reliability
    Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 DLDP LACP E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
    MPLS features
    MPLS L3VPN MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QoS Notes: supported by S5710-EI, S5700-HI and S5710-HI
    IP routing
    Static routing RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
    IPv6 features
    Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping 6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
    Multicast
    IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
    QoS/ACL
    Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms WRED (supported by the S5710-EI and S5700-HI) Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
    Security
    User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
    Access Security
    DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
    Management and maintenance
    Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON Web NMS HGMP System logs and alarms of different levels 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
    Interoperability
    Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
    Operating environment
    Operating temperature: 0鈩?ndash;50鈩?/p> Relative humidity: 10%–90% (non-condensing)
    Input voltage
    AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V DC Note: PoE-support switches do not use DC power supplies.
    Weight
    6.5 kg
