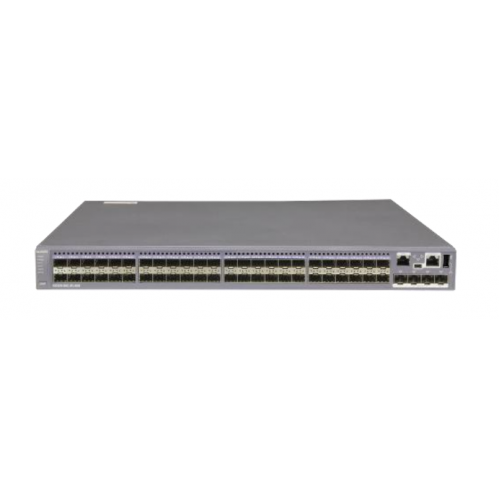

S5320-56C-EI-48S-AC

S5320-56C-EI-48S-AC specification

Item

S5320-56C-EI-48S-AC

Memory (RAM)

2 GB

Flash

340 MB

Mean time between failures (MTBF)

73.91 years when no card is configured; 68.42 years when a 2-port 10GE SFP+ interface card is configured; 66.63 years when a 2-port 10GE RJ45 interface card is configured; 66.77 years when a stack card is configured

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

NA

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)

Weight

Empty: ≤ 8 kg (17.64 lb)

Fully loaded: ≤ 12 kg (26.46 lb)

Stack ports

Ports on the 2-port QSFP+ rear stack card

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

104 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 51.2 dBA

Relative humidity

5% to 95%, noncondensing

Operating altitude

AC power modules configured: 0-5000 m (0-16404 ft.)

DC power modules configured: 0-2000 m (0-6562 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
