How cost-effective is the S5320-32C-HI-24S-AC?

The S5320-32C-HI-24S-AC offers high performance and scalability at a competitive price, making it a cost-effective solution for growing networks.

What are the key features of the S5320-32C-HI-24S-AC?

This switch provides 24 Gig SFP ports, 4 10 Gig SFP+ ports, and dual-purpose 10/100/1000 or SFP ports, ideal for high-density applications.

What application scenarios is the S5320-32C-HI-24S-AC suited for?

The S5320-32C-HI-24S-AC is perfect for data centers, enterprise networks, and campus networks requiring high-speed connectivity.

How do you install the S5320-32C-HI-24S-AC?

Installation involves rack mounting, connecting to power, and configuring via the web interface or CLI. Detailed instructions are in the manual.

Does the S5320-32C-HI-24S-AC require regular upgrades?

Yes, for optimal performance and security, regularly check for firmware updates from Huawei's support site.

Are there alternative products to the S5320-32C-HI-24S-AC?

Alternatives include other models in the Huawei S53XX series, such as the S5320-28P-LI-24S.

S5320-32C-HI-24S-AC Price & DataSheet Overview

Name: S5320-32C-HI-24S-AC
SKU: S5320-32C-HI-24S-AC
Rating: 4 (1 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	S5320-32C-HI-24S-AC
Brand:	Huawei
Detail:	S5320-32C-HI-24S-AC (24 Gig SFP,8 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 2 interface slots,with 600W AC power supply)
	Rating: 80% 4/5.0 1 Review 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

S5320-32C-HI-24S-AC

S5320-32C-HI-24S-AC (24 Gig SFP,8 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 2 interface slots,with 600W AC power supply)

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

S5320-32C-HI-24S-AC Overview

S5320-32C-HI-24S-AC (24 Gig SFP,8 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply).

Quick Specs

Figure 1 shows the appearance of S5320-32C-HI-24S-AC.

S5320-32C-HI-24S-AC Appearance

Table 1 shows the Quick Specs.

Product Code	S5320-32C-HI-24S-AC
Software Version	V200R009C00 and later versions
Memory (RAM)	4 GB
Flash	400 MB
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)
Weight	Empty: ≤ 6 kg (13.23 lb) Fully loaded: ≤ 10 kg (22.05 lb)
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card
RPS	Not supported
PoE	Not supported
Maximum power consumption (100% throughput, full speed of fans)	172.7 W

Product Details

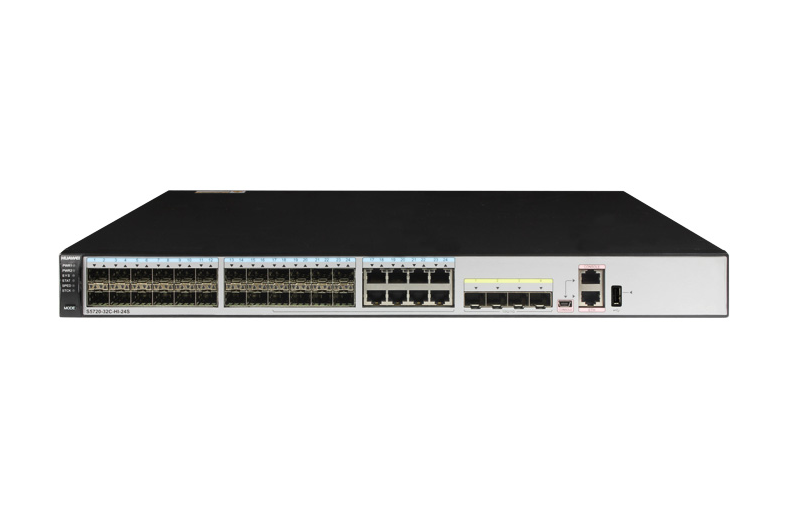

Figure 2 shows the front panel of S5320-32C-HI-24S-AC.

front panel of S5320-32C-HI-24S-AC

Note:

①	Sixteen 100/1000BASE-X ports
②	Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X)
③	Four 10GE SFP+ ports
④	One mini USB port
⑤	One console port
⑥	ETH management port
⑦	USB port

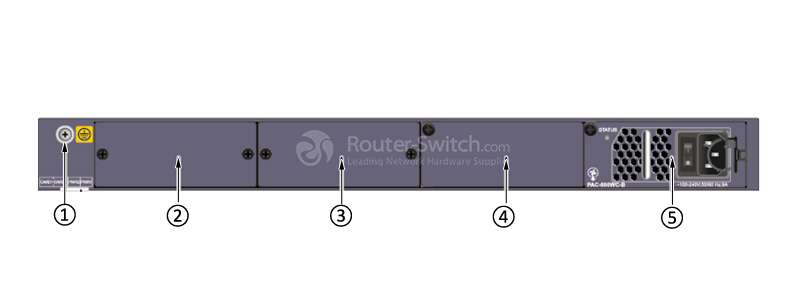

Figure 3 shows the back panel of S5320-32C-HI-24S-AC.

the back panel of S5320-32C-HI-24S-AC

Note:

①	Ground screw
②	Rear card slot 1
③	Rear card slot 2
④	Power module slot 2
⑤	Power module slot 1

Compare to Similar Items

Table 2 shows the comparison of S5320-32C-HI-24S-AC, S5320-36C-EI-DC and S5320-56C-EI-48S-AC.

Product Code	S5320-32C-HI-24S-AC	S5320-36C-EI-DC	S5320-56C-EI-48S-AC
Memory (RAM)	4 GB	2 GB	2 GB
Flash	400 MB	340 MB	340 MB
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card	Ports on the 2-port QSFP+ rear stack card	Ports on the 2-port QSFP+ rear stack card
Maximum power consumption (100% throughput, full speed of fans)	172.7 W	75.8 W	104 W

Get more information

Do you have any question about the S5320-32C-HI-24S-AC

Quality Certifications

Specification

S5320-32C-HI-24S-AC Specification

S5320-32C-HI-24S-AC specification
Item	Description
Memory (RAM)	4 GB
Flash	400 MB
Mean time between failures (MTBF)	56.21 years when no interface card is configured, 52.63 years when a 4-port 10GE interface card is configured
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±2 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)
Weight	Empty: ≤ 6 kg (13.23 lb) Fully loaded: ≤ 10 kg (22.05 lb)
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	172.7 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 60 dBA
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

How do you troubleshoot common issues with the S5320-32C-HI-24S-AC?

Start by checking power and connection statuses, then use diagnostic commands via the CLI to identify issues. Consult the user manual for more details.

What accessories are available for the S5320-32C-HI-24S-AC?

Accessories include additional SFP and SFP+ modules, and power supply units.

How does the S5320-32C-HI-24S-AC compare to similar products?

The S5320-32C-HI-24S-AC offers robust features and flexibility, often at a lower cost than competitors like Cisco and Juniper.

What are the power specifications of the S5320-32C-HI-24S-AC?

The switch comes with a 600W AC power supply, ensuring reliable operation in high-demand environments.
