main product photo
Name:

S5300-28P-LI-BAT

Model:S5300-28P-LI-BAT Huawei S5300 Series Switch
Brand: Huawei
Detail:
S5300-28P-LI-BAT(24 Ethernet 10/100/1000 ports,4 Gig SFP,1 slot with battery,AC 110/220V)
Rating:
87%
4.4/5.0
3 Reviews
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

S5300-52X-LI-48CS-DC

S5300-52X-LI-48CS-DC

Rating:
90%
4.5/5.0
2 Reviews
S5300-52X-LI-48CS-AC

S5300-52X-LI-48CS-AC

Rating:
80%
4/5.0
2 Reviews
S5300-28X-LI-AC

S5300-28X-LI-AC

Rating:
90%
4.5/5.0
2 Reviews
S5300-10P-LI-AC

S5300-10P-LI-AC

Rating:
93%
4.7/5.0
6 Reviews
LS-S5328C-HI

LS-S5328C-HI

Rating:
88%
4.4/5.0
5 Reviews
LS-S5352C-PWR-EI

LS-S5352C-PWR-EI

Rating:
80%
4/5.0
2 Reviews
LS-S5328C-PWR-SI

LS-S5328C-PWR-SI

Rating:
90%
4.5/5.0
2 Reviews
LS-S5324TP-SI-AC

LS-S5324TP-SI-AC

Rating:
93%
4.7/5.0
3 Reviews
LS-S5328C-EI-24S

LS-S5328C-EI-24S

Rating:
96%
4.8/5.0
9 Reviews
US$751.00
LS-S5328C-EI

LS-S5328C-EI

Rating:
95%
4.8/5.0
4 Reviews
US$793.00
S5320-32X-EI-24S-DC

S5320-32X-EI-24S-DC

Rating:
95%
4.8/5.0
4 Reviews
S5310-28C-EI

S5310-28C-EI

Rating:
90%
4.5/5.0
2 Reviews

S5300-28P-LI-BAT

S5300-28P-LI-BAT(24 Ethernet 10/100/1000 ports,4 Gig SFP,1 slot with battery,AC 110/220V)

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

S5300-28P-LI-BAT Overview

Huawei S5300 Series Switch S5300-28P-LI-BAT 24 10/100/1000 Gigabit Ethernet ports , 4 Gig SFP, 1 slot with battery, AC 110/220V, 42 Mpps Forwarding performance, Comprehensive layer 2 features.

Quick Specs

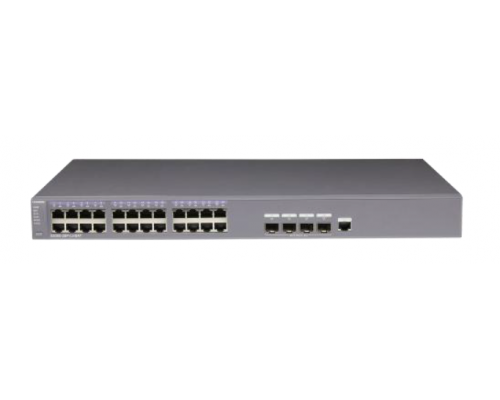

Figure 1 shows the appearance of S5300-28P-LI-BAT.

the appearance of S5300-28P-LI-BAT

Table 1 shows the Quick Specs.

Product Code

S5300-28P-LI-BAT

Switching Capacity

56Gbps

Forwarding Performance

41.66Mpps

Interfaces

24*10/100/1000Base-T + 4*100/1000Base-X SFP

Mean time between

failures (MTBF)

57.9 years

Memory

256 MB

Flash

200 MB

Available Version

V200R003C02 and later versions

NOTE:

This model does not match V200R005C00SPC500, V200R005C01, V200R005C02, V200R005C03, V200R005C05, or V200R008C10.

Power

consumption

23 W

Dimensions (W x D x H)

442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)

Weight

≤ 5 kg

Product Details

Figure 2 shows the front panel of S5300-28P-LI-BAT.

the front panel of S5300-28P-LI-BAT

Note:

①

Twenty-four 10/100/1000BASE-T ports

②

Four 1000BASE-X ports

③

One console port

Figure 3 shows the back panel of S5300-28P-LI-BAT.

the back panel of S5300-28P-LI-BAT

Note:

①

Ground screw

②

AC socket

③

Jack for AC terminal locking latch

④

Battery slot

The Modules

Table 2 shows the recommended elements for the S5300-28P-LI-BAT.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45)

Compare to Similar Items

Table 3 shows the comparison of S5300-28P-LI-BAT, S5300-10P-LI-AC and S5300-28X-LI-24S-AC.

Product Code

S5300-28P-LI-BAT

S5300-10P-LI-AC

S5300-28X-LI-24S-AC

Switching

capacity

56Gbps

26Gbps

128Gbps

Forwarding Performance

41.66Mpps

15Mpps

95.2Mpps

Interfaces

24*10/100/1000Base-T + 4*100/1000Base-X SFP

Eight 10/100/1000 Base-T ports and two GE SFP ports

Twenty-four 100/1000Base-X ports and four 10GEBase-X SFP+ ports

Mean time between

failures (MTBF)

57.9 years

44.41 years

89.91 years

Memory

256 MB

256 MB

256 MB

Flash

200 MB

200 MB

200 MB

Power

consumption

23 W

<11.5 W

<54 W

Dimensions (W x D x H)

442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)

250.0 mm x 180.0 mm x 43.6 mm

442 mm x 220 mm x 43.6 mm

Weight

≤ 5 kg

≤ 5 kg

≤ 5 kg

Get more information

Do you have any question about the S5300-28P-LI-BAT?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

S5300-28P-LI-BAT Specification

S5300-28P-LI-BAT Specification

Memory (RAM)

256 MB

Flash

200 MB

Mean time between failures (MTBF)

57.9 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (W x D x H)

442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)

Weight

≤ 5 kg (11.02 lb)

Stack ports

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

23 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

Pluggable modules not configured: -40°C to +70°C (-40°F to +158°F)

Power modules configured: -40°C to +70°C (-40°F to +158°F)

Lithium battery modules configured: -20°C to +60°C (-4°F to +140°F)

Lead-acid battery modules configured: The storage temperature is determined according to the storage environment of lead-acid batteries.

Noise under normal temperature (27°C, sound power)

< 43.2 dBA

Relative humidity

5% to 95%, noncondensing

Operating altitude

DC power modules configured: 0-2000 m (0-6562 ft.)

AC power modules or battery modules configured: 0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification

Quality Certifications

Q&A

Questions & Answers

What common troubleshooting steps are needed?

Ensure all cables are properly connected and that the power supply is stable; rebooting the switch and checking for firmware updates can solve many issues.

What accessories are available for the S5300-28P-LI-BAT?

Accessories include optional backup batteries, additional SFP modules for extended connectivity, and mounting kits for various installation requirements.

How does the S5300-28P-LI-BAT compare with similar products?

Compared to similar products, the S5300-28P-Li-BAT offers reliable performance with battery backup, making it superior for critical network operations.

What product category does the S5300-28P-LI-BAT belong to?

The S5300-28P-LI-BAT is part of Huawei's enterprise networking product line, specifically within their series of managed Ethernet switches.
