Overview

Huawei S1720-28GFR-4TP Overview

Huawei S1720-28GFR-4TP is an Web/SNMP-based switch. It’s one of the S1700 Series Enterprise Switches which are easy to install and maintain, and are ideal for small and medium size enterprises, Internet cafes, hotels, and schools.

Quick Specs

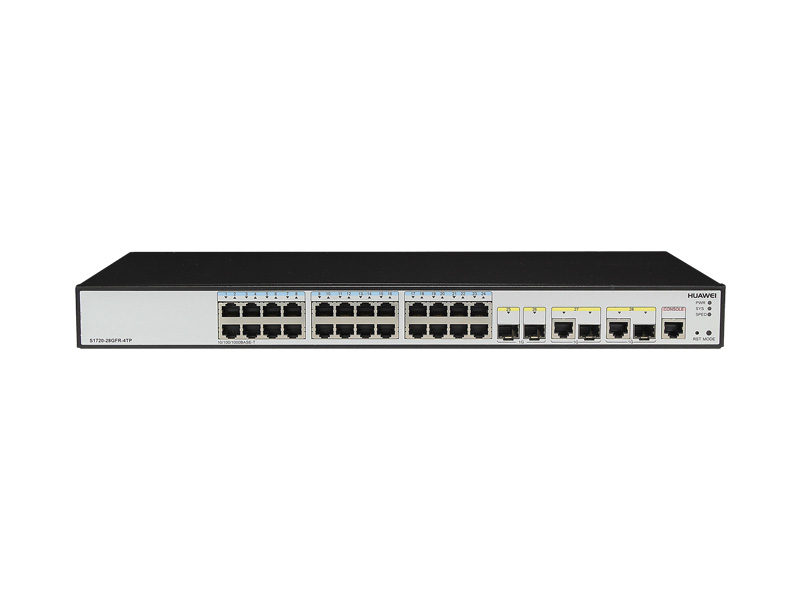

Figure 1 shows the appearance of Huawei S1720-28GFR-4TP switch.

Table 1 shows the Quick Specs.

Product Code	S1720-28GFR-4TP
Type	Web/SNMP-based Switch
Downlink Ports	24 Ethernet 10/100/1000 ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
MAC Address	16 K MAC
Forwarding Performance	42 Mpps
Switching Capacity	128 Gbit/s
Input Voltage	100 V to 240 V AC, 50/60 Hz
Heat Dissipation	Fan-free natural heat dissipation
Dimensions (W x D x H)	44.2cm × 22cm × 4.36cm
Weight (Kg)	3.56 Kg

Product Details

Figure 2 shows the front panel of Huawei S1720-28GFR-4TP switch.

Note：

①

24 × 10/100/1000BASE-T ports

④

One console port

②

2 × 1000BASE-X Ethernet ports

⑤

Reset button

③

2 × combo ports (10/100/1000BASE-T

+ 100/1000BASE-X)

⑥

Mode switching button

Figure 3 shows the front indicators of Huawei S1720-28GFR-4TP switch.

Table 2 shows the numbers’ descriptions.

No.	Indicator/Button	Color	Description
①	Service port indicator	Meanings of service port indicators vary in different modes. See the Table 3.
②	PWR : power indicator	Off	The switch is powered off.
②	PWR : power indicator	Green	Steady on: The power module is supplying power normally.
③	SYS: system status indicator	Off	The system is not running.
		Green	- Fast blinking: The system is starting. - Slow blinking: The system is running normally.
		Red	Steady on: The system does not work normally after registration, or a temperature alarm has been generated.
④	SPED: speed indicator	Off	The speed mode is not selected.
④	SPED: speed indicator	Green	Steady on: The speed mode is selected. In this mode, service port indicators show port speeds. After 45 seconds, the service port indicators automatically restore to the status mode.
⑤	MODE: mode switch button	- Press this button once, the service port indicators change to the speed mode and show the speed of each service port. - Press this button again, the service port indicators restore to the default mode and show the connection status of each service port. - If you do not press this button within 45 seconds, the service port indicators restore to the default mode. In this case, the SPED indicator is off.

Table 3 shows the Service port indicators’ descriptions.

Service port indicators	Color	Description
Default mode	Off	No connection is set up on the port or the port has been shut down.
	Green	Steady on: The port is connected.
	Green	Blinking: The port is transmitting or receiving data.
Speed mode	Green	Off: The port is not connected or has been shut down.
		Steady on: The port is operating at 10/100 Mbit/s.
		Blinking: The port is operating at 1000 Mbit/s.

Figure 4 shows the back panel of Huawei S1720-28GFR-4TP switch.

Note：

①

Ground screw

②

Jack reserved for AC terminal locking

latch

③

AC power socket

The Optical Transceiver

Table 4 shows the recommended optical transceivers for 1720-28GFR-4TP.

Models	Description
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

Compare to Similar Item

Table 5 shows the comparison between S1720-20GFR-4TP and S1720-28GFR-4TP.

Model	S1720-20GFR-4TP	S1720-28GFR-4TP
Downlink Ports	16 Ethernet 10/100/1,000 ports	24 Ethernet 10/100/1,000 ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP	2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP
Forwarding Performance	30 Mpps	42 Mpps
Switching Capacity	128 Gbit/s	128 Gbit/s

Get more information

Do you have any question about the Huawei S1720-28GFR-4TP switch?

Quality Certifications

Specification

Huawei S1720-28GFR-4TP Specification

S1720-28GFR-4TP Specifications
Type	Huawei S1700 Web/SNMP-based Switch
Downlink Ports	24 Ethernet 10/100/1,000 ports
Uplink Ports	4 Gig SFP ports, 2 combo 10/100/1,000 Base-T Ethernet ports
MAC Address Table	16K MAC
Dimensions in mm (W x D x H)	442 x 220 x 43.6
Input Voltage	100V to 240V AC, 50 Hz/60 Hz
EEE	Supported
Power Consumption	< 24.3W
Operating Temperature	0m to 1,800m: 0°C to 50°C 1,800m to 4,000m: Decreases 1°C for every 200m increase in altitude
Humidity (non-condensing)	5% to 95%
Heat Dissipation	Fan-free natural heat dissipation
Security features	Hardware ACL Packet filtering based on MAC addresses MAC address authentication Port-based 802.1x authentication RADIUS authentication Portal authentication Port isolation Storm suppression Attack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks DHCP snooping
VLANs	4K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN
QoS	PQ and WRR Eight queues on each port Queue scheduling based on 802.1p or DSCP priorities
STP	STP (IEEE 802.1d) RSTP (IEEE 802.1w) MSTP (IEEE 802.1s)
Multicast	IGMP snooping
Routing Features	IPv4 and IPv6 static routing RIP, RIPng, OSPF (S1720-E series)
Link Aggregation	12 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG 64 Link Aggregation Groups (S1720 series) 120 Link Aggregation Groups (S1720-E series) Static LACP
Port Mirroring	Port-based bi-directional flow mirroring
Broadcast Storm Suppression	Broadcast storm suppression based on the interface rate Alarm sending when the traffic rate reaches the upper limit
Device Management	SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720/S1720-E series) Console port (S1720/S1720-E series)
Device Maintenance	Remote Network Monitoring (RMON) System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP)
