main product photo
Name:

S1724G

Model:S1724G 98010436 Huawei Quidway S1700 Switch
Brand: Huawei
Detail:
Huawei Quidway Switch S1700, S1724G Mainframe(24 10/100/1000Base-T and AC 110/220V)
Rating:
95%
4.8/5.0
4 Reviews
Price:US$119.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

S1728GWR-4P-AC

S1728GWR-4P-AC

Rating:
95%
4.8/5.0
4 Reviews
US$177.00
S1700-24GR

S1700-24GR

Rating:
92%
4.6/5.0
5 Reviews
US$88.00
S1720-28GFR-4TP

S1720-28GFR-4TP

Rating:
90%
4.5/5.0
2 Reviews
US$320.00

S1724G

Huawei Quidway Switch S1700, S1724G Mainframe(24 10/100/1000Base-T and AC 110/220V)

Price: US$119.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

S1724G Overview

Huawei S1724G is an unmanaged switch which is easy to install and maintain, especially ideal for small and medium-size enterprises. With 24 Ethernet 10/100/1,000 ports, it combines high reliability, rich management and security features to help customers build secure, reliable, high-performance networks.

Quick Specs

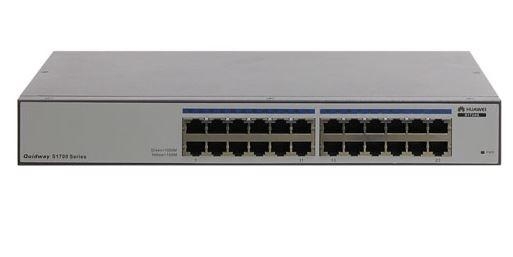

Figure 1 shows the appearance of Huawei S1724G switch. S1724G appearance

Table 1 shows the Quick Specs.

Product Code

S1724G

Type

Unmanaged Switch

Downlink Ports

24 x 10/100/1000 Mbit/s Ethernet electrical ports

MAC Address Table Size

8K entries

Voltage Required

AC 120/230 V ( 50/60 Hz )

Power Device

Internal power supply

Power Consumption Operational

15 Watt

Forwarding performance

36 Mpps

Switching capacity

48 Gbps

Dimensions (W x D x H)

32 cm x 20.8 cm x 4.4 cm

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az

Product Details

Figure 2 shows the front panel of Huawei S1724G switch. S1724G front panel

Note：

①

Ethernet Electrical Port Indicator

②

Power indicator

Table 2 shows the LED Indicators description.

LED Indicator

Condition

Description

Ethernet Electrical Port Indicator

Steady Green

The port is connected at the rate of 1000 Mbit/s.

Blinking Green

The port is connected at the rate of 1000 Mbit/s and transmitting data

Steady

Yellow

The port is connected at the rate of 10/100 Mbit/s

Blinking

Yellow

The port is connected at the rate of 10/100 Mbit/s

and transmitting data.

off

The port is not connected.

Power Indicator

Steady Green

The switch is powered on.

Off

The switch is powered off.

Figure 3 shows the back panel of Huawei S1724G.

S1724G back panel

Note：

①

Ground screw

②

Jack reserved for AC terminal locking latch

③

AC power jack

☆ S1724G supports only AC power supply.

Compare with Similar Item

Table 3 shows the comparison between S1700-24-AC/S1700-24GR/S1700-16G and S1724G.

Model

S1700-24-AC

S1700-24GR

S1700-16G

S1724G

Downlink Ports

24 Ethernet 10/100 ports

24 Ethernet 10/100/1,000 ports

16 Ethernet 10/100/1,000 ports

24 Ethernet 10/100/1,000 ports

Uplink Ports

Shared with downlink ports

Shared with downlink ports

Shared with downlink ports

Shared with downlink

ports

MAC Address Table

8K MAC

8K MAC

8K MAC

8K MAC

Dimensions

(W x D x H)

320 mm x 208 mm x 43.6 mm

442 mm x 220 mm x 43.6 mm

320 mm x 208 mm x 43.6 mm

320  mm x 208 mm  x 43.6 mm

Power consumption

<3.9W

<14.2W

<10W

<14.2W

Get more information

Do you have any question about the Huawei S1724G switch?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

S1724G Specification

S1724G Specifications

Type

Huawei S1700 Unmanaged Switch

Downlink Ports

24 Ethernet 10/100/1,000 ports

Uplink Ports

Shared with downlink ports

MAC Address Table

8K MAC

Dimensions in mm (W x D x H)

320 x 208 x 43.6

Input Voltage

Rated AC power: 100V to 240V; 50 Hz/60 Hz
Maximum AC voltage: 90V to 264V; 47 Hz/63 Hz

EEE

NA

Power Consumption

< 14.2W

Operating Temperature

0°C to 45°C

Humidity (non-condensing)

5% to 95%

Heat Dissipation

Fan-free natural heat dissipation

Quality Certifications

Q&A

Questions & Answers

What accessories are available for the Huawei S1724G?

Accessories include rack mounting kits, power cables, and additional network cables for connecting more devices to the switch.

How does the Huawei S1724G compare with other switches in its category?

The Huawei S1724G offers competitive performance, reliability, and advanced features while often being more cost-effective than similar models from other brands.

How can I troubleshoot common issues with the Huawei S1724G?

Common issues can be resolved by checking cable connections, ensuring firmware is up-to-date, and consulting the product manual or Huawei support.

What are the power requirements for the Huawei S1724G?

The Huawei S1724G operates on either 110V or 220V AC power, making it versatile for different power environments.
