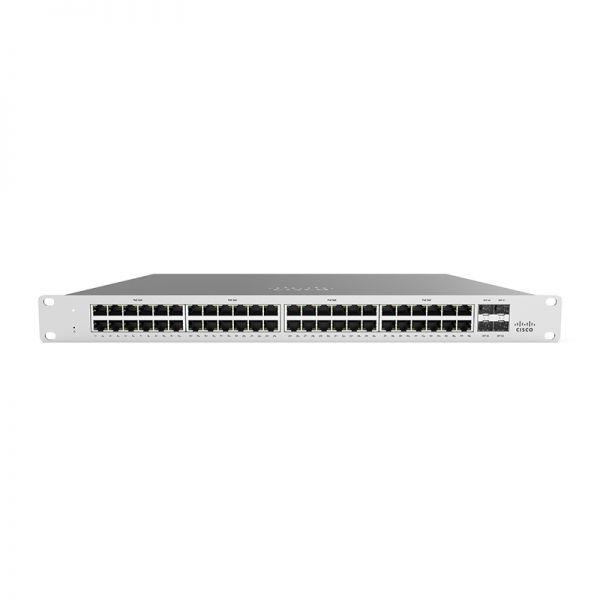

MS120-48LP-HW, Cisco Meraki MS120 Switch, 48x1G PoE/Cloud Mgmt/370W PoE

MS120-48LP-HW Specification

Interfaces

• 24 x 10/100/1000BASE-T Ethernet RJ45 with auto

negotiation and crossover detection (auto-MDIX

crossover)

• 4 x 1GbE SFP uplink

• RJ45 Management port

Switching capacity

104 Gbps

Forwarding rate

41.67mpps

Idle / Full Load Power

37 / 477 W

Power Supply Configuration

Fixed internal

What’s included

1 x Rack mounting screw kit

Dimensions

1.73 x 17.32 x 13.4 in (4.4 x 44 x 34 cm)

Weight

12.70 lb (5.70 kg)

Management

• Managed via the Web with the Meraki cloud management platform

• Integrated with Meraki Wireless and complete portfolio of IT products and solutions

• Zero-touch remote provisioning (no staging needed)

• Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

• Detailed historical per-port and per-client usage statistics

• DHCP, client, and hostname fingerprinting

• SNMPd and SYSLOG support for integration with other network management solutions

• Automatic firmware upgrades with scheduling control

Layer 3

• DHCP Relay

Remote Diagnostics

• Email, SMS and Mobile push notification alerts

• Cable testing and link failure detection with alerting

• Live remote packet capture

• Dynamic and interactive network discovery and topology

• Combined event and configuration change logs with instant search

Power

• Power input: 100 - 240 VAC, 47-63 Hz

• Power consumption: 8 - 908W

Mounting

• 1U Rack-mountable with included rack mount hardware

• 2-post front mounting options available

• Desktop-mountable with included feet

Ethernet Switching Capabilities

• 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)

• 802.1Q VLAN and trunking support for up to 4,094 VLANs

• 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)

• Broadcast storm control

• 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)

• 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches

• Port mirroring

• IGMP snooping for multicast filtering

• MAC forwarding entries: 16K

Environment

• Operating temperature: 0°C to 45°C

• Humidity: 5 to 95% non-condensing

• MS120-24 feature fanless operation

Regulatory

• CSA-US (US, Canada)

• FCC (USA)

• IC (Canada)

• CE (Europe)

• RCM (Australia/New Zealand)

• RoHS

Security

• Integrated two-factor authentication for Dashboard management

• Role-based access control (RBAC) with granular device and configuration control

• Corporate wide password policy enforcement

• IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing

• Multi-Domain/Multi-Host/Multi Authentication

• Port security: Sticky MAC, MAC whitelisting

• DHCP snooping, detection and blocking, Dynamic ARP Inspection

• STP Enhancements: BPDU guard, Root guard, Loop guard

• IPv4 and IPv6 ACLs

MTBF Ratings

707,873
