H901GPSF04, Huawei OLT Interface Board, 16-port GPON/Class C+ SFP/Incl. Optical Module

100% Genuine Ready to Ship

Overview

Huawei H901GPSF04 Overview

The Huawei H901GPSF04 is a carrier-grade GPON OLT interface module for MA5800-X7 platforms, delivering high-density fiber access with integrated Class C+ SFP optics. This 16-port GPON board taps into a 7 Tbit/s system switching capacity and supports up to 262,143 MAC addresses and 64K ARP/routing entries, ideal for large triple-play and FTTx deployments. With robust L2/L3, MPLS, IPv6, multicast, and QoS features, plus GPON type B/C protection and ISSU, it helps operators build scalable, resilient broadband networks.

Product Highlights

7 Tbit/s

System Cap

262,143

MAC Scale

112 GPON

Port Pool

Product Applications Scenarios

Service Providers

Enables high-density GPON access for ISPs, reducing per-subscriber fiber costs while maintaining carrier-grade QoS, multicast IPTV, and resilience for large broadband rollouts.

Enterprise Network

Supports converged enterprise access over fiber with VLAN, VRF, and MPLS VPN, cutting campus cabling complexity and improving backbone efficiency for large organizations.

Public Infrastructure

Powers smart city and municipal FTTx grids with scalable GPON, strong QoS, and protection switching, improving uptime while lowering long-term operations and maintenance.

Product Features Comparison

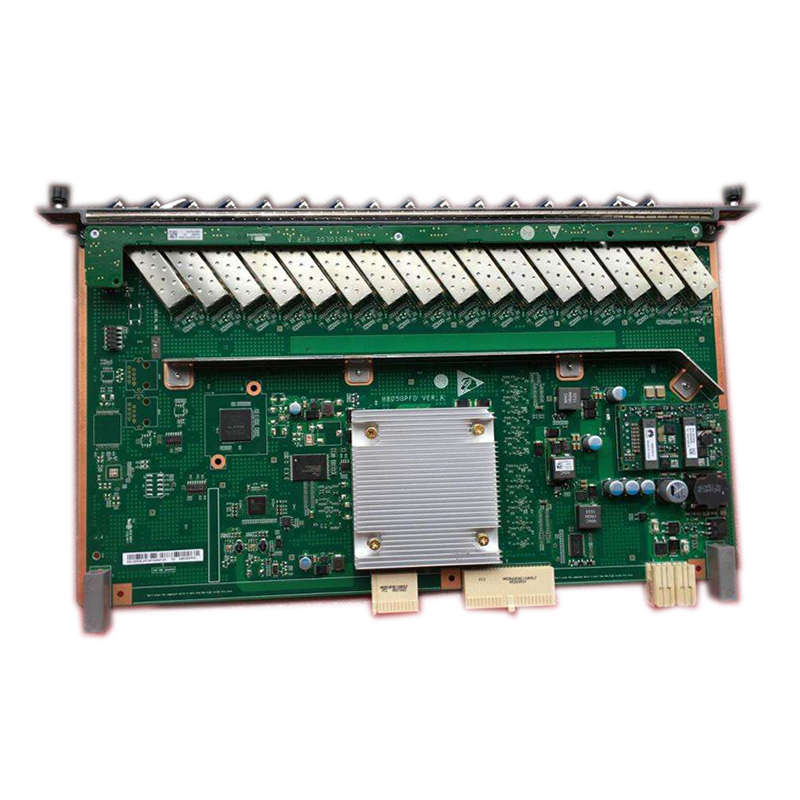

Model	H901GPSF04, Huawei OLT Interface Board, 16-port GPON/Class C+ SFP/Incl. Optical Module	H901XEHD02, Huawei OLT Interface Board, 8×10G EPON/PRX30 XFP/Advanced Module	H901XEHD, Huawei H901XEHD, 8×10G EPON/OLT Board	H803EPFD04, Huawei MA5800 OLT, 16 EPON ports PX20++
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	16-port GPON OLT Interface Board(including Class C+ SFP Optical Module)	8-port Advanced 10G EPON OLT Interface Board(including PRX30 XFP Optical Module)	8-port Advanced 10G EPON OLT Interface Board	n/a
Port Configuration	16-port GPON OLT Interface Board(including Class C+ SFP Optical Module)	8-port Advanced 10G EPON OLT Interface Board(including PRX30 XFP Optical Module)	8-port Advanced 10G EPON OLT Interface Board	Access Capacity: 16 x 10G GPON 48 x GPON 96 x P2P FE 96 x P2P GE
Supported Speed	n/a	n/a	n/a	Switching Capacity — Backplane Bus: 720 Gbit/s
Compatible Platform	MA5800-X7	MA5800-X7	MA5800-X7	n/a
Installation Type	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
H901XEHD02	Huawei 8-port Advanced 10G EPON OLT interface board with PRX30 XFP optics for MA5800-X7 expansion
H901XEHD	Huawei 8-port Advanced 10G EPON OLT interface board for MA5800-X7 to mix GPON and 10G EPON
H803EPFD04	Huawei MA5800 EPON service board with 16 EPON PX20++ ports to complement GPON deployments

Quality Certifications

Specification

Huawei H901GPSF04 Specification

Model

H901GPSF04

Brand

Huawei

Part Number

02311FGC

Product Description

16-port GPON OLT Interface Board(including Class C+ SFP Optical Module)

Product Series

MA5800-X7

Dimensions (H x W x D)

442mm x 268.7mm x 263.9mm

Maximum Number of Ports in a Subrack

112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1

Switching Capacity of the System

7 Tbit/s

Maximum Number of MAC Addresses

262,143

Maximum Number of ARP/Routing Entries

64K

Ambient Temperature

40°C to 65°C Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent

Working Voltage Range

38.4V DC to -72V DC

Layer 2 Features

VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82

Layer 3 Features

Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF

MPLS & PWE3

MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching

IPv6

IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay

Multicast

IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast

QoS

Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL

System Reliability

GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

Get more information

Discover unbeatable prices and fast shipping for the H901GPSF04, Huawei OLT Interface Board, 16-port GPON/Class C+ SFP/Incl. Optical Module . Access the detailed H901GPSF04, Huawei OLT Interface Board, 16-port GPON/Class C+ SFP/Incl. Optical Module datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are some common troubleshooting tips for the H901GPSF04?

Ensure all SFP modules are properly seated, check for firmware updates, and confirm network configurations match the OLT settings.

What accessories are available for the H901GPSF04?

Accessories include additional Class C+ SFP optical modules and compatible power supplies for the OLT chassis.

How does H901GPSF04 compare to other similar products?

The H901GPSF04 offers high performance and reliability with its Class C+ SFP modules, providing better reach and power efficiency compared to standard modules.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What are the key features of the H901GPSF04?

The H901GPSF04 is a 16-port GPON OLT interface board featuring Class C+ SFP optical modules for enhanced performance.

How cost-effective is the H901GPSF04?

The H901GPSF04 offers a high port density (16 ports) which translates to a lower cost per port, making it cost-effective for large-scale deployments.

What are the application scenarios for the H901GPSF04?

The H901GPSF04 is ideal for high-speed broadband access, IPTV, and VoIP services in fiber-to-the-home (FTTH) networks.

How do I install the H901GPSF04?

The H901GPSF04 can be easily installed into a Huawei OLT chassis, following the provided installation guide for physical and software setup.

Does the H901GPSF04 need regular upgrades?

Yes, it is recommended to regularly update the firmware of the H901GPSF04 for optimal performance and security.

Are there alternative products to the H901GPSF04?

Alternative products include other Huawei OLT interface boards such as the H901GPHF or third-party options compatible with Huawei OLTs.
