H901GPHF04, Huawei GPON OLT Board, 16xGPON/Class C+ SFP/Advanced

Name: H901GPHF04, Huawei GPON OLT Board, 16xGPON/Class C+ SFP/Advanced
SKU: H901GPHF04
Rating: 4.7 (3 reviews)

Brand: Huawei
Model: H901GPHF04

Rating:

93%

4.7/5.0

3 Reviews

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H901GPHF04, Huawei GPON OLT Board, 16xGPON/Class C+ SFP/Advanced

100% Genuine Ready to Ship

Overview

Huawei H901GPHF04 Overview

The Huawei H901GPHF04 is an advanced GPON OLT interface module for carrier-grade fiber access in the MA5800-X7 series. This 16-port GPON/Class C+ SFP board enables high-density broadband aggregation for ISPs, regional service providers, and campus networks across Asia, Europe, Africa, and North America. With 7 Tbit/s system switching capacity, rich Layer 2/Layer 3 features, MPLS & PWE3, and IPv4/IPv6 dual-stack support, it delivers scalable triple-play, IPTV multicast, and enterprise VPN services on a single converged optical platform.

Product Highlights

16 GPON

GPON Ports

7 Tbit/s

Sys Cap

262,143

MAC Scale

Product Applications Scenarios

Service Providers

Delivers high-density GPON aggregation for regional ISPs, enabling affordable FTTH and triple-play with reduced OLT footprint and lower per-subscriber costs.

Enterprise Network

Supports large campus fiber access, simplifying VLAN, QoS and multicast for converged data, voice and video while cutting LAN cabling complexity.

Public Infrastructure

Enables municipal or utility fiber networks to aggregate many ONTs, improving service coverage and reliability for smart city and e-government projects.

Product Features Comparison

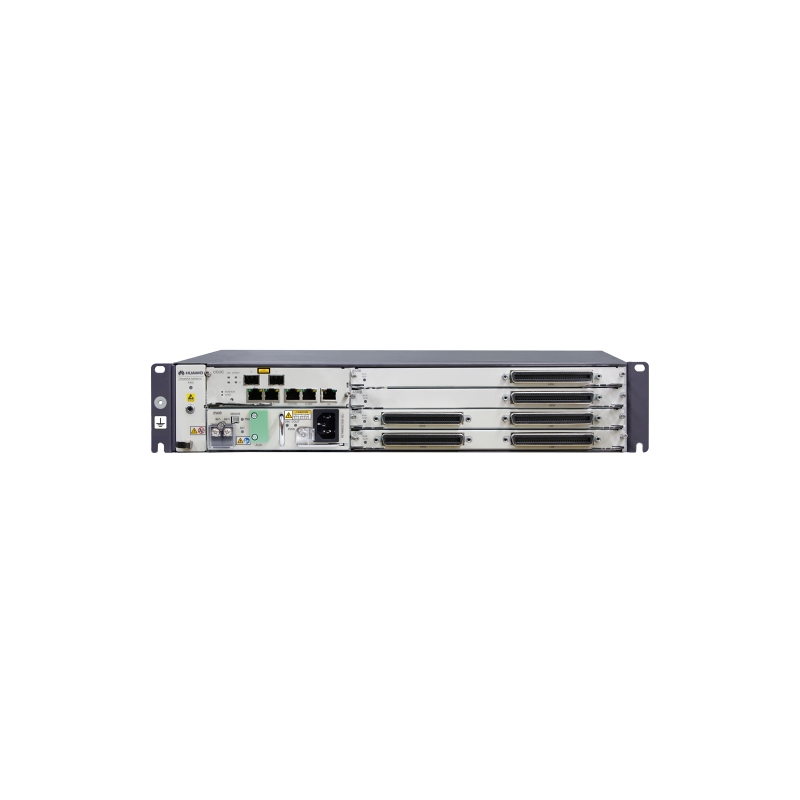

Model	H901GPHF04, Huawei GPON OLT Board, 16×GPON/Class C+ SFP/Advanced	H901GPSF02, Huawei H901 Series OLT Interface Board, 16-port GPON, Class C+ SFP, Optical Module Included	CR52-P21-4x10GBase WAN/LAN-XFP, Huawei CR52 Series Flexible Card, 4×10G WAN/LAN-XFP/Occupy 2 sub-slots	H83D00CCUDG01, Huawei CloudEngine 8800 Switch, Multi-Service Control, High Reliability, Hot Swap
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	n/a	n/a	n/a
Port Configuration	16-port Advanced GPON OLT Interface Board(including Class C+ SFP Optical Module)	16-port GPON OLT Interface Board(including Class C+ SFP Optical Module)	4-port 10GBase WAN/LAN-XFP Flexible Card(Occupy two sub-slots)	Multi-Service Centralized Control Unit Board
Supported Speed	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	n/a	n/a
Compatible Platform	MA5800-X7	MA5800-X7	NetEngine NE40E Router	MA5616
Installation Type	n/a	n/a	LPUF-21 Line Card	n/a

Optional Add-ons

Model Number	Description
H901GPSF02	Huawei 16-port GPON OLT interface board with Class C+ SFP, for MA5800-X7 expansion
H80I015DOC10	Huawei MA5600T/MA5603T/MA5608T multi-service access documentation module, English printed
H80D00VDPE01	Huawei VDSL2 service board with 64×VDSL2 ports and 600Ω splitter for copper access complement

Quality Certifications

Specification

Huawei H901GPHF04 Specification

Model

H901GPHF04

Brand

Huawei

Part Number

02311EPU

Product Description

16-port Advanced GPON OLT Interface Board(including Class C+ SFP Optical Module)

Product Series

MA5800-X7

Dimensions (H x W x D)

442mm x 268.7mm x 263.9mm

Maximum Number of Ports in a Subrack

112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1

Switching Capacity of the System

7 Tbit/s

Maximum Number of MAC Addresses

262,143

Maximum Number of ARP/Routing Entries

64K

Ambient Temperature

40°C to 65°C Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent

Working Voltage Range

38.4V DC to -72V DC

Layer 2 Features

VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82

Layer 3 Features

Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF

MPLS & PWE3

MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching

IPv6

IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay

Multicast

IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast

QoS

Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL

System Reliability

GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

Get more information

Discover unbeatable prices and fast shipping for the H901GPHF04, Huawei GPON OLT Board, 16×GPON/Class C+ SFP/Advanced . Access the detailed H901GPHF04, Huawei GPON OLT Board, 16×GPON/Class C+ SFP/Advanced datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H901GPHF04?

Accessories include spare Class C+ SFP Optical Modules, power supply units for the OLT chassis, and network management software for configuration and monitoring.

How does the H901GPHF04 compare with other similar GPON OLT interface boards?

The H901GPHF04 is distinguished by its 16-port capacity and inclusion of Class C+ SFP Optical Modules, providing superior performance and reliability compared to older models.

Can the H901GPHF04 support future network expansions?

Yes, the 16-port capacity and advanced features of the H901GPHF04 allow for scalable network expansions and future-proofing your network infrastructure.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H901GPHF04 for large-scale network deployments?

The H901GPHF04 offers an advanced 16-port GPON OLT interface, making it highly cost-effective for large-scale network deployments due to its high port density and Class C+ SFP Optical Module.

What are the primary features of the H901GPHF04 board?

The H901GPHF04 boasts 16 GPON ports and includes Class C+ SFP Optical Modules, providing high-performance and reliable network connections.

What application scenarios is the H901GPHF04 ideally suited for?

The H901GPHF04 is ideal for fiber-to-the-home (FTTH) deployments, enterprise access, and triple-play service scenarios due to its advanced GPON capabilities.

How do I install the H901GPHF04 in my network setup?

Installation involves inserting the H901GPHF04 into a compatible Huawei OLT chassis, connecting the GPON ports to the optical network, and configuring the settings via Huawei's network management software.

Does the H901GPHF04 require any firmware upgrades post-installation?

Firmware upgrades may be necessary to ensure optimal performance and security; always check with Huawei's official website for the latest updates and upgrade guides for the H901GPHF04.

Are there alternative products to the H901GPHF04 if needed?

Alternatives include other Huawei GPON OLT interface boards like the H901GPHF03; however, the H901GPHF04 offers enhanced port density and advanced features.

What common troubleshooting steps should I follow for the H901GPHF04?

Common troubleshooting includes checking optical connections, verifying port status through the management software, and ensuring that firmware is up to date.
