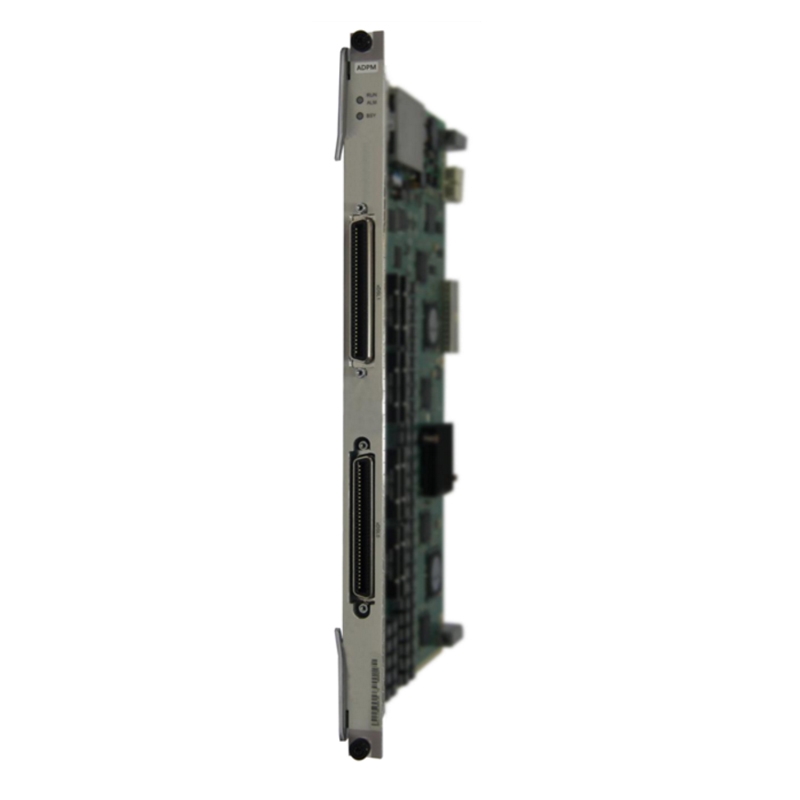

H807ADPM, Huawei SmartAX MA5600T ADSL Service Board, 64 ADSL ports/Hot swappable/ADSL2+

Name: H807ADPM, Huawei SmartAX MA5600T ADSL Service Board, 64 ADSL ports/Hot swappable/ADSL2+
SKU: H807ADPM
Rating: 5 (2 reviews)

Brand: Huawei
Model: H807ADPM

Rating:

100%

5/5.0

2 Reviews

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H807ADPM, Huawei SmartAX MA5600T ADSL Service Board, 64 ADSL ports/Hot swappable/ADSL2+

100% Genuine Ready to Ship

Overview

Huawei H807ADPM Overview

The Huawei H807ADPM is a carrier-grade ADSL service board for SmartAX MA5600T platforms, delivering 64 ADSL2+ over POTS ports for dense broadband aggregation in Asia, Europe, Africa, and North America. It supports ADSL2+ bonding and physical layer retransmission (G.INP) for higher access speeds and improved line stability, plus INM, SELT, and MELT to simplify troubleshooting for distributors, SMB integrators, and DSL end users. With flexible RFC2662/RFC4706/TR165 configuration and temperature protection, this hot-swappable module optimizes legacy copper broadband deployments.

Product Highlights

64 ports

ADSL Ports

Bonding

ADSL2+

TR165

Flex Mode

Product Applications Scenarios

Service Providers

Enables carriers to extend ADSL2+ over POTS for triple-play and broadband access, reducing copper upgrade costs by up to 40% while maintaining stable line quality and remote diagnostics.

Enterprise Network

Supports multi-branch enterprises needing reliable DSL aggregation in campus or regional hubs, improving last-mile stability with G.INP and SELT for faster fault isolation.

Public Infrastructure

Ideal for municipalities and utilities leveraging existing copper loops to backhaul CCTV, kiosks, or remote offices, cutting deployment time and avoiding major civil works.

Product Features Comparison


Model	H807ADPM, Huawei SmartAX MA5600T ADSL Service Board, 64 ADSL ports/Hot swappable/ADSL2+	TNN1HUNS308, Huawei Smart Line Service Board, 40G, SH, LC	CR5D00P1MZ60, Huawei CR5D00 Series Flexible Card, 1×OC-768c/STM-256c POS/2KM-LC/2 sub-slots	H80AATRB, Huawei SmartAX MA5600T FXO Service Board, 32-channel FXO/Direct Access/Voice Service
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	n/a	Flexible Card	n/a
Port Configuration	ADSL2+ over POTS	n/a	1-Port OC-768c/STM-256c POS	Telco 64-pin
Supported Speed	ADSL2+ Bonding	Switch Capacity: Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s	Data Rate: 39.813Gbps	G.711A/U: 32
Compatible Platform	SmartAX MA5600T	OSN 7500 II	CP100	SmartAX MA5600T
Installation Type	Champ 64-pin	Rack-mounted	Plug-in module	Telco 64-pin

Optional Add-ons

Model Number	Description
H80AATRB	Huawei FXO voice service board for MA5600T, 32-channel analog trunk access
H83D0BCVLC01	Huawei MA5616 combo VDSL2/POTS line card with integrated splitter for mixed services
H901GPSF02	Huawei 16-port GPON OLT interface board with Class C+ SFP optics for fiber uplink

Quality Certifications

Specification

Huawei H807ADPM Specification

Model

H807ADPM

Brand

Huawei

Applicable Line

ADSL2+ over POTS

Physical Layer Retransmission (G.INP)

Yes

ADSL2+ Bonding

Yes (Supported by V800R010C00 and later)

INM

Yes

SELT

Yes

MELT

Yes

Annex Type

G.992.1 Annex A G.992.3 Annex A/L/M/J (EU32-EU64) G.992.5 Annex A/M/J (EU32-EU64)

Flexible Configuration Modes

Supports RFC2662, RFC4706, and TR165. (Users with a super user account can log in to the system and run the switch adsl mode to command in diagnose mode to switch between the configuration modes. The default configuration mode is RFC2662. Considering the current development trend, it is recommended that you use TR165, which is more flexible than the others)

Connector

Champ 64-pin

Built-in Splitter

Temperature Query and High-temperature Alarm

Yes

Automatic Power Shutdown in Case of a High Temperature

Yes

Get more information

Discover unbeatable prices and fast shipping for the H807ADPM, Huawei SmartAX MA5600T ADSL Service Board, 64 ADSL ports/Hot swappable/ADSL2+ . Access the detailed H807ADPM, Huawei SmartAX MA5600T ADSL Service Board, 64 ADSL ports/Hot swappable/ADSL2+ datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H807ADPM?

Accessories include compatible ADSL splitters and protection devices that help maintain connection quality for the H807ADPM.

How does the H807ADPM compare to other similar products?

The H807ADPM offers higher port density and enhanced QoS features compared to similar ADSL service boards.

What kind of QoS features does the H807ADPM support?

The H807ADPM supports traffic prioritization, congestion management, and bandwidth allocation to guarantee service quality.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H807ADPM?

The H807ADPM offers high-density 64-port ADSL service, improving ROI by maximizing subscriber connections.

What are the key features of the H807ADPM?

The H807ADPM supports 64 ADSL ports, QoS, and multiple service modes, ensuring reliable connectivity and versatile applications.

What are the application scenarios for the H807ADPM?

The H807ADPM is ideal for large-scale residential deployments, offering consistent high-speed internet services.

How do you install the H807ADPM in the Huawei MA5600T chassis?

Simply slot the H807ADPM into a compatible bay in the MA5600T chassis and secure it, ensuring proper connection to the backplane.

Does the H807ADPM require firmware upgrades?

Yes, regular firmware upgrades are recommended to enhance performance and security for the H807ADPM.

Are there alternative products to the H807ADPM?

Yes, alternatives include other service boards in the Huawei MA5600T series like the 32-port ADSL board, depending on capacity needs.

What common troubleshooting steps are there for the H807ADPM?

Check physical connections, ensure the firmware is up-to-date, and confirm configuration settings for troubleshooting the H807ADPM.
