main product photo

TNN1HUNS308, Huawei Smart Line Service Board, 40G, SH, LC

  • Brand: Huawei
  • Model: TNN1HUNS308
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    TNN1HUNS308, Huawei Smart Line Service Board, 40G, SH, LC

    TNN1HUNS308, Huawei Smart Line Service Board, 40G, SH, LC

    100% Genuine Ready to Ship
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei TNN1HUNS308 Overview

    The Huawei TNN1HUNS308 is a carrier-grade Smart 40G line service processing board for OSN 7500 II MSTP platforms. It delivers 40G SH optical line capacity with LC interfaces and typical power of 142W, leveraging the chassis switching capacity of up to 320 Gbit/s packet and 560 Gbit/s OTN. Supporting FE/GE/10GE/40GE Ethernet, STM-1/4/16/64 SDH, rich PDH/ATM/PCM, WDM, SAN and voice interfaces, the TNN1HUNS308 enables converged packet, SDH and OTN transport for multi-service metro and backbone networks across Asia, Europe, Africa and North America.

    Product Highlights

    560Gbit/s
    OTN Switch
    40GE
    Core Port
    142W
    Power Draw

    Product Applications Scenarios

    Service Providers
    The 40G line processing and rich SDH/OTN support let carriers aggregate legacy TDM and packet services, improving backbone utilization and cutting multi-platform maintenance costs.
    Enterprise Network
    Multi-service interfaces (FE to 40GE, PDH, SAN, PCM) simplify enterprise MAN backbones, consolidating diverse traffic and reducing separate transport gear by up to 30%.
    Public Infrastructure
    Robust QoS, SDH protection and synchronization features make it ideal for utilities and transport networks needing deterministic latency and high availability for critical services.

    Product Features Comparison

    Huawei TNN1HUNS308, Huawei Smart Line Service Board, 40G, SH, LC Huawei TNN1AFO1(L-1.1,LC), Huawei TNN1AFO1, 8 ports ATM STM-1/LC connectors/License Huawei TN16FIU01, Huawei OSN Series Fiber Interface Board, 16×FIU ports, Hot-swappable, Optical protection Huawei SSE-DCM(F)-C-652-FBG(120km), Huawei Dispersion Compensation Module, 1528~1568nm/120km/-1941~-2021ps/nm
    Model TNN1HUNS308, Huawei Smart Line Service Board, 40G, SH, LC TNN1AFO1(L-1.1,LC), Huawei TNN1AFO1, 8 ports ATM STM-1/LC connectors/License TN16FIU01, Huawei OSN Series Fiber Interface Board, 16×FIU ports, Hot-swappable, Optical protection SSE-DCM(F)-C-652-FBG(120km), Huawei Dispersion Compensation Module, 1528~1568nm/120km/-1941~-2021ps/nm
    Brand Huawei Huawei Huawei Huawei
    Module Type Smart 40G Line Service Processing Board 8 ports ATM STM-1 Interface Board Fiber Interface Board Dispersion Compensation Module
    Port Configuration 32 service slots via chassis 8×STM-1 16 FIU ports n/a
    Supported Speed Packet 320 Gbit/s; OTN 560Gbit/s STM-1 Up to 10Gbps per port n/a
    Compatible Platform OSN 7500 II OSN 7500 II Huawei Optical Transport Networks G.652 fiber systems
    Installation Type Chassis plug-in board Chassis plug-in board Chassis plug-in board Plug-in module

    Optional Add-ons

    Model Number Description

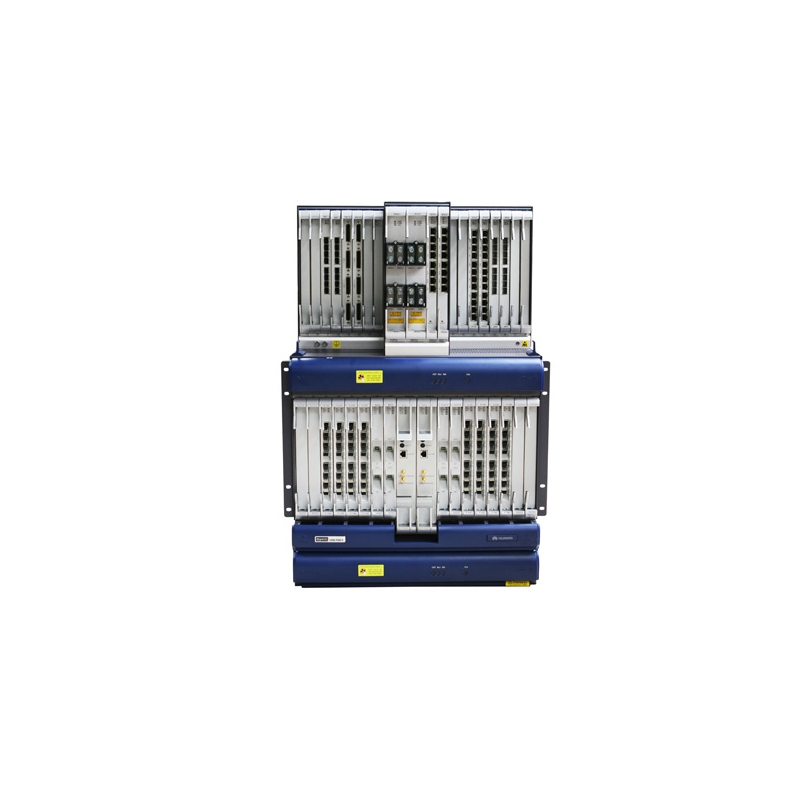

    TNN1AFO1(L-1.1,LC) Huawei MSTP ATM STM-1 interface board with LC connectors for additional SDH/ATM tributary expansion on OSN 7500 II.
    TN16FIU01 Huawei fiber interface board providing 16 FIU optical ports to extend WDM and line connectivity with the TNN1HUNS308.
    SSE-DCM(F)-C-652-FBG(120km) Huawei dispersion compensation module for G.652 fiber, optimizing long-haul OSN optical links carrying 40G services.

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei TNN1HUNS308 Specification

    Model
    TNN1HUNS308
    Brand
    Huawei
    Part Number
    03055303
    Description
    Smart 40G Line Service Processing Board (SH,Tx_-1dBm~4.5dBm,Rx_-20.5dBm,LC)
    Discount Category
    PID Hardware
    Product Line
    Networking
    Sub Product Family
    MSTP
    Product Series
    OSN 7500 II
    UOM
    PCS
    Net Dimension(D*W*H mm)
    261*267*50
    Typic Power(W)
    142
    Dimensions
    800mm (H) x 496mm (W) x 295mm (D)
    Switch Capacity
    Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s
    Service Slots
    32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot
    Ethernet interface
    FE/GE/10GE/40GE
    SDH interface
    STM-1/4/16/64
    PDH interface
    E1/T1, E3/T3, E4
    ATM interface
    E1, STM-1
    WDM interface
    40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
    SAN interface
    FDDI, ESCON, FICON/FICON Express, FC100/200/400/800/1200
    PCM interface
    FXS/FXO, 2/4W VF & E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A,RS485, G.703 64 kbit/s codirectional
    Other interface
    DDN, Video
    Networking Mode
    Supports packet, hybrid (packet + SDH or OTN + SDH) or SDH networking Supporting WDM networking Supporting single-fiber bidirectional transmission
    Power Supply
    48V DC/-60V DC
    Ethernet Feature
    E-Line and E-LAN, QinQ MPLS-TP based VPWS and VPLS Multi-section pseudo-wire (MS-PW) ETH PWE3, TDM PWE3, A TM/IMA PWE3 IGMP Snooping V2 Blacklist, Broadcast packet suppression, ACL VLAN SWAP
    PCM Feature
    Voice or data Conference/Meeting,P2MP,MP2MP FXO/FXS mode can be set by software E&M Interface voltage can be set by software (-48V/-12V) E&M signaling can be set by software (Bell types I, II, III, IV, V and British Telecom SSDC5)
    QoS
    Hierarchical QoS scheduling and traffic shaping DiffServ mode based on traffic classification, eight priority queues Simple traffic classification, complex traffic classification, per hop behavior (PHB),and A CL Committed access rate (CAR), shaping based on port scheduling priority PQ scheduling priority, weighted fair queuing (WFQ) and PQ+WFQ queuing Tail drop and weighted random early detection (WRED)
    MPLS OAM
    LSP/PW OAM: FDI, BDI,CV, FFD, TraceRoute, Ping, LM, DM PW OAM: CES PW VCCV
    Ethernet OAM
    ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819)
    MPLS-TP based Service Protection
    LSP/PW Linear protection, Ring protection Anti multifailure protection based on MS-PW LAG, MC-LAG, Dual-homing protection, LPT
    SDH based Service Protection
    2/4 fiber MS-SP Ring; 1+1/1:n (n SNCP/SNCTP Tributary protection for E1/T1, E3/T3, E4, STM-1(e) and FE
    ASON
    Distributed restorable rerouting protection 5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services Based on VC-4 and VC-12 granularity
    Synchronization
    Both Ethernet and SDH networks supporting clock synchronization Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization Adaptive clock recovery (ACR) Two external clock inputs/outputs (2MHz or 2 Mbit/s) Two external time signals (1pps+TOD)
