Best PoE Switch for IP Cameras: Ensure Reliable, Scalable, and Secure Surveillance

Part 1: The Indispensable Role of PoE Switches in IP Camera Systems

Before diving into specific models, it’s important to understand why PoE switches are the backbone of IP camera networks. Modern IP camera systems rely on PoE switches not only for data connectivity but also for power delivery, allowing a single Ethernet cable to carry both data and power. This reduces installation complexity, lowers costs, and enables flexible camera placement—even in areas without nearby power outlets.PoE switches often include advanced features like auto-recovery for cameras, remote monitoring, and centralized management, enhancing reliability and minimizing maintenance efforts. Whether deploying cameras in a small office, a large enterprise, or an industrial site, choosing the right PoE switch directly impacts network performance, scalability, and security.

Part 2: Understanding PoE Technology: Standards, Power, and Calculation Methods

Before selecting a PoE switch, you need to understand the different PoE standards, how much power your cameras consume, and how to calculate the total PoE budget.

PoE Standards Explained: 802.3af, 802.3at, and 802.3bt (PoE++)

• Standard PoE (IEEE 802.3af): Provides up to 15.4W per port at the source, 12.95W to the device. Suitable for basic IP cameras.
• PoE+ (IEEE 802.3at): Provides up to 30W per port at the source, 25.5W to the device. Ideal for high-definition IP cameras and Wi-Fi APs.
• PoE++ (IEEE 802.3bt): Type 3 (60W) and Type 4 (100W) per port. Supports multi-sensor, PTZ, and high-power cameras.

All PoE switches are backward compatible. A PoE++ switch can automatically power PoE+ or standard PoE devices.

Power Calculation: Ensuring Sufficient Power for Your IP Cameras

1. Selecting a switch without understanding the power needs can result in unreliable camera operation. Here's how to calculate your PoE requirements: Determine Individual Camera Power Consumption: Check the datasheet; small fixed cameras may need 6–8W, PTZ cameras up to 60W or more.
2. Calculate Total PoE Budget: Sum the maximum power of all cameras and ensure it does not exceed the switch’s total PoE budget. Leave a margin for cable losses.

Example Calculation:

• 6 standard IP cameras at 8W each → 6 × 8W = 48W
• 2 PTZ cameras at 20W each → 2 × 20W = 40W
• Total PoE required = 88W

Choose a switch with a total budget ≥ 88W, e.g., an 8-port PoE+ switch with 120W total budget ensures sufficient power and future flexibility.

Part 3: Key Factors for Choosing the Best PoE Switch for IP Cameras

1. Number of Ports: Small setups may require 8-port switches, while large deployments could need 24 or 48 ports.
2. Bandwidth Capacity: Gigabit ports for HD/4K cameras; Multi-Gig or 10G for high-density scenarios.
3. Management Type:
   • Unmanaged switches: Plug-and-play, simple to use.
   • Managed switches: VLAN, QoS, port security, PoE auto-recovery, and advanced monitoring.
4. Reliability & Environmental Factors: Industrial-grade switches suit outdoor/harsh conditions; fanless design reduces noise.
5. Extended Cable Runs: Some switches support "Extend Mode," allowing runs beyond 100 meters.
6. Security Features: VLANs, QoS, IGMP Snooping, 802.1X, and storm control improve network safety.

Managed vs Non-Managed Switches

• Non-Managed: Lower cost, easy to deploy, limited features, less secure, minimal network visibility.
• Managed: Higher cost, requires configuration, offers security, VLANs, remote monitoring, PoE auto-recovery, and easier troubleshooting.
• Recommendation: For small, simple deployments, unmanaged switches suffice. For enterprise or growing setups, managed switches provide long-term flexibility and security.

Part 4: Best PoE Switch for IP Cameras: Recommendations Across Deployment Scenarios

Selecting the right switch depends on deployment scale and environment. Here are practical recommendations including Cisco options:

Small Office / Home (Up to 8 Cameras)

Medium Enterprise (9–24 Cameras)

Large Campus / Industrial Applications (24+ Cameras)

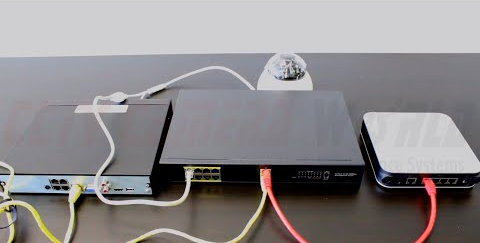

Part 5: How to Deploy a PoE Switch for IP Cameras

Proper deployment ensures reliable video, power delivery, and network security.

Deployment Steps:

1. Select the Right PoE Switch: Match cameras’ power, bandwidth, and port requirements.
2. Connect to Router or Core Switch: Use Cat5e/Cat6 to connect uplink port.
3. Power On the Switch: Plug into electrical outlet.
4. Connect IP Cameras: Plug cameras into PoE ports; switch auto-detects power needs.
5. Configure Cameras: Set IP addresses, video settings, motion detection.
6. Integrate with NVR:
   • Dedicated LAN: Connect cameras through PoE switch to secondary NVR NIC for an isolated subnet.
   • Direct PoE NVR ports: Ensure segmentation and network security if using NVR PoE ports.

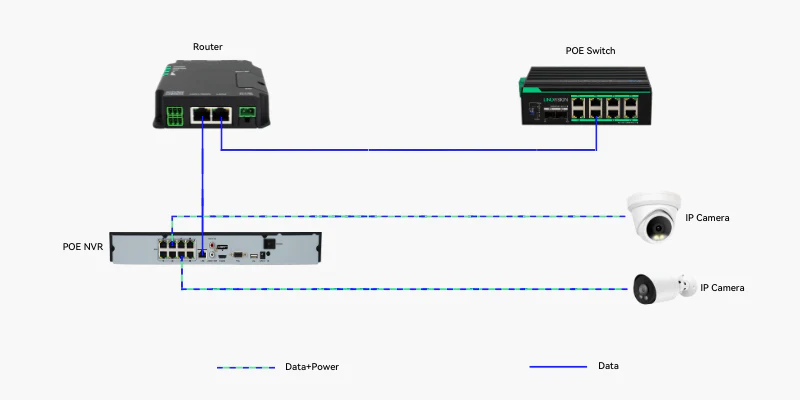

Typical Deployment Topologies:

• Basic Connection: Switch → Cameras → NVR → Router.
• NVR Isolated LAN: Cameras → PoE Switch → NVR private LAN port → Main network.
• Advanced (Omnitron): Ring topology, daisy chain, or dual-device mode to provide redundancy, scalability, and network isolation.

Part 6: Frequently Asked Questions (FAQs)

Part 7: Recommendations for Enhancing Reliability, Security, and Scalability

• PoE Auto Recovery: Automatically restarts non-responsive cameras.
• Extend Mode: Increases cable distance for remote cameras.
• Priority Mode: Ensures critical video streams receive bandwidth priority.
• Remote/Cloud Management: Monitor and configure switches from anywhere.
• Multi-Gig / SFP+ Uplink Ports: Ensures high bandwidth to NVR or core switch.
• Security Practices: Use VLANs, port isolation, QoS, and dual NIC NVRs to segment and protect camera networks.
• Future Expansion: Choose switches with higher port count, PoE+ or PoE++ support, and rack-mountable design for growth.

Conclusion

Choosing the best PoE switch for IP cameras is essential for a reliable, scalable, and secure surveillance system. Consider PoE standards, total power budget, port count, management type, deployment environment, and advanced features. Integrating Cisco switches provides enterprise-grade reliability, advanced management, and long-term support, making them suitable for deployments from small offices to large campuses.
