DS-7616NI-K2

Name: DS-7616NI-K2
SKU: DS-7616NI-K2
Price: 135 USD
Availability: OutOfStock
Rating: 4.7 (25 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	DS-7616NI-K2
Model:	DS-7616NI-K2 - Hikvision NVR 7600 Series
Brand:	Hikvision
Detail:	Hikvision DS-7616NI-K2 is a modern 16-channel IP network video recorder capable of monitoring, recording and playing back images from 16 IP cameras of megapixel resolutions, up to 8 MP.
	Rating: 94% 4.7/5.0 25 Reviews 2 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$135.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-7616NI-K2

Hikvision DS-7616NI-K2 is a modern 16-channel IP network video recorder capable of monitoring, recording and playing back images from 16 IP cameras of megapixel resolutions, up to 8 MP.

Price: US$135.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-7616NI-K2 Overview

Hikvision DS-7616NI-K2 is a modern 16-channel IP network video recorder capable of monitoring, recording and playing back images from 16 IP cameras of megapixel resolutions, up to 8 MP.

Quick Specs

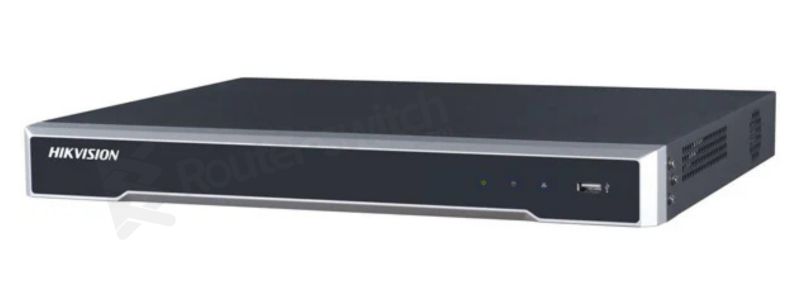

Figure 1 shows the appearance of DS-7616NI-K2.

Table 1 shows the Quick Specs.

Product Code	DS-7616NI-K2
IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Power Supply	12 VDC
Consumption	≤15 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Dimension (W × D × H)	385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Product Details

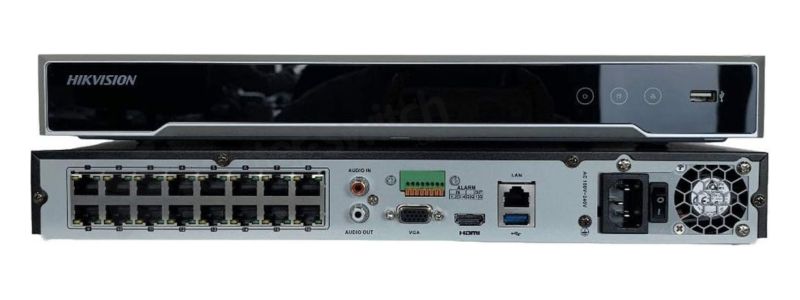

Figure 2 shows the front and back panel of DS-7616NI-K2.

Product Features

DS-7616NI-K2 provides these features:

● Up to 16 channel IP cameras can be connected
● Supports decoding H.265+/H.265/H.264+/H.264 video formats
● Up to 4K high-definition live view, storage and playback
● Up to 8-ch @ 1080p decoding capacity
● Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
● 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
● 2 HDDs for continuous video recording

Compare to Similar Items

Table 2 shows the comparison of DS-7616NI-K2.

Module	DS-7616NI-K2	DS-7616NI-Q2
Incoming Bandwidth	160 Mbps	160 Mbps
Outgoing Bandwidth	160 Mbps	80 Mbps
Power Supply	12 VDC	12 VDC, 2.1 A
Consumption	≤15 W	≤ 15W
Dimension (W × D × H)	385 × 315× 52 mm (15.2" × 12.4" × 2.0")	385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Capacity	Up to 6 TB capacity for each HDD	Up to 8TB capacity for each disk

Get More Information

Do you have any question about the DS-7616NI-K2?

Quality Certifications

Specification

DS-7616NI-K2 Specification

DS-7616NI-K2 Specification
Video and Audio
IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output	4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output	1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI/VGA independent output
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-ch12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability	1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection	128-ch
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 10 TB capacity for each HDD
USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out	4/1
General
Power Supply	12 VDC, 3.33 A
Consumption	≤ 15 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10 to 90 %
Dimension (W × D × H)	385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight	≤ 1 kg (without HDD, 2.2 lb.)
