DS-7616NI-K2/16P

Name: DS-7616NI-K2/16P
SKU: DS-7616NI-K2/16P
Price: 249 USD
Availability: OutOfStock
Rating: 4.8 (5 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	DS-7616NI-K2/16P
Model:	DS-7616NI-K2/16P - Hikvision NVR 7600 Series
Brand:	Hikvision
Detail:	16-ch 1U 16 PoE 4K Network Video Recorders
	Rating: 96% 4.8/5.0 5 Reviews 5 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$249.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-7616NI-K2/16P

16-ch 1U 16 PoE 4K Network Video Recorders

Price: US$249.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-7616NI-K2/16P Overview

4K RESOLUTION - Up to 8 Megapixels resolution recording (3840 x 2160). PLUG & PLAY with up to 16 independent PoE network interfaces, and up to 2 Hard Drives (Not Included).

Quick Specs

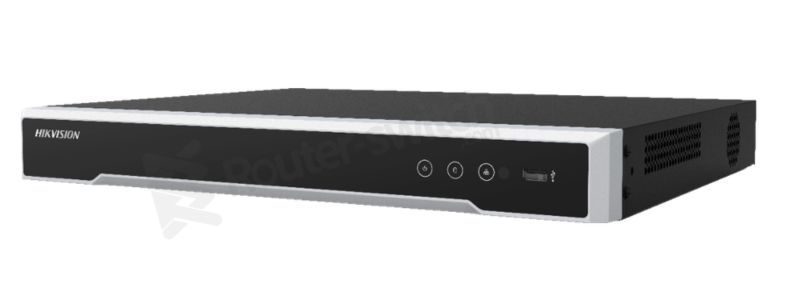

Figure 1 shows the appearance of DS-7616NI-K2/16P.

Table 1 shows the Quick Specs.

Product Code	DS-7616NI-K2/16P
IP Video Input	16-ch
Power Supply	100 to 240 VAC，50 to 60Hz, 1 A
Consumption	≤ 15 W (without enabling PoE)
Dimension (W × D × H)	385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Product Details

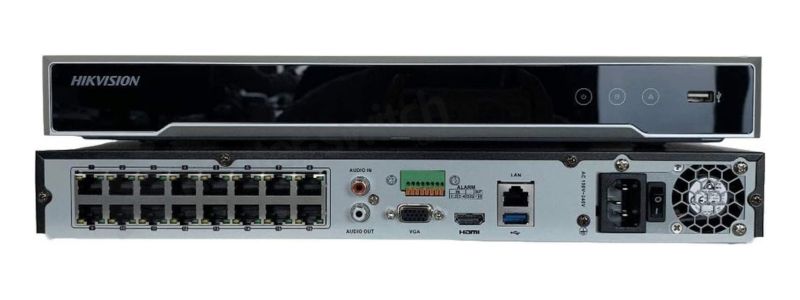

Figure 2 shows the front and back panel of DS-7616NI-K2/16P.

Product Features
DS-7616NI-K2/16P provides these features:

● Up to 16 channel IP cameras can be connected

● Supports decoding H.265+/H.265/H.264+/H.264 video formats

● Up to 4K high-definition live view, storage and playback

● Up to 8-ch @ 1080p decoding capacity

● Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected

● 1 HDMI and 1 VGA interfaces: both interfaces support independent video output

● 2 HDDs for continuous video recording

● Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

Compare to Similar Items

Table 2 shows the comparison of DS-7616NI-K2/16P.

Module

DS-7616NI-K2/16P

DS-7616NI-K2

IP Video Input

16-ch

16-ch

Power Supply

100 to 240 VAC，50 to 60Hz, 1 A

12 VDC

Consumption

≤ 15 W (without enabling PoE)

≤15 W

Dimension (W × D × H)

385 × 315× 52 mm (15.2" × 12.4" × 2.0")

385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Get More Information

Do you have any question about the DS-7616NI-K2/16P?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

Specification

DS-7616NI-K2/16P Specification

DS-7616NI-K2/16P Specifications

Video and Audio

IP Video Input 16-ch

Incoming Bandwidth 160 Mbps

Outgoing Bandwidth 160 Mbps

HDMI Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode HDMI/VGA independent output

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)

Decoding

Decoding Format H.265/H.265+/H.264/H.264+

Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback 16-ch

Decoding Capability 2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Stream Type Video, Video & Audio

Audio Compression G.711ulaw/G.711alaw/G.722/G.726

Network

Remote Connection 128-ch

Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power ≤ 200 W

Standard IEEE 802.3 af/at

Auxiliary Interface

SATA 2 SATA interfaces

Capacity Up to 10 TB capacity for each HDD

USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out 4/1

General

Power Supply 100 to 240 VAC, 50 to 60Hz

Consumption ≤ 15 W (without HDD and PoE off)

Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity 10 to 90 %

Dimension (W × D × H) 380 × 315 × 52 mm (15.0" × 12.4" × 2.0")

Weight ≤ 3 kg (without HDD, 6.6 lb.)

Quality Certifications

DS-7616NI-K2/16P Specifications
Video and Audio
IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output	4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output	1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI/VGA independent output
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-ch
Decoding Capability	2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection	128-ch
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 200 W
Standard	IEEE 802.3 af/at
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 10 TB capacity for each HDD
USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out	4/1
General
Power Supply	100 to 240 VAC, 50 to 60Hz
Consumption	≤ 15 W (without HDD and PoE off)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10 to 90 %
Dimension (W × D × H)	380 × 315 × 52 mm (15.0" × 12.4" × 2.0")
Weight	≤ 3 kg (without HDD, 6.6 lb.)
