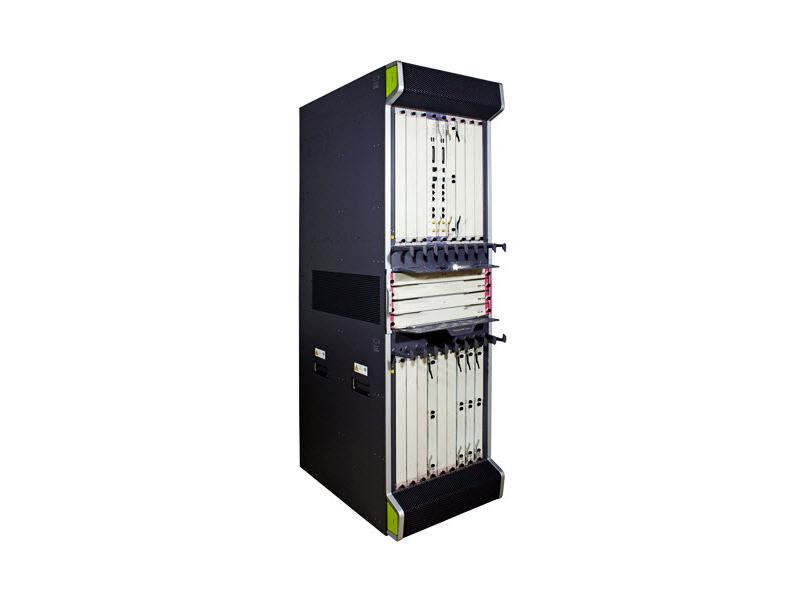

main product photo

CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power

  • Brand: Huawei
  • Model: CR5P16BASA70
Rating:
80%
4/5.0
2 Reviews
$26,159.00
Price Alert ×
CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power
CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power US$26,159.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power

    CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power

    100% Genuine Ready to Ship
    $26,159.00
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei CR5P16BASA70 Overview

    The Huawei CR5P16BASA70 NE40E-X16 is a carrier-grade core router designed for high-capacity service provider and large enterprise backbones. With 12.58 Tbit/s switching capacity and 5,760Mpps forwarding performance, it delivers line-rate IPv4 and IPv6 routing even under heavy route flapping. The 22-slot chassis supports diverse 100GE/40GE/10GE and legacy POS/ATM interfaces, advanced MPLS VPN, and rich QoS, making it ideal for converged IP/MPLS networks across Asia, Europe, Africa, and North America.

    Product Highlights

    12.58Tbit/s
    Core Fabric
    5,760Mpps
    Fast Forward
    22 Slots
    Dense I\/O

    Product Applications Scenarios

    Service Providers
    High switching capacity and MPLS VPN enable scalable BNG and IP core routing, reducing backbone congestion and improving multi-service SLAs for regional and Tier-1 carriers.
    Data Center
    Diverse 100GE\/40GE uplinks and line-rate IPv4\/IPv6 routing make it ideal as a data center border router, aggregating traffic and optimizing east-west flows.
    Enterprise Network
    Advanced QoS, multicast, and VPN features support large campus and WAN cores, consolidating services while lowering TCO for multinational enterprises.

    Product Features Comparison

      Huawei Huawei Huawei Huawei
    Model CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power CR5B0BKP1670, Huawei NE40E-X16 Router, Integrated chassis/8 DC Power/Component set CR5P5KBASA66, Huawei NetEngine5000E-X16A Router, 400G Basic Config/AC Power/Single Chassis ME0B0BKPA330, Huawei ME60 Series Router, Integrated AC Chassis/Redundant power/High reliability
    Brand Huawei Huawei Huawei Huawei
    Routing Throughput n/a n/a n/a n/a
    Interface Configuration Interface Types: 100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1 Interface Types: 100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1 Interface Types: GE銆?0GE銆?55M POS銆?22M POS銆?.5G POS銆?0G POS銆?0G POS銆?0GE銆?00GE Interface Types: OC-192c/STM-64c POS; OC-48c/STM-16c POS; OC-3c/STM-1c POS; OC-12c/STM-4c ATM; OC-3c/STM-1c ATM; 100GE WAN/LAN; 10GE WAN/LAN; GE/FE; E3/CT3; CE1/CT1
    Supported Protocol IPv4: Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4; IPv6: IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv4: Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4; IPv6: IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 Routing protocol: IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP; IPv6: IPv4 & IPv6 dual stack; IPv6 static route, BGP4+, RIPng, OSPFv3, IS-ISv6 IPv4 Routing: Static routing and dynamic routing protocols: RIP, OSPF, IS-IS, BGP-4; IPv6 Features: IPv6 static routing; IPv6 dynamic routing: RIPng, OSPFv3, IS-ISv6, BGP4+
    VPN Capability Value-added Services: IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN Value-added Services: IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN n/a VPN: NAT444, NAT64; CGN: NAT444, NAT64; BRAS/IPv6/MPLS VPN capabilities per spec (details as listed)
    Integrated Features MPLS TE and MPLS/BGP VPN; Layer 2 Features; Reliability; QoS; OAM; Multicast; Security; Value-added Services; Environment Requirements MPLS TE and MPLS/BGP VPN; Layer 2 Features; Reliability; QoS; OAM; Multicast; Security; Value-added Services; Environment Requirements High Availability features: multi-chassis fabric, FRR, NSF/NSR, ISSU; IPv6, routing, and redundancy as listed BRAS Features; L2TP; IPv4 Routing; IPv6 Features; MPLS; Layer 2 Features; QoS; CGN; DAA; extensive subscriber management

    Optional Add-ons

    Model Number Description
    CR5D0SRUA870 Huawei CR5D0SRUA870 Switch and Route Processing Unit A8 for NE40E-X and NetEngine series high-performance control and forwarding.
    CR5B0BKP1670 Huawei CR5B0BKP1670 NE40E-X16 integrated chassis with DC power, ideal as matching frame for large deployments.
    AR0MSEG1CA00 Huawei AR0MSEG1CA00 1-Port GE Combo WAN SIC, providing flexible copper/fiber uplink expansion for Huawei routers.

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei CR5P16BASA70 Specification

    Model
    CR5P16BASA70
    Brand
    Huawei
    Switching Capacity
    12.58 Tbit/s
    Forwarding Performance
    5,760Mpps
    Number of Slots
    22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs
    Dimensions (W x D x H)
    442mm x 650mm x 1,420mm (32U)
    Power Consumption (in full configuration)
    4,610W (120G) 7,970W (240G)
    Interface Types
    100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1
    IPv4
    Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4 Line rate forwarding on all interfaces in complex routing environments, for example, when route flapping occurs
    IPv6
    Various IPv4-to-IPv6 transition technologies: manual tunnel, automatic tunnel, 6to4 tunnel, GRE tunnel, and ISATAP tunnel IPv4 over IPv6 tunnel and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Internet Control Message Protocol Version 6 (ICMPv6), Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB L2NAT, NAT444, DS-Lite, and NAT64
    MPLS
    MPLS TE and MPLS/BGP VPN, in compliance with RFC 2547 Inter-AS VPN Option A/B/C Integration with Internet services Martini and Kompella MPLS L2VPN L2VPN techniques, such as VPLS and VLL IP interworking over heterogeneous media Multicast VPN MPLS-TP, EVPN, Remote LFA
    Layer 2 Features
    IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) Filtering list based on MAC addresses and ports 1483B
    Reliability
    IP/LDP/VPN/TE/VLL FRR Protection mechanisms such as IP/TE auto rerouting, IGP/BGP/multicast route convergence, VRRP, RRPP, IP-Trunk load balancing and backup, BFD, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane design Redundancy backup for key components, such as route processing modules, SFUs, and power modules to guard against single points of failure Switching between components that hot-back up each other GR, NSF, NSR, and ISSU Hot swap of all components
    QoS
    Well-designed HQoS and advanced scheduling and congestion avoidance technologies on each LPU Accurate traffic policing and traffic shaping Complex rule definition and fine-grained flow identification MPLS H-QoS, ensuring QoS for MPLS VPN, VLL, and PWE3 services 8CT that combines MPLS TE and the DiffServ model TE-tunnel-oriented QoS
    OAM
    Y.1731, IP FPM, RFC 2544, MPLS OAM, 802.1ag, and 802.3ah, OPS
    Multicast
    IGMPv1, IGMPv2, and IGMPv3 Multicast routing protocols, including PIM-DM, PIM-SM, PIM-SSM, Multicast Source Discovery Protocol (MSDP), and Multiprotocol BGP (MBGP) Static multicast Multicast CAC Interoperability between multicast protocols Processing of multicast policies based on multicast routing protocols and multicast forwarding Multicast QoS and multicast replication for IPoE access users Two-level multicast replication on the SFUs and LPUs to optimize the multicast effect
    Security
    ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense and DoS attack defense MAC address limit and MAC-IP binding Secure Shell (SSH) and SSH version 2 (SSH v2) BGP-Flowspec RIPv2, OSPF, IS-IS, and BGP MD5, SHA256, Keychain
    Value-added Services
    IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN
    Environment Requirements
    Long-term operating temperature: 0°C to 45°C Short-term operating temperature: -5°C to 55°C Long-term operating humidity: 5% RH to 85% RH Short-term operating humidity: 0% RH to 100% RH Operating altitude: ≤ 3,000 meters
    Weight
    150 kg

    Get more information

    Discover unbeatable prices and fast shipping for the CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power . Access the detailed CR5P16BASA70, Huawei NE40E-X16 Router, 2 MPUs/4 SFUs/8 AC Power datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are available for the Huawei NE40E-X16?

    Accessories include additional MPUs, SFUs, power modules, and various interface modules for extended connectivity.

    How does the Huawei NE40E-X16 compare to similar products?

    Compared to similar routers, the NE40E-X16 offers superior scalability and performance in high-demand environments.

    How can the Huawei NE40E-X16 be used efficiently?

    To use efficiently, enable load balancing, regular updates, and optimize configurations based on network demands.

    Is router-switch.com a reliable distributor?

    Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.
