main product photo
Name:

C6800-48P-TX-XL

Model:C6800-48P-TX-XL Cisco 6807 Switch Gigabit Ethernet Copper Module with DFC4XL
Brand: Cisco
Detail:
C6800-48P-TX-XL Cisco 6807 Switch Line Card, 48 ports Gigabit Ethernet, DFC4 daughter card, Supervisor Engine 2TXL
Rating:
96%
4.8/5.0
5 Reviews
List Price:US$46,937.00 (49% OFF)
Price:US$24,158.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock at Global Warehouses.
  • United States
  • United Kingdom
  • Germany
  • United Arab Emirates
  • Singapore
  • India
  • Hong Kong
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

C6880-X-LE

C6880-X-LE

Rating:
96%
4.8/5.0
5 Reviews
US$32,855.00
C6880-X

C6880-X

US$44,450.00
C6807-XL

C6807-XL

Rating:
99%
5/5.0
19 Reviews
US$9,133.00
C6880-X-LE-16P10G

C6880-X-LE-16P10G

US$18,360.00
C6880-X-16P10G

C6880-X-16P10G

Rating:
100%
5/5.0
1 Review
US$24,158.00
C6800-48P-SFP

C6800-48P-SFP

Rating:
95%
4.8/5.0
8 Reviews
US$13,813.00
C6800-48P-SFP-XL

C6800-48P-SFP-XL

Rating:
100%
5/5.0
6 Reviews
US$33,821.00
C6800-48P-TX

C6800-48P-TX

Rating:
96%
4.8/5.0
5 Reviews
US$6,738.00
C6807-XL-S2T-BUN

C6807-XL-S2T-BUN

Rating:
100%
5/5.0
10 Reviews
US$13,948.00
C6807-XL-S6T-BUN

C6807-XL-S6T-BUN

Rating:
96%
4.8/5.0
18 Reviews
US$37,846.00
C1-C6807XL-S2T-BUN

C1-C6807XL-S2T-BUN

Rating:
93%
4.7/5.0
3 Reviews
US$40,068.00
C1-C6840-X-LE-40G

C1-C6840-X-LE-40G

Rating:
87%
4.4/5.0
3 Reviews
US$80,391.00

C6800-48P-TX-XL

C6800-48P-TX-XL Cisco 6807 Switch Line Card, 48 ports Gigabit Ethernet, DFC4 daughter card, Supervisor Engine 2TXL

List Price: US$46,937.00
Price: US$24,158.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

C6800-48P-TX-XL Overview

C6800-48P-TX-XL is Cisco Catalyst 6800 48-port 1GE copper module with integrated DFC4XL. This C6800-48P-TX-XL is similar with the C6800-48P-TX-XL=. The C6800-48P-TX-XL= is a spare one.

Quick Specs

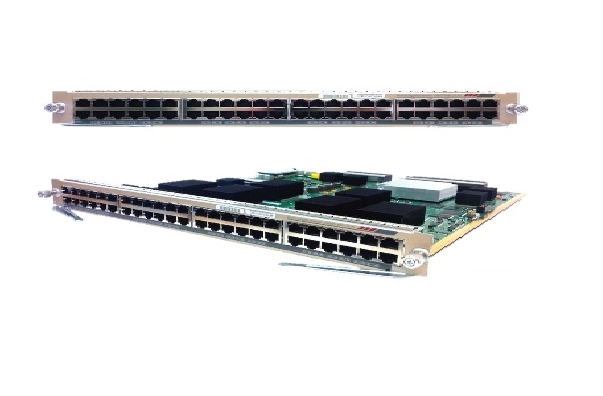

Figure 1 shows the appearance of C6800-48P-TX-XL.

C6800-48P-TX-XL Appearance

Table 1 shows the Quick Specs.

Product Code

C6800-48P-TX-XL

Product Type

6800 Series 1 Gigabit Modules

Transceiver Type

RJ-45

Ports/Interface/
Connectors

48-port, RJ-45, 100m, Category 5 cable

Port Density/
Chassis Model

 ·240 ports/
C6807-XL
·528 ports/
6513E
·384 ports/
6509E

Maximum Frame?Size

Up to 9216 bytes/frame

Fabric channel speed

20 Gb/sec

Pluggable transceivers

Not supported

TDR support

Supported

Buffer Size per Port

 ·Rx-166KB
·Tx-1.17MB

Onboard Memory

1GB Default

Power Requirements

405 and 410 Watts respectively

Backplane connection

Connects to the switch fabric using dual full-duplex 20-Gbps switch fabric channels (40 Gbps total).

Chassis/slot support

Can occupy slots 1-2 and 5-7 in C6807-XL chassis. Can occupy any slots in
Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a
Cisco Catalyst 6513-E.

Supervisor engine

Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL.

Distributed forwarding and performance

?Comes equipped with DFC4 or DFC4XL daughter cards, delivering optimal performance up to a sustained 60 Mpps for L2, IPv4 and MPLS forwarding and 30 Mpps for IPv6 forwarding.

Product Details

Figure 2 shows the front panel of C6800-48P-TX-XL.

? C6800-48P-TX-XL Front Panel

Note:

①

Odd numbered ports

②

Even numbered ports

Compare to Similar Items

Table 3 shows the comparison of C6800-48P-TX-XL and C6800-48P-SFP-XL.

Product Code

C6800-48P-TX-XL

C6800-48P-SFP-XL

Description

48-port Copper Gigabit Ethernet Module with DFC4XL

48-port SFP fiber Gigabit Ethernet Module with DFC4XL?

Ports/Interface/
Connectors

48-port, RJ-45, 100m, Category 5 cable

48 port; 1000BASE-SX, LX/LH, -ZX, -T; 1000BASE-CWDM; LC?connecter

Maximum Frame?Size

Up to 9216 bytes/frame

Up to 9216 bytes/frame

Queues per Port (Tx = Transmit, Rx = Receive)

 ·Tx-1p3q8t; Rx2q8t ·Tx-1p3q8T
·Rx-2q8T

Buffer Size per Port

 ·Rx-166KB
·Tx-1.17MB		 ·Rx-166KB
·Tx-1.17MB

Power Requirements

405 and 410 Watts respectively

334.44 and 339.44 Watts respectively

Supervisor engine

Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL.

Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL.

Dimensions (H x W x D)

1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis.

?1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis.

Weight

8.06 lb (3.66 kg)

?8.06 lb (3.66 kg)

Get More Information

Do you have any question about the Cisco C6800-48P-TX-XL

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

C6800-48P-TX-XL Specification

C6800-48P-TX-XL Specification

Dimensions (H x W x D)

1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis.

Weight

8.06 lb (3.66 kg)

Operating temperature

Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient (noncondensing)

10 to 90 percent

Operating altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)

Quality Certifications

Q&A

Questions & Answers

What accessories are available for the C6800-48P-TX-XL?

Available accessories for the C6800-48P-TX-XL include additional power supplies, supervisor engines, and transceiver modules to enhance network functionality and performance.

How does the C6800-48P-TX-XL compare to other Cisco line cards?

The C6800-48P-TX-XL offers superior performance with integrated DFC4 and compatibility with Supervisor Engine 2TXL, making it a robust choice in the Cisco Catalyst 6800 Series lineup.

What are common troubleshooting steps for the C6800-48P-TX-XL?

Common troubleshooting steps include verifying physical connections, checking for software updates, and using Cisco diagnostic tools to identify and resolve issues swiftly.

What are the supervision options for the C6800-48P-TX-XL?

The C6800-48P-TX-XL is compatible with Cisco's Supervisor Engine 2TXL, which optimizes performance, provides redundancy, and ensures reliable network management.
