C9300-24T-E, Cisco Catalyst 9300 24-Port Gigabit Ethernet Switch with Modular Uplinks, Network Essentials

Name: C9300-24T-E, Cisco Catalyst 9300 24-Port Gigabit Ethernet Switch with Modular Uplinks, Network Essentials
Brand: Cisco
SKU: C9300-24T-E
Price: 1960 USD
Availability: InStock
Rating: 4.8 (68 reviews)

Overview

Cisco C9300-24T-E Overview

The C9300-24T-E is a Cisco Catalyst 9300 enterprise access switch with 24 Gigabit Ethernet copper ports, modular uplink support, Network Essentials software, and StackWise-480.

Key Specifications

Downlink Ports

24 × 10/100/1000BASE-T copper ports

Uplink Architecture

Modular uplink slot

Switching Capacity

208 Gbps

Forwarding Rate

154.76 Mpps

Software License

Network Essentials

Stacking

StackWise-480 with 480 Gbps bandwidth

Product Visual

Figure 1. Rear Panel of a Cisco Catalyst 9300 Series Switch

Cisco Catalyst 9300 Series switch rear panel components

No.	Rear Panel Component
1	Ground connectors
2	USB 3.0 SSD port
3	Beacon LED
4	RJ-45 console port
5	Management port
6	Fan modules
7	StackPower connectors
8	AC OK input status LED
9	PS OK output status LED
10	StackWise-480 connectors
11	Power supply modules

Best Fit Applications

Enterprise Campus Access

Provide 24 Gigabit Ethernet copper ports for data-only access connections in enterprise campus networks.

Branch Data Access

Deploy a data-only access switch in branch offices that do not require PoE-powered endpoints.

Stacked Copper Access Networks

Build a resilient access switching system with StackWise-480 and up to 480 Gbps stacking bandwidth.

Modular Uplink Deployments

Select the uplink module according to the required 1G, multigigabit, 10G, 25G, or 40G network connection.

Why C9300-24T-E

Network Essentials Software

The Network Essentials license supports foundational enterprise access switching requirements.

Modular Uplink Flexibility

The modular uplink architecture allows the uplink interface type to be selected according to the network design.

StackWise-480 Scalability

StackWise-480 provides 480 Gbps stacking bandwidth for a single logical access switching system.

Power and Stack Resiliency

StackPower, two power supply slots, and field-replaceable fan modules support resilient Catalyst 9300 deployments.

Compare Related Models

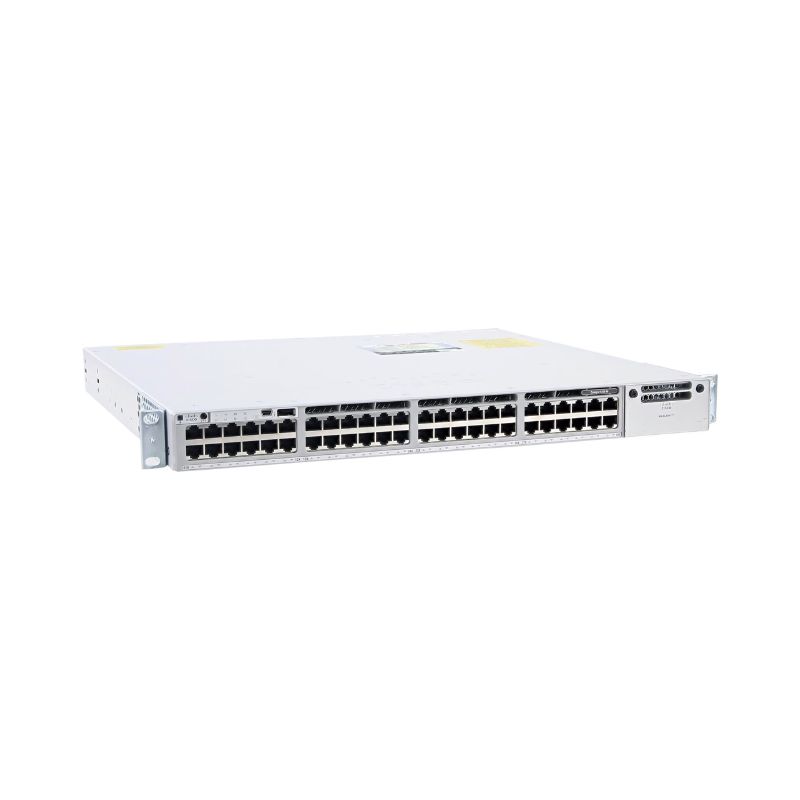

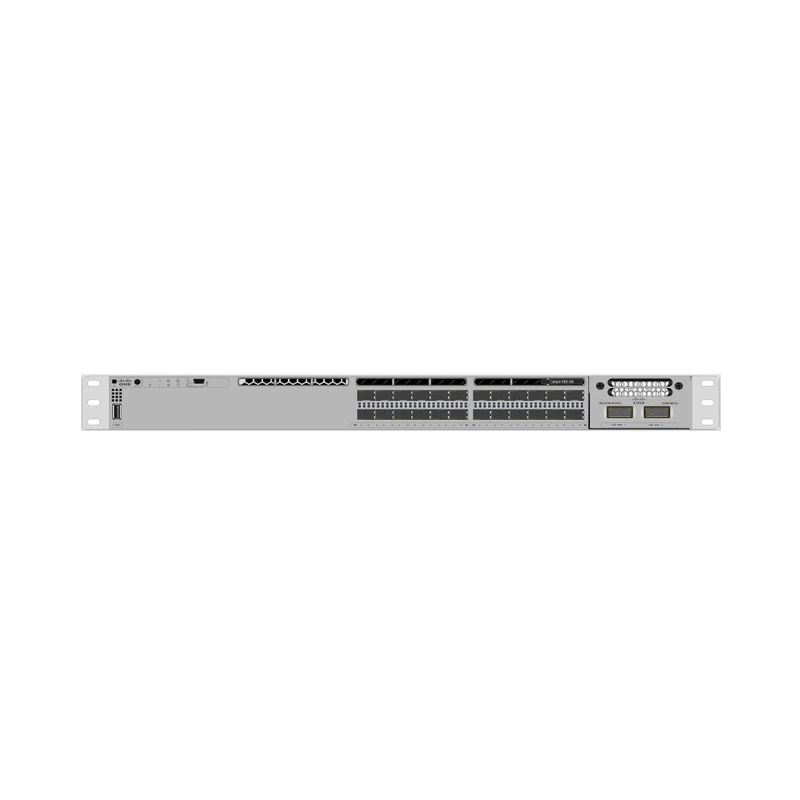

	C9300-24T-E	C9300-24T-A	C9300-48T-E	C9300-24P-E	C9300-24S-E
Port Configuration	24 × 10/100/1000 copper	24 × 10/100/1000 copper	48 × 10/100/1000 copper	24 × 10/100/1000 PoE+	24 × 1G SFP
Uplink Architecture	Modular uplinks	Modular uplinks	Modular uplinks	Modular uplinks	Modular uplinks
Switching Capacity	208 Gbps	208 Gbps	256 Gbps	208 Gbps	208 Gbps
Forwarding Rate	154.76 Mpps	154.76 Mpps	190.47 Mpps	154.76 Mpps	154.76 Mpps
PoE	Not supported	Not supported	Not supported	445W available PoE	Not supported
Stacking	StackWise-480, 480 Gbps	StackWise-480, 480 Gbps	StackWise-480, 480 Gbps	StackWise-480, 480 Gbps	StackWise-480, 480 Gbps
Software License	Network Essentials	Network Advantage	Network Essentials	Network Essentials	Network Essentials
Best Fit Applications	24-port copper data access using Essentials	24-port copper access requiring Network Advantage	Higher-density copper data access	PoE-powered copper access networks	Fiber access and aggregation
Not Ideal For	PoE, fiber-only, or Network Advantage-only deployments	Deployments where Network Essentials is sufficient	Small deployments requiring only 24 ports	Data-only deployments without PoE requirements	Copper-only deployments

Connectivity Options

Connection Type	Model / Part Number	Description
Network Modules	C9300-NM-4G	4-port 1G network module for modular uplink connectivity.
	C9300-NM-4M	4-port multigigabit network module for higher-speed copper uplinks.
	C9300-NM-8X	8-port 10G/1G SFP+ network module.
	C9300-NM-2Q	2-port 40G QSFP+ network module.
	C9300-NM-2Y	2-port 25G/10G/1G SFP28 network module.

System Compatible Components

Type	Model / Part Number	Description
Power Supplies	PWR-C1-350WAC-P=	350W AC Platinum power supply; default power supply for the C9300-24T platform.
Fan Modules	FAN-T2=	Field-replaceable fan module for the Cisco Catalyst 9300 Series.
Stacking Cables	STACK-T1-50CM	0.5 m StackWise cable for C9300 modular uplink models.
	STACK-T1-1M	1 m StackWise cable for C9300 modular uplink models.
	STACK-T1-3M	3 m StackWise cable for C9300 modular uplink models.

Compatibility Check

Check Item	Confirmed Requirement	Selection Note
Port Type	24 × 10/100/1000BASE-T data ports	Confirm that connected devices use copper Ethernet connections.
PoE Requirement	No PoE support	Use C9300-24P-E when connected endpoints require power.
Uplink Module	Supported modular uplink module required	Select the network module according to the required 1G, multigigabit, 10G, 25G, or 40G connection.
Power Configuration	PWR-C1-350WAC-P default power supply	Confirm the required power redundancy arrangement before installation.
Stacking	StackWise-480 with up to 8 compatible C9300 members	Use STACK-T1 series cables and compatible C9300 models with the same license level.
License Tier	Network Essentials	Confirm that the deployment does not require Network Advantage-only features.

Quality Certifications

Specification

Cisco C9300-24T-E Specification

Product Information
Model	C9300-24T-E
Brand	Cisco
Product Type	Enterprise access switch with modular uplink support
Software License	Network Essentials
Operating System	Cisco IOS XE
Interfaces
Downlink Ports	24 x 10/100/1000BASE-T copper ports
Uplink Interface	1 modular uplink slot
Supported Network Modules	C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, and C9300-NM-2Y
PoE	Not supported
Management Port	1 x RJ-45 10/100/1000 management port
Console Ports	1 x RJ-45 console port and 1 x USB Mini-Type B console port
USB Port	1 x USB Type-A storage port
Performance
Switching Capacity	208 Gbps
Switching Capacity with Stacking	688 Gbps
Forwarding Rate	154.76 Mpps
Forwarding Rate with Stacking	511.90 Mpps
MAC Address Table	32,000 entries
IPv4 Routes	32,000 entries, including 24,000 direct and 8,000 indirect routes
IPv6 Routes	16,000 entries
Multicast Routes	8,000 entries
QoS Scale	5,120 entries
ACL Scale	5,120 entries
Packet Buffer	16 MB
Flexible NetFlow	64,000 entries
DRAM	8 GB
Flash Memory	16 GB
VLAN IDs	4,094
PVST Instances	300
STP Virtual Ports	13,000 for PVST and MST
Switch Virtual Interfaces	1,000
Jumbo Frames	9,198 bytes
Total Routed Ports per Stack	448
Stacking and Resiliency
Stacking Technology	StackWise-480
Stacking Bandwidth	480 Gbps
Maximum Stack Members	Up to 8 switches with the same license level
Stacking Interfaces	Dedicated StackWise-480 interfaces
Power Redundancy	StackPower supported
Power Supply Slots	2
Fan Modules	3 field-replaceable fan modules with N+1 redundancy
Power
Default Power Supply	PWR-C1-350WAC-P
Power Supply Rating	350W AC
Available PoE Budget	Not applicable
Physical Specifications
Dimensions with Default Power Supply	1.73 x 17.5 x 17.7 in. (4.4 x 44.5 x 44.9 cm)
Chassis Weight	7.27 kg
Packaging Weight (User-confirmed)	17.49 kg
Mean Time Between Failures	299,000 hours
Environmental Specifications
Operating Temperature	-5°C to 45°C
Storage Temperature	-40°C to 70°C
Relative Humidity	5% to 90%, non-condensing
