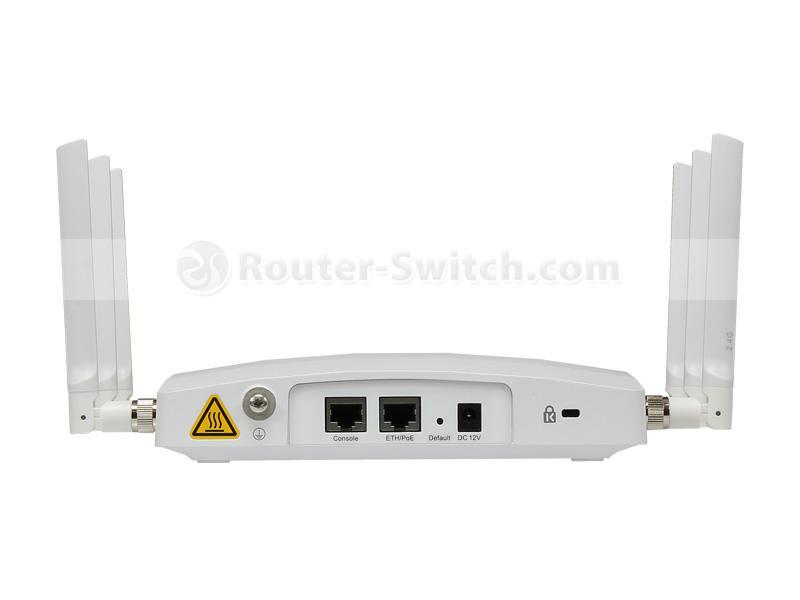

AP7110SN-GN-DC, Huawei AP7110SN Series Access Point, 3x3 MIMO, External Antenna, AC/DC Adapter

AP7110SN-GN-DC Specifications

Technical

Dimensions (H × W × D)

1.7 in. x 7.8 in. x 7.8 in. (45 mm x 200 mm x 200 mm)

Weight

2.2 lb. (1.0 kg)

System memory

• 256 MB DDR3
• 32 MB flash memory

Power

AC/DC adapter

Supported

Power input

DC 12V ± 10%

POE Power: -48V DC.

PoE function IEEE compliant 802.3af and 802.3at

Maximum power consumption

8.7W

Note: Maximum power consumption depends on local laws and regulations

Environment

Operating temperature

14^oF to 131^oF (-10^oC to 55^oC)

Storage temperature

-40^oF to 158^oF (-4^oC to 7^oC)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP41

Altitude

–60m to 5,000m

Radio frequency specifications

Antenna Type

Removable RP-SMA antenna

Antenna Gain

2.5 dBi

Maximum Number of Concurrent Users

≤ 256

Maximum Transmit Power

20 dBm

You can lower transmit power to 20 dB maximum in 1 dB increments

Note: Actual transmit power depends on local laws

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate:  2.4 GHz

GI2 = 800 ns

GI = 400 ns

20 MHz (Mbit/s)

40 MHz (Mbit/s)

20 MHz (Mbit/s)

40 MHz (Mbit/s)

6.5 @ MCS10

13.5 @ MCS0

7.2 @ MCS0

15 @ MCS0

13 @ MCS1

27 @ MCS1

14.4 @ MCS1

30 @ MCS1

19.5 @ MCS2

40.5 @ MCS2

21.7 @ MCS2

45 @ MCS2

26 @ MCS3

54 @ MCS3

28.9 @ MCS3

60 @ MCS3

39 @ MCS4

81 @ MCS4

43.3 @ MCS4

90 @ MCS4

52 @ MCS5

108 @ MCS5

57.8 @ MCS5

120 @ MCS5

58.5 @ MCS6

121.5 @ MCS6

65 @ MCS6

135 @ MCS6

65 @ MCS7

135 @ MCS7

72.2 @ MCS7

150 @ MCS7

13 @ MCS8

27 @ MCS8

14.4 @ MCS8

30 @ MCS8

26 @ MCS9

54 @ MCS9

28.9 @ MCS9

60 @ MCS9

39 @ MCS10

81 @ MCS10

43.3 @ MCS10

90 @ MCS10

52 @ MCS11

108 @ MCS11

57.8 @ MCS11

120 @ MCS11

78 @ MCS12

162 @ MCS12

86.7 @ MCS12

180 @ MCS12

104 @ MCS13

216 @ MCS13

115.6 @ MCS13

240 @ MCS13

117 @ MCS14

243 @ MCS14

130 @ MCS14

270 @ MCS14

130 @ MCS15

270 @ MCS15

144.4 @ MCS15

300 @ MCS15

19.5 @ MCS16

40.5 @ MCS16

21.7 @ MCS16

45 @ MCS16

39 @ MCS17

81 @ MCS17

43.3 @ MCS17

90 @ MCS17

58.5 @ MCS18

121.5 @ MCS18

65 @ MCS18

135 @ MCS18

78 @ MCS19

162 @ MCS19

86.7 @ MCS19

180 @ MCS19

117 @ MCS20

243 @ MCS20

130 @ MCS20

270 @ MCS20

156 @ MCS21

324 @ MCS21

173.3 @ MCS21

360 @ MCS21

175.5 @ MCS22

364.5 @ MCS22

195 @ MCS22

405 @ MCS22

195 @ MCS23

405 @ MCS23

216.7 @ MCS23

450 @ MCS23

Note: Modulation Coding Scheme (MCS) index determines:

Spatial flow quantity

Modulation

Coding rate

Data rate

Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets

Receiver Sensitivity

802.11b (CCK)

-97 dBm @ 1 Mbit/s

-92 dBm @ 2 Mbit/s

-93 dBm @ 5.5 Mbit/s

-89 dBm @ 11 Mbit/s

802.11g (non-HT20)

-93 dBm @ 6 Mbit/s

-90 dBm @ 9 Mbit/s

-90 dBm @ 12 Mbit/s

-88 dBm @ 18 Mbit/s

-84 dBm @ 24 Mbit/s

-81 dBm @ 36 Mbit/s

-77 dBm @ 48 Mbit/s

-74 dBm @ 54 Mbit/s

802.11n (HT20):

-93 dBm @ MCS0

-90 dBm @ MCS1

-88 dBm @ MCS2

-82 dBm @ MCS3

-79 dBm @ MCS4

-75 dBm @ MCS5

-73 dBm @ MCS6

-72 dBm @ MCS7

-87 dBm @ MCS8

-86 dBm @ MCS9

-86 dBm @ MCS10

-83 dBm @ MCS11

-79 dBm @ MCS12

-75 dBm @ MCS13

-74 dBm @ MCS14

-73 dBm @ MCS15

-87 dBm @ MCS16

-86 dBm @ MCS17

-86 dBm @ MCS18

-83 dBm @ MCS19

-79 dBm @ MCS20

-75 dBm @ MCS21

-74 dBm @ MCS22

-73 dBm @ MCS23

802.11n (HT40):

-86 dBm @ MCS0

-86 dBm @ MCS1

-84 dBm @ MCS2

-80 dBm @ MCS3

-77 dBm @ MCS4

-72 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-86 dBm @ MCS8

-86 dBm @ MCS9

-84 dBm @ MCS10

-80 dBm @ MCS11

-77 dBm @ MCS12

-72 dBm @ MCS13

-71 dBm @ MCS14

-70 dBm @ MCS15

-86 dBm @ MCS16

-86 dBm @ MCS17

-84 dBm @ MCS18

-80 dBm @ MCS19

-77 dBm @ MCS20

-72 dBm @ MCS21

-71 dBm @ MCS22

-70 dBm @ MCS23
