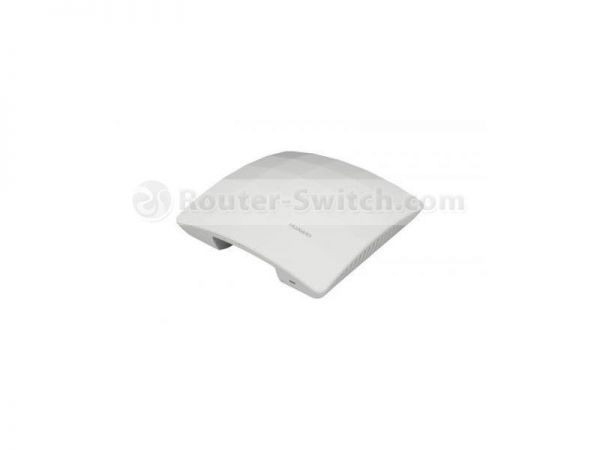

AP5010SN-GN

AP5010SN-GN Specifications

Technical

Dimensions (H × W × D)

1.9 in. x 7 in. x 7 in. (50 mm x 180 mm x 180 mm)

Weight

0.8 lb. (0.4 kg)

System memory

128 MB DDR2

32 MB flash memory

Power

Power input

DC 12V ± 10%

POE Power: -48V DC. PoE function complies with IEEE 802.3af and 802.3at

Maximum power consumption

6.0W

Note: Maximum power consumption depends on local laws and regulations

Environment

Operating temperature

14°F to 122°F (-10°C to 50°C)

Storage temperature

-40°F to 158°F (-40°C to 70°C)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP31

Altitude

-196 ft. to 16,404.1 ft. (-60m to 5,000m)

Radio

Antenna Type

Built-in

Antenna Gain

4 dBi

Maximum Number of Concurrent Users

128

Maximum Transmit Power

17 dBm

You can adjust the transmit power to the maximum of 20 dB in 1 dB steps

Note: Actual transmission power depends on local laws and regulations

Maximum Number of Non-overlapping Channels

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and channels compliance status.

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate:2.4 GHz

GI2 = 800 ns

GI = 400 ns

20 MHz (Mbit/s)

40 MHz (Mbit/s)

20 MHz (Mbit/s)

40 MHz (Mbit/s)

6.5 @ MCS10

13.5 @ MCS0

7.2 @ MCS0

15 @ MCS0

13 @ MCS1

27 @ MCS1

14.4 @ MCS1

30 @ MCS1

19.5 @ MCS2

40.5 @ MCS2

21.7 @ MCS2

45 @ MCS2

26 @ MCS3

54 @ MCS3

28.9 @ MCS3

60 @ MCS3

39 @ MCS4

81 @ MCS4

43.3 @ MCS4

90 @ MCS4

52 @ MCS5

108 @ MCS5

57.8 @ MCS5

120 @ MCS5

58.5 @ MCS6

121.5 @ MCS6

65 @ MCS6

135 @ MCS6

65 @ MCS7

135 @ MCS7

72.2 @ MCS7

150 @ MCS7

13 @ MCS8

27 @ MCS8

14.4 @ MCS8

30 @ MCS8

26 @ MCS9

54 @ MCS9

28.9 @ MCS9

60 @ MCS9

39 @ MCS10

81 @ MCS10

43.3 @ MCS10

90 @ MCS10

52 @ MCS11

108 @ MCS11

57.8 @ MCS11

120 @ MCS11

78 @ MCS12

162 @ MCS12

86.7 @ MCS12

180 @ MCS12

104 @ MCS13

216 @ MCS13

115.6 @ MCS13

240 @ MCS13

117 @ MCS14

243 @ MCS14

130 @ MCS14

270 @ MCS14

130 @ MCS15

270 @ MCS15

144.4 @ MCS15

300 @ MCS15

Note: Modulation Coding Scheme (MCS) index determines:

-Spatial flow quantity

-Modulation

-Coding rate

-Data rate

Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets

Receiver Sensitivity

802.11b (CCK)

·-96 dBm @ 1 Mbit/s

·-91 dBm @ 2 Mbit/s

·-92 dBm @ 5.5 Mbit/s

·-88 dBm @ 11 Mbit/s

802.11g (Non-HT20)

·-91 dBm @ 6 Mbit/s

·-90 dBm @ 9 Mbit/s

·-89 dBm @ 12 Mbit/s

·-86 dBm @ 18 Mbit/s

·-83 dBm @ 24 Mbit/s

·-80 dBm @ 36 Mbit/s

·-76 dBm @ 48 Mbit/s

·-74 dBm @ 54 Mbit/s

802.11n (HT20)

·-91 dBm @ MCS0

·-88 dBm @ MCS1

·-86 dBm @ MCS2

·-81 dBm @ MCS3

·-78 dBm @ MCS4

·-74 dBm @ MCS5

·-72 dBm @ MCS6

·-71 dBm @ MCS7

·-89 dBm @ MCS8

·-88 dBm @ MCS9

·-86 dBm @ MCS10

·-82 dBm @ MCS11

·-79 dBm @ MCS12

·-74 dBm @ MCS13

·-73 dBm @ MCS14

·-71 dBm @ MCS15

802.11n (HT40)

·-88 dBm @ MCS0

·-85 dBm @ MCS1

·-83 dBm @ MCS2

·-78 dBm @ MCS3

·-75 dBm @ MCS4

·-71 dBm @ MCS5

·-70 dBm @ MCS6

·-68 dBm @ MCS7

·-88 dBm @ MCS8

·-85 dBm @ MCS9

·-82 dBm @ MCS10

·-79 dBm @ MCS11

·-76 dBm @ MCS12

·-71 dBm @ MCS13

·-70 dBm @ MCS14

·-68 dBm @ MCS15
