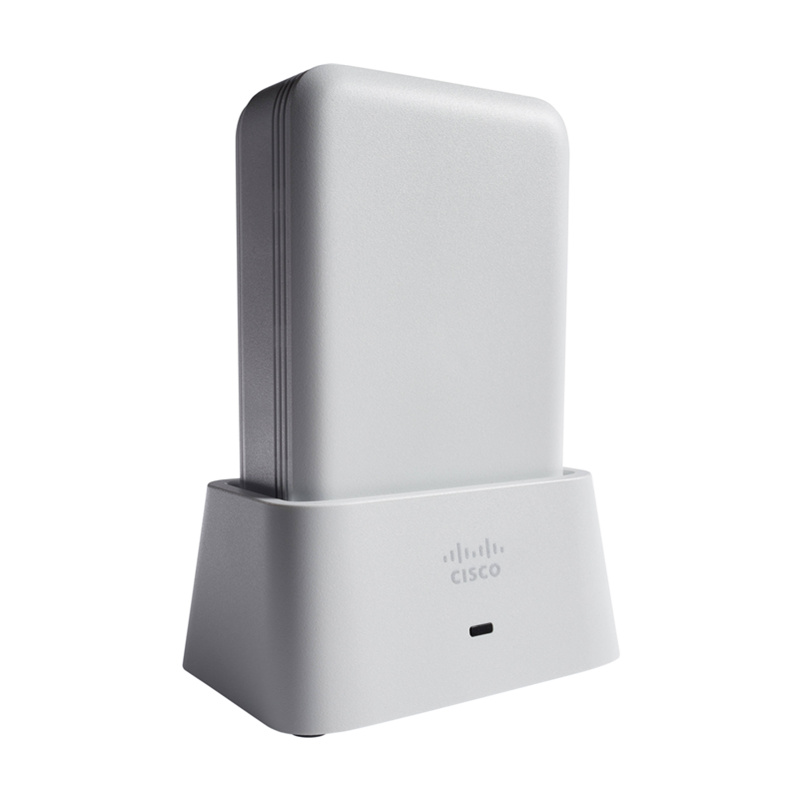

    Cisco AIR-OEAP1810-D-K9 Overview

    The Cisco AIR-OEAP1810-D-K9 is an enterprise-grade OfficeExtend wireless access point designed to extend secure corporate Wi‑Fi to home and small offices. It supports 802.11ac Wave 2 with 2x2 MU-MIMO, delivering high-performance connectivity over both 2.4GHz and 5GHz bands. With support for up to 400 wireless clients, integrated Bluetooth 4.1, and multiple Gigabit Ethernet ports including PoE uplink and PoE out, this access point provides flexible wired and wireless access for laptops, IP phones, and IoT devices. Advanced security with AES-based WPA2, 802.1X, and RADIUS AAA ensures enterprise-grade protection for remote users.

    Product Highlights

    400
    Max Clients
    866.7Mbps
    Data Rate
    2.4/5GHz
    Dual Band

    Product Applications Scenarios

    Enterprise Network
    The AIR-OEAP1810-D-K9 extends secure enterprise WLAN to branch and home offices, enabling compliant remote access while reducing backhaul costs by leveraging encrypted tunnels.
    Cloud Services
    High-density 802.11ac Wi-Fi and multiple Gigabit ports provide reliable access to SaaS and cloud desktops, improving user experience and lowering support overhead by up to 30%.
    Edge & IoT
    Integrated Bluetooth 4.1 and PoE-capable Ethernet ports simplify deployment of edge and IoT endpoints, consolidating power and connectivity and cutting on-site wiring efforts.

    Product Features Comparison

    Cisco Cisco Huawei Cisco

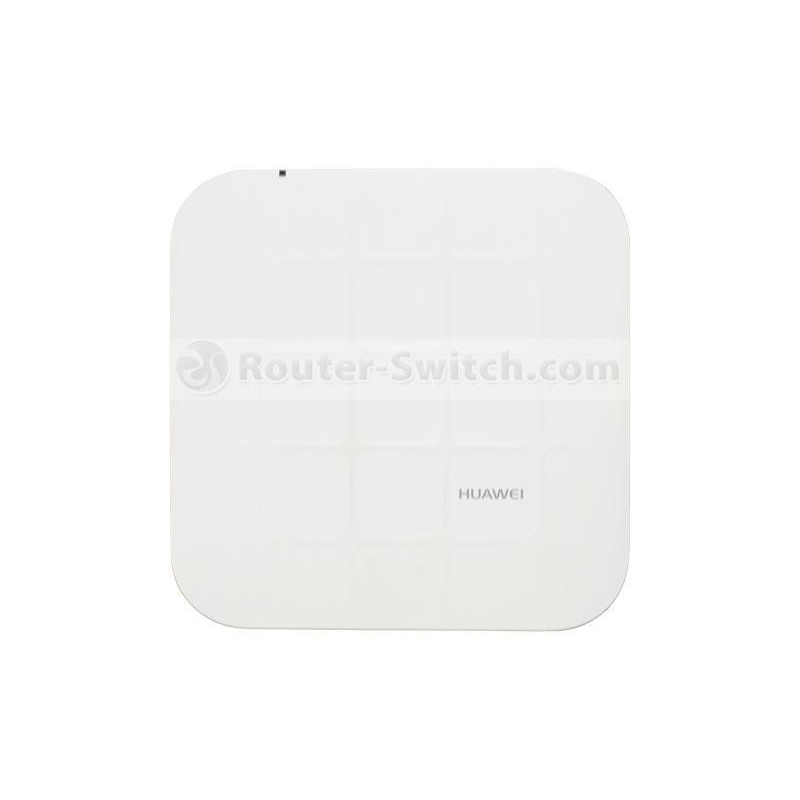

    Model AIR-OEAP1810-D-K9 AIR-AP1142N-S-K9 (USED) AP5030DN-USA AIR-AP3802I-A-K9C
    Brand Cisco Cisco Huawei Cisco
    Wi-Fi Standard 802.11ac (non HT80) Wireless Standards: 802.11a/g/n n/a 802.11ac Wave 2 Capabilities: 4x4 MU-MIMO, 3 spatial streams; 20/40/80/160 MHz
    Maximum Data Rate PHY data rates up to 866.7Mbps (80MHz on 5GHz) Data Rates: Up to 300 Mbps Channel Rates: 802.11ac data rate (5GHz): 6.5 Mbit/s to 1,300 Mbit/s 802.11ac Wave 2 Capabilities: PHY rates up to 5.2 Gbps
    Supported Frequency Band D (D regulatory domain): 2.412 to 2.462GHz; 5.180 to 5.320GHz; 5.745 to 5.825GHz Operating Frequency: 2.4 GHz & 5 GHz n/a n/a
    Client Capacity Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point n/a Maximum Number of Concurrent Users: ≤256 n/a
    Network Interface Interfaces: One 10/100/1000BASE-T PoE uplink port; Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port; One passive pass-through port RJ-45; Management console port (RJ-45) Interfaces: 1x 10/100/1000 Ethernet n/a Interfaces: 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45); 100/1000BASE-T autosensing (RJ-45 AUX); Management console port (RJ-45)

    Optional Add-ons

    Model Number Description
    AIR-AP-BRACKET-W2= Cisco mounting bracket for AIR-OEAP1810 Series access points, wall or junction-box installation
    AIR-AP1810W-KIT= Cisco spacer kit for AIR-OEAP1810, wall mounting without standard junction boxes, includes RJ-45 jumper
    AIR-OEAP1810-CRD= Cisco desktop cradle kit for AIR-OEAP1810, with back cover and RJ-45 jumper cable
    AIR-SEC-50= Cisco physical security kit for AIR-OEAP1810, includes security screws, RJ-45 caps, and unlock keys
    AIR-PWR-D= Cisco local power supply for AIR-OEAP1810 Series access points

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Cisco AIR-OEAP1810-D-K9 Specification

    Model
    AIR-OEAP1810-D-K9
    Brand
    Cisco
    Authentication and security
    Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) 802.1X, RADIUS authentication, authorization and accounting (AAA) 802.11i
    Software
    Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later
    Maximum clients
    Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
    802.11ac
    2x2 single-user/multiuser MIMO with two spatial streams Maximal ratio combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 866.7Mbps (80MHz on 5GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support
    Ethernet ports
    Authentication with 802.1X or MAC filtered Dynamic VLAN or per port Traffic locally switched or tunneled back to wireless LAN controller
    Bluetooth (future availability)
    Integrated Bluetooth 4.1 (including BLE) radio Maximum transmit power: 5 dBm Antenna gain: 2 dBi
    Maximum number of non-overlapping channels
    D (D regulatory domain): 2.412 to 2.462GHz; 11 channels 5.180 to 5.320GHz; 8 channels 5.745 to 5.825GHz; 5 channels
    Receive sensitivity (combined sensitivity)
    802.11ac (non HT80) -88 dBm @ 6Mbps -70 dBm @ 54Mbps
    Integrated antennas
    2.4GHz, gain 2 dBi 5GHz, gain 4 dBi
    Interfaces
    One 10/100/1000BASE-T PoE uplink port Management console port (RJ-45) Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: 鈼?nbsp; PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af One passive pass-through port RJ-45 (back to bottom) DC power connector
    Indicators
    Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors Per-port status for local Ethernet ports For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively - see configuration guide.
    Dimensions (W x L x H)
    Access point (without mounting bracket): 6.5 x 4.5 x 1.6in. (165 x 114 x 41mm)
    Environmental
    Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,500m) Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating maximum altitude: 40°C, 9843 ft (3,000m)
    System
    512MB DRAM 256MB flash 1.4GHz system dual-core CPU
    Input power requirements
    44 to 57V DC Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz
    Powering options
    802.3af/at Ethernet switch Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=) Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=)
    Power draw
    Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D) Note: When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port.
    Physical security
    Torx security screw, included with the access point Kensington security slot
    Mounting
    Included with the access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to single gang junction box or multiple international standards Optional: 鈼?nbsp; AIR-AP1810W-KIT=, spacer kit to mount the access point directly on a wall where standard junction boxes are not available 鈼?nbsp; AIR-OEAP1810-CRD=, cradle kit to mount the access point on a desk
    Accessories
    Mounting bracket: AIR-AP-BRACKET-W2= (available as spare) Spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cable Cradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cable Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports Cisco local power supply: AIR-PWR-D= (sold separately)
    Weight
    1.2 kg

    Get more information

    Discover unbeatable prices and fast shipping for the AIR-OEAP1810-D-K9, Cisco AIR-OEAP1810 Series Wireless Access Point, 802.11ac Wave 2/OfficeExtend/D Domain . Access the detailed AIR-OEAP1810-D-K9, Cisco AIR-OEAP1810 Series Wireless Access Point, 802.11ac Wave 2/OfficeExtend/D Domain datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are available for the AIR-OEAP1810-D-K9?

    Accessories include mounting brackets, PoE injectors, and additional antennas to enhance connectivity and deployment options.

    What are common troubleshooting steps for the AIR-OEAP1810-D-K9?

    Common troubleshooting steps include checking the power source, verifying network connectivity, and ensuring the firmware is up to date.

    How can I optimize the performance of the AIR-OEAP1810-D-K9?

    Optimize performance by placing the AP in a central location, minimizing physical obstructions, and enabling QoS settings for critical applications.

    Is router-switch.com a reliable distributor?

    Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.

    Learn More
    Warranty

    • Your Trusted Global ICT Partner

      Delivering reliable, cross-border fulfillment with 20+ years of expertise, backed by rigorous QC, fast logistics, and worldwide warehousing.
      Global warehousing
      Global warehousing
      10+ hubs positioned for fast international dispatch and stable availability.
      Seamless cross-border
      Seamless cross-border
      QC-verified packing and predictable delivery via FedEx, DHL, UPS.
      Your Trusted Global ICT Partner
    • ICT Tools Hub for Confident Monitoring

      ICT Tools Hub for Confident Monitoring

      Stay informed on product lifecycle status and real-time inventory availability—supporting confident planning, sourcing, and operational execution.
      EOL/EOSL Checker
      EOL/EOSL Checker
      Verify product lifecycle status to plan purchases and avoid EOL/EOSL risks.
      Request VIP Inventory Portal Access
      Request VIP Inventory Portal Access
      Connect via live chat for VIP access to real-time inventory on priority SKUs.

    • Certified Experts Across Leading Vendors

      Professional guidance for network, security & data center builds, delivered by certified experts with extensive, hands-on deployment experience.
      Multi-vendor engineering
      Multi-vendor engineering
      Certified expertise across Cisco, HPE, Aruba, Dell, Juniper, Huawei and Fortinet.
      Deployment-ready guidance
      Deployment-ready guidance
      Faster, safer rollouts with project-focused engineering guidance.
      Certified Experts Across Leading Vendors

    The Choice of 21,500 +Global Customers

    • Ford
    • Disney
    • Nestle
    • Toyota
    • Walmart
    • Philips
    • Ups
    • Huatt
    • Hsbc
    • Novartis
    • Siemens Healthineers
    • Bt
    • Reference Johnson
    • T
    • Att
    • Lgu
    • Sk Telecom
    • Veerizon
    Industry-Leading Warranty Coverage You Can Trust
    • 100% Low Price Guarantee
      100% Low Price Guarantee
      Router-switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
    • 100% Quality Assurance
      100% Quality Assurance
      All items are brand new, original, and factory-sealed.
      Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.
    • 100% Money-Back Guarantee
      100% Money-Back Guarantee
      If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly.
      Visit Return Policy page for more information.
    • Free Cisco CCIE Technical Support
      Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
    • Flexible & Secure Payment and Shipping
      Flexible & Secure Payment and Shipping
      We support multiple secure payment and logistics options, backed by industry-leading verification:
      • Pay by wire transfer.
      • Pay with your paypal.
      • Pay with your Visa credit card.
      • Pay with your Mastercard credit card.
      • Pay with your Discover Card.
      • Pay by American Express.
      More
      Trusted & Secure Payments ×
      100% Trusted, Secure Purchase at Router-switch.com
      • 120+ Local Currencies120+ Local Currencies
      • Multiple Payment OptionsMultiple Payment Options
      • 100% Secure Payments100% Secure Payments

      Choose the payment method that works for you—local options, multiple currencies, or bank transfers. Every payment is protected by SSL encryption, PCI DSS-level security, McAfee Secure, and VeriSign Secured for complete peace of mind.

      • tt
      • paypal
      • visa
      • mastercard
      • echeck
      • webmoney
      • discover
      • american-express
      • jcb
      • bank-transfer
      • western-union
      • qiwi
      • apple Pay
      • google pay
      Guaranteed Safe Checkout
      • ssl-encryption
      • pci-dss
      • mcafee-secure
      • verisign-secured
      View Payment Options
      • mcafee-secure
      • verisign-secured
      • pci-dss
      • ssl-encryption
      Visit How to Pay page for more information
    Warranty Coverage & RMA Instructions
    • Extended, Worry-Free Warranty Coverage
      Extended, Worry-Free Warranty Coverage
      • Factory New Sealed Enterprise Hardware: 3 Years
      • Factory New Sealed Consumer Devices: 1 Year
      Visit Warranty Policy page for more information
    • How to Get Support
      How to Get Support
      If you encounter issues with products, please reach out to your dedicated sales representative. They will assist with diagnostics, remote troubleshooting, and RMA processing if necessary.
      Visit Contact Us page for more support options.

    Best-Fit Solutions for Your Network

    Deploy DeepSeek-V3/R1: Powerful AI, Low Cost

    Deploy DeepSeek-V3/R1: Powerful AI, Low Cost

    Expert-configured AI solution: Same power, 90% savings—multi-scenario flexibility with Dell/Huawei/Lenovo options.

    AI
    Beyond Bandwidth: The 100G+ Data Center Architecture

    Beyond Bandwidth: The 100G+ Data Center Architecture

    The must-have 100G foundation - AI-ready growth, zero-latency performance

    Data Center
    400G/800G Ethernet Switch: Maxmize Margins via AI-Ready Solutions

    400G/800G Ethernet Switch: Maxmize Margins via AI-Ready Solutions

    High-Profit data center switches from Cisco, Huawei, Mellanox & Juniper.

    Ethernet Switch
    Download
    Model Datasheet
    Log in
    Register
