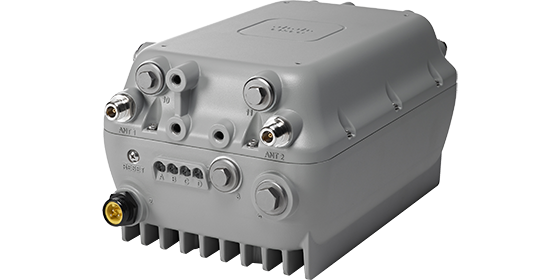

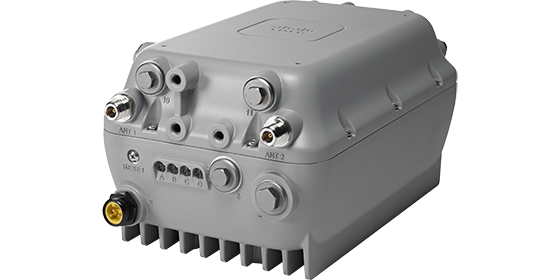

AIR-AP1572EAC-H-K9

AIR-AP1572EAC-H-K9 Specification

802.11n Version 2.0 capabilities

●  4x4 MIMO with three spatial streams (3SS)

●  Maximal Ratio Combining (MRC)

●  802.11n and 802.11a/g Beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

●  4x4 MIMO with three spatial streams (3SS)

●  Maximum Ratio Combining (MRC)

●  802.11ac Beamforming

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

DOCSIS 3.0 Capabilities

DOCSIS3.0 with up to 8x4, 16x8, and 24x8 Downstream (DS) x Upstream (US) channel bonding capability for Hybrid Fiber-Coaxial (HFC) Cable Modem (CM) options. The CM protocols include NA-DOCSIS3.0, Euro-DOCSIS3.0 and Japan-DOCSIS3.0. The NA-DOCSIS3.0 is offered with either (42/88 MHz or 85/108 MHz) diplexer split. The Euro and Japan DOCSIS are offered with (65/108 MHz) diplexer split.

NA-DOCSIS3.0, Euro-DOCSIS3.0 24x8 cable modem provides up to:

●  Twenty f our (24) bonded channels on the downstream with total throughput of up to 912 and 1200 Mbps respectively (maximum usable throughput without overhead)

●  Eight (8) bonded channels on the upstream with total throughput of up to 216 Mbps (maximum usable throughput without overhead)

●  Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS2.0 networks

●  Enhanced packet processing technology to maximize performance

Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS3.0 specifications. When used with a non-channel-bonded CMTS, channel-bonded cable modems function as conventional DOCSIS 2.0 cable modems.

Data Rates Supported

2.4 GHz - 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

2.4 GHz - 802.11n:

Spatial Streams

MCS Index

GI = 800 ns

GI = 400 ns

20 MHz Rate (Mbps)

20 MHz Rate (Mbps)

1

0

6.5

7.2

1

1

13

14.4

1

2

19.5

21.7

1

3

26

28.9

1

4

39

43.3

1

5

52

57.8

1

6

58.5

65

1

7

65

72.2

2

8

13

14.4

2

9

26

28.9

2

10

39

43.3

2

11

52

57.8

2

12

78

86.7

2

13

104

115.6

2

14

117

130

2

15

130

144.4

3

16

19.5

21.7

3

17

39

43.3

3

18

58.5

65

3

19

78

86.7

3

20

117

130

3

21

156

173.3

3

22

175.5

195

3

23

195

216.7

5 GHz - 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

5 GHz - 802.11n:

Spatial Streams

MCS Index

GI = 800 ns

GI = 400 ns

20 MHz

Rate (Mbps)

40 MHz

Rate (Mbps)

20 MHz

Rate (Mbps)

40 MHz

Rate (Mbps)

1

0

6.5

13.5

7.2

15

1

1

13

27

14.4

30

1

2

19.5

40.5

21.7

45

1

3

26

54

28.9

60

1

4

39

81

43.3

90

1

5

52

108

57.8

120

1

6

58.5

121.5

65

135

1

7

65

135

72.2

150

2

8

13

27

14.4

30

2

9

26

54

28.9

60

2

10

39

81

43.3

90

2

11

52

108

57.8

120

2

12

78

162

86.7

180

2

13

104

216

115.6

240

2

14

117

243

130

270

2

15

130

270

144.4

300

3

16

19.5

40.5

21.7

45

3

17

39

81

43.3

90

3

18

58.5

121.5

65

135

3

19

78

162

86.7

180

3

20

117

243

130

270

3

21

156

324

173.3

360

3

22

175.5

364.5

195

405

3

23

195

405

216.7

450

5 GHz - 802.11ac:

Spatial Streams

MCS Index

GI = 800 ns

GI = 400 ns

20 MHz

Rate (Mbps)

40 MHz

Rate (Mbps)

80 MHz

Rate (Mbps)

20 MHz

Rate (Mbps)

40 MHz

Rate (Mbps)

80 MHz Rate (Mbps)

1

0

6.5

13.5

29.3

7.2

15

32.5

1

1

13

27

58.5

14.4

30

65

1

2

19.5

40.5

87.8

21.7

45

97.5

1

3

26

54

117

28.9

60

130

1

4

39

81

175.5

43.3

90

195

1

5

52

108

234

57.8

120

260

1

6

58.5

121.5

263.3

65

135

292.5

1

7

65

135

292.5

72.2

150

325

1

8

78

162

351

86.7

180

390

1

9

-

180

390

-

200

433.3

2

0

13

27

58.5

14.4

30

65

2

1

26

54

117

28.9

60

130

2

2

39

81

175.5

43.3

90

195

2

3

52

108

234

57.8

120

260

2

4

78

162

351

86.7

180

390

2

5

104

216

468

115.6

240

520

2

6

117

243

526.5

130

270

585

2

7

130

270

585

144.4

300

650

2

8

156

324

702

173.3

360

780

2

9

-

360

780

-

400

866.7

3

0

19.5

40.5

87.8

21.7

45

97.5

3

1

39

81

175.5

43.3

90

195

3

2

58.5

121.5

263.3

65

135

292.5

3

3

78

162

351

86.7

180

390

3

4

117

243

526.5

130

270

585

3

5

156

324

702

173.3

360

780

3

6

175.5

364.5

-

195

405

-

3

7

195

405

877.5

216.7

450

975

3

8

234

486

1053

260

540

1170

3

9

260

540

1170

288.9

600

1300

Frequency Band and 20- MHz Operating Channels (Regulatory Domains)

-H:

2.412 to 2.462 GHz, 1 channel

5.745 to 5.825 GHz, 5 channels

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Maximum Number of Non-overlapping Channels

2.4 GHz

●  802.11b/g:

◦   20 MHz:         3

●  802.11n:

◦   20 MHz:         3

5 GHz

●  802.11a:

◦   20 MHz:           27

●  802.11n:

◦   20 MHz:           27

◦   40 MHz:           13

●  802.11ac:

◦   20 MHz:           27

◦   40 MHz:           13

◦   80 MHz:           6

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Receive Sensitivity

2.4 GHz

802.11, 802.11b (DSSS, CCK)

-103 dBm @ 1 Mbps

-101 dBm @ 2 Mbps

-93 dBm           @ 5.5 Mbps

-90 dBm          @ 11 Mbps

2.4 GHz

802.11g (non HT20)

-93 dBm @ 6 Mbps

-93 dBm @ 9 Mbps

-93 dBm @ 12 Mbps

-92 dBm @ 18 Mbps

-89 dBm @ 24 Mbps

-87 dBm @ 36 Mbps

-82 dBm @ 48 Mbps

-81 dBm @ 54 Mbps

5 GHz

802.11a (non HT20)

-92 dBm @ 6 Mbps

-92 dBm @ 9 Mbps

-92 dBm @ 12 Mbps

-91 dBm @ 18 Mbps

-89 dBm @ 24 Mbps

-86 dBm @ 36 Mbps

-81 dBm @ 48 Mbps

-80 dBm @ 54 Mbps

2.4-GHz

802.11n (HT20)

-93 dBm @ MCS0

-93 dBm @ MCS1

-91 dBm @ MCS2

-88 dBm @ MCS3

-85 dBm @ MCS4

-80 dBm @ MCS5

-79 dBm @ MCS6

-78 dBm @ MCS7

-93 dBm @ MCS8

-91 dBm @ MCS9

-89 dBm @ MCS10

-86 dBm @ MCS11

-82 dBm @ MCS12

-78 dBm @ MCS13

-77 dBm @ MCS14

-76 dBm @ MCS15

-93 dBm @ MCS16

-90 dBm @ MCS17

-88 dBm @ MCS18

-84 dBm @ MCS19

-81 dBm @ MCS20

-77 dBm @ MCS21

-75 dBm @ MCS22

-74 dBm @ MCS23

5-GHz

802.11n (HT20)

-92 dBm @ MCS0

-91 dBm @ MCS1

-90 dBm @ MCS2

-87 dBm @ MCS3

-84 dBm @ MCS4

-79 dBm @ MCS5

-78 dBm @ MCS6

-77 dBm @ MCS7

-92 dBm @ MCS8

-90 dBm @ MCS9

-87 dBm @ MCS10

-85 dBm @ MCS11

-81 dBm @ MCS12

-77 dBm @ MCS13

-76 dBm @ MCS14

-74 dBm @ MCS15

-91 dBm @ MCS16

-89 dBm @ MCS17

-87 dBm @ MCS18

-84 dBm @ MCS19

-80 dBm @ MCS20

-76 dBm @ MCS21

-75 dBm @ MCS22

-73 dBm @ MCS23

5-GHz

802.11n (HT40)

-88 dBm @ MCS0

-88 dBm @ MCS1

-87 dBm @ MCS2

-84 dBm @ MCS3

-81 dBm @ MCS4

-76 dBm @ MCS5

-75 dBm @ MCS6

-74 dBm @ MCS7

-89 dBm @ MCS8

-87 dBm @ MCS9

-85 dBm @ MCS10

-82 dBm @ MCS11

-79 dBm @ MCS12

-74 dBm @ MCS13

-73 dBm @ MCS14

-71 dBm @ MCS15

-88 dBm @ MCS16

-86 dBm @ MCS17

-84 dBm @ MCS18

-80 dBm @ MCS19

-78 dBm @ MCS20

-73 dBm @ MCS21

-71 dBm @ MCS22

-70 dBm @ MCS23

Spatial Streams

MCS

Index

5 GHz

802.11ac (VHT20)

5 GHz

802.11ac (VHT40)

5 GHz

802.11ac (VHT80)

1

0

-92

-89

-85

1

4

-86

-83

-80

1

7

-79

-75

-73

1

8

-74

-71

-68

1

9

NA

-69

-66

2

0

-92

-89

-85

2

4

-83

-81

-77

2

7

-76

-74

-70

2

8

-72

-68

-66

2

9

NA

-67

-63

3

0

-91

-89

-85

3

4

-82

-79

-76

3

7

-75

-72

-69

3

8

-69

-66

-64

3

9

-66

-64

-60

Maximum Conducted Transmit Power

2.4 GHz

●  802.11, 802.11b (DSSS, CCK)

◦   30 dBm with 4 antennas

●  802.11g (non HT20)

◦   30 dBm with 4 antennas

●  802.11n (HT20)

◦   30 dBm with 4 antennas

5 GHz

●  802.11a (non HT20)

◦   30 dBm with 4 antennas

●  802.11n non-HT duplicate (802.11a duplicate) mode

◦   30 dBm with 4 antennas

●  802.11n (HT20)

◦   30 dBm with 4 antennas

●  802.11n (HT40)

◦   30 dBm with 4 antennas

●  802.11ac

◦   non-HT80:                    30 dBm, 4 antennas

◦   VHT20:                           30 dBm, 4 antennas

◦   VHT40:                           30 dBm, 4 antennas

◦   VHT80:                           30 dBm, 4 antennas

◦   VHT20-STBC:            30 dBm, 4 antennas

◦   VHT40-STBC:            30 dBm, 4 antennas

◦   VHT80-STBC:            30 dBm, 4 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Interface

●  WAN port                10/100/1000BASE-T Ethernet, autosensing (RJ-45)

●  LAN port                  10/100/1000BASE-T Ethernet, autosensing (RJ-45)

●  Fiber SFP

●  Cable modem: NA-DOCSIS3.0/Euro-DOCSIS3.0/Japan-DOCSIS3.0 (8x4, 16x8, or 24x8)

●  Management console port (RJ-45)

●  Four multicolor LEDs

●  Reset button

Uplink options

Ethernet, Fiber SFP, Wireless Mesh

Dimensions (L x W x D)

11.8 x 7.9 x 6.3 in.

Environmental

Operating temperature:

●  -40 to 65°C (-40 to 149°F) ambient air with no solar loading

●  -40 to 55°C (-40 to 131°F) ambient air with solar loading 743W/m2 (details in HW installation guide)

Storage temperature: -50 to 70°C (-58 to 158°F)

Humidity: 5 - 95%, non-condensing

Wind resistance:

●  Up to 100-MPH sustained winds

●  Up to 165-MPH wind gusts

Environmental Ratings

IP67

NEMA Type 4X

Antennas

●  GPS Antenna: AIR-ANT-GPS-1

1572EAC (external antennas)

●  Dual-Band

◦   AIR-ANT2568VG-N: 6 dBi (2.4 GHz), 8 dBi (5 GHz) Omni

◦   AIR-ANT2547VG-N: 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni

◦   AIR-ANT2547V-N: 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni

◦   AIR-ANT2588P3M-N=: 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional

◦   AIR-ANT2513P4M-N=: 13 dBi (2.4 GHz), 13 dBi (5 GHz)Directional

●  Single Band

◦   AIR-ANT2420V-N= : 2 dBi (2.4 GHz), Omni, right-angle

◦   AIR-ANT2450V-N= : 5 dBi (2.4GHz), Omni

◦   AIR-ANT2480V-N= : 8 dBi (2.4 GHz), Omni

◦   AIR-ANT2413P2M-N=  : 13 dBi (2.4 GHz), Directional, dual polarized

5 GHz

●  AIR-ANT5140V-N=: 4 dBi (5 GHz), Omni, right-angle

●  AIR-ANT5180V-N=: 8 dBi (5GHz), Omni

●  AIR-ANT5114P2M-N=: 14 dBi (5GHz), Directional, dual polarized

Powering Options

1572EAC

AC: 100-277 VAC, 50/60 Hz

DC: 10 to 16 VDC

PoE-Input:

●  UPOE compliant PSE

●  Cisco AIR-PWRINJ1500-2=

PoE-out: PoE+ (802.3at)

Compliance

Safety

●  UL/cUL 60950,                 2 nd Edition

●  IEC 60950,                          2 nd Edition

●  EN 60950,                           2 nd Edition

●  ARIB-STD 66                     (Japan)

●  ARIB-STD T71                   (Japan)

Immunity

●  <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform

●  ANSI/IEEE C62.41

●  EN61000-4-5 Lev el 4 AC Surge Immunity

●  EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity

●  EN61000-4-3 Lev el 4 EMC Field Immunity

●  EN61000-4-2 Lev el 4 ESD Immunity

●  EN60950 Overvoltage Category IV

Radio approvals

●  FCC Part 15.247, 15.407

●  FCC Bulletin OET-65C

●  RSS-210

●  RSS-102

●  AS/NZS 4268.2003

●  EN 300 328

●  EN 301 893

EMI and susceptibility

●  FCC part 15.107, 15.109

●  ICES-003

●  EN 301 489-1, -17

Security

●  Wireless bridging/mesh

◦   X.509 digital certificates

◦   MAC address authentication

◦   Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

●  Wireless access

◦   802.11i, Wi-Fi Protected Access (WPA2), WPA

◦   802.1X authentication, including Extensible Authentication Protocol and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and Cisco LEAP

◦   Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

◦   VPN pass-through

◦   IP Security (IPsec)

◦   Layer 2 Tunneling Protocol (L2TP)

●  MAC address filtering

Configuration Options

Flexible deployment configurations include:

●  Controller-based

●  Standalone (future)

●  Mesh

●  Point-to-point or point-to-multipoint campus bridge

●  Serial backhaul (linear mesh)

●  Workgroup bridge
