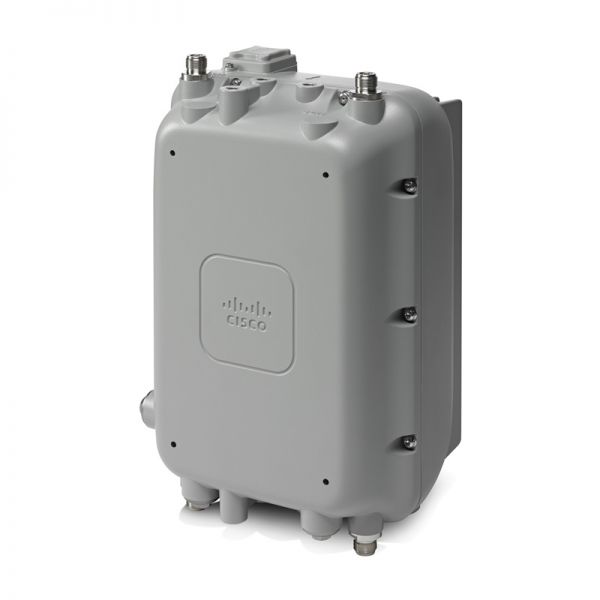

AIR-AP1572EAC-B-K9

802.11n Version 2.0 capabilities

●  4x4 MIMO with three spatial streams (3SS)

●  Maximal Ratio Combining (MRC)

●  802.11n and 802.11a/g Beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

●  4x4 MIMO with three spatial streams (3SS)

●  Maximum Ratio Combining (MRC)

●  802.11ac Beamforming

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

DOCSIS 3.0 Capabilities

DOCSIS3.0 with up to 8x4, 16x8, and 24x8 Downstream (DS) x Upstream (US) channel bonding capability for Hybrid Fiber-Coaxial (HFC) Cable Modem (CM) options. The CM protocols include NA-DOCSIS3.0, Euro-DOCSIS3.0 and Japan-DOCSIS3.0. The NA-DOCSIS3.0 is offered with either (42/88 MHz or 85/108 MHz) diplexer split. The Euro and Japan DOCSIS are offered with (65/108 MHz) diplexer split.

NA-DOCSIS3.0, Euro-DOCSIS3.0 24x8 cable modem provides up to:

● Twenty-four (24) bonded channels on the downstream with total throughput of up to 912 and 1200 Mbps respectively (maximum usable throughput without overhead)

●  Eight (8) bonded channels on the upstream with total throughput of up to 216 Mbps (maximum usable throughput without overhead)

●  Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS2.0 networks

●  Enhanced packet processing technology to maximize performance

Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS3.0 specifications. When used with a non-channel-bonded CMTS, channel-bonded cable modems function as conventional DOCSIS 2.0 cable modems.

Frequency Band and 20-MHz Operating Channels (Regulatory Domains)

B:

2.412 to 2.462 GHz,        11 channels

5.180 to 5.240 GHz,        4 channels

5.260 to 5.320 GHz,        4 channels

5.500 to 5.560 GHz,        4 channels

5.680 to 5.720 GHz,        3 channels

5.745 to 5.825 GHz,        5 channels

Maximum Number of Non-overlapping Channels

2.4 GHz

●  802.11b/g:

◦  20 MHz:    3

●  802.11n:

◦  20 MHz:    3

5 GHz

●  802.11a:

◦  20 MHz:      27

●  802.11n:

◦  20 MHz:      27

◦  40 MHz:      13

●  802.11ac:

◦  20 MHz:      27

◦  40 MHz:      13

◦  80 MHz:      6

Receive Sensitivity

2.4 GHz

802.11, 802.11b (DSSS, CCK)

-103 dBm @ 1 Mbps

-101 dBm @ 2 Mbps

-93 dBm   @ 5.5 Mbps

-90 dBm   @ 11 Mbps

2.4 GHz

802.11g (non HT20)

-93 dBm @ 6 Mbps

-93 dBm @ 9 Mbps

-93 dBm @ 12 Mbps

-92 dBm @ 18 Mbps

-89 dBm @ 24 Mbps

-87 dBm @ 36 Mbps

-82 dBm @ 48 Mbps

-81 dBm @ 54 Mbps

5 GHz

802.11a (non HT20)

-92 dBm @ 6 Mbps

-92 dBm @ 9 Mbps

-92 dBm @ 12 Mbps

-91 dBm @ 18 Mbps

-89 dBm @ 24 Mbps

-86 dBm @ 36 Mbps

-81 dBm @ 48 Mbps

-80 dBm @ 54 Mbps

2.4-GHz

802.11n (HT20)

-93 dBm @ MCS0

-93 dBm @ MCS1

-91 dBm @ MCS2

-88 dBm @ MCS3

-85 dBm @ MCS4

-80 dBm @ MCS5

-79 dBm @ MCS6

-78 dBm @ MCS7

-93 dBm @ MCS8

-91 dBm @ MCS9

-89 dBm @ MCS10

-86 dBm @ MCS11

-82 dBm @ MCS12

-78 dBm @ MCS13

-77 dBm @ MCS14

-76 dBm @ MCS15

-93 dBm @ MCS16

-90 dBm @ MCS17

-88 dBm @ MCS18

-84 dBm @ MCS19

-81 dBm @ MCS20

-77 dBm @ MCS21

-75 dBm @ MCS22

-74 dBm @ MCS23

5-GHz

802.11n (HT20)

-92 dBm @ MCS0

-91 dBm @ MCS1

-90 dBm @ MCS2

-87 dBm @ MCS3

-84 dBm @ MCS4

-79 dBm @ MCS5

-78 dBm @ MCS6

-77 dBm @ MCS7

-92 dBm @ MCS8

-90 dBm @ MCS9

-87 dBm @ MCS10

-85 dBm @ MCS11

-81 dBm @ MCS12

-77 dBm @ MCS13

-76 dBm @ MCS14

-74 dBm @ MCS15

-91 dBm @ MCS16

-89 dBm @ MCS17

-87 dBm @ MCS18

-84 dBm @ MCS19

-80 dBm @ MCS20

-76 dBm @ MCS21

-75 dBm @ MCS22

-73 dBm @ MCS23

5-GHz

802.11n (HT40)

-88 dBm @ MCS0

-88 dBm @ MCS1

-87 dBm @ MCS2

-84 dBm @ MCS3

-81 dBm @ MCS4

-76 dBm @ MCS5

-75 dBm @ MCS6

-74 dBm @ MCS7

-89 dBm @ MCS8

-87 dBm @ MCS9

-85 dBm @ MCS10

-82 dBm @ MCS11

-79 dBm @ MCS12

-74 dBm @ MCS13

-73 dBm @ MCS14

-71 dBm @ MCS15

-88 dBm @ MCS16

-86 dBm @ MCS17

-84 dBm @ MCS18

-80 dBm @ MCS19

-78 dBm @ MCS20

-73 dBm @ MCS21

-71 dBm @ MCS22

-70 dBm @ MCS23

Spatial Streams

MCS

Index

5 GHz

802.11ac (VHT20)

5 GHz

802.11ac (VHT40)

5 GHz

802.11ac (VHT80)

1

0

-92

-89

-85

1

4

-86

-83

-80

1

7

-79

-75

-73

1

8

-74

-71

-68

1

9

NA

-69

-66

2

0

-92

-89

-85

2

4

-83

-81

-77

2

7

-76

-74

-70

2

8

-72

-68

-66

2

9

NA

-67

-63

3

0

-91

-89

-85

3

4

-82

-79

-76

3

7

-75

-72

-69

3

8

-69

-66

-64

3

9

-66

-64

-60

Maximum Conducted Transmit Power

2.4 GHz

●  802.11, 802.11b (DSSS, CCK)

◦  30 dBm with 4 antennas

●  802.11g (non-HT20)

◦  30 dBm with 4 antennas

●  802.11n (HT20)

◦  30 dBm with 4 antennas

5 GHz

●  802.11a (non HT20)

◦  30 dBm with 4 antennas

●  802.11n non-HT duplicate (802.11a duplicate) mode

◦  30 dBm with 4 antennas

●  802.11n (HT20)

◦  30 dBm with 4 antennas

●  802.11n (HT40)

◦  30 dBm with 4 antennas

●  802.11ac

◦  non-HT80:         30 dBm, 4 antennas

◦  VHT20:              30 dBm, 4 antennas

◦  VHT40:              30 dBm, 4 antennas

◦  VHT80:              30 dBm, 4 antennas

◦  VHT20-STBC:     30 dBm, 4 antennas

◦  VHT40-STBC:     30 dBm, 4 antennas

◦  VHT80-STBC:     30 dBm, 4 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations.

Interface

●  WAN port         10/100/1000BASE-T Ethernet, autosensing (RJ-45)

●  LAN port          10/100/1000BASE-T Ethernet, autosensing (RJ-45)

●  Fiber SFP

●  Cable modem: NA-DOCSIS3.0/Euro-DOCSIS3.0/Japan-DOCSIS3.0 (8x4, 16x8, or 24x8)

●  Management console port (RJ-45)

●  Four multicolor LEDs

●  Reset button

Uplink options

1572EAC

1572IC

1572EC

Ethernet, Fiber SFP, Wireless Mesh

Ethernet, Fiber SFP, Wireless Mesh, Cable Modem

Ethernet, Fiber SFP, Wireless Mesh, Cable Modem

Dimensions (L x W x D)

1572EAC/1572EC

1572IC

11.8 x 7.9 x 6.3 in.

11.8 x 7.9 x 7.9 in.

(30.0 x 20.1 x 16.0 cm)

(30.0 x 20.1 x 20.1 cm)

Weight

1572EAC/1572EC

1572IC

Pole mounting Kit 1 (PMK1):

Pole mounting Kit 2 (PMK2):

Pole mounting Kit 3 (PMK3):

Cable strand mounting bracket 1 (SMK1):

Cable strand mounting bracket 2 (SMK2):

Cable strand mounting bracket 2 (SMK3):

13.5 lbs.    (6.1 kg)

11.5 lbs.    (5.2 kg)

2.2 lbs.      (1.0 kg)

4.4 lbs.      (2.0 kg)

6.1 lbs.      (2.8 kg)

0.3 lbs.      (0.2 kg)

0.7 lbs.      (0.3 kg)

1.2 lbs.      (0.5 kg)

Environmental

Operating temperature:

●  -40 to 65°C (-40 to 149°F) ambient air with no solar loading

●  -40 to 55°C (-40 to 131°F) ambient air with solar loading 743W/m2 (details in HW installation guide)

Storage temperature: -50 to 70°C (-58 to 158°F)

Humidity: 5 - 95%, non-condensing

Wind resistance:

●  Up to 100-MPH sustained winds

●  Up to 165-MPH wind gusts

Environmental Ratings

IP67

NEMA Type 4X

Compliance

Safety

●  UL/cUL 60950, 2nd Edition

●  IEC 60950, 2nd Edition

●  EN 60950, 2nd Edition

●  ARIB-STD 66  (Japan)

●  ARIB-STD T71 (Japan)

Immunity

●  <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform

●  ANSI/IEEE C62.41

●  EN61000-4-5 Level 4 AC Surge Immunity

●  EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity

●  EN61000-4-3 Level 4 EMC Field Immunity

●  EN61000-4-2 Level 4 ESD Immunity

●  EN60950 Overvoltage Category IV

Radio approvals

●  FCC Part 15.247, 15.407

●  FCC Bulletin OET-65C

●  RSS-210

●  RSS-102

●  AS/NZS 4268.2003

●  EN 300 328

●  EN 301 893

EMI and susceptibility

●  FCC part 15.107, 15.109

●  ICES-003

●  EN 301 489-1, -17

Security

●  Wireless bridging/mesh

◦  X.509 digital certificates

◦  MAC address authentication

◦  Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

●  Wireless access

◦  802.11i, Wi-Fi Protected Access (WPA2), WPA

◦  802.1X authentication, including Extensible Authentication Protocol and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and Cisco LEAP

◦  Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

◦  VPN pass-through

◦  IP Security (IPsec)

◦  Layer 2 Tunneling Protocol (L2TP)

●  MAC address filtering

Configuration Options

Flexible deployment configurations include:

●  Controller-based

●  Standalone (future)

●  Mesh

●  Point-to-point or point-to-multipoint campus bridge

●  Serial backhaul (linear mesh)

●  Workgroup bridge
