    Overview
    End-of-Life Notice
    End-of-Life Notice
    AIR-AP1562E-B-K9 is officially EOL. Service support ends on 2028-01-31.
    For full lifecycle details, see AIR-AP1562E-B-K9 EOL.

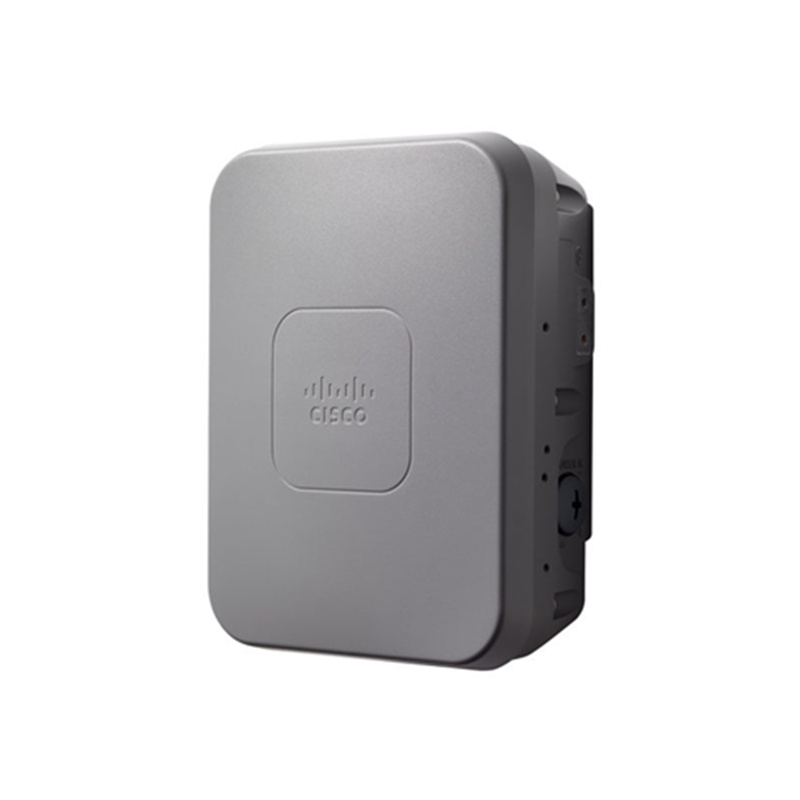

    Cisco AIR-AP1562E-B-K9 Overview

    Cisco AIR-AP1562E-B-K9 Outdoor Access Point offers the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily. Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package.

    Quick Specs

    Table 1 shows the Quick Specs.

    SKU

    AIR-AP1562E-B-K9

    Type

    Wireless access point

    Form Factor

    External

    Data Transfer Rate

    1.3 Gbps

    Compliant Standards

    IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at

    Wireless Protocol

    802.11a/b/g/n/ac Wave 2

    Power Over Ethernet (PoE)

    PoE+

    Wi-Fi Bands

    2.4 GHz, 5 GHz

    Product Details

    Cisco AIR-AP1562D-A-K9 has these benefits:

    • 802.11ac Wave 2 radio

      Provides up to 1.3-Gbps data rates with 3 x 3 Multiple Input, Multiple Output (MIMO) and up to three spatial streams.

    • Multiuser MIMO (MU-MIMO)

      Allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience; prior to 802.11ac Wave 2, access points could transmit data to only one client at a time, typically referred to as single-user MIMO.

    • Flexible deployment modes

      Allows for deployment of the 1560 in a variety of ways including point -to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal f or small to medium -sized deployments that supports multiple access points without a physical controller; all deployment modes are easy to set up and configure.

    • Small Form-Factor Pluggable (SFP) port

      Supports optical fiber-based network connectivity for remote locations.

    Compare to Similar Items

    Table 2 shows the comparison.

    Product Name

    AIR-AP1562E-B-K9

    AIR-AP1562D-A-K9

    Antenna

    External

    Internal

    Data Transfer Rate

    1.3 Gbps

    1.3 Gbps

    Wireless Protocol

    802.11a/b/g/n/ac Wave 2

    802.11a/b/g/n/ac Wave 2

    Wi-Fi Bands

    2.4 GHz, 5 GHz

    2.4 GHz, 5 GHz

    Power Over Ethernet (PoE)

    PoE+

    PoE+

    Get More Information

    Do you have any question about theAIR-AP1562E-B-K9?

    Contact us now via Live Chat or [email protected].

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Cisco AIR-AP1562E-B-K9 Specification

    Model
    AIR-AP1562E-B-K9
    Brand
    Cisco
    802.11ac Wave 1 and 2 capabilities
    1562I: 3 x 3 MIMO with three spatial streams, 1562E/D 2 x 2 MIMO with two spatial streams, Multi- and single-user MIMO, Maximal Ratio Combining (MRC), 802.11ac beamforming (transmit beamforming), 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic-Shift-Diversity (CSD) support
    802.11n (and related) capabilities
    1562I: 3 x 3 MIMO with three spatial streams, 1562E/D: 2 x 2 MIMO with two spatial streams, MRC, 20- and 40-MHz channels, PHY data rates up to 450 Mbps, Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx), 802.11 DFS, CSD support
    Data rates supported
    802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps. 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
    802.11n data rates on 2.4 and 5 GHz
    GI4 = 800 ns, GI = 400 ns, 20-MHz Rates: up to 130 Mbps, 40-MHz Rates: up to 300 Mbps
    802.11ac Data Rates (5 GHz)
    Spatial Streams: 1 to 3, MCS Index: 0 to 9, GI = 800 ns and 400 ns, Data Rates: up to 1300 Mbps
    Frequency band and 20-MHz operating channels
    2.412 to 2.462 GHz, 11 channels. 5.180 to 5.240 GHz, 4 channels. 5.260 to 5.320 GHz, 4 channels. 5.500 to 5.720 GHz, 12 channels. 5.745 to 5.825 GHz, 5 channels
    Maximum number of nonoverlapping channels
    2.4 GHz: 802.11b/g: 3 (20 MHz). 802.11n: up to 3 (20 MHz) and 1 (40 MHz). 5 GHz: 802.11a/n/ac: up to 27 (20 MHz), 13 (40 MHz), 6 (80 MHz)
    Maximum conducted transmit power
    1562I: 2.4 GHz at 29 dBm with 3 antennas, 5 GHz at 29 dBm with 3 antennas. 1562D/E: 2.4 GHz at 27 dBm with 2 antennas, 5 GHz at 27 dBm with 2 antennas
    Interfaces
    WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in. SFP port (fiber or electrical). Management console port (RJ-45). Multicolor LED. DC power input. Reset button
    Uplink options
    Ethernet, SFP, and wireless mesh
    Dimensions (L x W x D)
    1562I: 9.0 x 6.8 x 3.9 in (22.9 x 17.1 x 9.8 cm). 1562D: 9.0 x 6.8 x 4.3 in (22.9 x 17.1 x 10.9 cm). 1562E: 9.0 x 6.8 x 3.9 in (22.9 x 17.1 x 9.8 cm)
    Environmental
    Operating temperature: –40 to 65°C (–40 to 149°F) ambient air with no solar loading, –40 to 55°C (–40 to 131°F) ambient air with solar loading. Storage temperature: –40 to 85°C (–40 to 185°F). Humidity: 5 - 95%, non-condensing. Wind resistance: up to 100-mph sustained winds, up to 165-mph wind gusts
    Environmental ratings
    IEC 60529 IP67, NEMA Type 4X, Icing protection: NEMA 250-2008, Corrosion: NEMA 250-2008 (600 hours), Solar radiation: EN 60068-2-5 (1200 W/m2), Vibration: MIL-STD-810
    Antennas
    Integrated dual-band semi-omnidirectional antenna radome, 1562I: 7 dBi (2.4 GHz), 4 dBi (5 GHz). Integrated dual-band directional antenna radome, 1562D: 9 dBi (2.4 GHz), 10 dBi (5 GHz). AIR-ANT2568VG-N: 6 dBi (2.4 GHz), 8 dBi (5 GHz), Omni. AIR-ANT2547VG-N: 4 dBi (2.4 GHz), 7 dBi (5 GHz), Omni. AIR-ANT2547V-N: 4 dBi (2.4 GHz), 7 dBi (5 GHz), Omni. AIR-ANT2588P3M-N: 8 dBi (2.4 GHz), 8 dBi (5 GHz), Directional. AIR-ANT2513P4M-N: 13 dBi (2.4 GHz), 13 dBi (5 GHz), Directional. 2.4 GHz: AIR-ANT2450V-N: 5 dBi, Omni. AIR-ANT2450VG-N: 5 dBi, Omni, vertical polarized. AIR-ANT2450HG-N: 5 dBi, Omni, horizontal polarized. AIR-ANT2480V-N: 8 dBi, Omni. AIR-ANT2413P2M-N: 13 dBi, Directional, dual polarized. 5 GHz: AIR-ANT5150VG-N: 5 dBi, Omni, vertical polarized. AIR-ANT5150HG-N: 5 dBi, Omni, horizontal polarized. AIR-ANT5180V-N: 8 dBi, Omni. AIR-ANT5114P2M-N: 14 dBi, Directional, dual polarized
    Powering options
    AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter). 44–57 VDC input. Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at. Cisco power injectors: AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug). AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable). AIR-PWRINJ6= (indoor, 802.3at).
    Power consumption
    1562I: 32 W (3x3:3, full power). 1562D/E: 25 W
    Compliance
    Safety: UL60950, 2nd Edition. CAN/CSA-C22.2 No. 60950, 2nd Edition. IEC 60950, 2nd Edition. EN 60950, 2nd Edition. Immunity: <= 5 mJ for 6kV/3kA @ 8/20 ms waveform, ANSI/IEEE C62.41, EN61000-4-5 Level 4 AC Surge Immunity, EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity, EN61000-4-3 Level 4 EMC Field Immunity, EN61000-4-2 Level 2 ESD Immunity, EN60950 Overvoltage Category IV. Radio Approvals: FCC Part 15.247, 15.407. FCC Bulletin OET-65C, RSS-247, RSS-102, AS/NZS 4268.2003, ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EN 300 328, EN 301 893. EMI and Susceptibility: FCC part 15.107, 15.109. ICES-003, EN 301 489-1, -17. Security: Wireless bridging/mesh (future availability), X.509 digital certificates, MAC address authentication, Advanced Encryption Standard (AES). Wireless Access: 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA. 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module - (EAP-SIM), and Cisco LEAP. VPN pass-through, IP Security (IPsec), Layer 2 Tunneling Protocol (L2TP), MAC address filtering

    Get more information

    Discover unbeatable prices and fast shipping for the AIR-AP1562E-B-K9. Access the detailed AIR-AP1562E-B-K9 datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are available for the AIR-AP1562E-B-K9?

    Available accessories include external antennas, mounting brackets, and power injectors to enhance installation flexibility.

    How does the AIR-AP1562E-B-K9 compare with Cisco 1542 Outdoor Access Points?

    The AIR-AP1562E-B-K9 offers external antenna support and better performance, while the 1542 model has integrated antennas for simpler installations.

    How does one configure the AIR-AP1562E-B-K9?

    Configuration can be done through Cisco's Wireless LAN Controller interface or using Cisco Mobility Express for a more straightforward setup.
