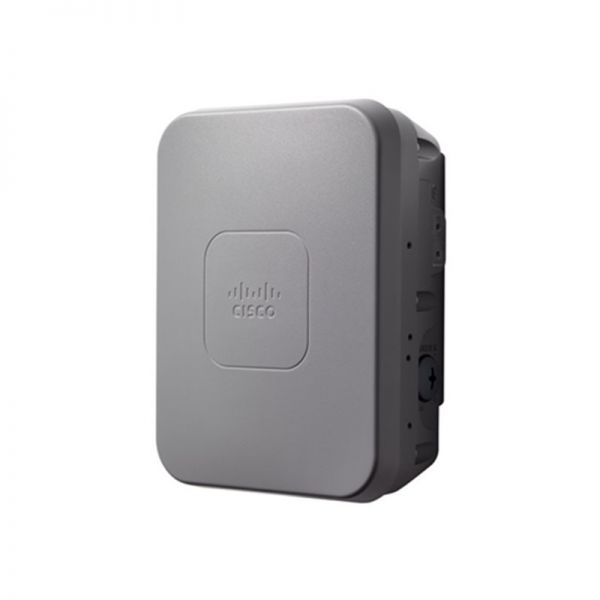

AIR-AP1562D-A-K9

AIR-AP1562D-A-K9 Specification

General

Device Type

Wireless access point

Ruggedized Design

Outdoor

Width

6.7 in

Depth

4.3 in

Height

9 in

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

1.3 Gbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2

Network / Transport Protocol

L2TP, IPSec

Frequency Band

2.4 GHz, 5 GHz

Features

Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, 2T2R MIMO technology, ClientLink technology, Maximum Ratio Combining (MRC), radio resource management (RRM), cyclic shift diversity (CSD), MU-MIMO technology, Cisco Flexible Antenna Port technology, beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, High Density Experience (HDX)

Encryption Algorithm

LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2

Authentication Method

X.509 certificates, Extensible Authentication Protocol (EAP)

Compliant Standards

IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac

Antenna

Antenna

Internal

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45 (WAN) ¦ 1 x - SFP (mini-GBIC) (WAN) ¦ 1 x console - RJ-45

Miscellaneous

Compliant Standards

EN 60950, ICES-003, IEC 60529 IP67, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, X.509, MIL-STD-810, EN 300 328, FCC OET Bulletin 65c, EN 301489-17, EN 301 489-1, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950 Second Edition, EN 60950 Second Edition, EN 301 893

Power

Power Over Ethernet (PoE) Supported

PoE+

Environmental Parameters

Min Operating Temperature

-40 °F

Max Operating Temperature

149 °F
