ZTE Axon 30 5G Phone

ZTE Axon 30 5G Phone Specification

Basic Parameters

Height: 170.2mm

Width: 77.8mm

Depth: 7.8mm

Weight: 189g

Material: 3D composite polymer material with nano-level glow texture overlaid.(Rear Shell)

Colors: Black 8+128 / 12+256 | Aqua 8+128 / 12+256

Display

Size: 6.92 inches FHD+

Refresh Rate: 120Hz

Touch Sampling Rate: 360Hz

Resolution: 2460x1080 pixels | 400ppi pixel density

Aspect Ratio: 20.5:9

Type: AMOLED

SGS Certification low blue light for eye comfort + TUV + UL

Material: 2.5D Corning® Gorilla® Glass

Color Gamut: 100% DCI-P3

Contrast Ratio: 2370,000:1

Cooling System

Triple Cooling System: Large Vapor Chamber + Grahene copper matrix composite material + High-power heat-transmitting gel

Chipset

Qualcomm® Snapdragon™ 870

GPU : Qualcomm®Adreno ™GPU 650

Baseband chipset : Qualcomm SM8250-AC 7nm SnapDragon870 up to 3.2GHz

Capacity*

RAM: 8GB LPDDR5

ROM: 128 GB UFS3.1

RAM: 12 GB LPDDR5

ROM: 256 GB UFS3.1

*Actual memory space is less and varies due to many factors

Connectivity

Network:

SIM: Dual SIM/SIM1:4FF/SIM2:4FF

5G:(North America):

n78(3.4~3.7GHz)/n1/n28/n3/n41/n66(NSA/SA)

FDD: B1/2/3/4/5/7/8/12/17/20/26/28/66;

TDD: B34/38/39/40/41;

WCDMA: B1/2/5/8;

GSM: B2/3/5/8;

5G: (Europe):

NSA: n41(2496~2690MHz)/n38/n77

/n78(3.4~3.7GHz)/n1//n3/n28(A&B)

SA: n41(2496~2690MHz)/n38/n77

/n78(3.4~3.7GHz)/n1/n3/n28(A&B)

FDD:B1/2/3/4/5/7/8/12/17/20/26/28/18/19;

TDD: B34/38/39/40/41

UMTS: B1/2/4/5/6/8/9/19;

GSM: B2/3/5/8;

Wi-Fi: a dual Wi-Fi antenna

Bluetooth: Bluetooth 5.1

Positioning: GPS

NFC: Yes

HDMI：Yes

Cameras

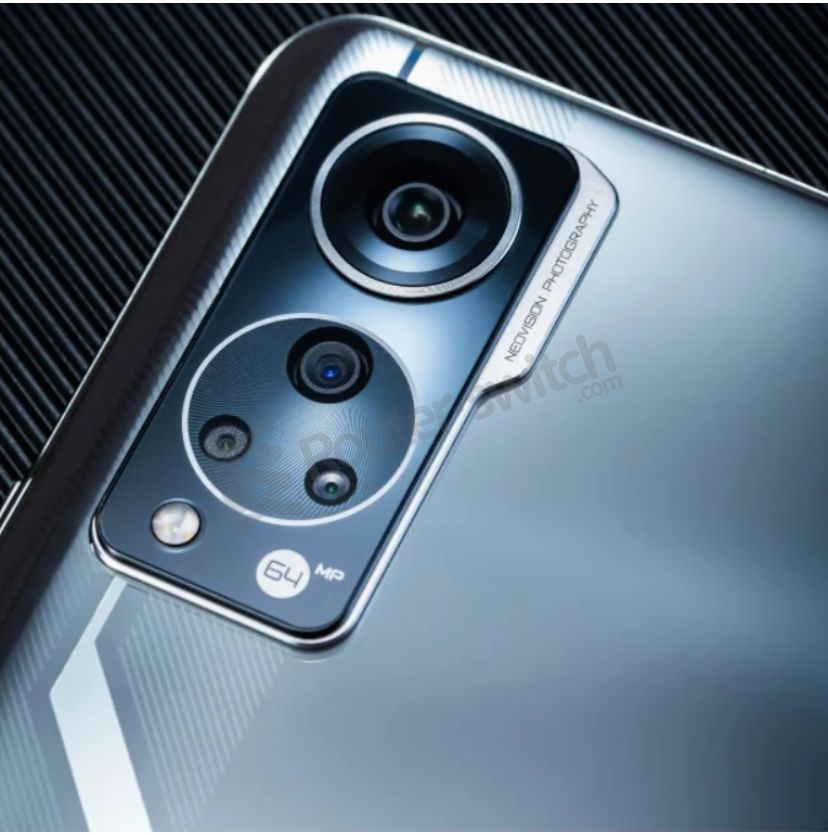

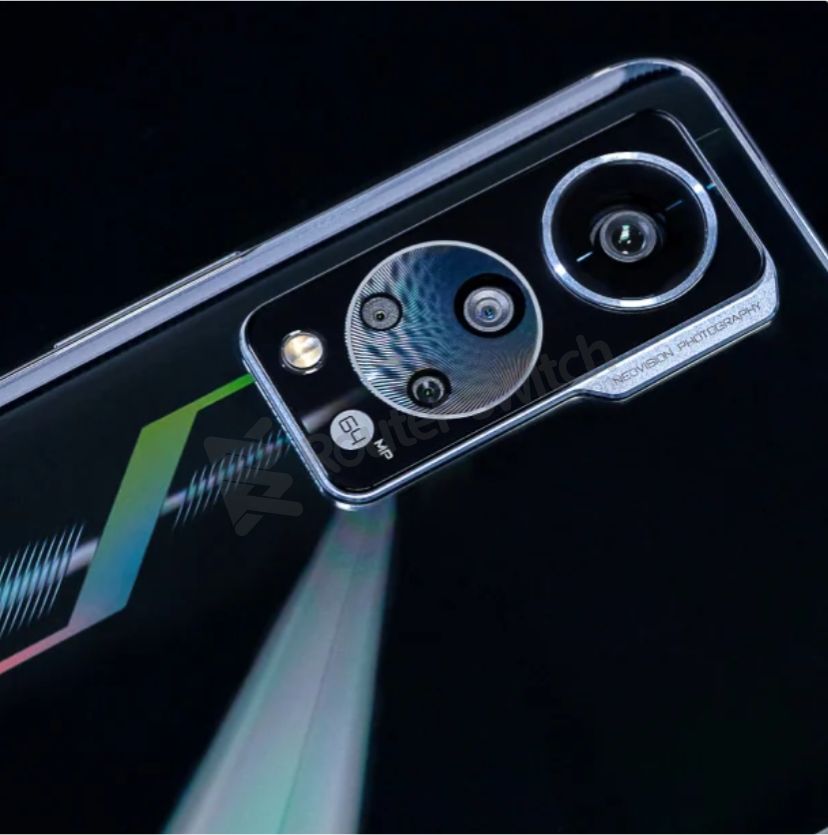

Rear Camera

Sensors: 64MP (Sony IMX682)+ 8MP(Wide

angle) + 5MP(Macro)+ 2MP(Depth-of-Field)

Resolution: 64MP+8MP+5MP+2MP

Wide Angle: 120°

Pixel Size: 400PPI high pixel density，a 64

Megapixel Main camera, a 120-degree Wide-Angle camera, a 3cm

Macro Lens and a Depth-of-Field Lens.

Aperture: F/1.8+AI algorithm+IMX682

Slow Motion: YES

Time-Lapse: Yes

Front Camera

Megapixels: 16MP

Pixel Size: 16MP Front Camera with Large-pixel (Equivalent 2.24um pixel size with 4in1 technology)

Aperture:

F2.45

Video shooting:variety of classic filters and supports 3D

Lut filters dual-way video stabilization for the main

camera and wide angle camera, Hitchcock

zoom, pull focus effects, built-in fast playback, slow motion and

rewind。also equipped with dynamic, artistic and multiple sets of cool

filming templates to support users easily filming in a variety of different

styles.

Sensors

64MP SONY sensor

Operating System

MyOS11

Battery & Quick Charging

Battery: 4200mAh

Quick Charging: 65W

Ports

USB 3.0 Type-C, DP, Dual nano-SIM slot

Audio Supported Formats

Playback: MP3, AAC, AAC+, WMA, AMR-NB, AMR-WB, WAV, FLAC, APE, OGG, MIDI

Recording: WAV, AAC, AMR

Video Supported Formats

Playback: 3GP, ASF, AVI, DAT, FLV, M2TS, MKV, MOV, MP4, MPG, MTS, RM, RMVB, TS, VOB, WEBM, WMV

Recording: MP4

Image Supported Formats

Playback: JPEG, PNG, BMP, GIF, DNG

Output: JPEG

Special Functions

Triple Eye Comfort Certifications (TUV+SGS +UL)

*Note: All specifications and descriptions provided herein may be different from the actual specifications and descriptions for the product.
