Name:	WS-C3850-12XS-E
Model:	WS-C3850-12XS-E Catalyst 3850 Switch SFP+
Brand:	Cisco
Detail:	Stackable 12 SFP+ Ethernet ports, with 350WAC power supply, 1 RU, IP Services feature set
	Rating: 97% 4.9/5.0 20 Reviews 29 Questions
List Price:	US$32,203.00 (64% OFF)
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$11,525.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

WS-C3850-12XS-E

Stackable 12 SFP+ Ethernet ports, with 350WAC power supply, 1 RU, IP Services feature set

List Price: US$32,203.00

Price: US$11,525.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

WS-C3850-12XS-E Overview

WS-C3850-12XS-E switch provides 12 ports 10Gbps SFP+ connection with upgradeable IP services image and build in wireless controller provide fully convergence between wired and wireless on a single platform. It only supports 4 × 10 Gigabit Ethernet network module uplinks option.

Quick Specs

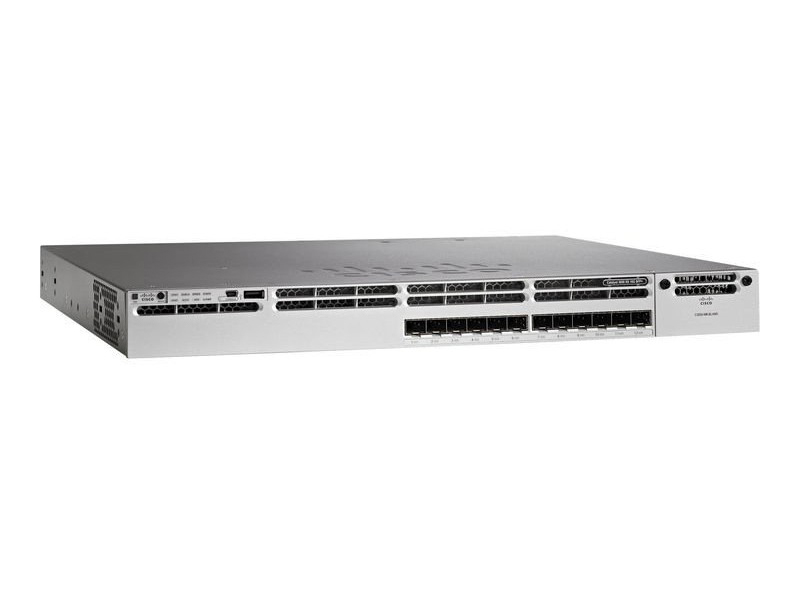

Figure 1 shows the appearance of the Cisco Catalyst WS-C3850-12XS-E.

WS-C3850-12XS-E Appearance

Table 1 shows the Quick Specs.

Product Code	WS-C3850-12XS-E
Enclosure Type	1 RU
Feature Set	IP Service
Network SFP uplink module selection	C3850-NM-4-10G
Ports	12 x 10/100/1000 10G SFP+ Optical ports
Maximum stacking number	9
Stack bandwidth	480 Gbps
Forwarding Performance	227.28Mpps
Switching Capacity	320Gbps
RAM	4 GB
Flash Memory	4 GB
Dimensions	44.5 cm x 45.0 cm x 4.45 cm

Product Details

Figure 2 shows the front panel of the WS-C3850-12XS-E.

WS-C3850-12XS-E Front Panel

Note：

①	UID (blue beacon)	⑤	USB Type A storage port
②	Mode button	⑥	12 ports of 10G SFP+
③	Status LEDs	⑦	Network SFP uplink module slot
④	USB mini-Type B (console) port

· The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

Figure 3 shows the back panel of the WS-C3850-12XS-E switch.

WS-C3850-12XS-E Back Panel

Note：

①	Ground connector	⑤	StackWise port connector
②	CONSOLE (RJ-45 console port)	⑥	StackPower connector
③	Fan module	⑦	Power supply modules
④	MGMT port

Figure 4 shows the StackWise-480 and StackPower connectors.

IP service feature set can only stack with other Catalyst 3850 Series IP service switches. Power stack capacity is supported by Cisco Stackpower technology to provide power redundancy among stacking members.

StackWise-480

The Modules and Accessories

Table 2 shows some recommended modules and accessories of this switch.

Models	Description
C3850-NM-4-10G	Cisco 3850 Series 4 x 10GE Network Module
PWR-C1-350WAC	Cisco 3850 Series Power Supply 350W AC
PWR-C1-350WAC/2	Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply
STACK-T1-50CM=	Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch
STACK-T1-1M=	Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

Compare to Similar Items

Table 3 shows the comparison between WS-C3850-12XS-E and WS-C3850-12S-E.

Models	WS-C3850-12XS-E	WS-C3850-12S-E
Feature Set	IP Service	IP Service
Ports	12 ports of 10G SFP+ Ethernet fiber connection with Flexible Netflow feature	12 ports of SFP Ethernet fiber connection with Flexible Netflow feature
Network SFP uplink module selection	C3850-NM-4-10G	C3850-NM-4-1G C3850-NM-2-10G

Switch to Something New

Why Upgrade to Catalyst 9300 | See the Catalyst 9300 Series

Get more information

Do you have any question about the WS-C3850-12XS-E

Quality Certifications

Specification

WS-C3850-12XS-E Specification

WS-C3850-12XS-E Specifications
model info	WS-C3850-12XS-E
enclosure type	Rack-mountable - 1U
Ports	12 x SFP+ ports
Network management Interface	● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	None
Switching Capacity	320Gbps
Maximum stacking number	9
Stack Bandwidth	480Gbps
Forwarding Performance	227.28Mpps
FNF entries	48,000 flows
Maximum VLANs IDs	1,000
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	4 G
Wireless
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 20Gbps
Supported Aironet AP series	3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	● C3850-NM-4-1G: 4 x 1G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable	●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-350WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	109.75 (Max)
Miscellaneous
Width	17.5 Inches (44.5 cm)
Depth	17.7 Inches (45.0 cm)
Height	1.75 Inches (4.45 cm)
Weight	12.9 Pounds (5.8 Kg)
Rack Mounting Kit	optional
MTBF in hours	371,440
Compliant Standards	● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1X-Rev ●IEEE 802.11 ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3
System software / license
System software	IOS IP Services
EnergyWise license	ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses	●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Technical Support and Services	● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure	23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m)	23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m)	23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m)	23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m)	23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m)	23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m)	23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure	23ºF to 113ºF (-5ºC to +45º)
Storage environment	-40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude	Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude	Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the WS-C3850-12XS-E?

Common troubleshooting steps include checking cable connections, verifying port configurations, and reviewing system logs.

What accessories are available for WS-C3850-12XS-E?

Available accessories include stack modules, power supplies, and SFP/SFP+ transceivers.

How does WS-C3850-12XS-E compare to other switches?

The WS-C3850-12XS-E includes advanced Layer 3 features and integrated wireless capability, setting it apart from basic switches.

How to manage the WS-C3850-12XS-E switch?

Manage the WS-C3850-12XS-E via the Cisco IOS command-line interface (CLI) or Cisco DNA Center for centralized management.

Learn More

How many Cisco Catalyst 3850 switches can make up a Cisco StackPower stack?

Up to four switches can become part of the same Cisco StackPower stack in a ring topology.

What are the different types of licenses in the Cisco Catalyst 3850?

There are two main types of Cisco Catalyst 3850 license: permanent RTU license and evaluation RTU license. These are available for both image-based licensing (IP Base or IP Services) and AP count licensing. A permanent RTU license is a paid license, with no expiration date. The universal Cisco IOS XE Softwarebased images have all three license levels: LAN Base, IP Base, and IP Services. RTU CLI commands enable the switch license to be moved between different license levels. An evaluation RTU license allows the customers to evaluate image-based and/or AP count license for 90 days at no cost.

What is SSO technology?

The Cisco SSO technology synchronizes the Layer 2/3 and wireless tunnel protocol state machines from Active to Standby stack switch. During Active switch switchover the Standby switch performs graceful-recovery with neighbors without disrupting network topology.

Can the Cisco Catalyst 3850 act as a wired switch?

The Cisco Catalyst 3850 switch can act as a wired switch as well as a converged wired wireless switch.

What management ports are available on the Cisco Catalyst 3850?

The Cisco Catalyst 3850 comes with a 10/100 Ethernet dedicated management port on the backside of the switch right above the console port. This port is in separate VRF called “Mgmt-vrf.” This is to segment the management traffic from the global routing table of the switch.
Can both console ports be used simultaneously?
No. When the USB console is used, the RJ-45 console receives the output of the USB console as well. This design allows the administrator to see when the USB console port is in use. This capability is useful for remote administrators.

Does the Cisco Catalyst 3850 support 802.1ae on downlink ports?

The Cisco Catalyst 3850 is hardware capable for 802.1ae on all ports on the switch. Software support will be available later.

How do you manage the Cisco Catalyst 3850?

The Cisco Catalyst 3850 can be managed using the Cisco IOS Software CLI or using Cisco Prime ™ Infrastructure 2.0.

Does the Cisco Catalyst 3850 10G SFP+ 48-port switch support uplink modules?

No. It has 4 fixed 40G QSFP ports for uplinks. This is not field-replaceable.

What are the supported uplink modules in the Cisco Catalyst 3850?

The Cisco Catalyst 3850 supports the following uplink modules:
● 4 x 1GE network module
● 2 x 1/10GE network module
● 4 x 1/10GE network module (can be used for the 48-port RJ-45 models and for the 12-port (or higher) 10‑gigabit-capable models)
● 8 x 10GE network module (can be used on the 24-port and 48-port multigigabit switch and also on the 24‑port 10G SFP+ switch)
● 2 x 40GE network module (can be used on the 24-port and 48-port multigigabit switch and also on the 24‑port 10G SFP+ switch)

What are the unique features of the Cisco Catalyst WS-C3850-12XS-E?

The Cisco Catalyst WS-C3850-12XS-E features 12 SFP/SFP+ ports, offering both 1G and 10G connections. It is a stackable Layer 3 switch with robust IP Services and an integrated wireless controller.

How cost-effective is the Cisco Catalyst WS-C3850-12XS-E?

Considered a high-performance switch, the WS-C3850-12XS-E provides excellent value through advanced features such as stackability, integrated wireless control, and multiple high-speed ports, which reduces the need for additional hardware.

What is the ideal application scenario for the WS-C3850-12XS-E?

The WS-C3850-12XS-E is ideal for data centers, enterprise networks, and campus deployments requiring high-speed connectivity, advanced IP Services, and integrated wireless capabilities.

How do I install the WS-C3850-12XS-E?

The WS-C3850-12XS-E can be installed on a standard rack using the included mounting kit. Connect the power supplies and network cables, configure the software settings via CLI or WebUI, and ensure proper stacking if applicable.

Does the WS-C3850-12XS-E require software upgrades?

Yes, to maintain optimal performance and security, it's recommended to keep the WS-C3850-12XS-E's software and firmware up-to-date using Cisco's downloadable updates.

Are there alternative products to the WS-C3850-12XS-E?

Alternatives to the WS-C3850-12XS-E include other models in the Catalyst 3850 series, such as the WS-C3850-24XS-E, which offers more ports but similar features.

What accessories are available for the WS-C3850-12XS-E?

Available accessories include power supply modules, fan modules, network modules, stacking cables, and rack-mount kits for the WS-C3850-12XS-E switch.

How does the WS-C3850-12XS-E compare to similar Cisco switches?

The WS-C3850-12XS-E stands out due to its 12 SFP/SFP+ ports, integrated wireless controller, and comprehensive IP Service feature set, offering a balance of performance and functionality compared to other models.

What should I do if the WS-C3850-12XS-E is not powering on?

Ensure that the power cables are firmly connected and check the power supply units. If the issue persists, try swapping the power supplies and verify that the power outlet is functional.

What network speeds does the WS-C3850-12XS-E support?

The WS-C3850-12XS-E supports network speeds of 1Gbps and 10Gbps via its 12 SFP/SFP+ ports, catering to high-speed data transfer requirements.

How cost-effective is the WS-C3850-12XS-E?

The WS-C3850-12XS-E offers a balance of price and advanced features, ideal for medium to large enterprises.

What are the main features of the WS-C3850-12XS-E?

The WS-C3850-12XS-E includes 12 SFP/SFP+ ports, Layer 3 functionality, stackability, and a built-in wireless controller.

Where can the WS-C3850-12XS-E be used?

The WS-C3850-12XS-E is best suited for enterprise access, distribution, and core layers.

How to install the WS-C3850-12XS-E?

Install the WS-C3850-12XS-E by mounting it in a standard 19-inch rack and connecting it to your network.

Does the WS-C3850-12XS-E require upgrades?

It is advisable to keep the firmware of the WS-C3850-12XS-E updated for optimal performance and security.

Are there any alternative products to the WS-C3850-12XS-E?

Similar alternatives include the Cisco Catalyst 9300 series switches.

What are common troubleshooting steps for the WS-C3850-12XS-E?

Common troubleshooting steps include checking cable connections, verifying port configurations, and reviewing system logs.

What accessories are available for WS-C3850-12XS-E?

Available accessories include stack modules, power supplies, and SFP/SFP+ transceivers.

How does WS-C3850-12XS-E compare to other switches?

The WS-C3850-12XS-E includes advanced Layer 3 features and integrated wireless capability, setting it apart from basic switches.

How to manage the WS-C3850-12XS-E switch?

Manage the WS-C3850-12XS-E via the Cisco IOS command-line interface (CLI) or Cisco DNA Center for centralized management.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Resources Downloads

Selection Decision

Cisco’s New Switch Selection Decision 2018

Support and Resources

Transition Guide

Model Datasheet

WS-C3850-12XS-E Datasheet

WS-C3850-12XS-E

You may also be interested in the following product(s)

WS-C3850-12XS-E

WS-C3850-12XS-E Overview

Quick Specs

Product Details

The Modules and Accessories

Compare to Similar Items

Switch to Something New

Get more information

Quality Certifications

WS-C3850-12XS-E Specification

WS-C3850-12XS-E Specifications

Quality Certifications

Questions & Answers

What are common troubleshooting steps for the WS-C3850-12XS-E?

What accessories are available for WS-C3850-12XS-E?

How does WS-C3850-12XS-E compare to other switches?

How to manage the WS-C3850-12XS-E switch?

How many Cisco Catalyst 3850 switches can make up a Cisco StackPower stack?

What are the different types of licenses in the Cisco Catalyst 3850?

What is SSO technology?

Can the Cisco Catalyst 3850 act as a wired switch?

What management ports are available on the Cisco Catalyst 3850?

Does the Cisco Catalyst 3850 support 802.1ae on downlink ports?

How do you manage the Cisco Catalyst 3850?

Does the Cisco Catalyst 3850 10G SFP+ 48-port switch support uplink modules?

What are the supported uplink modules in the Cisco Catalyst 3850?

What are the unique features of the Cisco Catalyst WS-C3850-12XS-E?

How cost-effective is the Cisco Catalyst WS-C3850-12XS-E?

What is the ideal application scenario for the WS-C3850-12XS-E?

How do I install the WS-C3850-12XS-E?

Does the WS-C3850-12XS-E require software upgrades?

Are there alternative products to the WS-C3850-12XS-E?

What accessories are available for the WS-C3850-12XS-E?

How does the WS-C3850-12XS-E compare to similar Cisco switches?

What should I do if the WS-C3850-12XS-E is not powering on?

What network speeds does the WS-C3850-12XS-E support?

How cost-effective is the WS-C3850-12XS-E?

What are the main features of the WS-C3850-12XS-E?

Where can the WS-C3850-12XS-E be used?

How to install the WS-C3850-12XS-E?

Does the WS-C3850-12XS-E require upgrades?

Are there any alternative products to the WS-C3850-12XS-E?

What are common troubleshooting steps for the WS-C3850-12XS-E?

What accessories are available for WS-C3850-12XS-E?

How does WS-C3850-12XS-E compare to other switches?

How to manage the WS-C3850-12XS-E switch?

Standard Services

Warranty

Resources Downloads

Product Tags

Related Products
