WS-C3650-48TS-S, Cisco Catalyst 3650 Switch, 48xGE RJ45/4x1G SFP/IP Base

  • Brand: Cisco
  • Model: WS-C3650-48TS-S
Rating:
99%
5/5.0
List Price: $14,463.00
63% OFF
$5,404.00
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
  • Condition
    • Original New · Covered SN
    Replacement
    Related
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    Overview
    End-of-Life Notice
    End-of-Life Notice
    WS-C3650-48TS-S is officially EOL. Service support ends on 2026-10-31.
    For full lifecycle details, see WS-C3650-48TS-S EOL.
    Recommended Replacement
    Recommended Replacement
    Official replacement model. Aligned with current deployment environments.

    Cisco WS-C3650-48TS-S Overview

    The Cisco WS-C3650-48TS-S is an enterprise-class stackable access switch designed for converged wired and wireless networks. It delivers 48 x 10/100/1000 RJ45 ports plus 4 x 1G SFP uplinks, backed by 176Gbps switching capacity and 77.37Mpps forwarding performance for high-density campus deployments. Integrated wireless controller capabilities support up to 50 Aironet access points and 1,000 clients per switch or stack, enabling centralized policy, QoS, and security with IOS LAN Base software that is upgradable for future needs.

    Product Highlights

    176Gbps
    Switch Cap
    77.37Mpps
    Wire Rate
    50 AP
    WLAN Edge

    Product Components Breakdown

    Front Panel of the Product:

    WS-C3650-48TS-S front Panel

    Rear Panel of the Product:

    WS-C3650-48TS-S Back Panel

    Product Applications Scenarios

    Enterprise Network
    Provides 48 Gigabit access ports, rich L2/L3 features and stacking for resilient campus or branch cores, reducing downtime and simplifying segmented enterprise LAN designs.
    Cloud Services
    Delivers 176Gbps switching and 1G SFP uplinks to aggregate virtualized servers and gateways, improving east‑west traffic performance for hybrid and private cloud services.
    Security & Privacy
    Enforces 802.1X, TrustSec, ACLs and DHCP snooping at the edge, blocking spoofing and lateral attacks while centralizing identity, reducing breach risk in regulated networks.

    Product Features Comparison

      Cisco Cisco Cisco Cisco

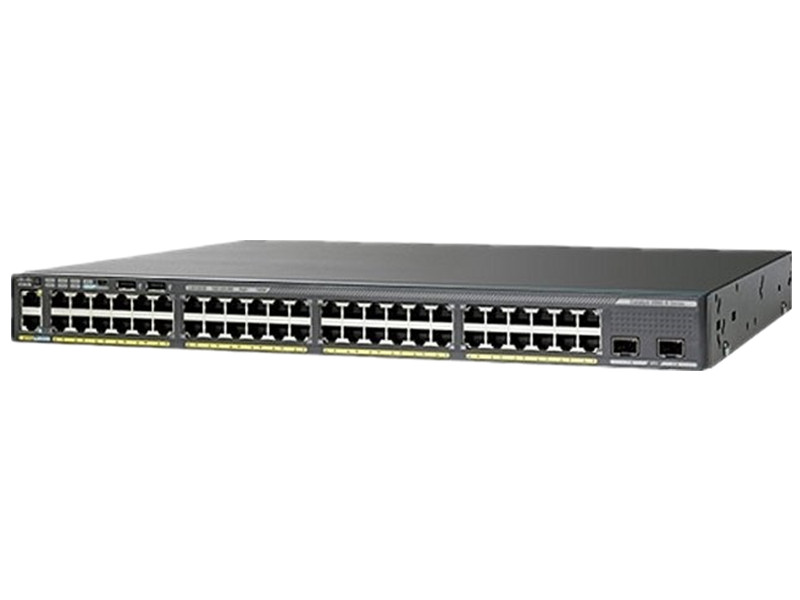

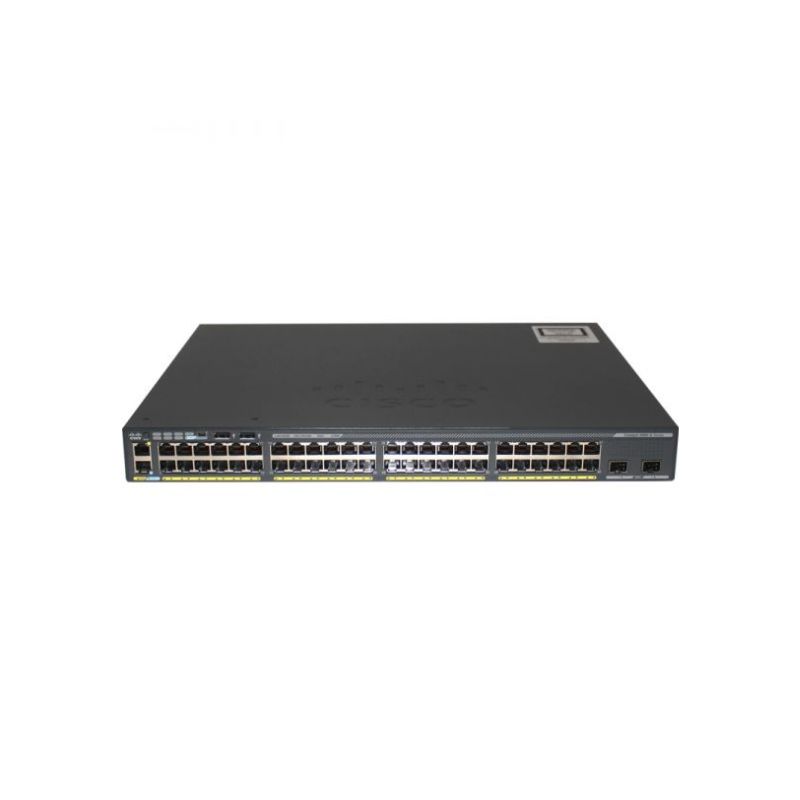

    Model WS-C3650-48TS-S C1-C2960X-48LPS-L WS-C2960XR-48FPD-I WS-C2960X-48LPD-L
    Brand Cisco Cisco Cisco Cisco
    Port Configuration 48 x 10/100/1000 + 4 x 1G SFP 48 × 10/100/1000 RJ45 (PoE+), 4 × 1G SFP uplinks 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ 48 x 10/100/1000 + 2 x 10G SFP+
    Switching Capacity 176Gbps 216 Gbps (full-duplex) 216Gbps 216 Gbps
    Forwarding Rate 77.37Mpps 107.1 Mpps (64-byte packets) 130.9Mpps 130.9 Mpps
    PoE Budget n/a 370 W (IEEE 802.3af/at) 740W 370 W
    Stacking Capability StackWise-160, up to 9 StackWise-480, up to 8 Maximum stacking number 8 Maximum stacking number 8

    Optional Add-ons

    Model Number Description
    ACC-KIT-T1 Cisco accessory kit for WS-C3650-48TS-S including mounting screws and cable guides
    RACK-KIT-T1 Cisco rack-mount kit for 1U Catalyst 3650 switches for 19-inch cabinets
    4PT-KIT-T1 Cisco four-point mounting extension rails and brackets for deeper racks
    C3650-STACK-KIT StackWise-160 stack module for Cisco Catalyst 3650 switch stacking
    STACK-T2-50CM 0.5 m Cisco StackWise-160 stacking cable for short-distance stacks
    STACK-T2-1M 1.0 m Cisco StackWise-160 stacking cable for standard rack stacking
    STACK-T2-3M 3.0 m Cisco StackWise-160 stacking cable for cross-rack deployments
    PWR-C2-1025WAC 1025W AC power supply module for Cisco Catalyst 3650 providing optional redundancy

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Cisco WS-C3650-48TS-S Specification

    Model
    WS-C3650-48TS-S
    Brand
    Cisco
    Enclosure type
    Rack-mountable - 1U
    Ports
    48 x 10/100/1000 + 4 x 1G SFP
    Network management Interface
    · Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling · Management console port: RJ-45-to-DB9 cable for PC connections
    Available PoE Power
    None
    Switching Capacity
    176Gbps
    Maximum stacking number
    9
    Stack Bandwidth
    160Gbps
    Forwarding Performance
    77.37Mpps
    FNF entries
    48000
    Maximum VLANs IDs
    4,094
    MAC Address Table Size
    32K
    CPU
    Multicore CPU
    RAM
    4 G
    Flash Memory
    2 G
    Number of AP per switch/stack
    50
    Number of wireless clients per switch/stack
    1000
    Total number of WLANs per switch
    64
    Wireless bandwidth per switch
    up to 40Gbps
    Supported Aironet AP series
    3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
    Console ports
    USB (Type-B), Ethernet (RJ-45)
    Expansion Slot(s)
    power redundant slot
    Accessory & Rack Moubt Kits
    · ACC-KIT-T1: Accessory kit · RACK-KIT-T1: Rack mount kit · 4PT-KIT-T1:Extension rails and brackets for four-point mounting
    Stacking module & cable
    · C3650-STACK-KIT: Stack Module · STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length · STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length · STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
    Power supply
    PWR-C2-1025WAC
    Power Device
    Power supply - redundant - plug-in module
    Power Redundancy
    optional
    Voltage range (Auto)
    100V-240V
    Power Consumption of standalone (in Watts)
    86. 4 (max)
    Width
    17.5 Inches (44.5cm)
    Depth
    17.625 Inches (44.8cm)
    Height
    1.73 Inches (4.4cm)
    Rack Mounting Kit
    optional
    MTBF in hours
    527,580
    Compliant Standards
    · IEEE 802.1D Spanning Tree Protoco · IEEE 802.1p CoS Prioritization · IEEE 802.1Q VLAN · IEEE 802.1s · IEEE 802.1w · IEEE 802.1X · IEEE 802.1X-Rev · IEEE 802.11 · IEEE 802.1ab (LLDP) · IEEE 802.3ad · IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports · IEEE 802.3 10BASE-T · IEEE 802.3u 100BASE-TX · IEEE 802.3ab 1000BASE-T · IEEE 802.3z 1000BASE-X · RMON I and II standards · SNMP v1, v2c, and v3
    System software
    IOS LAN Base (Upgradable)
    EnergyWise license
    ENERGY-MGMT, ENERGY-MGT-100-K9
    Software license
    · C3650-48-S-E: IP Base to IP Services RTU paper license · L-C3650-48-S-E: IP Base to IP Services RTU electronic license
    Access Point Licenses
    · L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) · L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) · L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) · LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
    Features
    · EEM · RPS Support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols · Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+ · 802.1W/802.1S · Port Fast/Uplink Fast · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override · Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues · Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues · Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping · Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP · RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-lite · PIM-SM/DM, PIM sparse-dense mode, SSM · Flexible Netflow
    Advanced Network security
    · Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard · The Unicast Reverse Path Forwarding (uRPF) · Bidirectional data support on a SPAN · User authentication · Private VLAN · Router and VLAN ACLs · complete identity and security · Multidomain authentication · MAC address notification · IGMP filtering · Cisco security VLAN ACL · Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) · Port-based ACLs · TrustSec SXP · IEEE 802.1ae · TACACS+ and RADIUS authentication · Cisco standard and extended IP security router ACLs · Bridge protocol data unit (BPDU) Guard · Spanning Tree Root Guard (STRG) · Wireless end-to-end security
    Management
    · BRIDGE-MIB · CISCO-AUTH-FRAMEWORK-MIB · CISCO-BGP4-MIB, BGP4-MIB · CISCO-BRIDGE-EXT-MIB · CISCO-BULK-FILE-MIB · CISCO-CABLE-DIAG-MIB · CISCO-CALLHOME-MIB · CISCO-CEF-MIB · CISCO-CIRCUIT-INTERFACE-MIB · CISCO-ENTITY-VENDORTYPE-OID-MIB · CISCO-CONTEXT-MAPPING-MIB · CISCO-DEVICE-LOCATION-MIB · CISCO-DHCP-SNOOPING-MIB · CISCO-EIGRP-MIB · CISCO-EMBEDDED-EVENT-MGR-MIB · CISCO-ENTITY-FRU-CONTROL-MIB · CISCO-ENTITY-SENSOR-MIB · ENTITY-MIB · CISCO-ERR-DISABLE-MIB · CISCO-CONFIG-COPY-MIB · CISCO-FLOW-MONITOR-MIB · CISCO-FTP-CLIENT-MIB · CISCO-HSRP-EXT-MIB · CISCO-HSRP-MIB · CISCO-IETF-ISIS-MIB · CISCO-IF-EXTENSION-MIB · CISCO-IGMP-FILTER-MIB · CISCO-CONFIG-MAN-MIB · CISCO-IP-CBR-METRICS-MIB · CISCO-IPMROUTE-MIB · CISCO-IP-STAT-MIB · CISCO-IP-URPF-MIB · CISCO-L2L3-INTERFACE-CONFIG-MIB · CISCO-LAG-MIB · CISCO-LICENSE-MGMT-MIB · CISCO-MAC-AUTH-BYPASS-MIB · CISCO-MAC-NOTIFICATION-MIB · CISCO-MDI-METRICS-MIB · CISCO-FLASH-MIB · CISCO-OSPF-MIB · CISCO-OSPF-TRAP-MIB · CISCO-PAE-MIB · CISCO-PAGP-MIB · CISCO-PIM-MIB · CISCO-PING-MIB · CISCO-PORT-QOS-MIB · CISCO-PORT-SECURITY-MIB· CISCO-PORT-STORM-CONTROL-MIB · CISCO-POWER-ETHERNET-EXT-MIB · CISCO-PRIVATE-VLAN-MIB · CISCO-PROCESS-MIB · CISCO-PRODUCTS-MIB· CISCO-RF-MIB · CISCO-RTP-METRICS-MIB · CISCO-RTTMON-MIB · CISCO-SMART-INSTALL-MIB · CISCO-SNMP-TARGET-EXT-MIB · CISCO-STACKMAKER-MIB · CISCO-MEMORY-POOL-MIB · CISCO-STP-EXTENSIONS-MIB · CISCO-SYSLOG-MIB · CISCO-TCP-MIB · CISCO-UDLDP-MIB · CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB · CISCO-VLAN-MEMBERSHIP-MIB · CISCO-VTP-MIB · EtherLike-MIB · HC-RMON-MIB · IEEE8021-PAE-MIB · IEEE8023-LAG-MIB · IF-MIB · IGMP-MIB · IGMP-STD-MIB · IP-FORWARD-MIB · IP-MIB · IPMROUTE-STD-MIB · LLDP-EXT-MED-MIB · LLDP-MIB · NOTIFICATION-LOG-MIB · OLD-CISCO-MEMORY-MIB · CISCO-CDP-MIB · POWER-ETHERNET-MIB · RMON2-MIB · RMON-MIB · SNMP-COMMUNITY-MIB · SNMP-FRAMEWORK-MIB · SNMP-MPD-MIB · SNMP-NOTIFICATION-MIB · SNMP-PROXY-MIB · SNMP-TARGET-MIB · SNMP-USM-MIB · SNMPv2-MIB · SNMP-VIEW-BASED-ACM-MIB · TCP-MIB · UDP-MIB · CISCO-IMAGE-MIB · CISCO-STACKWISE-MIB · AIRESPMACE-WIRELESS-MIB · CISCO-LWAPP-IDS-MIB · CISCO-LWAPP-AP-MIB · CISCO-LWAPP-CCX-RM-MIB · CISCO-LWAPP-CLIENT-ROAMING-MIB · CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB · CISCO-LWAPP-DOT11-CCX-CLIENT-MIB · CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB · CISCO-LWAPP-DOT11-CLIENT-MIB · CISCO-LWAPP-DOT11-MIB · CISCO-LWAPP-DOWNLOAD-MIB · CISCO-LWAPP-LINKTEST-MIB · CISCO-LWAPP-MFP-MIB · CISCO-LWAPP-MOBILITY-EXT-MIB · CISCO-LWAPP-QOS-MIB · CISCO-LWAPP-REAP-MIB · CISCO-LWAPP-ROGUE-MIB · CISCO-LWAPP-RRM-MIB · CISCO-LWAPP-SI-MIB · CISCO-LWAPP-TSM-MIB · CISCO-LWAPP-WLAN-MIB · CISCO-LWAPP-WLAN-SECURITY-MIB
    Technical Support and Services
    · Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service · Cisco Focused Technical Support Services
    Operating temperature up to 5000 ft (1500 m)
    23ºF to 113ºF (-5ºC to +45ºC)
    Operating temperature up to 10,000 ft (3000 m)
    23ºF to 104ºF (-5ºC to +40ºC)
    Short-term exception at sealevel with single fan failure
    23ºF to 113ºF (-5ºC to +45ºC)
    Short-term exception up to 5000 feet (1500 m)
    23ºF to 122ºF (-5ºC to 50ºC)
    Short-term exception up to 10,000 feet (3000 m)
    23ºF to 113ºF (-5ºC to 45ºC)
    Operating temperature up to 6000 ft (1800 m)
    23ºF to 113ºF (-5ºC to +45ºC)
    Operating temperature up to 13,000 ft (4000m)
    23ºF to 95ºF (-5ºC to 35ºC)
    Short-term exception up to 6,000 feet (1800 m)
    23ºF to 131ºF (-5ºC to +55ºC)
    Short-term exception up to 10,000 feet (3000 m)
    23ºF to 122ºF (-5ºC to +50ºC)
    Short-term exception up to 13,000 feet (4000 m)
    23ºF to 113ºF (-5ºC to +45ºC)
    Short-term exception at sealevel with single fan failure
    23ºF to 113ºF (-5ºC to +45º)
    Storage environment
    -40ºF to 160ºF (-40ºC to 70ºC)
    Operating altitude
    Up to 16,400 Feet (Up to 5000m)
    Storage altitude
    Up to 16,400 Feet (Up to 5000m)
    Operating relative humidity
    5% to 96% noncondensing
    Storage relative humidity
    5% to 96% noncondensing
    Short-term exception at sealevel with single fan failure
    23ºF to 113ºF
    Storage environment
    -40ºF to 160ºF
    Weight
    17.49 kg

    Get more information

    Discover unbeatable prices and fast shipping for the WS-C3650-48TS-S, Cisco Catalyst 3650 Switch, 48×GE RJ45/4×1G SFP/IP Base . Access the detailed WS-C3650-48TS-S, Cisco Catalyst 3650 Switch, 48×GE RJ45/4×1G SFP/IP Base datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    How does the WS-C3650-48TS-S compare with other switches?

    The WS-C3650-48TS-S offers a blend of enterprise-class performance with manageability, which is more advanced than entry-level switches but more affordable than high-end models like the Catalyst 4500 series.

    What are common troubleshooting steps for the WS-C3650-48TS-S?

    Common troubleshooting includes checking connectivity, ensuring the latest firmware is installed, and utilizing Cisco's IOS tools for diagnostics and network analysis.

    What is the warranty for the WS-C3650-48TS-S?

    The WS-C3650-48TS-S comes with Cisco's limited lifetime hardware warranty, providing peace of mind with support and service options for your networking hardware.

    Why should I buy from router-switch.com?

    As an authorized distributor for 20+ top brands, router-switch.com offers:
    - Genuine products with full warranties.
    - Competitive pricing and bulk order discounts.
    - Professional pre-sales and after-sales support.
