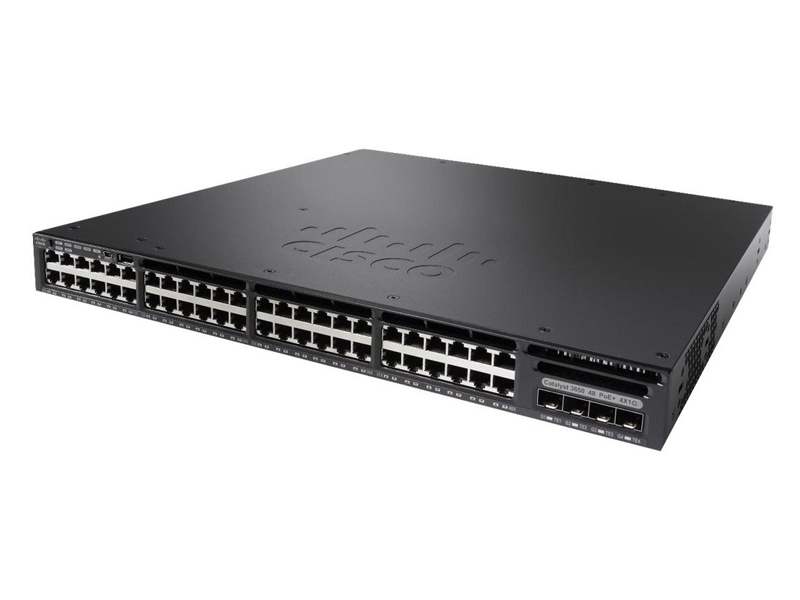

WS-C3650-48PWS-S, Cisco Catalyst 3650 Switch, 48xPoE GE/4x1G Uplink/Layer 3 Switching

  • Brand: Cisco
  • Model: WS-C3650-48PWS-S
Rating:
100%
5/5.0
List Price: $11,620.00
56% OFF
$5,106.00
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    Years Expertise
    24 Years Expertise
    Proven, deployment-focused
  • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    Overview
    End-of-Life Notice
    End-of-Life Notice
    WS-C3650-48PWS-S is officially EOL. Service support ends on 2026-10-31.
    For full lifecycle details, see WS-C3650-48PWS-S EOL.

    Cisco WS-C3650-48PWS-S Overview

    The Cisco WS-C3650-48PWS-S is an enterprise-class Layer 3 access switch designed for converged wired and wireless networks. It provides 48×10/100/1000 PoE+ ports with 390W PoE budget and 4×1G SFP uplinks, ideal for powering IP phones, cameras, and access points in branch or campus environments. With 176Gbps switching capacity, 77.37Mpps forwarding, and integrated wireless controller for up to 50 APs and 1,000 clients per stack, it delivers scalable performance. Advanced QoS, rich routing, and security features simplify deployment for distributors, integrators, and end users.

    Product Highlights

    176Gbps
    Switch Cap
    390W
    PoE Power
    50 APs
    WLC Scale

    Product Components Breakdown

    Front Panel of the Product:

    WS-C3650-48PWS-S front Panel
    Mode button
    USB Type A storage port
    Status LEDs
    48 x 10/100/1000 Ports
    USB mini-Type B (console) port
    Uplink ports

    Rear Panel of the Product:

    WS-C3650-48PWS-S Back Panel
    Ground connector
    CONSOLE (RJ-45 console port)
    MGMT (RJ-45 10/100/1000 management port)
    Fan module
    Power supply modules
    Stacking modules

    Product Applications Scenarios

    Enterprise Network
    48×PoE+ access and Layer 3 routing simplify campus edge design, cut cabling costs, and centralize control for growing office networks.
    Edge & IoT
    390W PoE budget powers cameras, sensors, and terminals while robust QoS and security reduce deployment and maintenance overhead.
    Public Infrastructure
    High MTBF and wide environmental ranges support reliable switching for campuses, hospitals, and transport hubs with minimal downtime.

    Product Features Comparison

      Cisco Cisco Cisco Cisco
    Model WS-C3650-48PWS-S WS-C3650-24PWD-S WS-C3650-48FS-E C1000-48FP-4X-L
    Brand Cisco Cisco Cisco Cisco
    Port Configuration 48 × 10/100/1000 (PoE+) + 4 × 1G SFP 24 x 10/100/1000 (PoE+) + 2 x 10G SFP+ & 2 x 1G SFP 48 x 10/100/1000 (PoE+) + 4 x 1G SFP 48 × 100/1000BASE-X SFP (Fiber), 4 × SFP+ Uplinks (10GBASE-X)
    Switching Capacity 176Gbps 88Gbps 176Gbps 176 Gbps
    Forwarding Rate 77.37Mpps 68.45Mpps 77.37Mpps 130.94 Mpps (64-byte L3 packets)
    PoE Budget 390W 390W 775W n/a
    Stacking Capability Maximum stacking number: 9 switches; Stack bandwidth: 160Gbps Maximum stacking number: 9 switches; Stack bandwidth: 160Gbps Maximum stacking number: 9; Stack bandwidth: 160Gbps Aggregate stacking bandwidth: 10 Gbps; Max units in a stack: 8

    Optional Add-ons

    Model Number Description
    ACC-KIT-T1 Cisco accessory kit for Catalyst 3650 WS-C3650-48PWS-S installation and cable management
    RACK-KIT-T1 Cisco rack-mount kit for 1U Catalyst 3650 series switches in 19-inch racks
    4PT-KIT-T1 Cisco four-point mounting rails and brackets for extended-depth Catalyst 3650 racks
    C3650-STACK-KIT Cisco StackWise-160 stacking module for WS-C3650-48PWS-S switch clustering
    STACK-T2-50CM 0.5 m Cisco StackWise-160 stacking cable for short-reach Catalyst 3650 stacks
    STACK-T2-1M 1.0 m Cisco StackWise-160 stacking cable for flexible Catalyst 3650 layouts
    STACK-T2-3M 3.0 m Cisco StackWise-160 stacking cable for extended Catalyst 3650 stack distance
    PWR-C2-1025WAC 1025W AC Cisco power supply for WS-C3650-48PWS-S with PoE+ support and redundancy

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Cisco WS-C3650-48PWS-S Specification

    Model
    WS-C3650-48PWS-S
    Brand
    Cisco
    Enclosure type
    Rack-mountable, 1U
    Ports
    48 × 10/100/1000 (PoE+) + 4 × 1G SFP
    Network management interface
    • Ethernet management port: RJ-45, 4-pair Cat-5 UTP cabling • Management console port: RJ-45-to-DB9 cable for PC connections
    Available PoE power
    390W
    Switching capacity
    176Gbps
    Maximum stacking number
    9 switches
    Stack bandwidth
    160Gbps
    Forwarding performance
    77.37Mpps
    FNF entries
    48,000
    Maximum VLAN IDs
    4,094
    MAC address table size
    32K
    CPU
    Multicore CPU
    RAM
    4GB
    Flash memory
    2GB
    Wireless, number of APs per switch/stack
    50
    Wireless clients per switch/stack
    1,000
    Total WLANs per switch
    64
    Wireless bandwidth per switch
    Up to 40Gbps
    Supported Aironet AP series
    3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
    Console ports
    USB Type-B, Ethernet RJ-45
    Expansion slots
    Power redundant slot
    Accessory and rack mount kits
    • ACC-KIT-T1: Accessory kit • RACK-KIT-T1: Rack mount kit • 4PT-KIT-T1: Extension rails and brackets for four-point mounting
    Stacking module and cable options
    • C3650-STACK-KIT: Stack module • STACK-T2-50CM: StackWise-160 stacking cable, 0.5 m • STACK-T2-1M: StackWise-160 stacking cable, 1.0 m • STACK-T2-3M: StackWise-160 stacking cable, 3.0 m
    Power supply
    PWR-C2-1025WAC
    Power device
    Redundant plug-in power supply module
    Power redundancy
    Optional
    Voltage range (auto)
    100 V to 240 V AC
    Power consumption (standalone)
    99.5W (max)
    Width
    17.5in (44.5cm)
    Depth
    17.625in (44.8cm)
    Height
    1.73in (4.4cm)
    Rack mounting kit
    Optional
    MTBF
    383,760 hours
    Compliant standards
    • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1p CoS prioritization • IEEE 802.1Q VLAN • IEEE 802.1s • IEEE 802.1w • IEEE 802.1X, IEEE 802.1X-Rev • IEEE 802.11 • IEEE 802.1ab (LLDP) • IEEE 802.3ad • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, 1000BASE-T • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • RMON I and II • SNMP v1, v2c, v3
    System software
    Cisco IOS IP Base (upgradable)
    EnergyWise license
    ENERGY-MGMT, ENERGY-MGT-100-K9
    Software license options
    • C3650-48-S-E: IP Base to IP Services RTU paper license • L-C3650-48-S-E: IP Base to IP Services RTU electronic license
    Access point licenses
    • Included 5 access point licenses • L-LIC-CT3650-UPG: Primary upgrade license for Cisco 3650 wireless controller (e-delivery) • L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) • LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (paper license)
    Main features
    • EEM • RPS support • IP service-level agreements (SLAs) • Advanced IP unicast routing protocols • Jumbo frames • VLANs, Voice VLAN, VTPv2, CDPv2, LLDP • 802.3ad LACP and PAgP • PVST/PVST+ • 802.1W/802.1S • PortFast/UplinkFast • Dynamic Trunking Protocol (DTP) • Port CoS trust and override, trusted boundary • ACL classification, ingress policing • Auto QoS, per-VLAN policies, 802.1p queues • Scheduling, priority queuing • CoS priority queues, queue weights, buffers and thresholds • Class and policy maps, CoS and DSCP mapping • Weighted tail drop • IGMPv1/v2/v3 and MLDv1/v2 • DHCP server, DSCP transparency • HSRP, VRRP, BGP • RIPv1/v2, EIGRP, OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 • VRF-lite • PIM-SM/DM, PIM sparse-dense mode, SSM • Flexible NetFlow
    Advanced network security
    • Port security • DHCP snooping • Dynamic ARP inspection (DAI) • IP source guard • Unicast Reverse Path Forwarding (uRPF) • Bidirectional data support on SPAN • User authentication • Private VLAN • Router and VLAN ACLs • Multidomain authentication • MAC address notification • IGMP filtering, Cisco security VLAN ACL • SSH, Kerberos, SNMPv3 • Port-based ACLs • Cisco TrustSec SXP • IEEE 802.1ae • TACACS+ and RADIUS authentication • Cisco standard and extended IP security router ACLs • BPDU Guard • Spanning Tree Root Guard (STRG) • Wireless end-to-end security
    Management MIBs (selection)
    • BRIDGE-MIB • CISCO-AUTH-FRAMEWORK-MIB • CISCO-BGP4-MIB, BGP4-MIB • CISCO-BRIDGE-EXT-MIB • CISCO-BULK-FILE-MIB • CISCO-CABLE-DIAG-MIB • CISCO-CALLHOME-MIB • CISCO-CEF-MIB • CISCO-CIRCUIT-INTERFACE-MIB • CISCO-ENTITY-VENDORTYPE-OID-MIB • CISCO-CONTEXT-MAPPING-MIB • CISCO-DEVICE-LOCATION-MIB • CISCO-DHCP-SNOOPING-MIB • CISCO-EIGRP-MIB • CISCO-EMBEDDED-EVENT-MGR-MIB • CISCO-ENTITY-FRU-CONTROL-MIB • CISCO-ENTITY-SENSOR-MIB • ENTITY-MIB, CISCO-ERR-DISABLE-MIB • CISCO-CONFIG-COPY-MIB • CISCO-FLOW-MONITOR-MIB • CISCO-FTP-CLIENT-MIB • CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB • CISCO-IETF-ISIS-MIB • CISCO-IF-EXTENSION-MIB • CISCO-IGMP-FILTER-MIB • CISCO-CONFIG-MAN-MIB • CISCO-IP-CBR-METRICS-MIB • CISCO-IPMROUTE-MIB, CISCO-IP-STAT-MIB • CISCO-IP-URPF-MIB • CISCO-L2L3-INTERFACE-CONFIG-MIB • CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB • CISCO-MAC-AUTH-BYPASS-MIB • CISCO-MAC-NOTIFICATION-MIB • CISCO-MDI-METRICS-MIB • CISCO-FLASH-MIB • CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB • CISCO-PAE-MIB, CISCO-PAGP-MIB • CISCO-PIM-MIB, CISCO-PING-MIB • CISCO-PORT-QOS-MIB • CISCO-PORT-SECURITY-MIB • CISCO-PORT-STORM-CONTROL-MIB • CISCO-POWER-ETHERNET-EXT-MIB • CISCO-PRIVATE-VLAN-MIB • CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB • CISCO-RF-MIB • CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB • CISCO-SMART-INSTALL-MIB • CISCO-SNMP-TARGET-EXT-MIB • CISCO-STACKMAKER-MIB • CISCO-MEMORY-POOL-MIB • CISCO-STP-EXTENSIONS-MIB • CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB • CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB • CISCO-VLAN-MEMBERSHIP-MIB • CISCO-VTP-MIB, EtherLike-MIB • HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB • IF-MIB, IGMP-MIB, IGMP-STD-MIB • IP-FORWARD-MIB, IP-MIB, IPMROUTE-STD-MIB • LLDP-EXT-MED-MIB, LLDP-MIB • NOTIFICATION-LOG-MIB • OLD-CISCO-MEMORY-MIB, CISCO-CDP-MIB • POWER-ETHERNET-MIB • RMON-MIB, RMON2-MIB • SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB • SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB • SNMP-TARGET-MIB, SNMP-USM-MIB, SNMPv2-MIB • SNMP-VIEW-BASED-ACM-MIB • TCP-MIB, UDP-MIB • CISCO-IMAGE-MIB, CISCO-STACKWISE-MIB • AIRESPACE-WIRELESS-MIB • CISCO-LWAPP-IDS/AP/CLIENT/WLAN related MIBs (including QoS, rogue, RRM, SI, TSM, mobility, security)
    Technical support and services
    • Cisco SMARTnet Service • Cisco Smart Foundation Service • Cisco SP Base Service • Cisco Focused Technical Support Services
    Environmental ranges (AC power)
    • Operating temperature up to 5,000 ft (1,500 m): 23°F to 113°F (-5°C to 45°C) • Operating temperature up to 10,000 ft (3,000 m): 23°F to 104°F (-5°C to 40°C) • Short-term at sea level with single fan failure: 23°F to 113°F (-5°C to 45°C) • Short-term up to 5,000 ft (1,500 m): 23°F to 122°F (-5°C to 50°C) • Short-term up to 10,000 ft (3,000 m): 23°F to 113°F (-5°C to 45°C)
    Environmental ranges (DC power, NEBS)
    • Operating temperature up to 6,000 ft (1,800 m): 23°F to 113°F (-5°C to 45°C) • Operating temperature up to 10,000 ft (3,000 m): 23°F to 104°F (-5°C to 40°C) • Operating temperature up to 13,000 ft (4,000 m): 23°F to 95°F (-5°C to 35°C) • Short-term up to 6,000 ft (1,800 m): 23°F to 131°F (-5°C to 55°C) • Short-term up to 10,000 ft (3,000 m): 23°F to 122°F (-5°C to 50°C) • Short-term up to 13,000 ft (4,000 m): 23°F to 113°F (-5°C to 45°C) • Short-term at sea level with single fan failure: 23°F to 113°F (-5°C to 45°C)
    Storage and altitude
    • Storage environment: -40°F to 160°F (-40°C to 70°C) • Operating altitude: up to 16,400 ft (up to 5,000 m) • Storage altitude: up to 16,400 ft (up to 5,000 m) • Operating relative humidity: 5% to 96% noncondensing • Storage relative humidity: 5% to 96% noncondensing
    Weight
    17.49 kg

    Get more information

    Discover unbeatable prices and fast shipping for the WS-C3650-48PWS-S, Cisco Catalyst 3650 Switch, 48×PoE GE/4×1G Uplink/Layer 3 Switching . Access the detailed WS-C3650-48PWS-S, Cisco Catalyst 3650 Switch, 48×PoE GE/4×1G Uplink/Layer 3 Switching datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    How does WS-C3650-48PWS-S compare to similar products?

    The WS-C3650-48PWS-S stands out with its PoE support, 4 x 1G uplinks, and inclusion of 5 wireless AP licenses.

    What is the troubleshooting process for the WS-C3650-48PWS-S?

    Basic troubleshooting includes checking power connections, cable integrity, and IOS logs. For advanced issues, consult Cisco support.

    What is the warranty period for the WS-C3650-48PWS-S?

    The WS-C3650-48PWS-S typically comes with a limited lifetime warranty covering hardware replacement.

    Why should I buy from router-switch.com?

    As an authorized distributor for 20+ top brands, router-switch.com offers:
    - Genuine products with full warranties.
    - Competitive pricing and bulk order discounts.
    - Professional pre-sales and after-sales support.
