What is the difference between Huawei firewalls and Fortinet firewalls?

These two brands of firewalls focus on different areas. Please learn more details here .

How cost-effective is the USG9520-BASE-AC-V3?

The USG9520-BASE-AC-V3 is highly cost-effective due to its robust performance and included X3 AC Chassis and 2 MPUs.

What are the main features of the USG9520-BASE-AC-V3?

The USG9520-BASE-AC-V3 offers advanced security, high throughput, and modular expandability with its X3 AC Chassis and 2 MPUs.

What are the primary application scenarios for the USG9520-BASE-AC-V3?

The USG9520-BASE-AC-V3 is ideal for large enterprises requiring robust security and high performance.

How do you install the USG9520-BASE-AC-V3?

Install the USG9520-BASE-AC-V3 by securely mounting the X3 AC Chassis and configuring the MPU settings.

Does the USG9520-BASE-AC-V3 need to be upgraded?

Firmware upgrades for the USG9520-BASE-AC-V3 may be needed to ensure optimal performance and security.

Are there alternative products to the USG9520-BASE-AC-V3?

Alternatives to the USG9520-BASE-AC-V3 include other models in the Huawei USG9500 series depending on requirements.

Huawei USG9500 USG9520-BASE-AC-V3 Data Center Firewall

Name: USG9520-BASE-AC-V3
SKU: USG9520-BASE-AC-V3
Price: 25418 USD
Availability: OutOfStock
Rating: 4.7 (3 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	USG9520-BASE-AC-V3
Model:	USG9520-BASE-AC-V3 0235G7F6 Huawei USG9500 Data Center Firewall
Brand:	Huawei
Detail:	USG9520 AC Basic Configuration(include X3 AC Chassis,2*MPU)
	Rating: 93% 4.7/5.0 3 Reviews 11 Questions
List Price:	US$63,918.00 (60% OFF)
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$25,418.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

USG9520-BASE-AC-V3

USG9520 AC Basic Configuration(include X3 AC Chassis,2*MPU)

List Price: US$63,918.00

Price: US$25,418.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

USG9520-BASE-AC-V3 Overview

Huawei USG9520-BASE-AC-V3 USG9500 Data Center Firewall Basic Configuration includes 3 slots chassis with AC power supply, 2*MPU. The Huawei USG9500 series data center firewall is the worldâ€™s fastest firewall for data center environment to ensure secure services in the cloud and for large data centers and enterprise campus networks. Integrated switching, routing, and security enable smooth upgrade, carrier-class reliability, comprehensive virtualization, and terabit-level processing capability. Huawei USG9500 firewall uses a hardware platform that often exists in a core router to provide modularized components. Each interface module has two network processors (NPs) to provide line rate forwarding. The SPU uses multi-core CPUs and a multi-thread architecture, and each CPU has an application acceleration engine. These hardware advantages, combined with Huawei optimized concurrent processing technology, increases CPU capacity to ensure the high speed parallel processing of multiple services, such as NAT and VPN. LPUs and SPUs function separately. The overall performance increases linearly with the addition of SPUs so that customers can easily scale up the performance at a low cost.

With revolutionized system architecture, the Huawei USG9500 security gateway series has the industry's highest firewall throughput and the most concurrent connections. With dedicated traffic splitting technology, the overall performance of the USG9500 increases linearly with the addition of SPUs. The USG9500 delivers a maximum of 960 Gbps large-packet throughput, 960 million concurrent connections, and 4096 virtual firewalls. The industry leading performance can meet the performance demand of high-end customers, such as television and broadcast systems, government agencies, energy companies, and education organizations.

Quick Specs

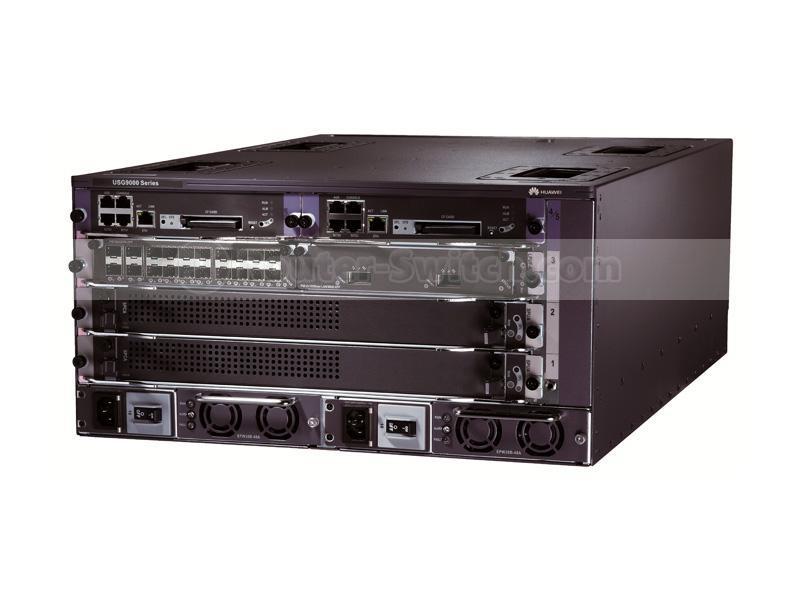

Figure 1 shows the appearance of USG9520-BASE-AC-V3.

USG9520-BASE-AC-V3 Appearance

Table 1 shows the Quick Specs.

Model	USG9520-BASE-AC-V3
Part Number	0235G7F6
Description	USG9520 AC Basic Configuration(include X3 AC Chassis,2*MPU)
Firewall Throughput (maximum)*	120 Gbit/s
Firewall Throughput (IMIX Traffic)	120 Gbit/s
Maximum Number of Concurrent Sessions	120 million
IPSec VPN Performance (1,420 Bytes)	84 Gbit/s
Maximum Number of Concurrent IPSec Tunnels	192,000
IPS Performance	38 Gbit/s
Antivirus Performance	34 Gbit/s
Expansion Slots	3 slots
Number of MPU Slots	2
Pack Weight(kg)	41
Pack Volume(m^3)	0.218
*Pack Dimension(DWH mm)*	885640385
*Net Dimension(DWH mm)*	442650220
Typic Power(W)	238.2
Power consumption	1,270W

The Modules, Cards, Licenses

Table 2 shows the recommended elements for the USG9520-BASE-AC-V3.

Category	Model	Description
SPU and SPC	SPU-X3-B	X3 Service Processing Unit(Base Board)
	SPU-X3-20-O-E8KE	20G X3 Firewall Service Processing Unit(oversea)
	SPC-IPS-20	IPS Service Processing Card
LPUF-120 and FPIC	E8KE-X-101-24XGE-SFP	24-Port 100/1000Base-X-SFP Flexible Card(P101,1/2wide,Occupy two sub-slots)
LPUF-120 and FPIC	E8KE-X-101-1X40GE-CFP	1-Port 40GBase LAN CFP Flexible Card(P101,1/2wide,Occupy two sub-slots)

Compare to Similar Items

Table 3 shows the comparison of USG9520-BASE-AC-V3, USG9560-BASE-DC-V3 and USG9580-BASE-DC-V3.

Product	USG9520-BASE-AC-V3	USG9560-BASE-DC-V3	USG9580-BASE-DC-V3
Expansion Slots	3	8	16
Maximum Firewall Throughput	120 Gbit/s	720 Gbit/s	1.44 Tbit/s
Maximum Number of Concurrent Sessions	120 million	720 million	1.44 billion
Basic Functions	Routing/Transparent/Composite mode, state validation detection, blacklist and whitelist, access control, Application Specific Packet Filter (ASPF), security zone division, virtual firewall, smart route, and load balancing
NAT/CGN	Destination NAT/PAT, NAT NO-PAT, source NAT-IP address persistency, source IP address pool grouping, NAT Server, bi-directional NAT, NAT-ALG (Application Layer Gateway), unlimited IP address expansion, policy-based destination NAT, port range pre-allocation, hair pinning mode, SMART NAT, NAT64, DS-Lite, and 6RD (IPv6 Rapid Deployment)
NGFW Functions	Supports intrusion detection and prevention, URL filtering, antivirus, data loss prevention, etc.
PKI	PKI certificate requests (PKCS 10), Certificate Authority (CA) PKI authentication: EAP-SIM, EAP-AKA PKI protocol: SCEP, OCSP, and CMPv2 Self-signed certificate
Virtual System	4,096-Virtual Firewall (VFW) definition, VLAN virtualization, security zones virtualization, user-defined virtual resources, route between VFW, and VFW-based traffic CAR
DDoS Mitigation	SYN-flood, ICMP-flood, TCP-flood, UDP-flood, and DNS-flood Port-scan, Smurf, Tear-drop, and IP-Sweep IPv6-extension-header defense, TTL detection, TCP-mss detection, and attack log output

Get more information

Do you have any question about the USG9520-BASE-AC-V3

Quality Certifications

Specification

USG9520-BASE-AC-V3 Specification

USG9520 Specifications
Performance and Capacity
Firewall Throughput (maximum)*	120 Gbit/s
Firewall Throughput (IMIX Traffic)	120 Gbit/s
Maximum Number of Concurrent Sessions	120 million
IPSec VPN Performance (1,420 Bytes)	84 Gbit/s
Maximum Number of Concurrent IPSec Tunnels	192,000
IPS Performance	38 Gbit/s
Antivirus Performance	34 Gbit/s
Expansion and I/O
Expansion Slots	3 slots
Number of MPU Slots	2
Interface Types	GE, 10 GE, 40 GE, and 100 GE interfaces
SPU	Firewall and application security SPUs
Dimensions, Power Supply, and Operating Environment
Dimensions (H x W x D)	175 mm x 442 mm x 650 mm DC 220 mm x 442 mm x 650 mm DC
Weight	Vacant chassis: 15 kg, DC Full configuration: 30.7 kg, DC Vacant chassis: 25 kg, AC Full configuration: 40.7 kg, AC
Redundant Power Supply	Standard configuration
AC Power Supply	90V AC to 264V AC; 175V AC to 264V AC (recommended)
DC Power Supply	-38V to -72V; Rated -48V
Power consumption	1,270W
Operating Temperature	Long-term: 0°C to 45°C Short-term: -5°C to 55°C Storage: -40°C to 70°C
Ambient Humidity	Long-term: 5% RH to 85% RH, non-condensing Short-term: 5% RH to 95% RH, non-condensing Storage: 0% RH to 95% RH, non-condensing

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common troubleshooting steps are there for the USG9520-BASE-AC-V3?

Common troubleshooting for the USG9520-BASE-AC-V3 involves checking power connections, configurations, and firmware integrity.

What accessories are available for the USG9520-BASE-AC-V3?

Available accessories for the USG9520-BASE-AC-V3 include additional interface cards and power supply units.

How does USG9520-BASE-AC-V3 compare with other similar products?

The USG9520-BASE-AC-V3 is known for its superior security performance and modular expandability compared to similar competitors.

Can the USG9520-BASE-AC-V3 support high traffic volumes?

Yes, the USG9520-BASE-AC-V3 is designed to handle high traffic volumes efficiently, making it suitable for large businesses.
